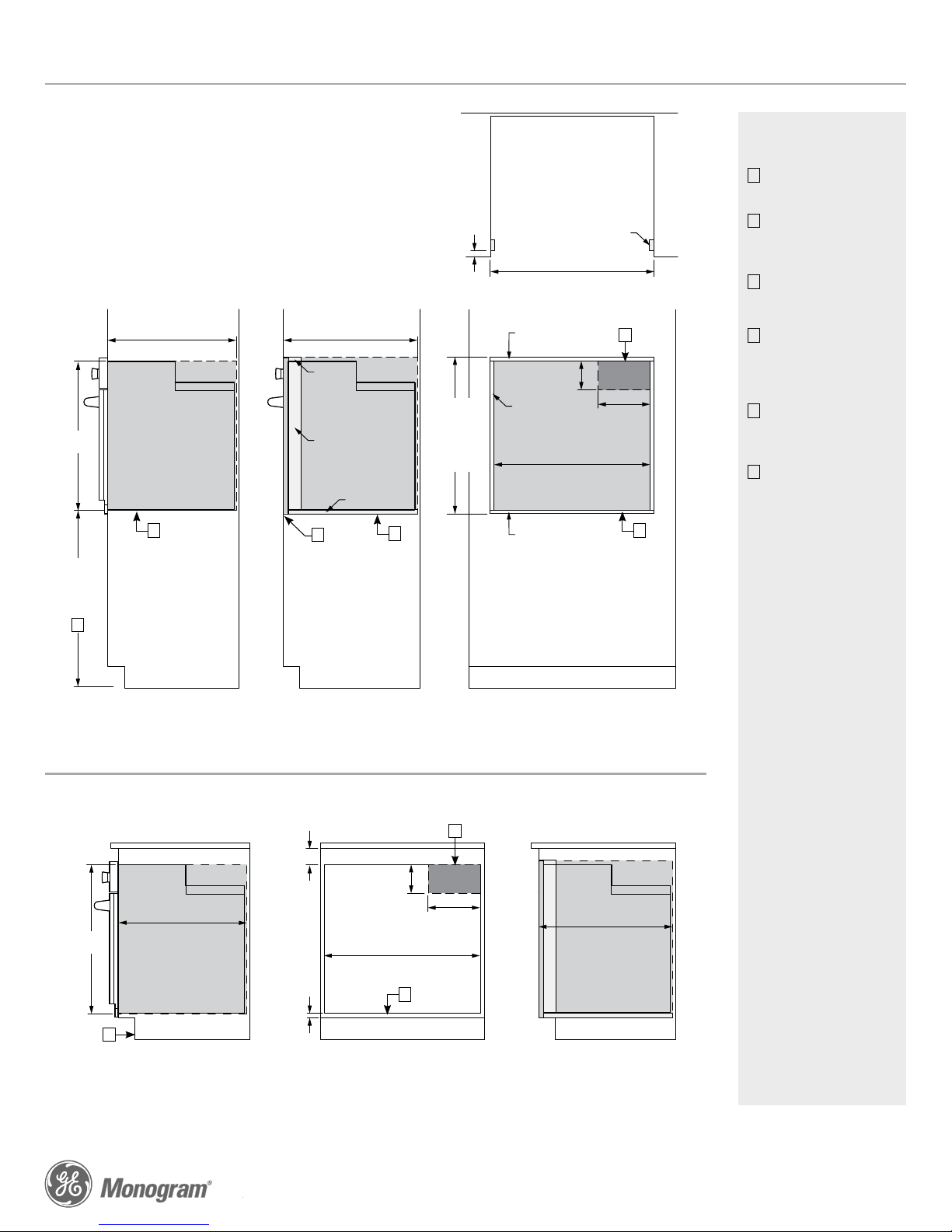

OVERALL DIMENSIONS

Dimensions in parentheses

are in centimeters unless

otherwise noted. Actual

product dimensions may

vary due to manufacturing

tolerances.

* Additional space will be needed for ﬂush installation.

Product Speciﬁcation Created 6/14

GE Monogram®30" Built-In Single Oven

SPECIFICATIONS

Overall Width 29 3/4" (75.6 cm)

Overall Height 28 5/16" (71.9 cm)

Overall Depth

Including Handle 27 5/8" (70.2 cm)

Oven Door Clearance 21" (53.3 cm) Min

Overall Oven

Interior Capacity 4.4 cu. ft. (124.6 l)

Oven Interior Dimensions

(W x H x D)

24" x 17 1/2" x 18 1/4"

(61.0 cm x 44.5 cm x 46.4 cm)

Minimum Cabinet Width* 30" (76.2 cm)

Minimum Cabinet Depth* 24" (61.0 cm)

Minimum Base Support 200 lbs (90 kg)

Cutout Width* 28 1/2" (72.4 cm) Min

28 5/8" (72.7 cm) Max

Cutout Height* 27 1/4" (69.2 cm) Min

27 5/16" (69.4 cm) Max

Cutout Depth* 23 1/2" (59.7 cm) Min

Volts/Hertz/Amps 240/208 V AC, 60 Hz, 20A

Conduit Length 48", 72" available special

order: WB18T10398

Electrical Rating 3.9 kW at 208V

4.3 kW at 240V

Shipping Weight 195 lbs (89.5 kg)

ZET1PMSS

28 5/16"

(71.9)

28 1/2" (72.4)

min cutout width

29 3/4" (75.6)

FRONT VIEW (SHOWING CUTOUT OVERLAP)

7/16"

(1.1)

5/8"

(1.6)

27 1/4"

(69.2) min

cutout height

22 9/16"

(57.3)

5 1/2"

(14.0)

7 1/4"

(18.4)

8 7/16"

(21.4)

24 7/8" (63.2)

10 13/16"

(27.5)

12 1/2"

(31.8)

1 9/16" (4.0)

2 7/8" (7.3)

8" (20.3)

5 3/8"

(13.7)

3 7/8"

(9.8)

SIDE VIEW

5/8"

(1.6) 9 7/8"

(25.1)

28 1/2" (72.4)

2 3/4"

(7.0)

27 5/8"

(70.2)

10 13/16"

(27.5)

TOP VIEW

OPEN OVEN DOOR

SHOWING DOOR CLEARANCE

21"

(53.3)

min

ZET1PM

ATTENTION ELECTRICIAN:

A 240/208V, 60Hz, 20 Amp circuit is required. An

inidividual properly grounded branch circuit or

circuit breaker is required. Hardware junction box

is required for built-in product.

NOTES

WALL INSTALLATION

ABased on a user height

of 5' 6" to 5' 10"

BJunction box location

(May also be located

in adjacent cabinet.)

CPlatform must be

able to support 200 lbs

(90 kg)

DCabinet surfaces must

be an appearance

ﬁnished surface for

ﬂush installation.

ECleats may be visible

and should be ﬁnished

to match cabinetry.

FMaximum toe kick

height of 4" when

installed beneath a

certiﬁed cooktop.

GE Monogram®30" Built-In Single Oven

TOP VIEW

30 1/4" (76.8) flush inset width

with 1/4" (0.6) reveals

3/4"

(1.9)

2 1/2"

(6.4)

Side cleats

depth

STANDARD

INSTALLATION

27 1/4"

(69.2)

32 1/2"

(82.6)

Recommended

cutout

location

from floor

FLUSH INSET

INSTALLATION

Side cleat

Top cleat

Bottom cleat

5 1/4"

(13.3)

9 1/2"

(24.1)

28 1/2"(72.4)

cutout width

7/8"

(2.2)

Side cleats

3/4"

(1.9)

Top cleat

ELEC.

9/16"(1.4)

Bottom cleat

(Extends full depth of cabinet)

FLUSH INSET INSTALLATION

FRONT VIEW

STANDARD INSTALLATION

FRONT VIEW

Dimension varies

ELEC.

3/4"

5 1/4"

(13.3)

9 1/2"

(24.1)

28 1/2"

(1.9)

min cutout width

(72.4)

STANDARD

INSTALLATION

23 1/2"

(59.7) min cutout depth

27 1/4"

(69.2)

FLUSH INSET

INSTALLATION

24 1/2"

(62.2)

cutout depth

24 1/2" (62.2)

cutout depth

23 1/2" (59.7)

min cutout depth

28 9/16"

(72.5)

Flush inset

height

with 1/8"

(0.3) reveals

ZET1PM

TOP VIEW

30 1/4" (76.8) flush inset width

with 1/4" (0.6) reveals

3/4"

(1.9)

2 1/2"

(6.4)

Side cleats

depth

STANDARD

INSTALLATION

27 1/4"

(69.2)

32 1/2"

(82.6)

Recommended

cutout

location

from floor

FLUSH INSET

INSTALLATION

Side cleat

Top cleat

Bottom cleat

5 1/4"

(13.3)

9 1/2"

(24.1)

28 1/2"(72.4)

cutout width

7/8"

(2.2)

Side cleats

3/4"

(1.9)

Top cleat

ELEC.

9/16"(1.4)

Bottom cleat

(Extends full depth of cabinet)

FLUSH INSET INSTALLATION

FRONT VIEW

STANDARD INSTALLATION

FRONT VIEW

Dimension varies

ELEC.

3/4"

5 1/4"

(13.3)

9 1/2"

(24.1)

28 1/2"

(1.9)

min cutout width

(72.4)

STANDARD

INSTALLATION

23 1/2"

(59.7) min cutout depth

27 1/4"

(69.2)

FLUSH INSET

INSTALLATION

24 1/2"

(62.2)

cutout depth

24 1/2" (62.2)

cutout depth

23 1/2" (59.7)

min cutout depth

28 9/16"

(72.5)

Flush inset

height

with 1/8"

(0.3) reveals

ZET1PM

UNDERCOUNTER INSTALLATION

For more details, refer to the installation instructions for this product on Monogram.com.

Dimensions in parentheses are in centimeters unless otherwise noted.

Allow 1/4" (0.64) clearances

from side edges of oven door.

ZET1PMSS

Product Speciﬁcation Created 6/14

NOTES

GE Monogram®30" Built-In Single Oven

INSTALLATION WITH ADVANTIUM

AND WARMING DRAWER

SIDE BY SIDE INSTALLATION

ADimensions per

Advantium or

Microwave Oven

requirement

BDimension per Warming

Drawer requirement

CNote this oven is only

approved to be installed

under speciﬁc models as

labeled on this unit.

DSupport platform made

of 3/4" (1.9 cm) wood

is required. Must be

capable of supporting

200 lbs (90 kg). Support

Platform base to be

same height as toe kick.

FJunction box location

for wall oven. (May

also be located in

adjacent cabinet).

HGas regulator and

electric connections

for cooktops must be

located in an adjacent

accessible location to

the right

ITop and/or side ﬁllers

may be necessary if unit

is positioned between

existing cabinets. Be

sure they are attached

securely, since they will

anchor the oven in the

cabinet.

JFor ﬂush oven

installations, the

cooktop cutout must be

set back 2 1/2" (6.4) plus

the cleat setback.

KDimension varies based

on model.

example:

ZGU385 5 1/2" (14.0)

(from wall)

ZGU384 4 5/16" (11.0)

(from wall)

LDimension varies based

on model.

example:

ZGU385 0"

(centerline)

ZGU384 12 1/16" (30.6)

(centerline)

2" (5.1) min

SIDE BY SIDE INSTALLATION

FRONT VIEW OF CUTOUTS

ELEC. ELEC.

2" (5.1)

min

2" (5.1)

min

STANDARD INSTALLATION

SIDE VIEW

STANDARD INSTALLATION

SIDE VIEW

FRONT VIEW

ELEC. ELEC.

GAS

wall oven

ELEC.

Wall oven

3/4" thick platform

required

(12.7)

To centerline

of gas pipe

2 7/8"

Junction box

can protrude

from back wall

of installation

(Not cabinet wall)

(7.4) max

GAS

cooktop

4 3/4"

(12.1) max

ZET1PM

2" (5.1) min

SIDE BY SIDE INSTALLATION

FRONT VIEW OF CUTOUTS

ELEC. ELEC.

2" (5.1)

min

2" (5.1)

min

STANDARD INSTALLATION

SIDE VIEW

STANDARD INSTALLATION

SIDE VIEW

FRONT VIEW

ELEC. ELEC.

GAS

wall oven

ELEC.

Wall oven

3/4" thick platform

required

(12.7)

To centerline

of gas pipe

2 7/8"

Junction box

can protrude

from back wall

of installation

(Not cabinet wall)

(7.4) max

GAS

cooktop

4 3/4"

(12.1) max

ZET1PM

For more details, refer to the installation instructions for this product on Monogram.com.

Dimensions in parentheses are in centimeters unless otherwise noted.

UNDER COOKTOP INSTALLATION

ZET1PMSS

Product Speciﬁcation Created 6/14

FEATURES AND BENEFITS

Electronic Controls - As elegant as they are

ergonomic

Halogen Light Columns - On the oven walls,

provide brilliant task lighting for each rack

position

Exclusive Self Cleaning, Full-Extension Oven

Racks - Glide in and out smoothly on stainless

steel ball bearings, and are designed to be left in

the oven during the self-clean cycle

4.4 Cu. Ft. Capacity - Easily accomodates even

the largest meals

True Hidden Bake Element - Concealed beneath

the oven ﬂoor, allowing additional capacity and

improved cleanability

Reverse-Air Convection System - Uses an

innovative fan that reverses direction for optimal

air and heat circulation, providing even cooking

and multi-rack baking capability

Six-Element Design - Two bake, two broil and

two convection elements provide precise cooking

control, with fast preheating

208V Performance Compensation - Utilizes the

six-element design to boost power in reduced

voltage installations

Signature Tubular Handles - Are smooth, sleek

and easy to grasp

Hand-Finished Edges - Reﬂect the meticulous

quality and cratsmanship for which Monogram

products are renowned

Two Broil Elements with Reﬂector Shield - Offer

intense, dual-zone broiling

GE Monogram®30" Built-In Single Oven ZET1PMSS

Product Speciﬁcation Created 6/14
