GE JKP50SHSS Manual

GE Appliances

JKP50SH – GE®27" Built-In Double Oven

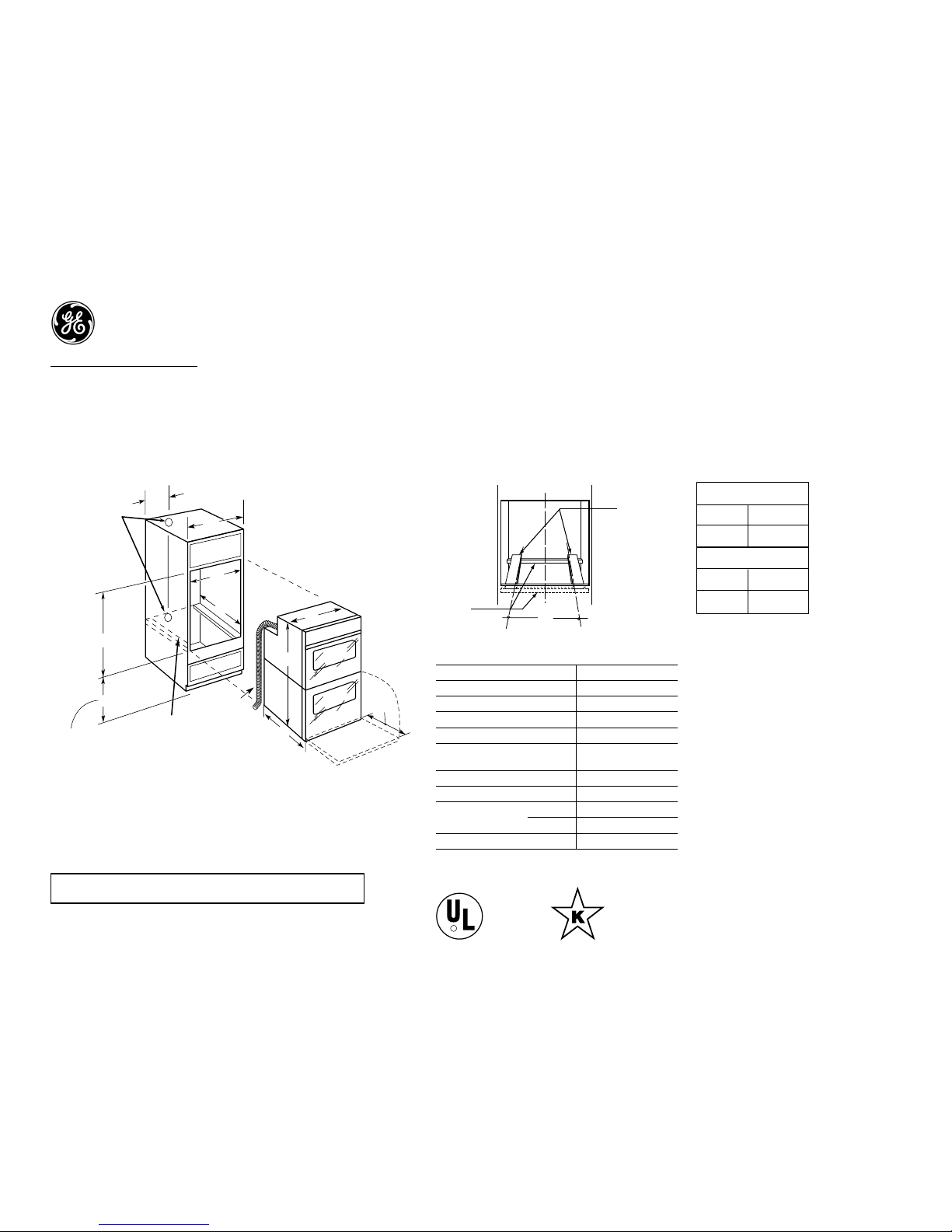

27" Built-In Double Oven Dimensions (in inches)

10

Locate

junction box

for 27"models

either 5" MIN.

below cutout

floor or 44"

MIN. above

cutout floor

Allow 3/4"

for overlap

over all edges

of cutout

A

Minimum

cutout location

from floor

D

E

2" X 4" or

equiv. runners

(cutout floor) 20" MIN.

door opening

allowance

B

C

H

F

G

Conduit

49" long 20

Cabinet 27"

A – Cabinet Width Required 27" min.

B – Minimum Cabinet Depth 23-5/8"

C – Opening Width 25" min. - 25-1/4 max.

D – Opening Height 50-1/8" max.

E – Recommended Minimum

Cutout Location from Floor 13-1/4"

Oven

F –Overall Depth 23-5/8"

w/o trim 50-1/4"

G –Overall Height with trim 51"

H –Overall Width 26-5/8"

C

L

Suitable

bracing

to support

runners 18"

Over centerline

of cabinet

2" x 4" or

equivalent

runners

(Must support 275 lbs.)

Note: Cabinets installed adjacent to wall ovens must have an adhesion spec of

at least a 194°F temperature rating.

Note: If marks, blemishes or the cutout opening is visible above the installed

oven, it may be necessary to add wood shims under the runners and front trim

until the marks or openings are covered.

Specification Created 8/03

320353

R

Listed by

Underwriters

Laboratories

For answers to your Monogram,®GE Profile™or

GE®appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

KW Rating

240V 6.8

208V 5.1

Breaker Size

240V 30 Amps

208V 30 Amps

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

Electric wall ovens are not approved for installation with a plug and receptacle.

They must be hard wired in accordance with installation instructions.

GE Appliances

Specification Created 8/03

320353

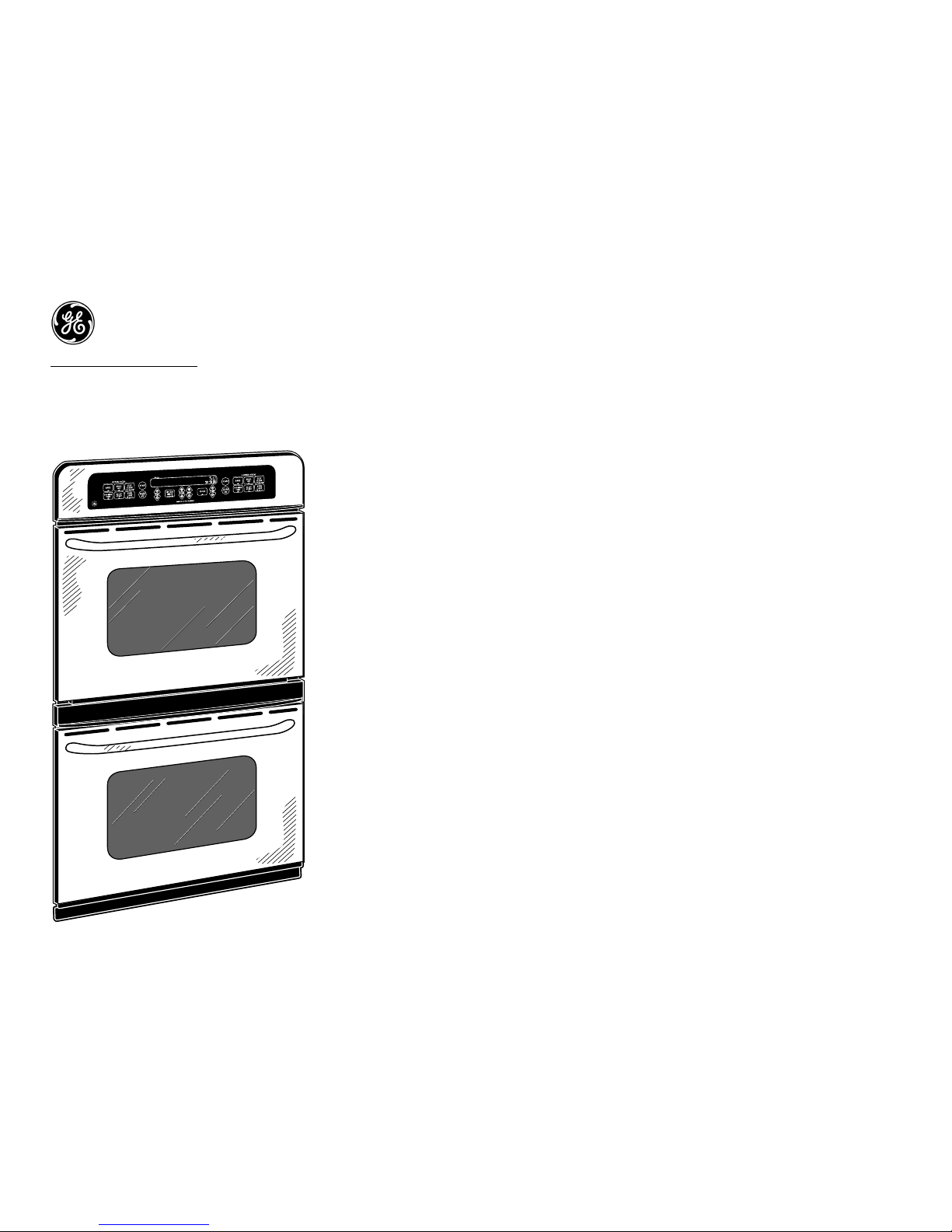

JKP50SH –GE®27" Built-In Double Oven

Features and Benefits

•Self-clean oven –Conveniently cleans oven cavity without the need for scrubbing.

•Extra-large oven capacity –Provides a large oven interior ideal for cooking more items at once.

•Electronic oven controls –One-touch electronic pads are easy-to-use and allow for simple

oven operation.

•TrueTemp™system –Delivers even heat distribution and maximum oven control.

•Big ClearView™window –an extra large clear window makes monitoring the progress of

the food easy.

•Interior oven light –Supplies light to make viewing the progress of cooking easy

and convenient.

•Dual element bake –Alternates the upper broiling element and the lower baking element

for even heating and optimal baking results.

•Model JKP50SHSS –Stainless steel
