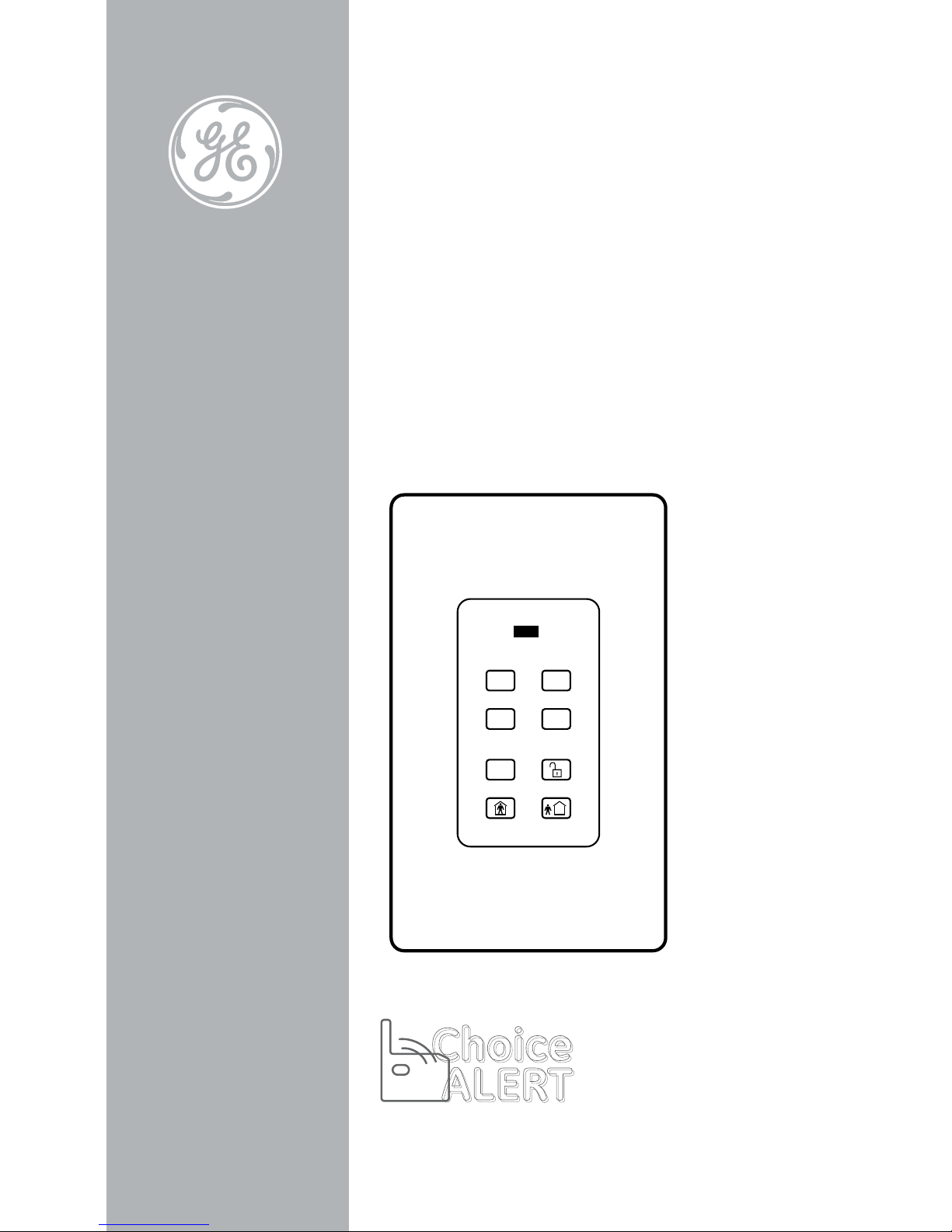

GE 45146- - Keypad Transmitter Remote Manual de usuario

Choice

ALERT

Choice

ALERT

™

Control all sensors, accessories

and remote transmitters from

one location

™

Wireless Alarm System

Wireless

Keypad

User’s Manual

1 2

3 4

Important Safeguards 4

Introduction 5

Assigning a Wireless Keypad to a Device Location 6

Programming Security Codes into 7

the Wireless Keypad

Changing the Master Code or either 7

Alternate User Code

Erasing Alternate User Codes 8

Placement of the Wireless Keypad 9

Mounting the Wireless Keypad on a Wall 10

Removing Top Cover from the Mounting Plate 11

Attaching Top Cover to Mounting Plate 11

Operating the Wireless Keypad 11

Using the Panic Button 12

Replacing a Wireless Keypad 12

Erasing a Wireless Keypad from a Control Center 13

Low Battery Indicator/Replacing the Battery 13

Resetting Master Code 14

Battery Warnings 15

F.A.Q.'S 16

FCC Warning 17

Table of Contents

Before connecting or operating the Wireless Keypad,

please read these instructions carefully and save this

manual for future reference.

Congratulations

The GE Choice Alert™ Wireless Alarm System is one of

the most affordable and expandable wireless alarm

systems available. You’ll discover that the system offers

many features typically found in custom installed

Alarm systems. The Choice Alert system is reliable and

easy-to-use. With Choice Alert you can select from a

line of Sensors, Accessories and Remote Transmitters;

start small and expand as you need, or create a system

that meets all your needs.

The Choice Alert System is protected by Priority

Code Selection technology which provides increased

security and trouble-free wireless connections. It also

guarantees the Control Center will only respond to

signals from your Sensors in and around your

home, and prevents anyone from tampering with

your system.

This user manual explains in simple steps how to

install, use and care for your new Choice Alert Wireless

Keypad.

If you have any questions or would like additional

information please visit our web site

www.jascoproducts.com, or contact our Tech Support

at 1-800-654-8483.

Important safeguards

PreCautions

1. Do not attempt to disassemble the Wireless Keypad,

unless described in the user’s manual. There are no

user serviceable parts.

2. Handle with Care – Avoid striking or shaking.

Improper use or storage could damage the Wireless

Keypad. Modifying or tampering the device or its

internal components can cause a malfunction

and void the Wireless Keypad’s warranty.

3. If you feel the Wireless Keypad or any part of the

Choice Alert system is not operating correctly or

as described, please contact Technical Support for

assistance (1-800-654-8483).

Introduction

The Wireless Keypad allows you to wirelessly control

your Choice Alert System. With this keypad, you will

be able to arm, disarm and immediately activate the

alarm with up to three personalized security codes.

Parts Check List

Identify all the parts before proceeding.

2- double sided adhesive tape

Wireless Keypad

2 - Screws

2 - Plastic anchors

1 2

3 4

1 2 3 4 Arm

Zone

Armed Power

1 2 3 4

Alert

Chime

Off

Mute

Learn

InputDC12V

Step 1

Press and hold

the Learn button

for three seconds

Step 3

To activate the keypad

press the panic button

on the unit.

Step 2

Press and release the

Device number

Activating the Battery

The Wireless Keypad is packaged with the battery

installed, but not activated. To activate the battery,

remove the yellow battery isolation strip on the side

edge; pull to remove. Once the strip is removed, the

Wireless Keypad will be active.

Assigning a Wireless Keypad to a Device Location

The Control Center is designed to store up to four

remote transmitters, such as the Wireless Keypad. In

order to ensure that the Wireless Keypad will operate

only with your Control Center, it must be assigned to

one of the four device locations on the Control Center.

Step 1. Press and hold the Learn button on the Control

Center. You will hear a short beep, followed shortly by a

long continuous beep. Release the Learn button.

Step 2. On the Control Center, press and release one of

the device numbers (1,2,3 or 4) that you want to assign

the Wireless Keypad. The LED for that device number

will begin to ﬂash.

Step 3. Press the red Panic button on the wireless

keypad. The Control Center will sound a long beep and

the LED will stop ﬂashing. This conﬁrms the Wireless

Keypad has been assigned to the selected device

number.

Programming Security Codes into the Wireless Keypad

The Wireless Keypad operates independently from

the Control Center. The Wireless Keypad can store

up to three different security user codes into its

memory – the Master Code and two alternate User

codes. The Master Code (1) has been set to 1-2-3-4. It

is recommended to change the Master Code to a new

personal 4-digit number. The Master Code is also used

to set/change either of the alternate User codes, so it

is important to remember the Master code. Alternate

User codes can be set to provide access for different

individuals outside of the immediate occupants,

such as a ‘vacation’ code used to temporarily allow

someone access to the house while you are away.

Changing the Master code or alternate User code

Step 1. Press and release the Green button (disarm

button). Enter Current Master code. Press and release

the Green button. The LED will remain on during the

programming progress.

NOTE: After placing the wireless keypad into the

programming mode, you have approx 30 seconds to

enter a selection at each step or the LED will ﬂash 3

times and turn off. If it does, it means you timed out of

the programming mode and must start over.

Step 2. Enter a number (1, 2, or 3) for the User code

you would like to change (1=Master code, 2= User 2

code, 3 = User 3 code).

Step 3. Press and release the Green button.

Step 4. Enter the new 4-digit code. Press and release

the Green button.

Step 5. Re-enter new 4-digit code again. Press and

release the Green button.

The LED will ﬂash 5 times and turn off indicating the

code for that User code has been stored/changed.

Example: To set User 2 code to 2222

Press and release the Green button

(The LED will turn on)

Enter 1,2,3,4 (Wireless keypad is now in Program Mode)

Press and release the green button

Enter 2

Press and release the green button

Enter 2,2,2,2

Press and release the green button

Re-enter 2,2,2,2

Press and release the green button (red LED will ﬂash 5

times and turn off)

In this example, User 2 code has been set as 2222.

Erasing Alternate User Codes

Alternate user codes can be removed completely from

the memory if necessary. Note: the Master Code (1)

cannot be erased, only changed.

Step 1. Press and release Green button. Enter Current

Master code. Press and release the Green button. The

LED will light.

Note: You have approx 30 seconds to make a selection

at each step, or the LED will ﬂash 3 times and turn off.

If it does, you’ll have to start over.

Step 2. Enter a number (2, or 3) for the code you

would like to erase (2= User 2 code, 3 = User 3 code).

Press and release the Green button three times.

The LED will ﬂash 5 times and turn off indicating the

code for that number has been erased.

Placement of the Wireless Keypad.

The Wireless Keypad is designed to be mounted inside

onto a wall, or it can lay on a ﬂat surface (such as a

night stand). If mounting to a wall, use the double-

sided tape strips or the screws/wall anchors (both

included).

Note (1): Do not mount in an exterior location; the

Wireless Keypad is not weather resistant.

Note (2): The Wireless Keypad can transmit up to

150ft. However like all wireless devices, this distance

is subject to conditions of the home. The number of

walls and appliances between the Wireless Keypad

and the location of the Control Center can reduce

the signal transmission distance. When selecting a

placement, test the Wireless Keypad at the location

before mounting. Using a signal repeater can extend

the transmission distance.

Mounting the Wireless Keypad onto a Wall (using

double sided tape strips)

Select a suitable location that provides protected, easy

access. Be sure to test the device before mounting.

Clean both surfaces with 50/50 mix of isopropyl

alcohol and water. Using the provided double sided

tape strips, peel one side and ﬁrmly apply to the

indented areas on the back of the mounting plate.

Peel the remaining side of the double sided tape and

lightly mount to the wall. Once you are conﬁdent with

the placement, press ﬁrmly to secure to the wall.

Mounting the Wireless Keypad onto a Wall (using

screws/wall anchors) – you will need a drill, 3/16” or

1/8” drill bit and screwdriver.

Step 1. Remove the top cover from the mounting

plate. (See Removing the Top Cover from the

Mounting Plate.) Set the top cover aside.

Step 2. Select a suitable location that provides

protected, easy access. Be sure to test the device

before mounting. Use the mounting plate as a

template. Be sure to position the mounting plate with

the arrow pointing up. Mark the two holes on the wall

for the anchors and/or screws as shown. Please be

sure to mark the center of the holes.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Teclado de GE

GE Keypad Controller 45631 Manual de usuario

GE NetworX NX-1500E Manual de usuario

GE LCD Keypad Manual de usuario

GE NX-148E - Security NetworX LCD Keypad Manual

GE NX-148E - Security NetworX LCD Keypad Manual de usuario

GE Dialog QS1500 00 Touchtalk Manual de usuario

GE NetworX NX-1600E Series Manual de usuario

GE KTD-405 Manual de usuario

GE AL-1111 Manual de usuario

GE NX-1448E - Security NetworX 48-Zone Fixed Manual de usuario

GE NX-148E - Security NetworX LCD Keypad Manual de usuario

GE NetworX NX-1192E Manual de usuario

GE CS5500 Manual del propietario

GE 60-924-3-01 - ITI Simon 3 Wireless Touch Talk... Hoja de instrucciones

GE NX-1348E-ICON Manual de usuario

GE Interlogix Aritech ATS1155 Manual de usuario

GE IC754VSI06SKD Manual de usuario

GE AL-1103 Manual de usuario

GE KTD-405 Manual de usuario

GE NX-148E - Security NetworX LCD Keypad Manual de usuario

GE NX-108E - Security NetworX NX-4 System Manual de usuario

GE NX-148E-RF - Security NetworX NX-8E System Manual de usuario

Manuales populares de Teclado de otras marcas

BFT

BFT SELETTO Manual de usuario

Micro Id

Micro Id MP7G3BL Manual de instrucciones

WindowMaster

WindowMaster WLI 130 Manual de usuario

ACT

ACT ACT PRO 1030 Manual de usuario

Cardin

Cardin SSB Series Manual de usuario

Harman Kardon

Harman Kardon KP 1 Manual de usuario

Chamberlain

Chamberlain KPR2000 Guía del usuario

CYP

CYP CR-KP1 Manual de usuario

Aeware

Aeware k-35 Series Guía de referencia

Aritech

Aritech CS-175 Series Manual de usuario

Lenze AC Tech

Lenze AC Tech MC SERIES Manual de usuario

Burg Wächter

Burg Wächter secuENTRY 7711 Manual de usuario

Aeware

Aeware in.k450 Manual de usuario

Lenze

Lenze EPM-H410 Manual de usuario

Toshiba

Toshiba RKP007Z Manual de usuario

Gemini

Gemini GEM-DXK1 KEYPAD Manual de usuario

Russound

Russound MDK-C5 Manual de funcionamiento

Bosch

Bosch D1260 Series Manual de usuario
