Illustrated Parts List
MODEL
040315A-0
7,000 Watt
Home Generator System
Rev. A
IPL No. 314263 2/1/2011
Not for
Reproduction
Not for
Reproduction
Table Of Contents
Torque Specification Chart ............................................................................................ Inside Back Cover
PRODUCT COMPONENTS PAGES
Main Unit .............................................................................................................................................................. 4
Alternator .............................................................................................................................................................. 6
Control Panel ....................................................................................................................................................... 7
Enclosure ............................................................................................................................................................. 9
Not for
Reproduction
Ex
p

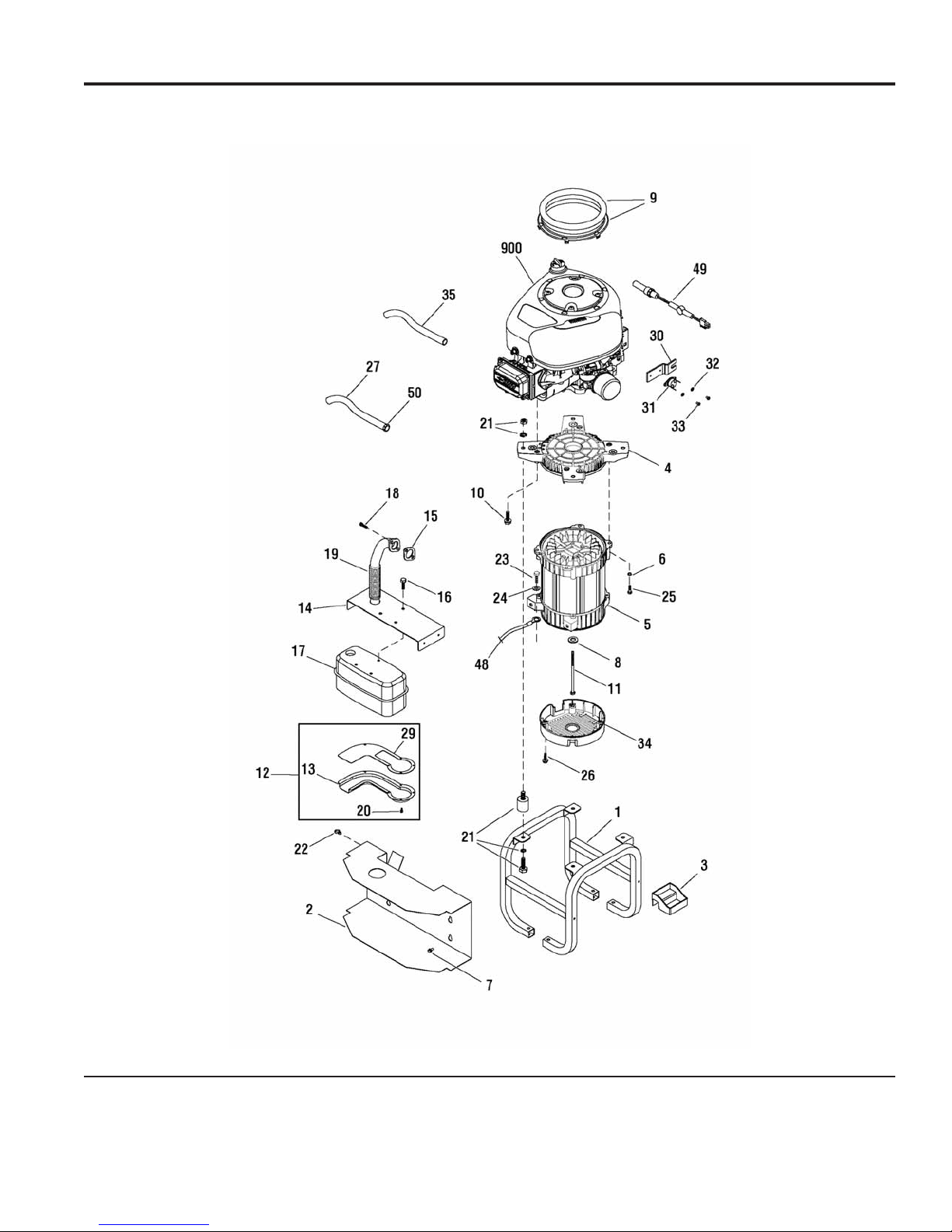

loded View - Main Unit
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
313698
4
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.
Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Main Unit
Footnotes:
Part No. Descri
p
tionRef.
CRADLE1 B191860GS
BOX, Muffler2 313654GS
TRAY, Oil Drain3 193536GS
ADAPTER, Engine4 191793GS
ALTERNATOR ASSEMBLY5 -----
* WASHER, Lock, M86 -----
BOLT7 B4300GS
WASHER, 8.4 x 22.2 x 38 96796GS
KIT, Seal9 311723GS
TAPTITE10 2830598SM
CAPSCREW, Hex Head, 5/16-24 x 9.8411 187365HGS
KIT, Deflector, Muffler Assembly12 207270GS
ASSEMBLY, Deflector Muffler13 193475GS
BRACKET, Muffler14 313651GS
GASKET15 692236
SCREW, Taptite, M8 1.25 x 1516 83512GS
MUFFLER17 207059GS
SCREW, Socket Head Cap18 698941
PIPE, Exhaust19 194159GS
KIT, Muffler Hardware20 195008GS
KIT, Vibration Mount21 194209GS
CLIP, Retainer Fuel Hose22 192940GS
* CAPSCREW, Hex Head, M6 - 1.0 x 3023 -----
* WASHER, Lock, M624 -----
* CAPSCREW, Hex Head, 5/16-18 x 125 -----
SCREW, Taptite, M5 - .8 x 1026 74908GS
HOSE, Fuel27 206817GS
ARRESTOR, Spark29 194221GS
PLATE, Switch30 206047GS
SWITCH31 206045GS
WASHER, Lock, #432 27772GS
* - Items without part numbers are common fasteners and are available at your local hardware store.
** Contact Engine Manufacturer
5
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.
Not for
Reproduction
Ex
p
loded View - Main Unit
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
313698
6
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.
Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Main Unit
Footnotes:
Part No. Descri
p
tionRef.
* SCREW, Phillips Head, 4-40 x .01933 -----
COVER, Bearing34 192906GS
HOSE, Oil Drain35 1723165SM
WIRE, Ground48 15253621GS
WARMER, Oil49 01916
CLAMP50 57822GS
** ENGINE900 -----
MANUAL, Operator’s (Not Illustrated)-- 313689GS
MANUAL, Engine (Not Illustrated)-- 277766TRI
KIT, Manual ACC (Not Illustrated)-- 313695GS
FLEX HOSE (Not Illustrated)-- 202295GS
PAINT, Touchup, Silver (Not Illustrated)-- 198811GS
FILTER, Oil (Not Illustrated)-- 492932B
FILTER, A/C Cartridge (Not Illustrated)-- 790263
KIT, Conversion, LP (Not Illustrated)-- 195069GS
BIT, Screw (Not Illustrated)-- 196731BGS
WARMER, Battery (Optional Accessory)-- 01915
KIT, Maintenance (Optional Accessory)-- 6034
PAINT, Touchup Spray, 12oz, Gray (Optional
Accessory)
-- 199474GS
* - Items without part numbers are common fasteners and are available at your local hardware store.
** Contact Engine Manufacturer
7
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.
Not for
Reproduction
Ex
p

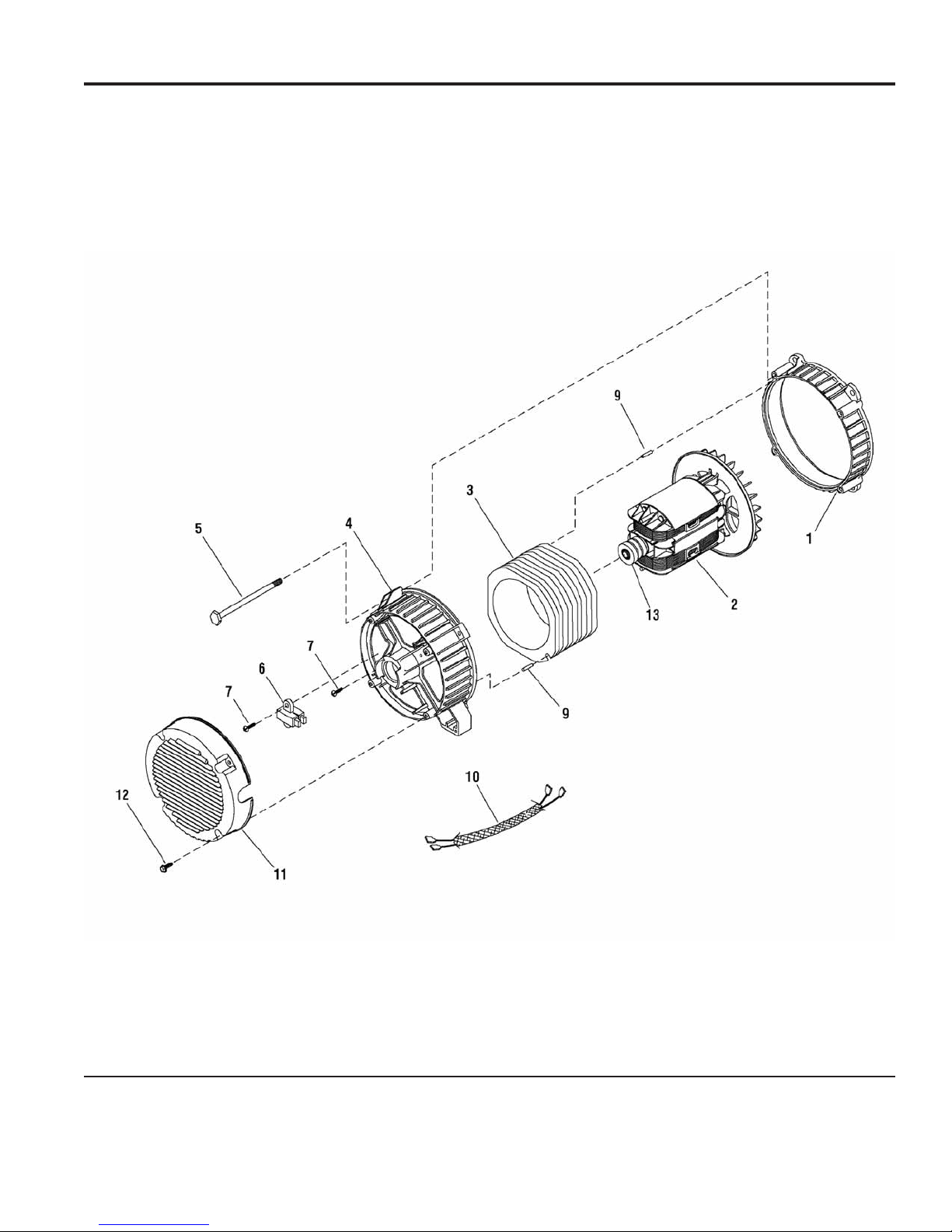

loded View - Alternator
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
206480
8
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.
Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Alternator
Footnotes:
Part No. Descri
p
tionRef.
ADAPTER, Alternator1 209599GS
ROTOR2 195430GS
STATOR3 206542GS
RBC (with O-Ring p/n 189197GS)4 193336GS
BOLT5 86308BGS
BRUSH ASSEMBLY6 66386GS
TAPTITE7 66849GS
PIN9 81917GS
HARNESS, Wiring10 193472GS
COVER, Rear Bearing11 192906GS
TAPTITE12 74908GS
BEARING13 65791GS
9
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.
Not for
Reproduction
Ex
p

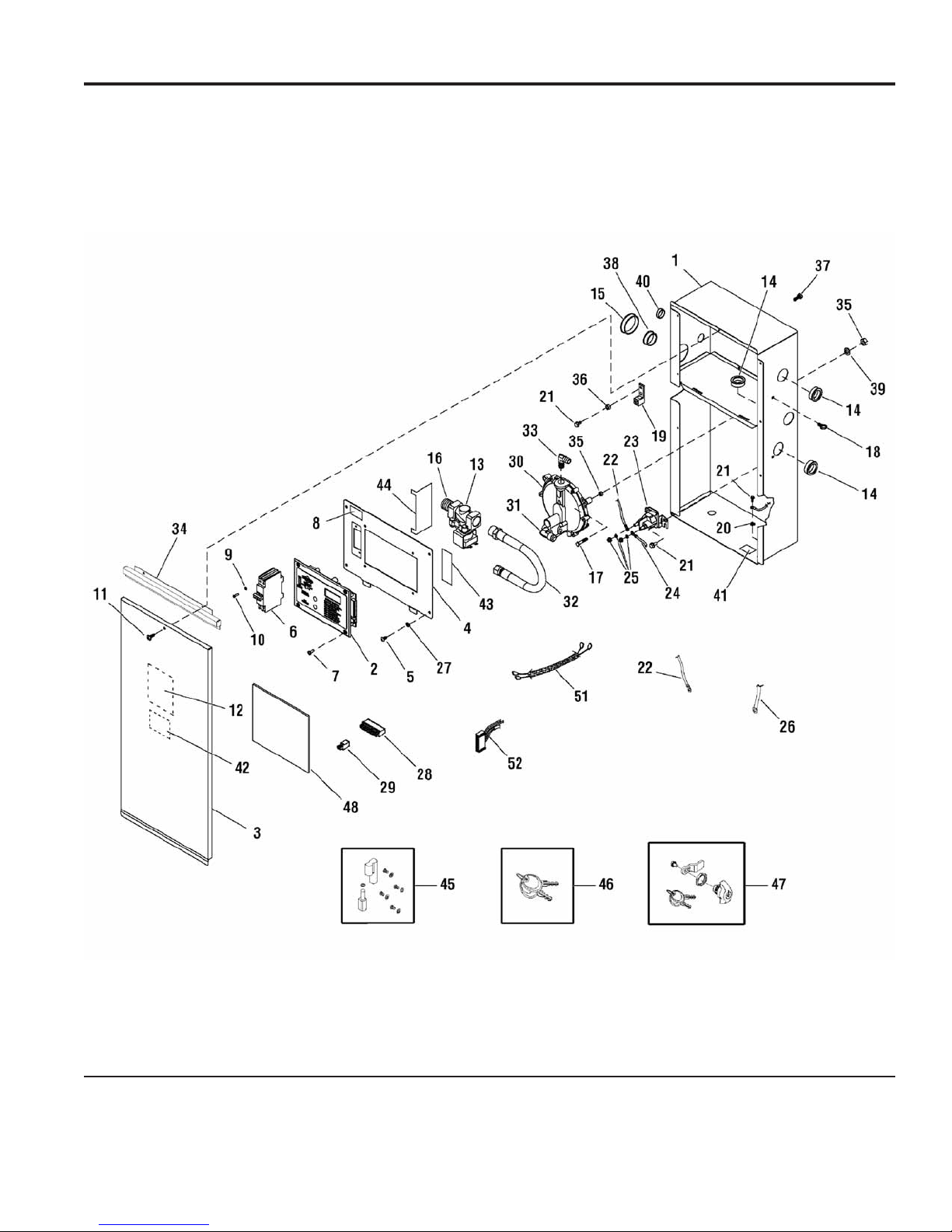

loded View - Control Panel
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
208189
10
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.
