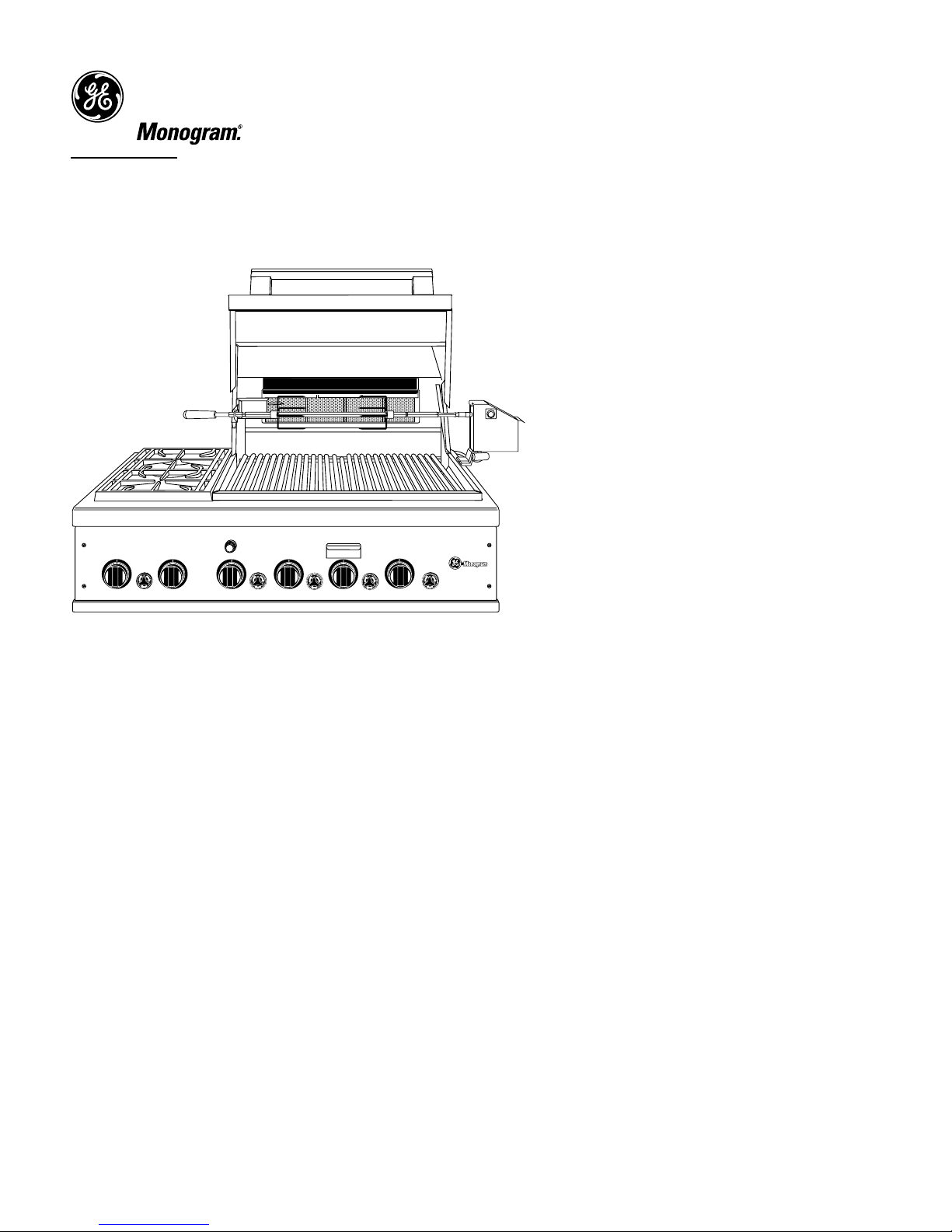

ZGG36L21CSS – GE Monogram 36" Outdoor Cooking Center

Dimensions and Specifications (in inches)

36” Liquid Propane Gas Model:

2 Grill Burners, 1 Infrared Burner and 2 Side Burners

• Monogram Outdoor Cooking Centers are designed to be installed on a

grill cart or into an enclosure.

• These cooking centers are designed for outdoor use only. Do not

locate the grill in a building, garage or other enclosed area.

•Ensure that fresh air ventilation is adequate.

•Consider exposure to wind and proximity to traffic paths.

•The minimum clearances to combustibles must be maintained at

all times.

•Do not install a grill below overhead unprotected combustible

construction.

•The installation must conform to local codes or in the absence of local

codes, with the national fuel gas code, ANSI Z223 latest edition.

3" Min.

Lid Clearance

22-5/8"

25-3/8"

9-1/2"

12-1/2"

35-7/8"

Note: Reference pub. no. 499-80009-2, Monogram Outdoor

Cooking Center Installation Instructions, for complete details.

Reference pub.no. 49-80008, Monogram Outdoor Cooking Center

Cart Installation Instructions, for complete details.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

GE Profile Performance Series™

GE Profile™or GE appliance questions, call

GE Answer Center®service, 800.626.2000.

Specification Revised 7/02

ZGG36L21CSS –GE Monogram 36" Outdoor Cooking Center

Dimensions and Specifications (in inches)

Installation in a non-combustible enclosure

•In a non-combustible (masonry) enclosure, the grill drops into the

opening. A deck or ledge on each side is required for support

from the bottom.

Installation in a combustible enclosure

ZX36JYSS insulated jacket is required.

•The insulated jacket must be supported from the bottom by a solid

deck or ledge on each side beneath the jacket.

•Construct the enclosure as shown and place the insulated jacket

into the enclosure. Place the cooking center into the jacket. No

installation hardware is required.

Clearances –All Models

•Allow 3”at the rear for lid clearance.

•Allow at least 12”clearance at the back of the grill when exhaust

is directed to a window or a surface that is difficult to clean.

•Allow at least 6”clearance on each side to any non-combustible

material located above the cooking surface for counterspace.

Rotisserie models also require 6”clearance for placing and

handling the motor and skewer.

•Allow at least 12”clearance on each side to combustible

vertical materials.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

GE Profile Performance Series™

GE Profile™or GE appliance questions, call

GE Answer Center®service, 800.626.2000.

3" Min. for Lid

Clearance

34-1/2"

18-1/2"

22-3/4"

9-1/8"

24-1/8"

18-1/4"

4x4 Opening

for Gas Supply

Line

Opening

for Access

Doors

If Installing

an Electrical

Outlet for

the Rotisserie

Motor, Mount

on Right Side

(6.5 AMP Min.)

35-1/2"

3" Min. for Lid

Clearance

40-1/2"

18-1/2" 3-1/8"

23-3/4"

10-1/8"

24-1/8"

18-1/4"

4x4 Opening

for Gas Supply

Line

Opening

for Access

Doors

(6.5 AMP Min.)

35-1/2"

Specification Revised 7/02

ZGG36L21CSS –GE Monogram 36" Outdoor Cooking Center

Features and Benefits

•Liquid Propane Model (LP Tank Included)

•2 (20,000 BTU) Cast-Iron Gas Grill Burners

•14,000 BTU Infrared Rotisserie System

•5,000 BTU Stainless Steel Gas Smoker Burner

•2 (15,000 BTU) Cast Iron Gas Cooktop Burners

•Warming Rack

•Rotary Multi-Spark Piezo Ignition

•Brass Control Valves

•Steel, Porcelain-Enameled Grill Grates

•Porcelainized, Cast-Iron Burner Grates

•Stainless Steel, Slide-Out Drip Tray

•Heavy Duty 304 Stainless Steel Construction

•Flexible Installation

•Model ZGG36N21CSS –Natural Gas

•Model ZGG36L21CSS –Liquid Propane Gas

GRILL

IGNITOR

SMOKER

IGNITOR

GRILL

IGNITOR

ROTESSERIE

IGNITOR

SMOKER GRILLGRILLROTISSERIE

HOLD10 SEC. WHILE LIGHTING

IGNITOR

REAR FRONT
