S1080 IP NETWORK CAMERA

Quick Reference

Guide

All manuals and user guides at all-guides.com

all-guides.com

United States

Offices and Customer Service

Intelligence Video LLC

Address: 4039 Transport St., STE 104

Palo Alto, CA 94303

USA

Phone:+1 650 877 2911

E-mail: info@intelligencevideoinc.com

Unpublished copyright @2016 Intelligence Video, LLC. All rights reserved. This document is the property of

and contains information proprietary to Intelligence Video, LLC. No part of this document may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the written permission of Intelligence Video, LLC.

All manuals and user guides at all-guides.com

Quick Reference Guide

QRG-S1080-1000

Revision C

Feb 22, 2016 Company Proprietary Information Page i of ii

Table of Contents

1.0

CONFIGURE THE CAMERA FOR THE LENS TYPE...................................................................................................1

2.0

INSTALL THE CAMERA FOR THE FIRST TIME .......................................................................................................1

2.1

Camera Connected Directly to a Personal Computer ......................................................................1

2.2

Standalone POE Switch Installation.................................................................................................5

2.3

UPNP- and DHCP-Enabled Network Installation .............................................................................6

2.4

Use DCHP to Obtain an IP Address Automatically ..........................................................................7

3.0

WEB BROWSER GUI SCREEN...........................................................................................................................8

3.1

Select Stream(s) to View ..................................................................................................................8

3.2

Icons .................................................................................................................................................8

4.0

ADD/EDIT USERS SCREEN................................................................................................................................9

5.0

VIDEO SETTINGS............................................................................................................................................10

5.1

Advanced Video Settings ...............................................................................................................12

5.2

Face Detection - Region of Interest................................................................................................12

6.0

ADVANCED FEATURES SCREEN ......................................................................................................................13

7.0

CAMERA ........................................................................................................................................................14

7.1

Camera – Advanced Settings.........................................................................................................15

7.2

Camera – Pan/Tilt...........................................................................................................................15

7.3

Alignment Controls .........................................................................................................................16

8.0

AUDIO ...........................................................................................................................................................16

9.0

DATE/TIME ....................................................................................................................................................17

10.0

NETWORK AND PORT SCREEN ........................................................................................................................18

11.0

ALARM ..........................................................................................................................................................19

12.0

STORAGE ......................................................................................................................................................21

12.1

Create a Recording Schedule ........................................................................................................21

12.2

Upload Files at the Storage Screen ...............................................................................................22

12.3

Upload Files At the Alarm Screen ..................................................................................................22

List of Figures

Fig re 1 Back of Camera Showing DIP #1 in Position 2 ........................................................................................ 1

Fig re 2 Camera Connected Directly to PC ........................................................................................................... 2

Fig re 3 OnVIF Main Screen and Log In ................................................................................................................ 2

Fig re 4 Wrench Icon and Application Settings Screen ........................................................................................ 3

Fig re 5 Internet Explorer Screen ......................................................................................................................... 3

Fig re 6 Internet Options...................................................................................................................................... 4

Fig re 7 S1080 IP Network Camera Log In Screen ................................................................................................ 4

Fig re 8 Web Browser GUI Screen (Live Video Screen) ........................................................................................ 4

Fig re 9 Set Browser Window Size ....................................................................................................................... 5

Fig re 10 PC to Standalone POE Switch to Camera ................................................................................................ 5

Fig re 11 Back of Camera and POE Switch ............................................................................................................. 5

Fig re 12 PC to POE Switch to Cameras ................................................................................................................. 6

Fig re 13 UPnP Icon for S1080 IP Network Camera ............................................................................................... 6

Fig re 14 Ethernet Icon .......................................................................................................................................... 7

Fig re 15 Live Video Screen .................................................................................................................................... 8

Fig re 16 Live Video Screen Icons ........................................................................................................................... 8

Fig re 17 Add/Edit Users Screen ............................................................................................................................ 9

Fig re 18 Video Screen ......................................................................................................................................... 10

Fig re 19 Advanced Video and Region of Interest Screens .................................................................................. 12

Fig re 20 Advanced Feat res Screen .................................................................................................................... 13

All manuals and user guides at all-guides.com

QRG-S1080-1000

Revision C

Quick Reference Guide

Page ii of ii Company Proprietary Information Feb 22, 2016

Fig re 21 Camera Settings Screen ........................................................................................................................ 14

Fig re 22 Camera > Pan/Tilt Screen...................................................................................................................... 15

Fig re 23 A dio Setting Screen ............................................................................................................................. 16

Fig re 24 Date/Time Screen ................................................................................................................................. 17

Fig re 25 Network and Port Screen ...................................................................................................................... 18

Fig re 26 Alarm Screen ......................................................................................................................................... 19

Fig re 27 Storage Screen ...................................................................................................................................... 21

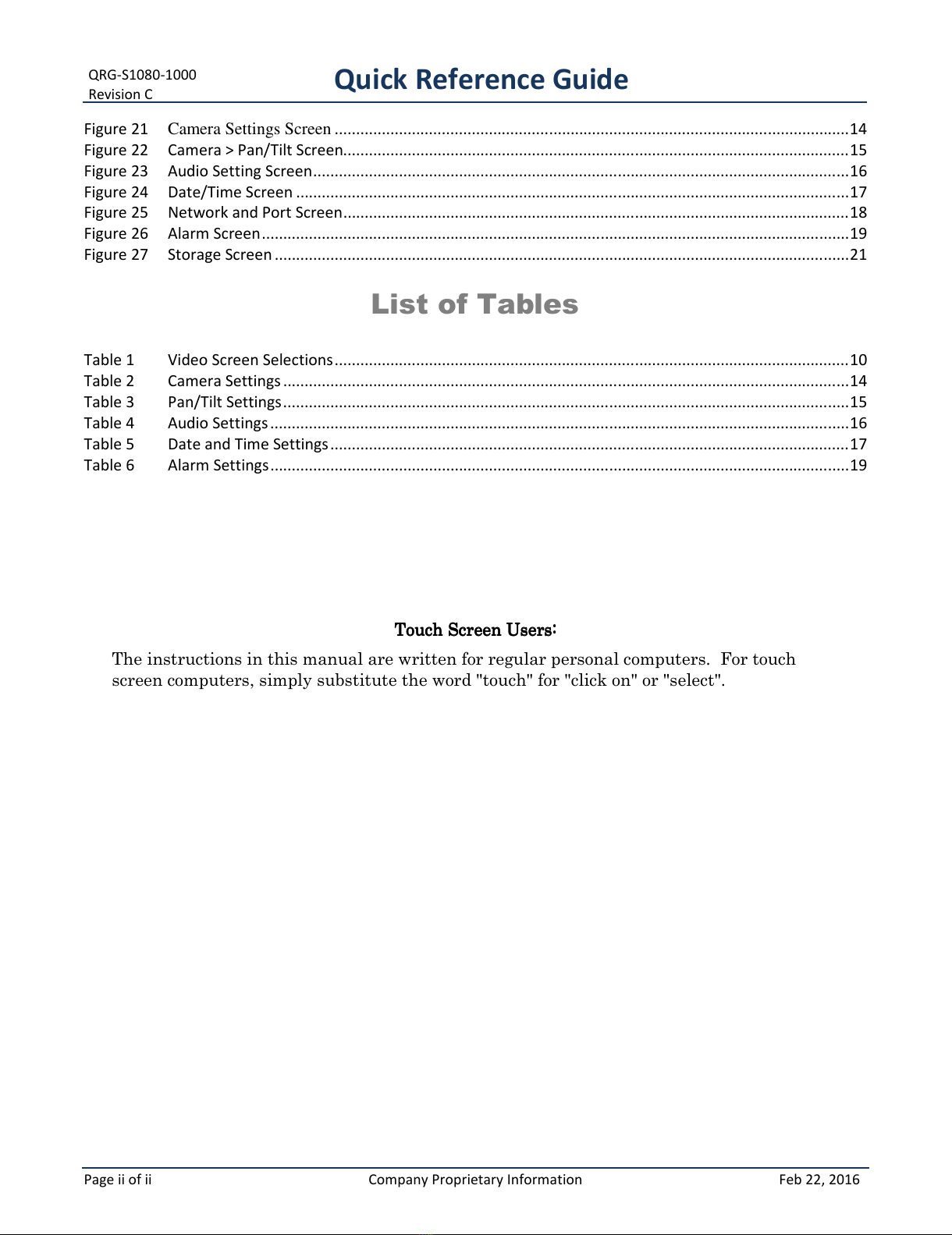

List of Tables

Table 1 Video Screen Selections ........................................................................................................................ 10

Table 2 Camera Settings .................................................................................................................................... 14

Table 3 Pan/Tilt Settings .................................................................................................................................... 15

Table 4 A dio Settings ....................................................................................................................................... 16

Table 5 Date and Time Settings ......................................................................................................................... 17

Table 6 Alarm Settings ....................................................................................................................................... 19

Touch Screen Users:

Touch Screen Users:Touch Screen Users:

Touch Screen Users:

The instructions in this manual are written for regular personal computers. For touch

screen computers, simply su stitute the word "touch" for "click on" or "select".

All manuals and user guides at all-guides.com

Quick Reference Guide

QRG-S1080-1000

Revision C

Feb 22, 2016 Company Proprietary Page 1 of 22

1.0 CONFIGURE THE CAMERA FOR THE LEN TYPE

The two most commonly sed types of lenses on the S1080 IP Network Camera are the man al iris lens and the DC Iris

(direct control iris) lens. The factory-set defa lt is for the man al iris lens.

If a manual iris lens is being sed, the camera is pre-config red and req ires no action.

If a DC Iris lens is being sed, a DIP switch setting on the back of the camera needs to be changed.

At the back of the camera there are two DIP switches, #1 and #2. Flip DIP switch #1 into position 2 when sing a DC Iris

lens (as shown in Fig re 1).

Figure 1 Back of Camera Showing DIP #1 in Position 2

2.0 IN TALL THE CAMERA FOR THE FIR T TIME

There are three ways to install the S1080 IP Network Camera:

(1) By connecting the camera directly to yo r personal comp ter (PC). See Section 2.1, Camera Connected Directly

to a Personal Computer.

(2) By connecting the camera to a standalone Power-over Ethernet (POE) switch that is connected to yo r PC.

See Section 2.2, Standalone PO Switch Installation.

(3) By connecting it to a network via a POE switch. See Section 2.3, UPNP- and DHCP- nabled Network Installation.

2.1 Camera Connected Directly to a Personal Computer

These instr ctions describe how to se the OnVIF Device Manager application to interface with the camera’s software

with the camera connected directly to a standalone PC.

Step 1. Download “OnVIF Device Manager”

From the internet, download the OnVIF Device Manager application from

http://so rceforge.net/projects/onvifdm/. After the application has down-loaded, the OnVIF icon displays on

yo r desktop.

Step 2. Power On Standalone PC

Before connecting the camera, power-on the standalone PC, witho t the Ethernet cable connection, and second,

ens re that the PC’s Ethernet interface is config red to se DHCP to obtain an IP address a tomatically. See Section,

2.4, Use DCHP to Obtain an IP Address Automatically, for detailed information on req ired PC settings.

DIP Switch #1

in position 2

LAN LED

Power

LED

All manuals and user guides at all-guides.com

QRG-S1080-1000

Revision C

Quick Reference Guide

Page 2 of 22 Company Proprietary Information Feb 22, 2016

Step 3. Connect Camera to Your Computer

Using an Ethernet cable, connect one end of the cable to the LAN/POE slot in the back of the camera and the other end

to yo r comp ter (see Fig re 2).

Figure 2 Camera Connected Directly to PC

Step 4. Power On Camera with DC Power Supply

Insert the connector end of the camera’s power s pply cable into the DC 12V receptacle located on the back

of the camera. Pl g the electrical end of the power s pply cable into a power o tlet.

Wait ntil the two camera LEDs light p. Initially they are red/orange in color; when they both t rn green,

the camera is “on” and working correctly (see Fig re 1)

Step 5. Open “OnVIF Device Manager”

Open the OnVIF application by do ble-clicking on its icon on yo r desktop and its Main Screen opens.

At the OnVIF Main Screen, check the Remember checkbox (see Fig re 3).

Enter yo r Name (admin) and Password (9999).

Figure 3 nVIF Main Screen and Log In

Click on the Log in b tton.

Yo r camera’s IP address is shown in the gray box as Address.

Step 6. Change Settings

Click on the wrench icon located at the top right side of the OnVIF Main Screen (see Fig re 4). The

Application settings dialog box opens.

Name

Password

Log in

button

Your camera’s

IP Address

Ethernet able LAN/POE/slot

Remember

checkbox

Standalone P amera

All manuals and user guides at all-guides.com

all-guides.com

Quick Reference Guide

QRG-S1080-1000

Revision C

Feb 22, 2016 Company Proprietary Page 3 of 22

Figure 4 Wrench Icon and Application Settings Screen

Change the Video rendering fps to 15. Click on Open web in external browser checkbox.

Change Video streaming transport to UDP from the drop-down list. Click on the Apply b tton and wait for

the changes to take effect.

Step 7. Open Web Page

At the OnVIF Main Screen (see Fig re 3), click on Web page and a black screen opens with a message that

asks yo to allow add-ons before the S1080 IP Network Camera Log In Screen can be opened.

Click on the Allow b tton, and the S1080 IP Network Camera Log In Screen opens with the same q estion at

the bottom of the screen.

Click on the Allow b tton again, and yo can log in (see Step 10, Log In). Skip Step 7 and Step 8.

NOTE

:

If the S1080 IP Network Camera Log In Screen does not open after approximately one minute, the default

Home Page setting on your rowser may e causing a long timeout. Follow the instructions in Step 7, Set

Browser Default to Blank, elow, to correct this.

Step 8. Set Browser Default to Blank

At yo r Internet Explorer screen, click on the Settings icon located in the pper right-hand corner of

the screen.

Figure 5 Internet Explorer Screen

Video rendering fps

Open web in

external

browser

Wrench icon

Apply button

UDP

All manuals and user guides at all-guides.com

QRG-S1080-1000

Revision C

Quick Reference Guide

Page 4 of 22 Company Proprietary Information Feb 22, 2016

Click on Internet options and the Internet Options dialog box opens.

Delete the text in the Home Page text box, and click on the OK b tton.

Step 9. Open Web Page – After Changing Browser Setting

Back at the OnVIF Main Screen, click on Web Page again (see Fig re 3).

Follow the steps in Step 7, Open Web Page and proceed to Step 9.

Step 10. Log In

Enter the User Name (admin) and Password (9999), and then click on

the Submit b tton (see Fig re 7).

After s ccessf l login, a live video from the camera starts streaming in

the Live Video section of the Web Browser GUI Screen (see Fig re 8).

Figure 7 S1080 IP Network Camera Log In Screen

Figure 8 Web Browser GUI Screen (Live Video Screen)

CAUTION:

If your Browser screen size is not set to 100%, the ottom of some uttons may e cut off. Follow the

instructions in Step , Set Browser Size, to set your Browser to the correct size.

Figure 6 Internet ptions

(1) Live Video

Section

(2) Navigation

Panel

All manuals and user guides at all-guides.com

Quick Reference Guide

QRG-S1080-1000

Revision C

Feb 22, 2016 Company Proprietary Page 5 of 22

Step 11. Set Browser Size

At the Internet Explorer screen, click on the Settings icon located in the pper right-hand corner of the

screen.

Select Zoom (100%) from the drop-down men , and then select 100% from the second drop-down men

(see Fig re 9). Yo r Browser window will now be the correct size.

Figure 9 Set Browser Window Size

2.2 tandalone POE witch Installation

This installation req ires the camera and yo r PC to be connected to a standalone POE switch via two Ethernet cables.

It ses the OnVIF Device Manager application to interface with the camera’s software.

Figure 10 PC to Standalone P E Switch to Camera

Step 1. Connect PC to PO Switch

Using an Ethernet cable, connect one end to the POE switch and the other to yo r PC (see Fig re 10).

Step 2. Power-On PC

First, power-on the PC to ens re that the PC’s Ethernet interface is config red to se DHCP to a tomatically obtain an

IP address. In this case, beca se there is no DHCP server r nning on the network, the PC will obtain an A to-IP address

in the 169.254.0.0 class B s bnet. See Section 2.4, Use DCHP to Obtain an IP Address Automatically, for detailed

information on req ired PC settings.

Step 3. Connect Camera to Standalone PO Switch

Using an Ethernet cable, connect one end of the cable to the LAN/POE slot in the back of the camera and the

other end to the POE switch (see Fig re 11). The POE switch provides DC power to the camera so that the

camera’s DC power cable is not needed.

Figure 11 Back of Camera and P E Switch

Ethernet able Ethernet able

Standalone POE Switch

LAN/POE/slot Ethernet

able POE Switch

Standalone P amera

All manuals and user guides at all-guides.com

QRG-S1080-1000

Revision C

Quick Reference Guide

Page 6 of 22 Company Proprietary Information Feb 22, 2016

Wait ntil the two camera LEDs light p. Initially they are red/orange in color; when they both t rn green,

the camera is “on” and working correctly (see Fig re 1).

Step 4. Use “OnVIF Device Manager”

Follow Steps 4-10 of Section 2.1, Camera Connected Directly to a Personal Computer.

2.3 UPNP- and DHCP-Enabled Network Installation

The S1080 IP Network Camera is designed to be sed on an IP network and needs an IP address. Most networks have

a DHCP server that a tomatically assigns an IP address to a connected device.

Step 1. Connect Camera(s) to PC Using thernet Cable(s) and PO Switch

Using a standard Ethernet cable, connect the power-over-Ethernet (POE) switch to yo r PC.

Using standard Ethernet cable(s) connect the POE switch to the camera(s) thro gh the LAN/POE

receptacle(s) located on the back of the camera(s).

Figure 12 PC to P E Switch to Cameras

Step 2. Power On Camera Through PO

The camera is powered- p thro gh the POE 802.3af-enabled network switch. (If POE s pport is not available, an

external 12V DC power s pply is req ired. See Step 3, Power On Camera with DC Power Supply, in Section 2.1,

Camera Connected Directly to a Personal Computer.)

Step 3. Starting the Web Browser GUI Using UPnP

By defa lt, the S1080 IP Network Camera has the User Plug and Play (UPnP) f nctionality enabled (see that the nable

UPNP checkbox is checked in the Network and Port Screen (see Fig re 25).

To start the Web Browser GUI, browse to the PC’s Network dialog box. Under Other Devices, do ble-click

the

GBO_DD:EE:FF

icon, where

DD:EE:FF

represents the last three bytes of the camera’s media access

control (MAC) address.

Figure 13 UPnP Icon for S1080 IP Network Camera

Ethernet able

Ethernet ables

amera’s MA address

UPnP S1080 icon

Networked P ameras

POE Switch

All manuals and user guides at all-guides.com
