GBC FUSION 5100L Manual de usuario
FUSION
™5100L
A3 LAMINATORS
start here
commencer ici
hier beginnen
inizia da qui
beginnen hier
empieza aquí
começar aqui
buradan başlayın
ξεκινήσει εδώ
starter her
aloita tästä
starter her
börja här
zacznij tutaj
začněte zde
itt kezdődnek
начать здесь
GB instruction manual 4
F manuel d’utilisation 12
D bedienungsanleitung 20
I manuale d’istruzioni 28
NL gebruiksaanwijzing 36
E manual de instrucciones 44
P manual de instruções 52
TR kullanım kılavuzu 60
GR οδηγίες 68
DK brugsvejledning 76
FI käyttöopas 84
NO bruksanvisning 92
S bruksanvisning 100
PL instrukcja obsługi 108
CZ návod k obsluze 116
H használati útmutató 124
RUS руководствo по зкcплyатации 132

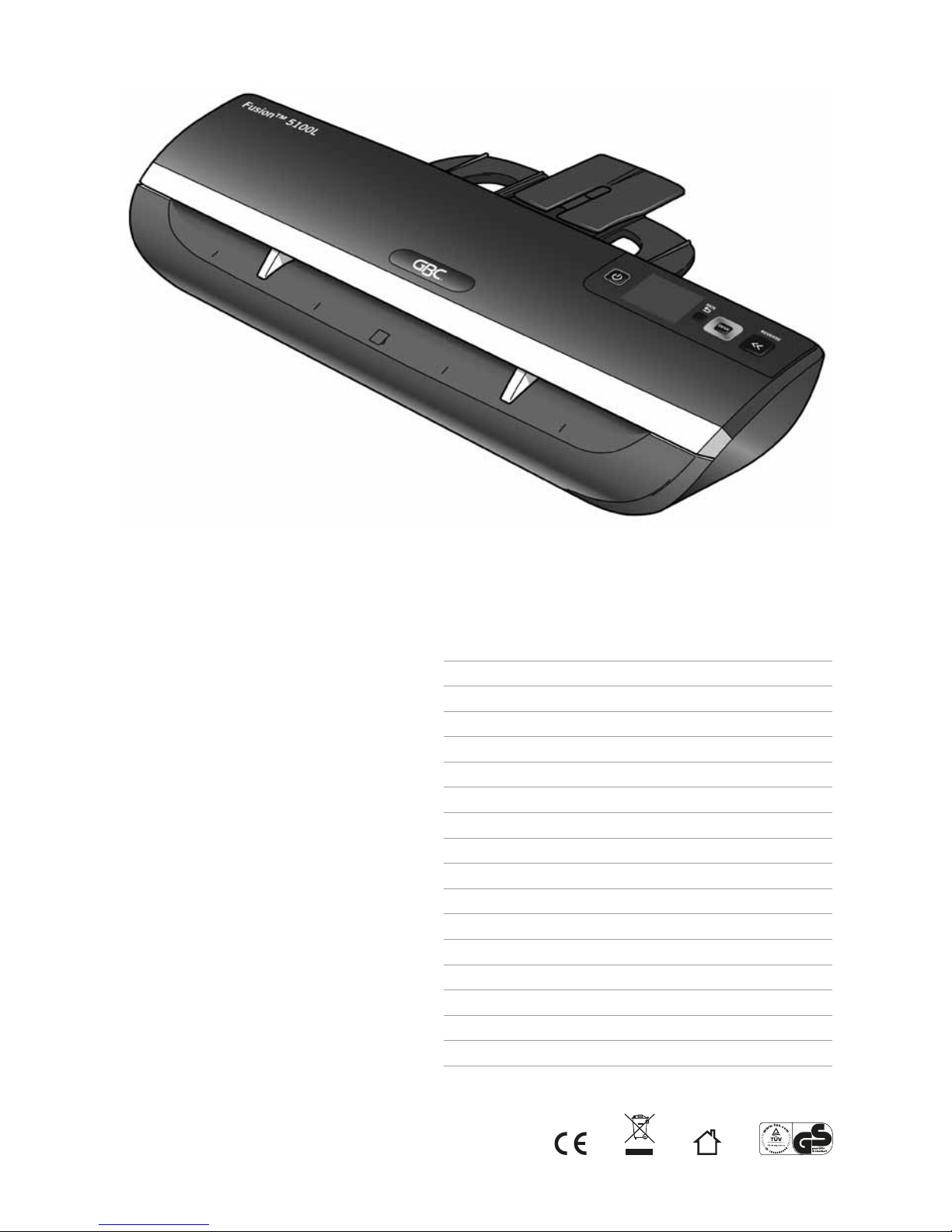

FUSION
™5100L
A3 LAMINATORS
GB
4register this product online at www.accoeurope.com
professional finish… automatically!
Welcome to the new GBC 5100L laminator which allows
lamination to be completed quickly and simply with GBC
quality lamination output. Perfect for novice users choosing
automatic self setting to expert users with multiple pouch
thicknesses and document sizes.
For best lamination results and performance, use only GBC
branded pouches.
Please take a little time to study these instructions to ensure
you get the best results out of your machine.
Electrical shock hazard.
Do not open. No user
serviceable parts inside.
Refer servicing to qualied
service personnel.
WARNING
m
c
The following warning is found on the
product in several languages.
This safety message means that you
could be seriously hurt or killed if you
open the product and expose yourself
to hazardous voltage.
safety instructions
Your safety as well as the safety of others is important to ACCO® Brands. In this
instruction manual and on the product are important safety messages. Read these
messages carefully.
m
The safety alert symbol precedes each safety message in this instruction manual.
This symbol indicates a potential personal safety hazard that could hurt you or others,
as well as cause product damage or property damage.
m
service
Do not attempt to service or repair the pouch laminator yourself. Unplug the unit and contact an
authorised GBC service representative for any required repairs.
points to note
• Use this unit only for its intended use of laminating documents
• Only use 40mic (with carrier) 75mic, 125mic, 175mic or 250mic pouches with this laminator
• Do not laminate an empty pouch
• The unit must be connect to a supply voltage corresponding to the electrical rating shown on the
unit
• Ensure the machine is clear of pouches prior to starting the next pouch
• Clean the lamination rollers on a regular basis
• Maximum A3 document pouch 426x303mm on GBC Fusion 5100L A3 Laminator
• Active anti jam feature may not detect issue on smaller items
• Failure to comply will result in damage and invalidate guarantee
GB

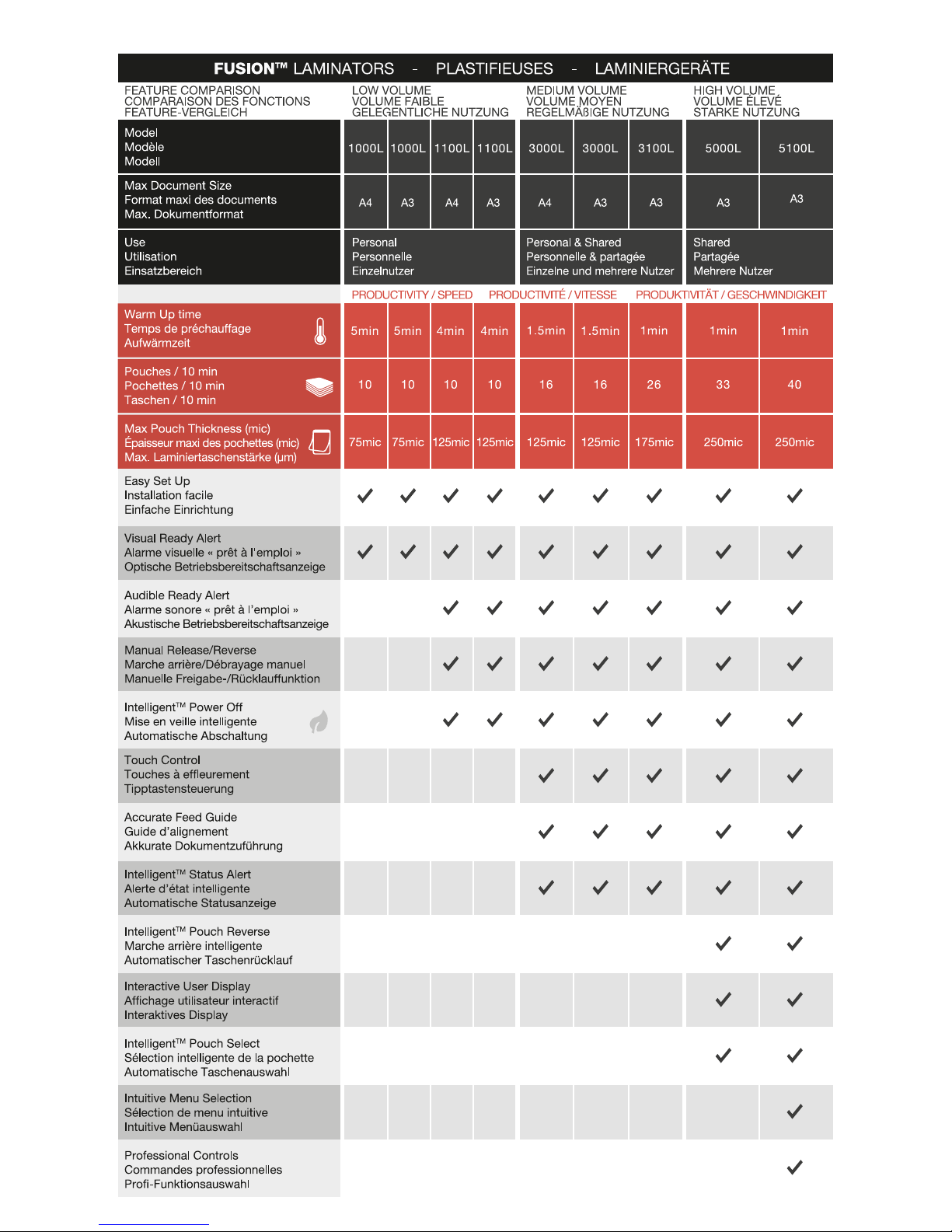

FUSION™5100L A3 LAMINATORS 5
Electrical
220-240V AC / 50Hz/60Hz /
6.5A / 1520W
Machine Dimensions 570x193x132mm
Machine Weight 4.6kg
Maximum Pouch Width A4: 241mm
A3: 303mm
Maximum Pouch
Thickness
2x250micron (total 500)
Maximum Thru-put
Thickness
1.0mm
Warm-Up Time Approximately 1 minute
Speed Variable (max.: 1000mm/min.)
technical specifications
GB
6register this product online at www.accoeurope.com

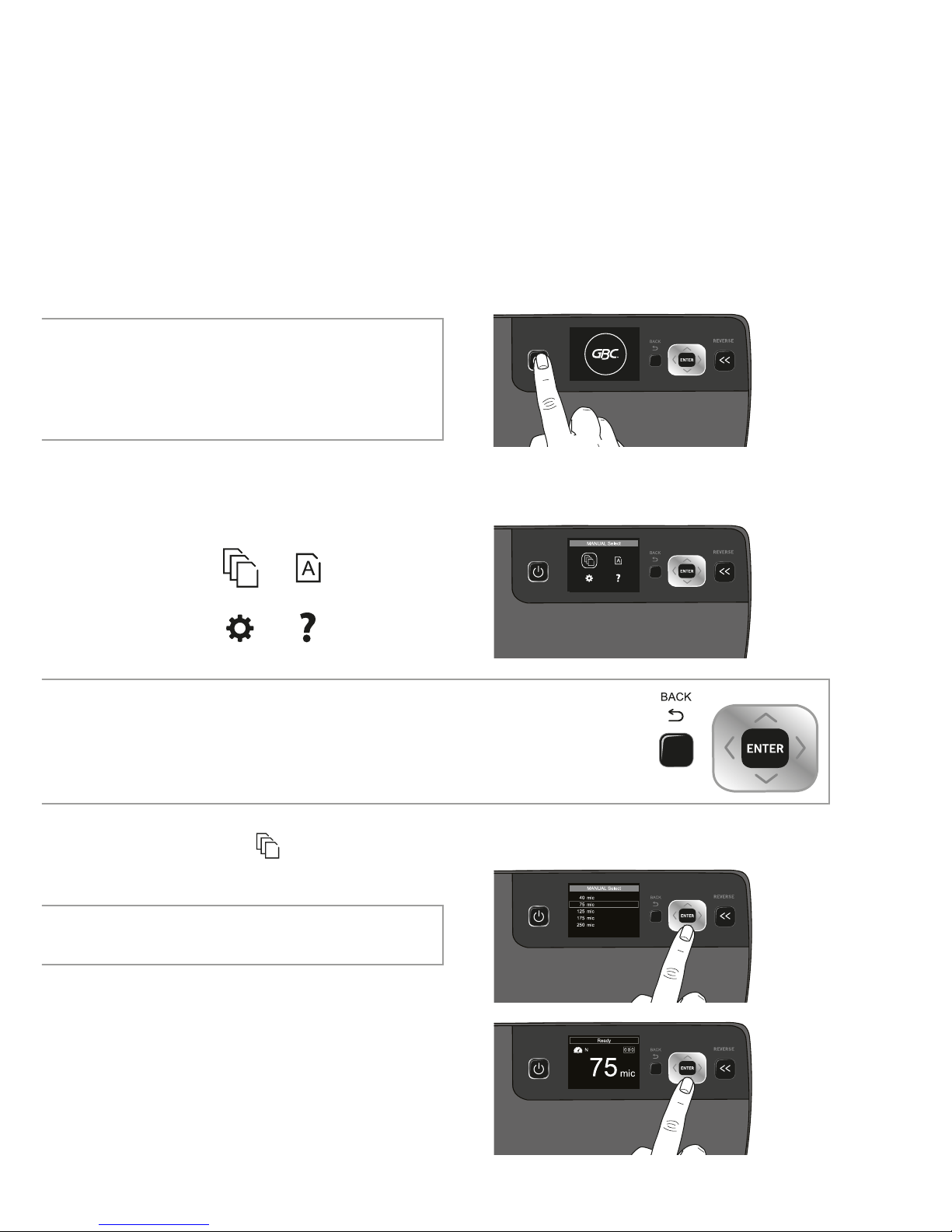

getting ready to laminate
Easy Set Up
1 Remove the plastic exit tray from the box and place into the two holes on the back of the
laminator and extend to use. Ensure that there is sucient space behind the laminator for the
item to be removed.
2 Take the electrical plug and place in an appropriate power source, which is near the table you
intend to use.
3 The laminator will briey ash the GBC logo on the control panel and will make an audible beep.
4 To use the laminator gently tap the ‘power on’ button.
NOTE: Your new laminator may emit
a slight odour during the initial
operation. Its is normal and will
diminish after a few hours of
operation.
Manual Select ( ) – scroll through and select the required micron setting, i.e. 75mic.
NOTE: If 40mic setting is selected
ALWAYS use a carrier
mic40
mic75
mic125
mic175
mic250
Interactive Menu Selection
5 A GBC logo will show in the screen followed by the main menu:
MANUAL SELECT AUTO POUCH SELECT
SETTINGS HELP
NOTE: Use arrows to scroll up/down and left/right, use ENTER button
to select.
Use at anytime to go back – one screen at a - time to the main
menu.
GB
FUSION™5100L A3 LAMINATORS 7

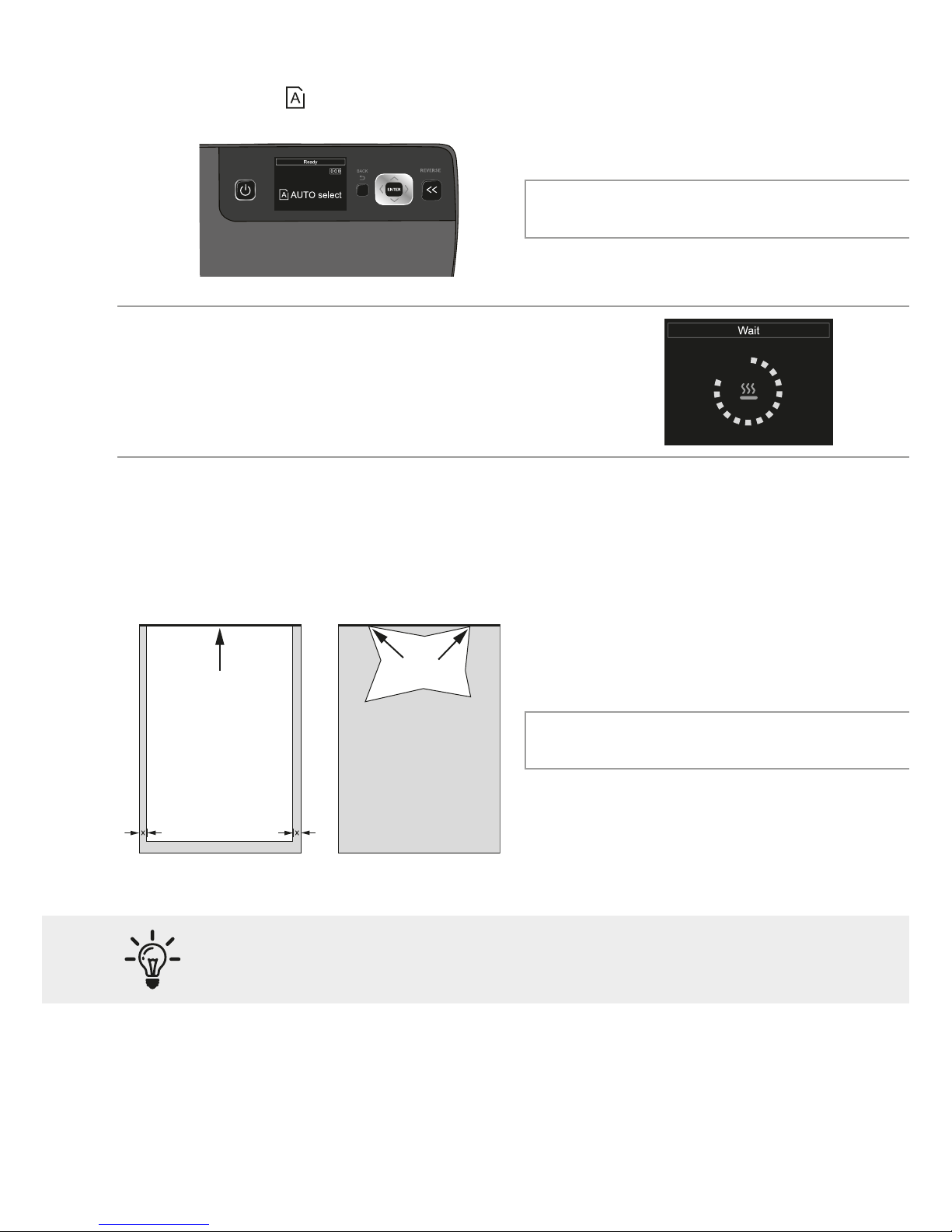

loading the pouch
1 Take your item to be laminated and place into the laminating pouch. Ensuring it is rmly placed
along the sealed edge of the pouch. This is to help ensure that you get optimal quality output.
Before laminating important or unique documents, always run a test pouch through
the laminator using a similar type document.
SEALED EDGE
A3, A4, A5, etc. Irregular shaped item
SEALED EDGE
NOTE: Do not cut pouches prior to
lamination.
NOTE: The machine will not take any
pouch during warm up.
Intelligent Pouch Select
Auto Pouch Select ( ) - the laminator automatically measures document and pouch thickness
and self set accordingly.
NOTE: In both Manual Select and Auto Pouch Select modes during
warm up the Wait indicator will ash until ready.
GB
8register this product online at www.accoeurope.com
laminating
2 Feed the sealed edge of the pouch, into the laminator between the guides. The laminator will
grip the pouch and guide it through to the exit tray.
NOTE: Do not force guides
against pouch
3Do not force guides tightly against pouch. Move guides to an appropriate setting to allow pouch
to be fed in without touching guides.
4When you are nished laminating tap the ‘power’ button and if required remove the tray, unplug
and store accordingly.
Upon exiting remove your
laminated item immediately
and lay on a at surface to
ensure optimal quality.
1 On the front of the laminator there are adjustable guides to help you feed your pouch accurately.
Move the guides to appropriate line which matches your pouch/ item to be laminated.
Accurate
Feed Guides
GB
FUSION™5100L A3 LAMINATORS 9

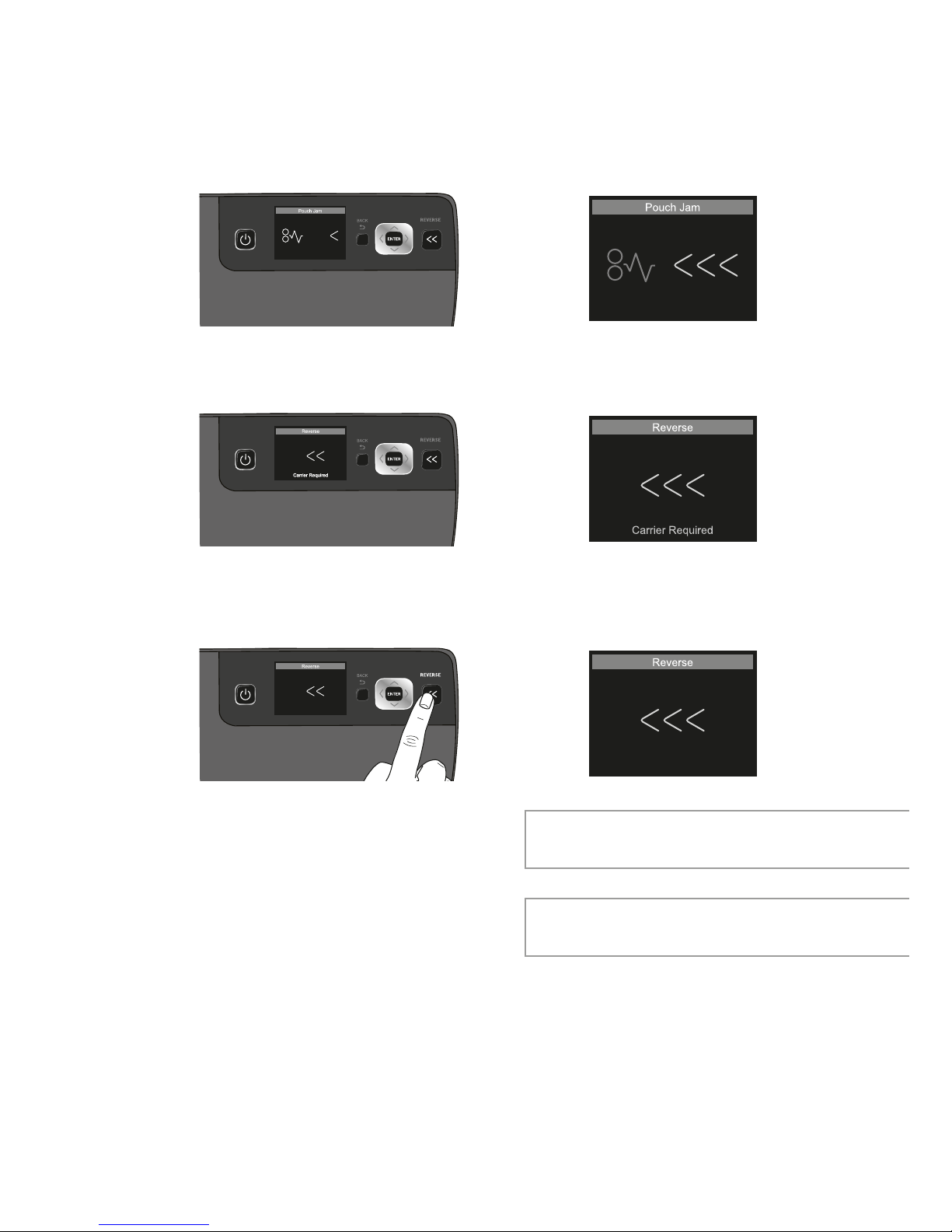

additional features
NOTE: Never reuse a misfed or jammed
pouch
NOTE: Do not put partially laminated
items back into the laminator.
If you wish to recover a partially fed pouch press and hold the “Reverse” button and the pouch will
be quickly reversed out of the laminator. You will hear a series of single beeps until Reverse button
is released.
Intelligent Status Alert
If you try to laminate a 40mic pouch without a carrier the pouch will be automatically reversed out.
Intelligent Pouch Reverse
If pouch misfeed or jam starts to occur a constant beep will be emitted and the laminator will
automatically reverse the document out.
GB
10 register this product online at www.accoeurope.com

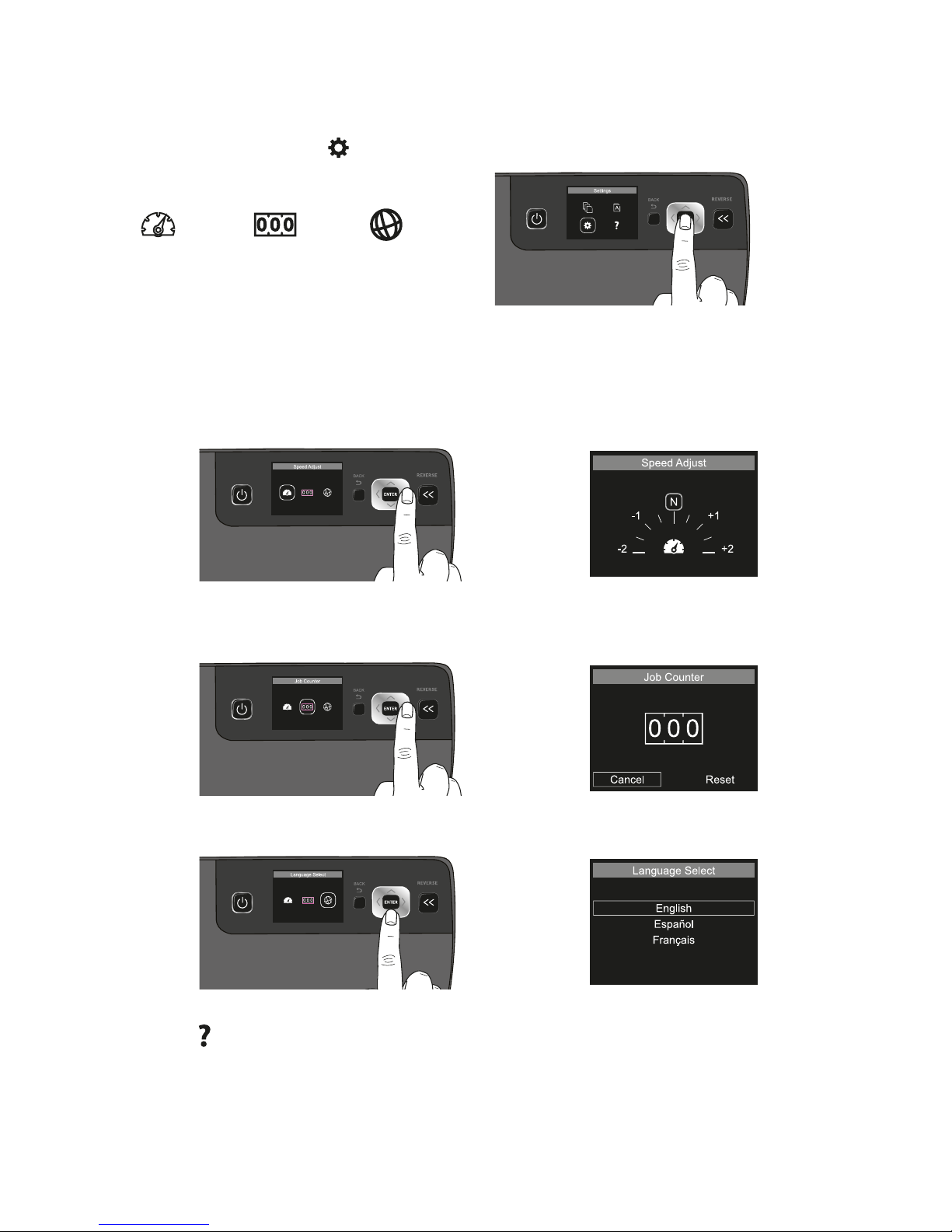

settings
Help ( ) – Scroll through to select country then either follow the link to the web address,
scan the QR code. Alternatively contact the local service centre, see pXXX.
Professional Control
From the main menu select ( ) and the following options will appear:
SPEED
ADJUST
JOB
COUNTER
LANGUAGE
SELECT
Scroll through the menu to select the required setting and press enter:
Speed Adjust - Allows you to ne tune speed if required for optimal results. Use arrows to
adjust the speed, up (+) or down (-). Reducing the speed will slightly increase the exposure to
heat. Increasing the speed will slightly decrease the exposure to heat.
Job Counter – Allows you to count the number of documents laminated. Use the arrows to
select Reset if required.
Language Select – Scroll up or down to select desired language and press enter.
