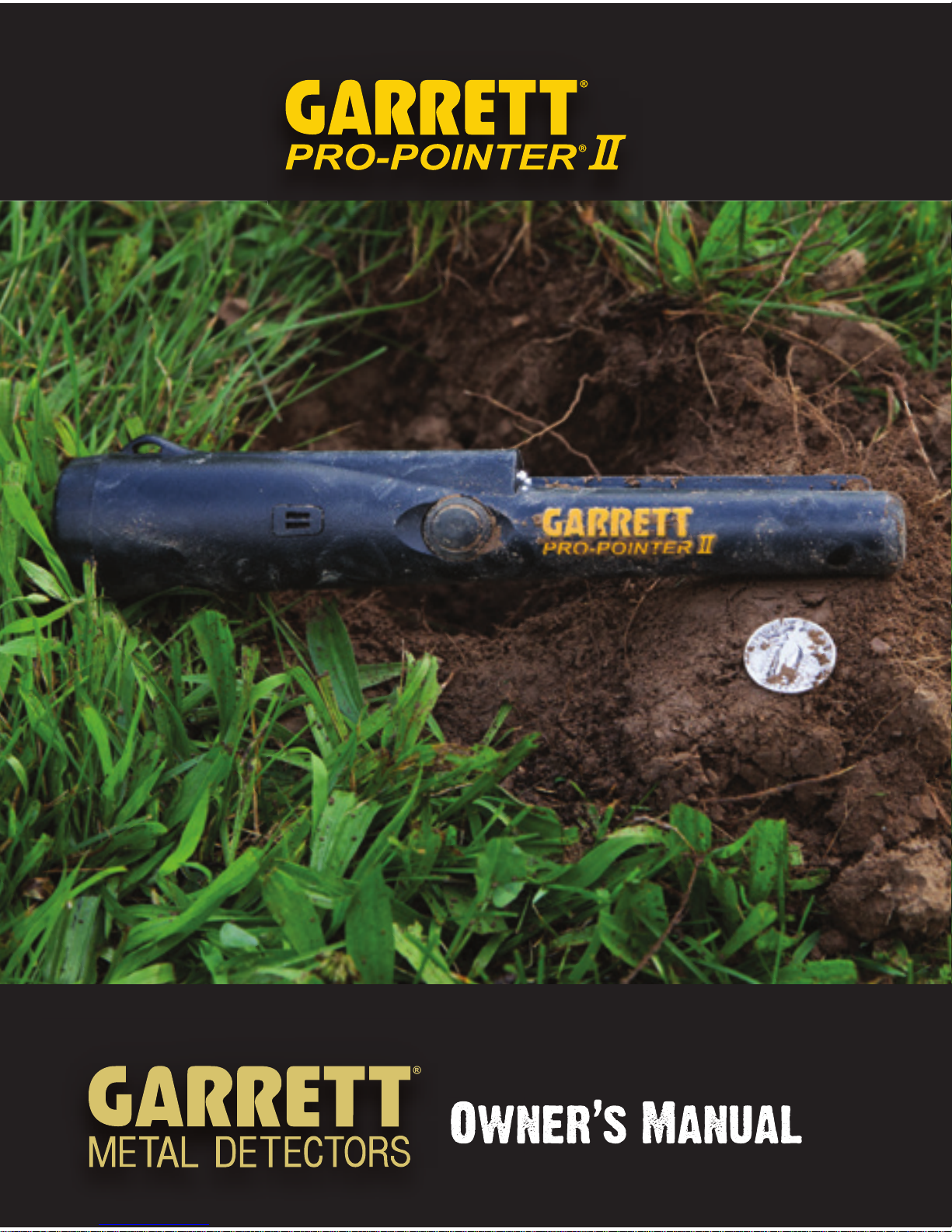

Garrett Pro-pointer II Manual de usuario



FEATURES

ON/OFF Button

Pinpointing Tip

360° Side-Scan Area

Exclusive Scraping Blade

LED Flashlight

Speaker

Lanyard Attachment Loop

Sealed Battery Cover















Powering On

Press and release the button () while holding the detector away from any

metallic objects. You will hear 2 beeps and the LED () will remain on.

Powering Off

Press and release the button to power off. The unit emits a single beep during

its power down.

LED Light

The white LED will remain illuminated while the unit is on, providing power-

on indication and acting as a flashlight when needed.

Lost Pinpointer Alarm

After 5 minutes of being ON without a button press, the Pro-Pointer II will

begin emitting progressively faster warning chirps for 60 minutes. Press the

power button off and back on to reset.

Auto-Off Feature

After one hour of warning chirps, the Pro-Pointer II will power off automatically.

Scraping Blade

This rugged edge is ideal for sifting through dirt while searching for the target.

The Pro-Pointer II’s 360º-side-scan detection allows the detector to alarm

when the unit is passed in close proximity to a metallic target.

Use a quick power off/

power on process to tune

out mineralized ground,

saltwater, wet sand, and other

challenging environments.

Lanyard Attachment Clip

Use to attach the Pro-Pointer II to your belt, digging pouch or your detector

(if desired).

Holster

Secure to any standard size belt. A metal snap within the holster will cause

the pinpointer to alarm if put away while powered on.

Low Battery Alarm

When the battery becomes low, the detector will sound an alternating dual-

tone alarm. Replace the 9V battery as soon as possible.

Retuning for Mineralized Ground or Wet Salt Sand

To tune out the detection of saltwater, wet sand or highly mineralized

ground, hold the tip of the Pro-Pointer II to the water, sand or soil and

quickly press the power button () off and back on again. If necessary,

repeat this retune process to further eliminate any environmental response.

Precisely Pinpointing Large Targets

When locating large metal objects—whether in the ground or in a

wall—you can improve the pinpointing capability by retuning the Pro-

Pointer II in order to narrow the detection field.

Slowly scan toward the object until the response increases to full/

constant alarm. Then, without moving the detector, quickly press the

power off and back on again in order to retune and narrow the detection

field. Continue scanning toward the object to find its precise location.

Repeat this quick retune to further narrow the detection field as needed.

Return the Pro-Pointer II to full detection strength by simply switching

the power off and back on while holding it away from metal.

Battery Replacement

Simply rotate the battery cover counterclockwise to remove and

clockwise to tighten by hand. To properly install the 9V battery, match

the larger battery terminal to the larger opening in the compartment.

Remove the battery when the unit is to be stored more than 30 days.

Operational Information and Tips

• Operation is completely automatic. All metals will be detected

including ferrous and non-ferrous.

• When a target is detected, the Pro-Pointer II will produce

an audio and vibration alert. The rate of the pulsing audio and

vibrations increase proportionately as the pinpointer is moved closer

to a metallic target.

• Maximum detection of very small targets is obtained against the side

about ½”from the tip.

• To avoid cancelling out a target, do not turn on the Pro-Pointer II while

it is adjacent to the target.

• Because the Pro-Pointer II is a static, non-motion detector, optimum

operation is achieved when the unit is switched off between uses.

• Avoid using the Pro-Pointer II as a digging or prying tool. It is designed

for flat side-scanning and precise pinpointing with its tip. It is not

intended to be used with excessive force.

• Make sure the battery cap threads are free of sand, sediment, etc. and

thatthe O-ringisperiodicallylubricatedwith siliconegreasetomaintain

a tight seal.

• To remove dried dirt, mud or other debris from the unit, simply hand

wash with soap, water, and a soft cloth. Rinse with running water.

Do notuseanytypeofabrasiveor chemicalcleanerswhichcouldscratch

or erode its surface.The Pro-Pointer II is water resistant; however, avoid

spraying water directly into the speaker grill and do not submerge the

entire detector in water. 7

• Do not affix metallic labels (or any material that might cause the

detector to alarm) to the detection area of the Pro-Pointer II.

• The Pro-Pointer’s static mode makes it an excellent utility locator to

find metal studs and pipes in walls or nails in the drywall. Use a side-

scan technique to quickly cover large areas and then use the pinpointing

tip to precisely locate the target.

Weather Resistancy and Water Use Information

The Garrett Pro-Pointer II meets IEC 60529 IP 66 dust and water-

resistancy standards. This allows you to search muddy and wet areas, and to

hunt in the rain, without concern of damaging your pinpointer. The detection

portion of the Pro-Pointer II may be submerged. It is recommended that the

unit not be submerged beyond the power switch.

The Garrett Pro-Pointer II is manufactured in the United States of

America and in accordance with Garrett’s ISO 9001 internationally

certified Quality Management System and meets the following

international standards:

• FCC • CE • RoHS • ICNIRP • IEC 529-IP 66

SPECIFICATIONS

Model Name: Garrett Pro-Pointer II

Model Number: 1166050

Operating Temperatures: -35ºF (-37ºC) to 158ºF (70ºC)

Operating Frequency: 12 kHz

Environmental Rating: Weatherproof; IP 66

Tuning: Automatic

Indicators: Proportional audio/vibration pulse rate

Controls: Power switch

Dimensions: Length: 9” (22.9 cm)

Thickness: 1.5” (3.8 cm) tapered to

.875” (2.2 cm)

Weight: 6.5 oz. (0.2 kg.), with battery in

Battery: Single 9V (included)

Battery Life: Carbon: 16 hours

Alkaline: 30 hours

Rechargeable: 8 hours

Warranty: 2 Years, Limited Parts/Labor

Patent Information: US 7,575,065; D583,261 and

patents pending

Garrett Metal Detectors, garrett.com and Pro-Pointer II are

trademarks and registered trademarks of Garrett Electronics

MADE IN

THE USA
