Garrett Pro-Pointer AT 1140900 Manual de usuario



(Reverse side of pinpointer)

FEATURES

ON/OFF, Retune, Adjust Button

Pinpointing Tip

360° Side-Scan Area

Exclusive Scraping Blade

LED Flashlight

Waterproof Speaker

Lanyard Attachment Loop

Sealed Battery Cover

Ruler in Inches and Centimeters

















Powering On

Press and release the button () while holding the detector away from any

metallic objects. You will hear 2 beeps and the LED () will remain on.

Powering Off

Press and hold the button for a half second until you hear a single beep (or

single vibration in Silent Mode), indicating power down.

Changing Settings

The Pro-Pointer AT has three Sensitivity settings and two detection settings:

Audio-plus-Vibrate orVibrate-only (silent).

To enter adjustment mode, press and hold the button () for 2

seconds—indicated by a single beep followed by a dual-tone beep and

flashing LED. (Note: In Silent Mode, beeps are replaced by vibration pulses.)

The first button press after entering adjustment mode indicates the current

setting. Repeatedly press the button to cycle through the 6 settings:

1 beep = minimum Sensitivity, with audio

2 beeps = medium Sensitivity, with audio (Default setting)

3 beeps = maximum Sensitivity, with audio

1 vibrate = minimum Sensitivity/Silent

2 vibrate = medium Sensitivity/Silent

3 vibrate = maximum Sensitivity/Silent

To exit adjustment mode, press and hold the button for 2 seconds—

indicated by a dual-tone beep (dual vibrate in Silent Mode), or wait 5 seconds

for automatic exit.

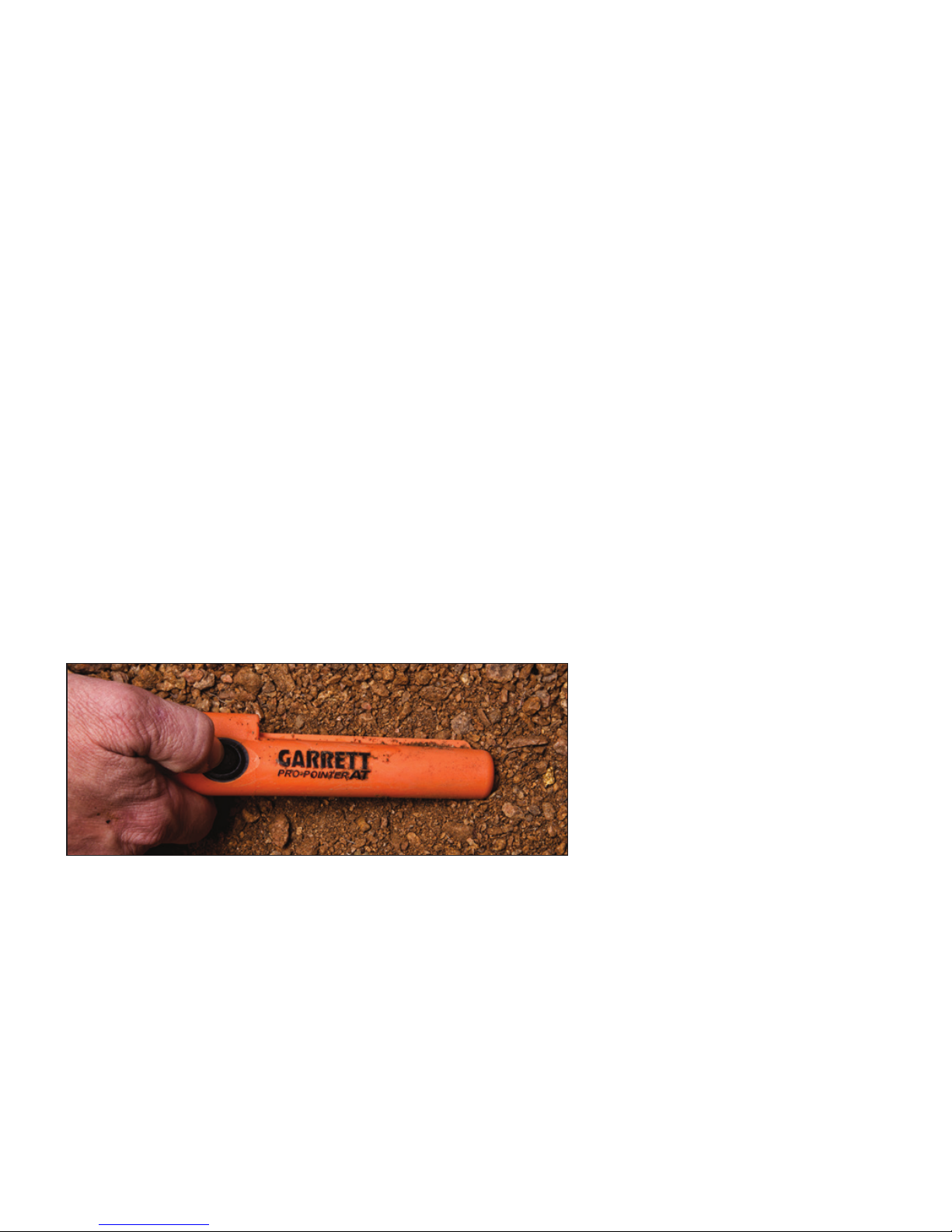

Fast Retune feature quickly

tunes out mineralized ground,

saltwater, wet sand, and other

challenging environments.

Notes:

• Lower Sensitivity settings are recommended to prevent detection of

highly mineralized grounds.

• Detection remains operable during the adjustment mode.

• Settings will be remembered when the unit is switched off and back on.

Fast Retune for Mineralized Ground

To tune out the detection of saltwater, wet sand or highly mineralized

ground, hold the tip of the Pro-Pointer AT to the water, sand or soil and

quick-press the button () for an instant Retune.

If necessary, repeat this Fast Retune to further eliminate any

environmental response. Note: An alternate means of eliminating the

ground response is to reduce Sensitivity.

Precisely Pinpointing Large Targets

Slowly scan toward the object until the response increases to full/constant

alarm. Then quick-press the button to instantly retune and narrow the

detection field. Continue scanning toward the object to find its precise

location. Repeat this Fast Retune to further narrow detection field as needed.

Lost Pinpointer Alarm

After 5 minutes of being ON without a button press, the Pro-Pointer AT

will begin emitting progressively faster warning chirps for 60 minutes.

Press the power button to reset.

Auto-Off Feature

After one hour of warning chirps, the Pro-Pointer AT will power off

automatically.

Scraping Blade

This rugged edge is ideal for sifting through dirt while searching for the

target.The Pro-Pointer AT’s 360º-side-scan detection allows the detector

to alarm when the blade is passed in close proximity to a metallic target.

Lanyard Attachment Clip

Use to attach the Pro-Pointer AT to your belt, digging pouch or your

detector (if desired).

Holster

Secure to any standard size belt. A metal snap within the holster will

cause the pinpointer to alarm if put away while powered on.

Ruler

The Pro-Pointer AT has a ruler molded into its exterior to measure a

target’s depth in either centimeters or inches.

Low Battery Alarm

When the battery becomes low, the detector will sound an alternating

dual-tone alarm. Replace the 9V battery as soon as possible.

Battery Replacement

Simply rotate the battery cover counterclockwise to remove and

clockwise to tighten by hand. To properly install the 9V battery, match

the larger battery terminal to the larger opening in the compartment.

Remove the battery when the unit is to be stored more than 30 days.

Operational Information and Tips

• Operation is completely automatic. All metals will be detected

including ferrous and non-ferrous.

• When a target is detected, the Pro-Pointer AT will produce

an audio and/or vibration alert. The rate of the pulsing audio and

vibrations increase proportionately as the pinpointer is moved closer

to a metallic target.

• Maximum detection of very small targets is obtained against the side

about ½”from the tip.

• Toavoidcancellingoutatarget,donotturnonthePro-PointerAT while

it is adjacent to the target.

• Because the Pro-Pointer AT is a static, non-motion detector, optimum

operation is achieved when the unit is switched off between uses.

• Avoid using the Pro-Pointer AT as a digging or prying tool. It is designed

for flat side-scanning and precise pinpointing with its tip. It is not

intended to be used with excessive force.

• For water use, do not exceed 10 feet (3 meters) depth. Make sure the

battery cap threads are free of sand, sediment, etc. and that O-ring is

periodically lubricated with silicone grease to maintain a tight seal.

• To remove dried dirt, mud or other debris from the unit, simply hand

wash it with soap, water, and a soft cloth. Do not use any type of

abrasive or chemical cleaners which could scratch or erode its surface.

The Garrett Pro-Pointer AT is manufactured in the United States of

America and in accordance with Garrett’s ISO 9001 internationally

certified Quality Management System and meets the following

international standards:

• FCC • CE • RoHS • ICNIRP • IEC 529-IP 68

SPECIFICATIONS

Model Name: Garrett Pro-Pointer®AT

Model Number: 1140900

Operating Temperatures: -35ºF (-37ºC) to 158ºF (70ºC)

Operating Frequency: 11.5 kHz

Waterproof Rating: 10 foot (3 meter) maximum depth; IP 68

Tuning: Automatic or manual retune

Indicators: Proportional audio/vibration pulse rate

Controls: Power, Retune, Adjust switch

Dimensions: Length: 9” (22.9 cm)

Thickness: 1.5” (3.8 cm) tapered to

.875” (2.2 cm)

Weight: 6.5 oz. (0.2 kg.), with battery in

Battery: Single 9V (included)

Battery Life: Carbon: 16 hours

Alkaline: 30 hours

Rechargeable: 8 hours

Warranty: 2 Years, Limited Parts/Labor

Patent Information: US 7,575,065; D583,261 and

patents pending

Garrett Metal Detectors, garrett.com and PRO-POINTER AT are

trademarks and registered trademarks of Garrett Electronics

MADE IN

THE USA
