Garmin GPSMAP 176 Manual de usuario

quick

start

guide

chartplotting receiver

GPSMAP 176C/176

190-00185-02_0A.indd 1 6/17/2002, 1:16:14 PM

Quick Start

Unit Overview

12-level Grayscale LCD Display with Backlight (176)

16-color Trans ective Display with Backlight (176C)

Backlit Keypad for easy night operation

GPS Antenna

External Power

and Computer Data Port

Battery Compartment

Port for optional Data Storage Card

190-00185-02_0A.indd 2 6/17/2002, 1:17:11 PM

Quick Start

Battery Installation

WARNING: It is very important to install ALL batteries with

the proper polarity, positive (+) or negative (-) orientation, as

indicated in the unit’s battery compartment. atteries can leak

and cause personal injury and property damage if not installed

correctly.

TIP: The GPSMAP 176 saves user data in nonvolatile

memory and will not lose data when the batteries are changed

or if stored without batteries.

To remove the battery lid, rotate the D-ring 1/4

turn counterclockwise, and pull away.

To reinstall the battery lid, place the locking pin into

the slot and rotate the D-ring 1/4 turn clockwise.

The GPSMAP 176 uses 4 AA batteries, which can be Alkaline, rechargeable, Lithium or Ni Cad.

Immediately after installing new batteries, turn the unit on to ensure that the unit’s power indicator

shows a fully charged battery condition (see page 49 of the Owner’s Manual). Replace all batteries at

the same time. Do NOT mix new and used batteries. Do NOT mix Alkaline batteries with Lithium or

Ni Cad rechargeable batteries.

190-00185-02_0A.indd 3 6/17/2002, 1:17:20 PM

Quick Start

The IN key — adjusts the map scale to show a smaller area with more detail. (Zooms in)

The OUT key —

adjusts the map scale to show a larger area with less detail. (Zooms out)

The PAGE key —

cycles the unit through the main display pages in sequence and returns

the display from a submenu page.

The QUIT key — cycles the unit through the main display pages in a reverse sequence,

re saves the previous value in a data entry ﬁ eld, or cancels an unintended function such as a

GOTO.

The ENTER key —

selects a highlighted menu option. When entering data, it allows you to

initiate entry, and then to accept the selected value(s). It also marks the current location of a

waypoint when pressed and held for more than one second.

The MENU key —

displays a menu of available options for the current page, Pressing the

MENU key twice will display the Main Menu.

The NAV/MOB key — displays the Navigation Menu. It also activates the MOB (Man

OverBoard) function when pressed and held for more than one second.

The FIND key — allows you to quickly access User Waypoints, Cities, Points of Interest,

Services and other items used for navigation.

The POWER key — is used to turn the unit on and off and to activate the backlight. It is

also used to adjust the contrast.

The ARROW KEYPAD — is used to select (highlight) menu options and enter data. It also

controls cursor movement on the Map Page.

Learning the Keypad

190-00185-02_0A.indd 4 6/17/2002, 1:17:27 PM

Quick Start

Power On/

Backlight and Contrast

This exercise provides you with the knowledge and skill to conﬁ dently navigate the pages and

menus of your GPSMAP 176.

As you progress through this Quick Start and the Owner’s Manual, you will often be directed to

press a speciﬁ c key or highlight a ﬁ eld. When you are directed to press a key, you should press, then

release the key. If the key needs to be held down for a period of time, the instruction will tell you to do

so. The position of the highlight is controlled by the ARROW KEYPAD. When a ﬁ eld is highlighted, a

dark strip will encompass the ﬁ eld.

Turning the GPSMAP 176 On

To turn the unit on, press the POWER/BACKLIGHT key. The POWER/BACKLIGHT key is

labeled with a red light bulb. As the unit powers on a “Warning/Info Page” will be displayed. To

acknowledge that you have read and understand the warning, press the ENTER key.

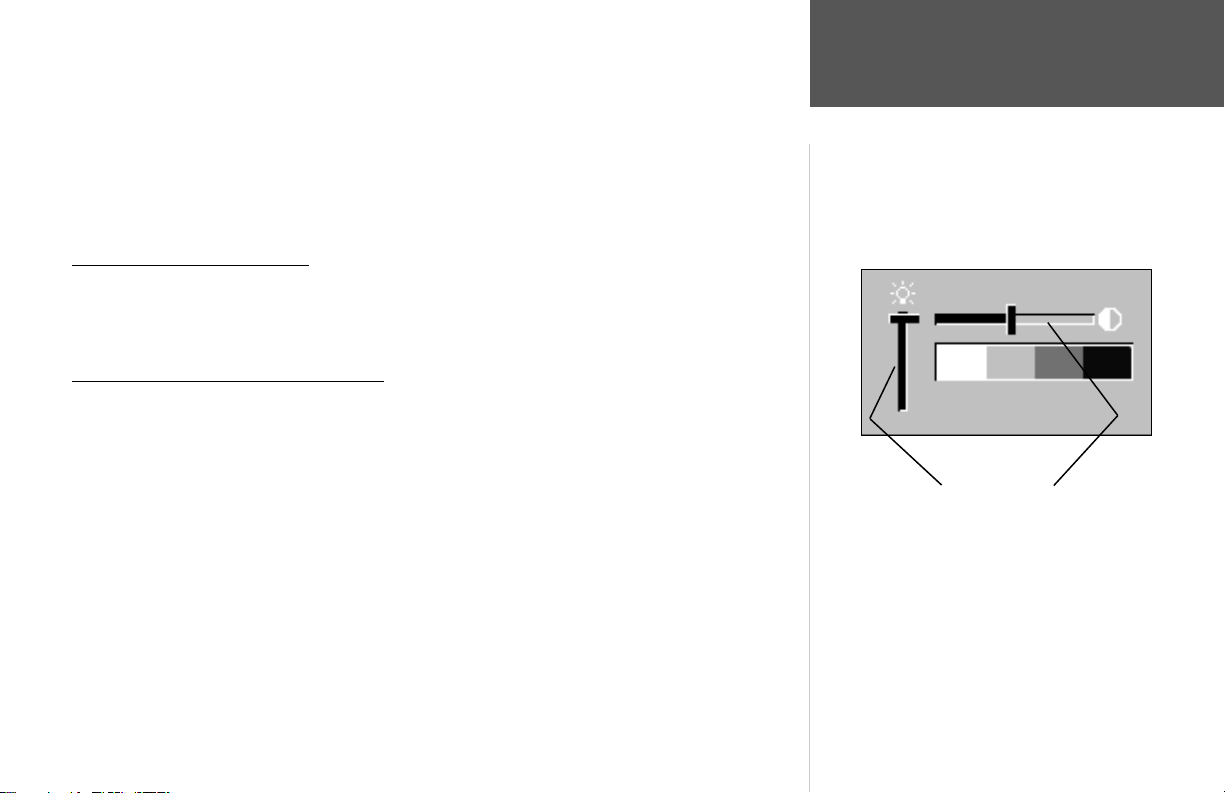

Backlight and Contrast Adjustment

You may need to adjust the Backlight or Contrast to see the display better. To display the Backlight/

Contrast adjustment window, with the unit on, press the POWER/BACKLIGHT key.

To adjust the acklight level:

1. With the Backlight/Contrast adjustment window displayed, press the ARROW KEYPAD UP to

increase the brightness o the backlight, or DOWN to decrease the brightness o the backlight.

Or...

2. Press the POWER/BACKLIGHT key. When the POWER/BACKLIGHT key is pressed repeatedly, the

backlight will cycle between ‘O ’, ‘the last setting’ and ‘ ull On’.

To adjust the contrast setting:

1. With the Backlight/Contrast adjustment window displayed, press the ARROW KEYPAD RIGHT to

increase the contrast (darker) or LEFT to decrease the contrast (lighter) setting.

acklight Contrast

190-00185-02_0A.indd 5 6/17/2002, 1:17:29 PM

Quick Start

Activating the Simulator

Using the GPSMAP 176

The keys are your link with the GPSMAP 176. Let’s take a few minutes and use each key so that you

can get a feel for their use before doing any live navigation.

Each time the GPSMAP 176 is turned on the GPS Info tab will be displayed showing the current

satellite status. If you press the PAGE or QUIT key, the GPS Info tab will be hidden and no longer

show in the Main Page cycle.

While learning the basic operation of the GPSMAP 176, let’s put the unit into Simulator Mode. The

Simulator Mode is great for practicing with the unit while indoors and when satellite signals are not

available. When the GPSMAP 176 is in Simulator Mode, the GPS receiver is turned off. This will help

conserve battery power, but the unit cannot be used for actual navigation in simulator mode.

NOTE: Do not try to navigate using the Simulator Mode. While in the Simulator Mode,

the GPS receiver is turned off. Any Satellite Signal Strength Indicators displayed are only

simulations and do not indicate the strength of actual satellite signals.

Acti ating the Simulator Mode

Putting the GPSMAP 176 in simulator mode:

1. With the GPS In o tab displayed press the MENU key.

2. ‘Start Simulator’ should be highlighted, i not, using the ARROW KEYPAD, highlight it and press the

ENTER key.

When the Simulator Mode is active, the message “Simulating GPS” will be displayed in the Status

Field along the top of the GPS Info tab. Press the PAGE key to display the Map Page.

)

With the GPS Info tab displayed, pressing the MENU key

will display the options for the page. To start the simula-

tor, verify the selection “Start Simulator’ is highlighted

then press the ENTER key.

190-00185-02_0A.indd 6 6/17/2002, 1:17:29 PM

Quick Start

Main Pages/

Features

Main Display Pages

There are ﬁ ve Main Display Pages: the Map Page, Compass Page, Highway Page, Active Route

Page, and Numbers Page. Pressing the PAGE key will display the next Main Page. Press the PAGE key

several times to look at the Main Pages. The QUIT key will allow you to cycle through the Main Pages

in a reverse sequence.

Features and Entering Data

Cursor— A highlighted area on the screen which can be moved UP/DOWN/LEFT/RIGHT with the

ROCKER KEYPAD to select individual ﬁ elds on the display. Moving the cursor to a given location

allows you to begin data entry or scroll through a list.

Def ult— A system selected format, built into the operating software of the unit’s memory, that will

be followed unless the user chooses a different setting. For example, the default setting for distance

and speed units is Statute (miles/miles per hour/feet) but can be changed to Metric or Nautical. Once

a setting is changed, the new setting is retained until another change is made or the ‘Restore Original

Settings’ menu option is selected.

Map Page Compass Page Highway Page Active Route Page Numbers Page

PAGE PAGE PAGE

QUIT

QUITQUITQUIT

PAGE

190-00185-02_0A.indd 7 6/17/2002, 1:17:31 PM

Quick Start

Field— The location on a page where a group of characters or an option is entered and displayed.

The cursor is placed on a ﬁ eld (using the ROCKER KEYPAD) to begin data entry or select options.

To enter data in a data ﬁ eld:

1. Use the ROCKER KEYPAD to highlight the desired data ﬁ eld. Press ENTER to begin data entry.

2. Use the ROCKER KEYPAD to enter the desired data. Move UP/DOWN to select the desired character

and RIGHT to move to the next character ﬁ eld. LEFT allows you to back up to the previous character

ﬁ eld or, when at the le t-most character ﬁ eld, to clear the entire data ﬁ eld.

On-Screen Button— Similar to ‘Field’. Place the cursor on a button and press ENTER to select the

action corresponding to the button. An example of an on screen button is the ‘Show Map’ button at the

bottom of the Waypoint Edit page (see example at left).

Scroll B r— When viewing a list of items too long to display on a single page, a scroll bar will

appear along the right side of the list (see example at left). The position of the scroll bar indicates which

portion of the list is currently being displayed. The height of the scroll bar indicates the number of items

in the list. To scroll through a list of items, press UP/DOWN on the ROCKER KEYPAD.

Creating and Naming Waypoints

There will be many times that you may need to select a menu item and/or enter data. An example is

naming a waypoint. The ARROW KEYPAD is used to navigate through menu items and to enter data.

We will create a new waypoint, enter a waypoint name, and assign a symbol to the waypoint using

the ARROW KEYPAD.

The term “waypoint” may be new to you. A waypoint is a location saved in the unit’s memory so it

can be used for navigation. Waypoints can be used for direct navigation, or to build a Route.

Creating or “marking” a waypoint with the GPSMAP 176 is easy. The unit has to be turned on and

receiving at least three satellites or be in Simulator Mode to mark a waypoint.

Data Entry/

Waypoints

On-Screen uttons

Scroll ar

190-00185-02_0A.indd 8 6/17/2002, 1:17:33 PM

Quick Start

Creating a Waypoint

“Marking” a waypoint:

1. Press and hold the ENTER key.

When the ENTER key is held, the ‘Mark’ function of the key is activated and the GPSMAP 176

captures its current location, and displays the New Waypoint Page. Notice that the unit assigned a

square as the default symbol and a number as the default name. The ‘OK’ Button along the lower right

is highlighted, pressing the ENTER key will save the new waypoint using the default settings for the

symbol and name, but for practice we will change them.

Changing the waypoint sym ol:

1. Using the ARROW KEYPAD, highlight the Symbol ﬁ eld, then press the ENTER key.

2. Using the ARROW KEYPAD, highlight the ‘Scenic Area’ symbol, then press the ENTER key.

Changing the waypoint name:

1. Using the ARROW KEYPAD, highlight the Name ﬁ eld, then press the ENTER key.

The Name ﬁ eld will become active and the ﬁ rst zero will be highlighted. Notice that there are now

ten placeholders for alpha numeric characters displayed.

2. Press the ARROW KEYPAD to the LEFT to clear the ﬁ eld.

3. Press the ARROW KEYPAD UP, scroll through the alpha-numeric list until the letter ‘C’ is selected.

4. Press the ARROW KEYPAD RIGHT to move to the next placeholder.

5. Press the ARROW KEYPAD DOWN, scroll through the alpha-numeric list until the letter ‘R’ is

selected.

You should be starting to get the feel of it. Continue entering letters to spell the word CREEK.

6. With the letter ‘K’ highlighted, press the ENTER key to accept the name.

Symbol Field Name Field Comment Field

up to 20 characters

Current Location ‘OK’ utton

190-00185-02_0A.indd 9 6/17/2002, 1:17:34 PM

Quick Start

When you have ﬁ nished renaming the waypoint you will need to save it in the unit’s memory.

To save the waypoint:

1. Using the ARROW KEYPAD, highlight the ‘OK’ Button and press the ENTER key.

These are the same steps that you will use to enter names, change numbers and select options in all

of the data ﬁ elds in the GPSMAP 176.

Here are a few tips:

1. I you press and hold the ARROW KEYPAD while scrolling through the alpha-numeric list it will

move through the list quickly.

2. You can scroll through the alpha-numeric list in either direction.

3. Don’t press the ENTER key until you have ﬁ nished entering the data. Remember, use the ARROW

KEYPAD to move to the next placeholder.

You should now have enough knowledge to look through the main pages, and enter data into your

GPSMAP 176. Now let’s learn how to navigate!

Na igating with your GPSMAP 176

The main use of a GPS is to be able to navigate to a known position. Let’s create another waypoint

on the Map Page using a different method, the Map Pointer.

Press the PAGE key until the Map Page is displayed. Press the IN key several times until the Zoom

Scale in the lower left corner of the Map Page reads “300 ft”. The current GPS location is indicated by

the triangle in the center of the map.

earing and distance from Map Pointer to

current GPS location.

Map Pointer

Creating a Waypoint/

Navigation

190-00185-02_0A.indd 10 6/17/2002, 1:17:34 PM

Otros manuales para GPSMAP 176

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de GPS de Garmin

Garmin

Garmin ECHOMAP ULTRA100 Series Manual de usuario

Garmin

Garmin StreetPilot I2 - Automotive GPS Receiver Guía de referencia

Garmin

Garmin Nuvi 205 Series Manual de instrucciones

Garmin

Garmin GVN 53 - Navigation System Manual de usuario

Garmin

Garmin GPSMAP 4008 - Marine GPS Receiver Guía de referencia

Garmin

Garmin GPS 16x Manual de usuario

Garmin

Garmin nuvi 350 Manual de usuario

Garmin

Garmin fleet 660 Manual de usuario

Garmin

Garmin GPSMAP 76Cx Manual de usuario

Garmin

Garmin zumo 590LM Manual de usuario

Garmin

Garmin DEZL 580 Manual de usuario

Garmin

Garmin nuvi 1100 Manual de instrucciones

Garmin

Garmin OVERLANDER Manual de instrucciones

Garmin

Garmin Trail Guide Manual de usuario

Garmin

Garmin ZUMO Zumo 400 Instrucciones de montaje

Garmin

Garmin 010-11018-00 - Mobile PC - GPS Software Manual de instrucciones

Garmin

Garmin Montana 650 Manual de instrucciones

Garmin

Garmin ZUMO Zumo 400 Instrucciones de montaje

Garmin

Garmin Forerunner 410 Guía de referencia

Garmin

Garmin niv 205 Manual de servicio

Garmin

Garmin nuvi 205 e Manual de usuario

Garmin

Garmin tempe Manual de usuario

Garmin

Garmin Rino 750t Manual de usuario

Garmin

Garmin G1000:Beechcraft Baron 58/G58 Manual

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario

Kenwood

Kenwood DNN9330BT Manual de usuario

Safelet

Safelet Indra Manual de usuario

Bushnell

Bushnell 360100 Manual de usuario

Geneq

Geneq SXBlue Manual de usuario

ORIGO

ORIGO ED308 Manual de usuario
