Garmin GPS 72 Manual de usuario
owner’s
manual
&
reference
guide
GPS 72
Personal Navigator
72 Manual covers Rev B.indd 1 9/25/2002, 2:35:12 PM
© Copyright 2000-2002
GARMIN Ltd. or its subsidiaries
All Rights Reserved
GARMIN International Inc.
1200 East 151
st
Street Olathe Kansas 66062 U.S.A.
Tel. 913/397.8200
Fax 913/397.8282
GARMIN (Europe) Ltd.
Unit 5 The Quadrangle Abbey Park Industrial Estate Romsey SO51 9AQ U.K.
Tel. 44/1794.519944
Fax 44/1794.519222
GARMIN Corporation
No. 68 Jangshu 2
nd
Road. Shijr Taipei County Taiwan
Tel. 886/2.2642.8999
Fax 886/2.2642.9099
Except as expressly provided herein no part of this manual may be reproduced copied transmitted disseminated downloaded or stored in any storage
medium for any purpose without the express prior written consent of GARMIN. GARMIN hereby grants permission to download a single copy of this
manual and of any revision to this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any
revision hereto provided that such electronic or printed copy of this manual or revision must contain the complete text of this copyright notice and provided
further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
Information in this document is subject to change without notice. GARMIN reserves the right to change or improve its products and to make changes in the
content without obligation to notify any person or organization of such changes or improvements.
Web Site address: www.garmin.com
GARMIN® TracBack® AutoLocate® are registered trademarks and MapSource
TM
is a trademark of GARMIN Corporation and may not be used without the
express permission of GARMIN Corporation.
September 2002 Part Number 190-00294-00 Rev. B Printed in Taiwan
72 Manual covers Rev B.indd 3 9/25/2002, 2:35:41 PM
GPS 72 Registration
Help us better support you by completing your on-line registration today!
Why should you register your GPS 72?
• Notifi cation of New Products
• Lost or Stolen Unit Tracking
Connect to our Web Site (www.garmin.com) and look for the Product Registration link
on the home page.
Thanks for choosing the GARMIN GPS 72. If you have any questions or comments
regarding the use of the GPS 72 you can visit our Web Site or contact our Customer Service
Department M-F 8:00-5:00 CST (except holidays) at 1-800-800-1020.
If you have previously registered a GARMIN product purchase using
a mail-in registration card, we invite you to reregister that product
using our NEW on-line system Many services provided by our new
product registration system are now being automated and reregis-
tering your purchase ensures you the best possible support from
GARMIN
)
POWER
1
Introduction
Registration
190-00294-00_0B.indd 1 9/25/2002, 2:3 :54 PM
WARNING: If you choose to use the GPS 72 in a vehicle it is the sole responsibility of
the owner/operator of the GPS 72 to secure the GPS unit so that it will not cause damage or
personal injury in the event of an accident. Do not mount the GPS 72 over airbag panels or
in a place where the driver or passengers are likely to have an impact with it in an accident
or collision.
WARNING: If you choose to use the GPS 72 in a vehicle it is the sole responsibility of
the operator of the vehicle to operate the vehicle in a safe manner maintain full surveil-
lance of all driving conditions at all times and never become distracted by the GPS 72 to
the exclusion of safe operating practices. It is unsafe to operate the GPS 72 while you are
driving. Failure by the operator of a vehicle equipped with an GPS 72 to pay full attention
to operating the vehicle and road conditions while the vehicle is in motion could result in
an accident or collision with property damage and personal injury.
CAUTI N: IT IS THE USER’S RESPONSIBILITY TO USE THIS PRODUCT PRU-
DENTLY. THIS PRODUCT IS INTENDED TO BE USED ONLY AS A TRAVEL AID AND
MUST NOT BE USED FOR ANY PURPOSE REQUIRING PRECISE MEASUREMENT OF
DIRECTION DISTANCE LOCATION OR TOPOGRAPHY.
CAUTI N: The Global Positioning System (GPS) is operated by the government of the
United States which is solely responsible for its accuracy and maintenance. The system is
subject to changes which could affect the accuracy and performance of all GPS equipment.
Although the GPS 72 is a precision electronic NAVigation AID (NAVAID) any NAVAID can
be misused or misinterpreted and therefore become unsafe.
2
Introduction
Warnings and Cautions
190-00294-00_0B.indd 2 9/25/2002, 2:37:07 PM
FCC Compliance
The GPS 72 complies with Part 15 of the FCC interference limits for Class B
digital devices FOR HOME OR OFFICE USE. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation and are more stringent than “outdoor” requirements.
Operation of this device is subject to the following conditions: (1) This
device may not cause harmful interference and (2) this device must accept
any interference received including interference that may cause undesired
operation.
This equipment generates uses and can radiate radio frequency energy
and if not installed and used in accordance with the instructions may
cause harmful interference to radio communications. However there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment off and on the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The GPS 72 does not contain any user-serviceable parts. Repairs should only
be made by an authorized GARMIN service center. Unauthorized repairs
or modifi cations could result in permanent damage to the equipment and
void your warranty and your authority to operate this device under Part 15
regulations.
3
Introduction
FCC Compliance Statement
190-00294-00_0B.indd 3 9/25/2002, 2:37:07 PM
The GPS 72 is a 7.5 ounce 12 channel hand held GPS receiver with a built-in Quad Helix
antenna. The GPS 72 has nine keys located on the front of the unit that allow the user to
quickly access all of the units functions. The GPS 72 has a large 120 X 160 pixel 4 level gray
monochrome display for easy viewing.
The GPS 72 is a full function GPS with a factory-loaded marine point database. Using
MapSource™ you can choose to have the GPS 72 display a variety of Points of Interest. Check
your local dealer or our Web Site (www.garmin.com) for a complete listing of MapSource
products.
GARMIN designed your GPS 72 with the user in mind. The GPS 72 is waterproof to IPX 7
standards fl oats and is rugged enough to endure the most trying use. GARMIN’s friendly user
interface will allow you to be navigating with your GPS in no time. Your GPS 72 can provide
one more critical benefi t peace of mind. With your GPS 72 you will know where you are
where you’ve been and where you’re going. And since you’ll always know the way back home
you can concentrate on what you set out to do explore the great outdoors.
Thank you for choosing GARMIN!
Other features include:
Waypoints:
500 with name and graphic symbol.
Tracks:
Automatic Track Log; 10 saved Tracks.
Routes:
50 Routes that let you navigate through a set o 50 waypoints.
Trip Computer:
Trip Odometer, Stopped Time, Moving Average Speed, Moving Time,
Overall Average Speed, Total Time, Max Speed and Odometer.
Tides:
Displays tide in ormation graphically.
Sun and Moon:
Sunrise, Sunset, Moonrise, Moonset, Position in Sky, and Moon
Phase.
Hunt and Fish:
Times
NOTE: You should always be prepared and capable of
navigating without the GP 72. It is designed to compli-
ment other forms of basic navigation, not entirely replace
them.
4
Introduction
Features
190-00294-00_0B.indd 4 9/25/2002, 2:37:09 PM
5
Introduction
Table of Contents
Introduction....................................1-
Registration ........................................ 1
Warnings and Cautions ...................... 2
FCC Compliance Statement ............... 3
Features.............................................. 4
Table of Contents ............................... 5
“How To” Index.................................. 6
GPS 72 Unit Features ......................... 7
Section Two: Reference ................ -4
Initializing the GPS Receiver............7-8
GPS Information Page ................... 9-11
Map Page..................................... 12-17
Pointer Page .................................... 18
Highway Page..............................19-21
Main Menu Page..........................21-47
Trip Computer....................... 21-22
Tracks.................................... 23-24
Waypoints .................................. 25
Creating Waypoints ............... 26-28
Editing Waypoints ...................... 29
Points of Interest......................... 30
Cities .......................................... 30
Routes ................................... 31-34
Proximity.................................... 35
Goto Navigation .................... 36-37
Celestial................................. 38-40
MapSource Info .......................... 41
Setup Menu- General Tab ...... 42-43
Setup Menu-Time Tab ................ 43
Setup Menu-Units Tab................ 44
Setup Menu-Location Tab......44-45
Setup Menu-Alarms Tab ............. 46
Setup Menu-Interface Tab........... 47
Appendices.................................48-65
Appendix A: Specifi cations............... 48
Appendix B: Wiring & Interfacing.... 49
Appendix C: Time Offsets ................ 50
Appendix D: Map Datums...........51-52
Appendix E: Navigation Terms .... 53-54
Appendix F: Messages ................. 55-56
Appendix G: Loran TD................57-58
Appendix H: Accessories .................. 59
Appendix
I: Index ...................... 60-64
Appendix
J: Warranty ..................... 65
190-00294-00_0B.indd 5 9/25/2002, 2:37:10 PM
The list to the right is provided to help you quickly fi nd
some of the more important procedures you will use on
your new GP 72.
+
T D THIS:.................................................................................. SEE PAGE(S):
Initialize the GPS receiver ............................................................................................... 7
Learn About the Map page .......................................................................................12-17
Zoom in or out on the Map page ................................................................................... 12
Reconfi gure the Map page display ............................................................................12-17
Lear about the Pointer Page........................................................................................... 18
Learn about the Highway Page .................................................................................19-21
Setup and reset the Trip Computer................................................................................ 22
Clear the Track Log ....................................................................................................... 23
Learn about waypoints .................................................................................................. 25
Create Waypoints .....................................................................................................26-28
Edit Waypoints.............................................................................................................. 41
Points of Interest ........................................................................................................... 30
Create a route................................................................................................................ 31
Learn about the GOTO key ........................................................................................... 36
View celestial information ........................................................................................38-40
Change the displayed time (zone) ................................................................................. 43
Change units of measure (statute nautical metric) ....................................................... 44
Set Alarms ..................................................................................................................... 46
View a unit message .................................................................................................55-56
Setup Loran TD........................................................................................................57-58
6
Introduction
“How To” Index
190-00294-00_0B.indd 9/25/2002, 2:37:11 PM
7
Introduction
7
Reference

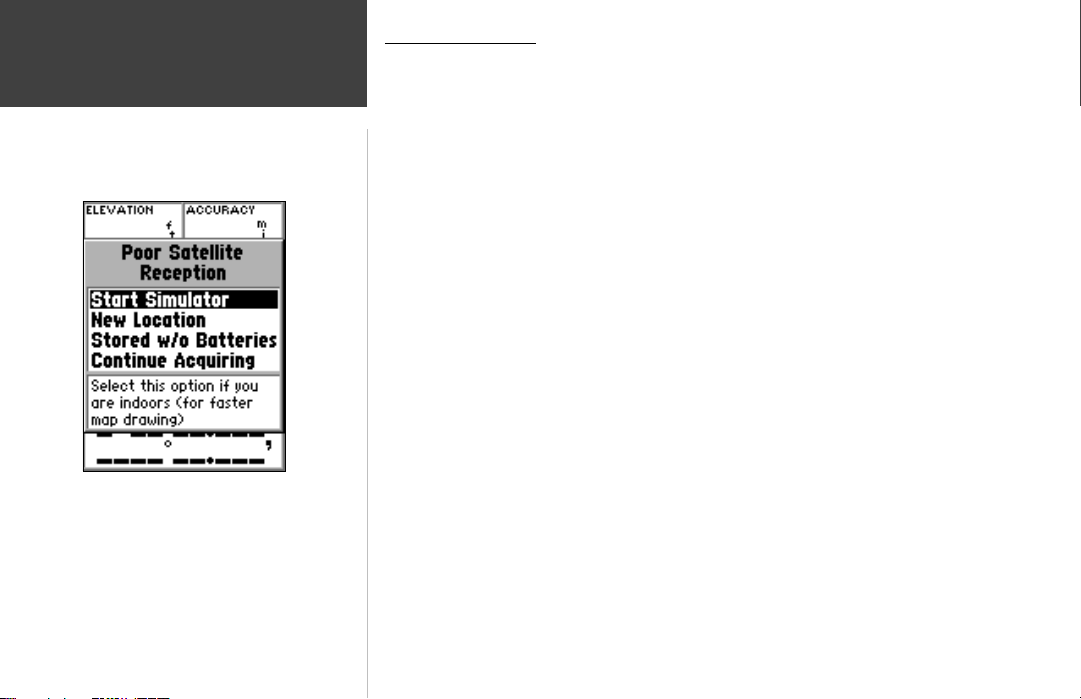

Initializing the GPS Receiver
Before the GPS 72 can be used for navigation the GPS receiver must be initialized. The
GPS receiver should only need to be initialized the fi rst time the unit is used or if it has
been stored several months.
The GPS 72 stores orbital data for each satellite in an Almanac. The orbital data is
supplied in the satellite signals. Each time the unit is used the Almanac is updated. This
is how the GPS 72 knows which satellites to search for. If you do not use your GPS for
several months or move the unit several hundred miles between uses the Almanac can
become “cold” that is to say that the orbital information is no longer valid. If the Almanac
is “cold” your unit may have trouble locking on to satellite signals. If the unit is unable to
receive enough satellite signals to determine its location it will display an options menu.
Initializing the GPS Receiver:
1. With resh batteries installed, take the unit outside where a clear 360° view o the sky
can be obtained.
2. Turn the unit on and hold it in ront o you with the top o the unit tilted upward. Follow
the screen prompts, pressing PAGE to display the GPS In ormation Page.
3. The initialization process is automatic. It should take the GPS 72 no longer than fi ve
minutes to acquire enough satellite signals to become operational. When the unit
is able to navigate, it will display either 2D GPS Location or 3D GPS Location in the
Receiver Status Field.
Ready to Navigate
Initializing the GPS Receiver
190-00294-00_0B.indd 7 9/25/2002, 2:37:11 PM
8
Introduction
8
Reference
Initialization Options
If the GPS 72 is unable to determine its location an options menu will be displayed.
Depending on the situation select an option to help the unit acquire satellites. To select an
option place the highlight over the option then press ENTER.
Start Simulator —
The Simulator can be used when you are indoors and the GPS is
unable to locate satellites. When you select ‘Simulator’ the GPS receiver is turned off
saving battery power.
New Location —
If you have moved the unit to another state province or country and
you are having trouble locking onto satellite signals select ‘New Location’.
When you select ‘New Location’ another menu will be displayed. This menu contains
the options ‘Automatic’ or ‘Use Map’. If you select ‘Automatic’ the unit will switch to
the AutoLocate mode and begin searching for satellites. If you select ‘Use Map’ you can
use the Pointer on the Map Page to select your approximate location and the unit will
continue to acquire satellites normally. ‘Automatic’ may take longer to acquire satellites.
Stored w/o Batteries —
If you have stored the unit without batteries the date stored in
the GPS may be incorrect. To check the date highlight ‘Stored w/o Batteries’ and verify
the date displayed. If the date is incorrect select ‘Stored w/o Batteries’ to search for
satellites.
Continue Acquiring —
Select this option if you are in an area where the satellite signals
are being temporarily blocked.
Initialization Options
Initializing the GPS Receiver
190-00294-00_0B.indd 8 9/25/2002, 2:37:12 PM
