Garmin APOLLO GX 55 Manual de usuario

Apollo GX55

Dealer/Customer

Training Package

II Morrow and Apollo are trademarks of II Morrow Inc.

Printed in the U.S.A.

II Morrow Inc.

Consumer Products Division

2345 Turner Road, S.E.

Salem, OR 97302

U.S.A. Toll Free 800.525.6726

Canada Toll Free 800.654.3415

International 503.391.3411

FAX 503.364.2138

Visit our web page at http://www.iimorrow.com

Send comments about this manual by email to: [email protected]

Table Of Contents

Getting Started the First Time. . . . . . . . . . . . . . . . . . . . . 1

Power On . . . . . . . . . . . . . . . . . . . . . . . . 1

Seed Position . . . . . . . . . . . . . . . . . . . . . . 1

Entering a Seed Position . . . . . . . . . . . . . . . . . 2

Change Reference Waypoint . . . . . . . . . . . . . . 2

Using the Direct-To Function . . . . . . . . . . . . . . 3

Waypoint Information . . . . . . . . . . . . . . . . . . 4

Navigation Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Estimated Time En Route (Ete) . . . . . . . . . . . . . 5

Bearing (Brg) . . . . . . . . . . . . . . . . . . . . . . 5

Range (Rge) . . . . . . . . . . . . . . . . . . . . . . . 5

Course Deviation Indicator (CDI) and

Distance Off Track . . . . . . . . . . . . . . . . . . . 6

Desired Track (Dtk) . . . . . . . . . . . . . . . . . . . 7

Leg (FROM-TO) Distance . . . . . . . . . . . . . . . 7

Track (Trk) Angle . . . . . . . . . . . . . . . . . . . . 7

Track Angle Error (Tae) . . . . . . . . . . . . . . . . . 7

Ground Speed (GS) . . . . . . . . . . . . . . . . . . . 7

Minimum Safe Altitude (MSA) . . . . . . . . . . . . . 8

Minimum En Route Safe Altitude (MESA) . . . . . . . 8

Flight Time . . . . . . . . . . . . . . . . . . . . . . . 8

Time UTC . . . . . . . . . . . . . . . . . . . . . . . . 9

Estimated Time of Arrival (ETA) . . . . . . . . . . . . 9

Nearest Waypoint Search . . . . . . . . . . . . . . . . 9

Starting Nearest Waypoint Search . . . . . . . . . . . 9

Searching Around a Reference Waypoint . . . . . . . 10

From/To/Next Waypoint . . . . . . . . . . . . . . . 11

Creating FROM/TO/NEXT Waypoints (ABCD) . . . 11

Placing the TO Waypoint on Hold . . . . . . . . . . 14

Using Direct-To . . . . . . . . . . . . . . . . . . . . 14

Direct-To Defaults . . . . . . . . . . . . . . . . . . . 15

Direct-To Operation . . . . . . . . . . . . . . . . . . 15

Direct-To Examples . . . . . . . . . . . . . . . . . . 16

Center the CDI . . . . . . . . . . . . . . . . . . . . . 16

Enter a New Waypoint into a Flight Plan . . . . . . . 17

Waypoint Database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Create User Waypoint by Lat/Lon . . . . . . . . . . 19

Create User Waypoint by Radial/Distance . . . . . . 19

Flight Plan Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Flight Plan Pages . . . . . . . . . . . . . . . . . . . 21

Reaching the Flight Plan Function . . . . . . . . . . 21

Active Flight Plan . . . . . . . . . . . . . . . . . . . 21

Creating a Flight Plan . . . . . . . . . . . . . . . . . 22

Flight Plan Sequencing . . . . . . . . . . . . . . . . 24

Flight Plan Leg Information . . . . . . . . . . . . . . 24

Moving Map Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Full Screen Map . . . . . . . . . . . . . . . . . . . . 25

Controls . . . . . . . . . . . . . . . . . . . . . . . . 25

Map Scale . . . . . . . . . . . . . . . . . . . . . . . 25

Map and Nav Info . . . . . . . . . . . . . . . . . . . 26

Map Setup . . . . . . . . . . . . . . . . . . . . . . . 26

Route Line . . . . . . . . . . . . . . . . . . . . . . . 26

Map Orient . . . . . . . . . . . . . . . . . . . . . . . 26

Identifier and Waypoint Type Selection . . . . . . . 27

Airspace Setup . . . . . . . . . . . . . . . . . . . . . 28

Airspace Buffers . . . . . . . . . . . . . . . . . . . . 28

ATC Ring Selection . . . . . . . . . . . . . . . . . . 29

Airspace Selections . . . . . . . . . . . . . . . . . . 30

Customer Dealer

Getting Started the First Time . . . . . . . . . . . . . . . . . . . . . 1

Power On . . . . . . . . . . . . . . . . . . . . . . . . 1

Seed Position . . . . . . . . . . . . . . . . . . . . . . 1

Entering a Seed Position . . . . . . . . . . . . . . . . . 2

Change Reference Waypoint . . . . . . . . . . . . . . 2

Using the Direct-To Function . . . . . . . . . . . . . . 3

Waypoint Information . . . . . . . . . . . . . . . . . . 4

Navigation Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Estimated Time En Route (Ete) . . . . . . . . . . . . . 5

Bearing (Brg) . . . . . . . . . . . . . . . . . . . . . . 5

Range (Rge) . . . . . . . . . . . . . . . . . . . . . . . 5

Course Deviation Indicator (CDI) and

Distance Off Track . . . . . . . . . . . . . . . . . . . 6

Desired Track (Dtk) . . . . . . . . . . . . . . . . . . . 7

Leg (FROM-TO) Distance . . . . . . . . . . . . . . . 7

Track (Trk) Angle . . . . . . . . . . . . . . . . . . . . 7

Track Angle Error (Tae) . . . . . . . . . . . . . . . . . 7

Ground Speed (GS) . . . . . . . . . . . . . . . . . . . 7

Minimum Safe Altitude (MSA) . . . . . . . . . . . . . 8

Minimum En Route Safe Altitude (MESA) . . . . . . . 8

Flight Time . . . . . . . . . . . . . . . . . . . . . . . 8

Time UTC . . . . . . . . . . . . . . . . . . . . . . . . 9

Estimated Time of Arrival (ETA) . . . . . . . . . . . . 9

Nearest Waypoint Search . . . . . . . . . . . . . . . . 9

Starting Nearest Waypoint Search . . . . . . . . . . . 9

Searching Around a Reference Waypoint . . . . . . . 10

From/To/Next Waypoint . . . . . . . . . . . . . . . 11

Creating FROM/TO/NEXT Waypoints (ABCD) . . . 11

Placing the TO Waypoint on Hold . . . . . . . . . . 14

Using Direct-To . . . . . . . . . . . . . . . . . . . . 14

Direct-To Defaults . . . . . . . . . . . . . . . . . . . 15

Direct-To Operation . . . . . . . . . . . . . . . . . . 15

Direct-To Examples . . . . . . . . . . . . . . . . . . 16

Center the CDI . . . . . . . . . . . . . . . . . . . . . 16

Enter a New Waypoint into a Flight Plan . . . . . . . 17

Dealer/Customer Check Off Sheet

Please detach and return to II Morrow

Customer Dealer

Waypoint Database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Create User Waypoint by Lat/Lon . . . . . . . . . . 19

Create User Waypoint by Radial/Distance . . . . . . 19

Flight Plan Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Flight Plan Pages . . . . . . . . . . . . . . . . . . . 21

Reaching the Flight Plan Function . . . . . . . . . . 21

Active Flight Plan . . . . . . . . . . . . . . . . . . . 21

Creating a Flight Plan . . . . . . . . . . . . . . . . . 22

Flight Plan Sequencing . . . . . . . . . . . . . . . . 24

Flight Plan Leg Information . . . . . . . . . . . . . . 24

Moving Map Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Full Screen Map . . . . . . . . . . . . . . . . . . . . 25

Controls . . . . . . . . . . . . . . . . . . . . . . . . 25

Map Scale . . . . . . . . . . . . . . . . . . . . . . . 25

Map and Nav Info . . . . . . . . . . . . . . . . . . . 26

Map Setup . . . . . . . . . . . . . . . . . . . . . . . 26

Route Line . . . . . . . . . . . . . . . . . . . . . . . 26

Map Orient . . . . . . . . . . . . . . . . . . . . . . . 26

Identifier and Waypoint Type Selection . . . . . . . 27

Airspace Setup . . . . . . . . . . . . . . . . . . . . . 28

Airspace Buffers . . . . . . . . . . . . . . . . . . . . 28

ATC Ring Selection . . . . . . . . . . . . . . . . . . 29

Airspace Selections . . . . . . . . . . . . . . . . . . 30

Dealer Name: _____________________________________

Dealer Address: ___________________________________

___________________________________

Dealer No.: _________________

Customer Name: __________________________________

Serial Number: ____________________________________

Dealer/Customer Check Off Sheet

Please detach and return to II Morrow

Getting Started the First Time

This section explains how to get started using your Apollo GX55. Information in

this section explains how to startup the unit, check signals from the GPS satellites,

enter a seed position, and go Direct-To a destination waypoint.

It is necessary to enter a seed position and the current time the first time you

turn the unit on.

•Power on

•Enter a seed position (your dealer may have already completed this step for you),

if necessary

•Check satellite signal strength

•Enter a “Direct-To,” or destination, waypoint

•Begin navigating

Power On Turn the Power knob clockwise to switch the unit on. The startup screen, testing,

position, and database information shows on the display for several seconds and

then will go into the Navigation function.

Seed

Position Each time the Apollo GX55 is switched on, it must locate satellites in the sky to

acquire signals before determining a position fix in a complex process involving

lengthy mathematical operations. Without a seed position and the current UTC time

and date, this process can take 10 minutes or more to complete. Enter a Seed Position

to allow the receiver to quickly locate and track available satellites.

Note

The seed position and current time only need to be entered the first

time the receiver is switched on. This information is stored in memory

and need not be entered again. If you move about three hundred miles

Apollo GX55 Front Panel Description

Getting Started the First Time

without the Apollo GX55 turned on and tracking its position, reenter

the seed position.

Entering a

Seed

Position

After the start up tests, you will always have the choice of entering a Seed

Position. The Seed Position is a starting reference point so the GPS receiver

knows what satellites to look for. If a Seed Position has been previously entered,

you do not need to select a new Present Position or a Reference Waypoint. If you

do not make any selections, the Apollo GX55 will automatically progress into the

Navigation function.

1. The previous Seed Position will display with the choice of SEL to change the Seed

Position or ENTER to accept the previous position. If you don’t do anything, the

Apollo GX55 will continue normally. You can also press ENTER to accept the

current position, though this is not required.

Ppos: 2.3nm 130°

To Nrst Wpt SLE

Ent-OK SEL-Chnge

2. Press SEL to change the Seed Position.

3. The current Reference Position will be displayed and the Chg? prompt will

flash.

Ppos: 44°54.46N

122°59.69W

Ref Wpt: Chg?

Press ENTER to change the Reference Waypoint or turn the Large knob to

change to Lat/Lon Reference Position. Use the appropriate following description:

Change Reference Waypoint or Change Lat/Lon Reference Position.

Change Reference Waypoint

1. After pressing ENTER, the waypoint type will flash. Turn the Small knob to

select the waypoint type.

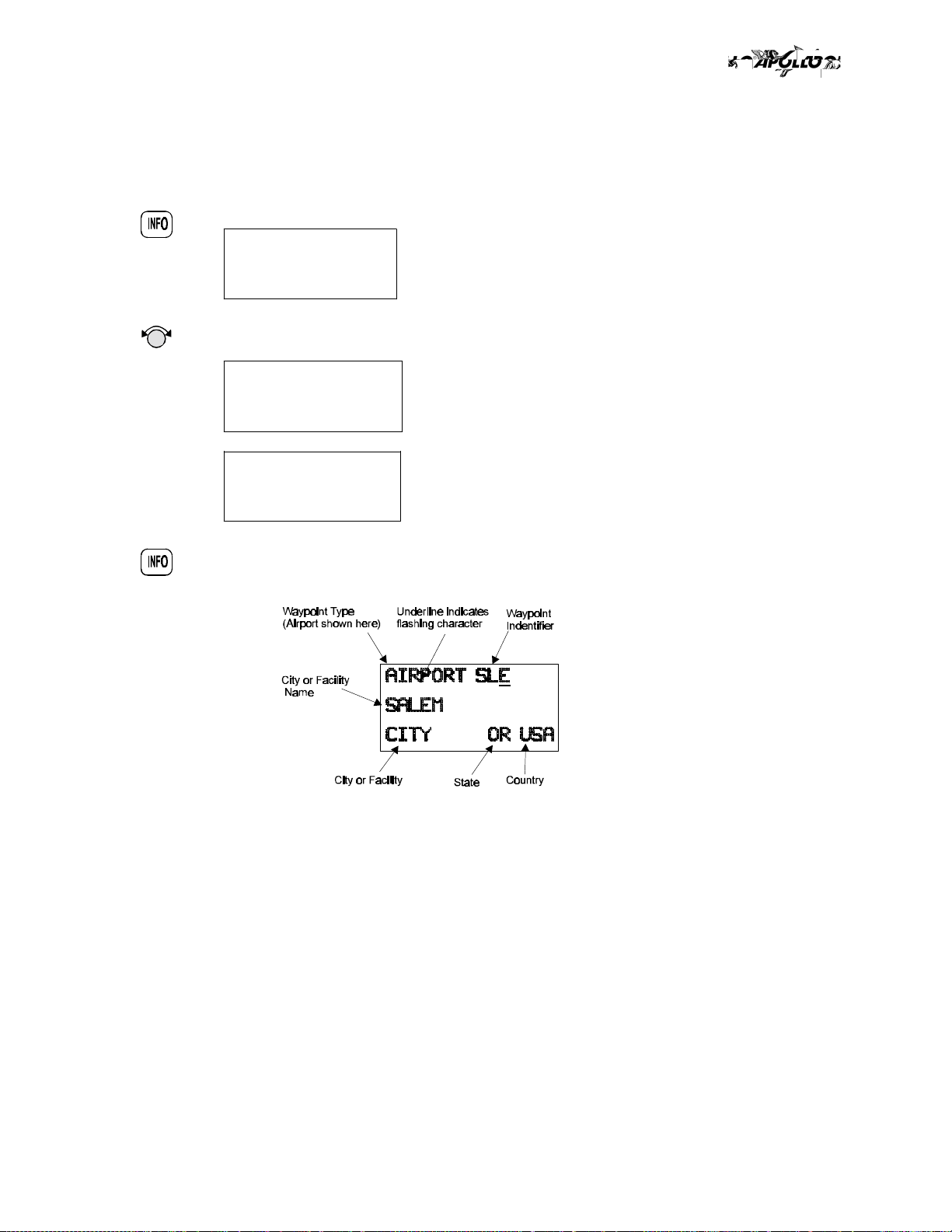

AIRPORT PDX

PORTLAND

CITY OR USA

2. Turn the Large knob to clockwise (cw) one click so the first character of the

Reference Waypoint name will flash. Change the character with the Small

knob. Turn the Large knob to move to each character of the waypoint name.

4. When you have entered the waypoint name, press ENTER.

Getting Started the First Time

Using the Direct-To Function

Pressing Direct-To allows you to quickly make changes to your TO waypoint.

When you press Direct-To, the default waypoint shown will be the current TO

waypoint in the Nav or Flight Plan functions or the waypoint displayed in the

Database or Info functions. See page 14 for more details.

1. Press the Direct-To key. The waypoint type will flash.

VOR CVO

SALEM

CITY OR USA

2. Turn the Small knob to select the waypoint type. You may select: AIRPORT,

VOR, NDB, INT, or USER. For instance, with AIRPORT indicated as the type

of destination waypoint, only airports show on the display as you select

identifier characters.

AIRPORT SLE

SALEM

city OR USA

3. Turn the Large knob clockwise (cw) one position to the waypoint identifier.

The first character of the waypoint identifier will flash.

AIRPORT SLE

SALEM

CITY OR USA

4. Turn the Small knob to change the character.

AIRPORT HAB

HAMILTON

city AL USA

5. Turn the Large knob to move to each character of the waypoint identifier.

Change the character with the Small knob. Continue using the Large and

Small knobs to select your waypoint.

AIRPORT HIB

HIBBING

city MN USA

6. After selecting the desired waypoint identifier, press ENTER. Your Apollo GX55

will now switch to the Navigation function and show information based on a direct

route from your present position to the Direct-To destination waypoint.

ete aHIO 00:12

“ 0.000

Brg 346 35.2nm·

Getting Started the First Time

Waypoint

Information The GX55 contains a wealth of information in its database. Pressing the INFO

key will access the information about the destination (TO), or displayed,

waypoint.

1. Press INFO to view information about the TO waypoint.

HIO AIRPORT

PORTLAND

city OR USA

2. Turn the Small knob to view the available information about the TO waypoint.

HIO ATIS 127.65

UNIC 123.00

TWR 119.30

HIO 12 /30

6600ft Hard ILS

Lighted

3. Press INFO again to return to the previous display.

Getting Started the First Time

Otros manuales para APOLLO GX 55

Tabla de contenidos

Otros manuales de GPS de Garmin

Garmin

Garmin GPSMAP 8400 series Manual de usuario

Garmin

Garmin eTrex 10 Manual de usuario

Garmin

Garmin GPSMAP 702 series Manual de usuario

Garmin

Garmin RV 895 Manual de usuario

Garmin

Garmin GTN 725 Manual de usuario

Garmin

Garmin StreetPilot 2730 Manual de usuario

Garmin

Garmin GNS 430 Manual de usuario

Garmin

Garmin GPSMAP 496 Guía de referencia

Garmin

Garmin nuvi 2515 Manual de instrucciones

Garmin

Garmin GPS 400 Manual de usuario

Garmin

Garmin nuvi 500-Series Manual de instrucciones

Garmin

Garmin nuvi 205W-Series Manual de usuario

Garmin

Garmin StreetPilot 2720 - Automotive GPS Receiver Manual de usuario

Garmin

Garmin Drivesmart 55 Manual de usuario

Garmin

Garmin GPS Kit nuvi 510 Manual de instrucciones

Garmin

Garmin Dakota 20 - Hiking GPS Receiver Guía de referencia

Garmin

Garmin RUNNING DYNAMICS POD Manual de usuario

Garmin

Garmin GMI 10 Digital Marine Instrument Display Manual de usuario

Garmin

Garmin nuvi personal travel assistan Manual de usuario

Garmin

Garmin GPSMAP 60CS Manual de usuario

Garmin

Garmin ECHOMAP UHD2 Manual de usuario

Garmin

Garmin GPS Manual de usuario

Garmin

Garmin Cessna Caravan G1000 Manual

Garmin

Garmin eTrex Legend Cx Manual de usuario

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario

Kenwood

Kenwood DNN9330BT Manual de usuario

Safelet

Safelet Indra Manual de usuario

Bushnell

Bushnell 360100 Manual de usuario

Geneq

Geneq SXBlue Manual de usuario

ORIGO

ORIGO ED308 Manual de usuario
