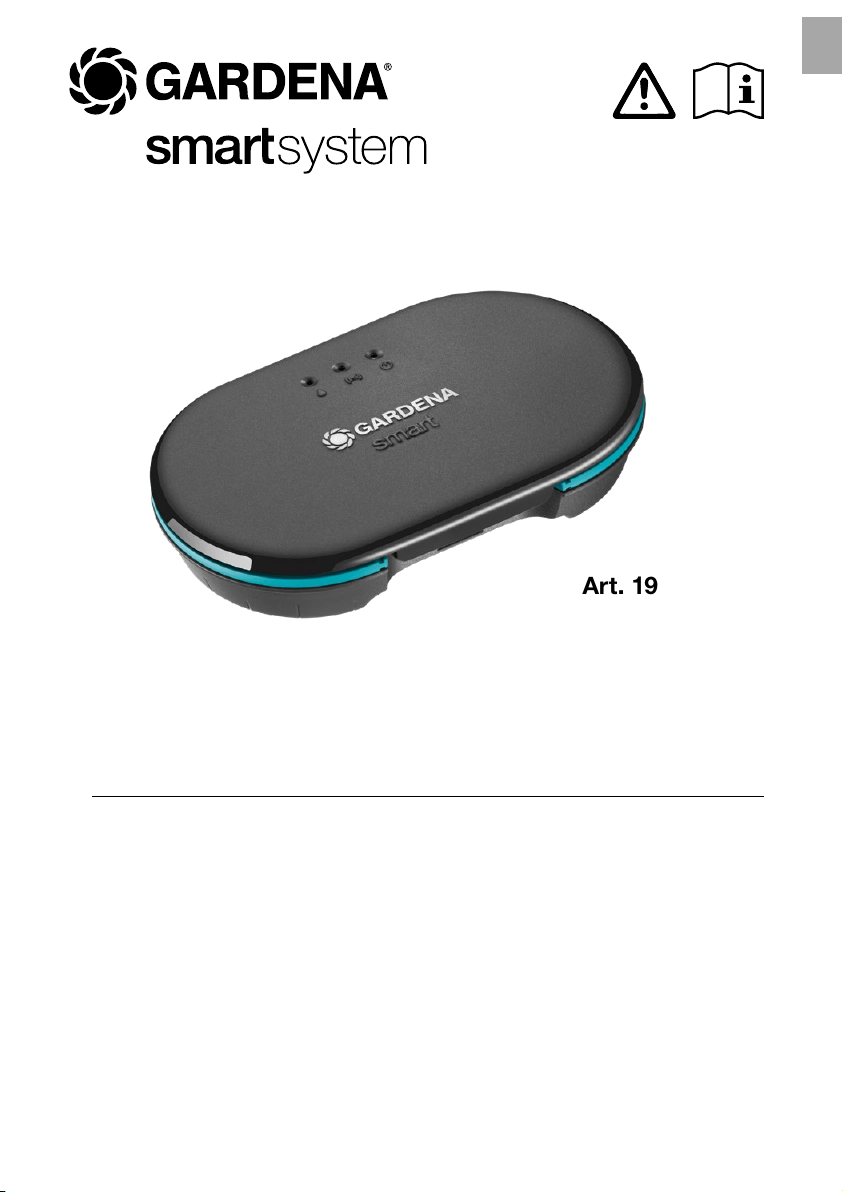

en Operator’s manual
smart Irrigation Control
Art. 19035
en
GARDENA smart Irrigation Control
1. SAFETY WARNINGS ...................................... 4
2. ASSEMBLY ............................................. 6
3. INSTALLATION .......................................... 9
4. OPERATION ............................................ 20
5. MAINTENANCE .......................................... 23
6. STORAGE .............................................. 23
7. TROUBLESHOOTING ..................................... 24
8. TECHNICAL DATA ........................................ 26
9. ACCESSORIES/SPARE PARTS.............................. 27
10. SERVICE ............................................... 27
11. DISPOSAL .............................................. 28
12. TRADEMARK ATTRIBUTION ................................ 29
2
en
Translation of the original instructions.
This product may be used under supervision, or if instruction
regarding the safe use of the product has been provided and the
resulting dangers have been understood, by children aged 8 and above,
as well as by persons with physical, sensory or mental disabilities or a lack
of experience and knowledge. Children must not be allowed to play with
the product. Cleaning and user maintenance must not be performed by
children without supervision.The use of this product by young people
under the age of16 is not recommended.
Intended use:
The GARDENA smart Irrigation Control is intended for private use in
domestic and hobby gardens, to control sprinklers and irrigation systems.
It can be used for automatic watering during holidays. It is not intended
for use in an indoor irrigation system.
The GARDENA smart Irrigation Control is part of a garden irrigation
system and can only be programmed together with the GARDENA smart
Gateway.
The GARDENA smart Irrigation Control is configured via the GARDENA
smart App and controls the watering. Sprinklers, a sprinkler system or a drip
head watering system can be used for watering.
The GARDENA smart Irrigation Control carries out watering fully auto-
matically according to the set program and can therefore also be used during
holidays.
DANGER!
Risk of injury!
The product must not be used for industrial purposes or in
conjunction with chemicals, foodstuffs, easily flammable and
explosive materials.
3
en
1. SAFETY WARNINGS
Important!
Read the operator’s manual
carefully before use and keep
for future reference.
1.1 Explanation of the
symbols:
Read operator’s manual.
1.2 Safety warnings:
DANGER!
Cardiac arrest!
This product makes an electro-
magnetic field while it oper-
ates. This field can affect the
functioning of active or pas-
sivemedical implants and
cause serious or fatal injuries
(e.g. pacemakers).
vConsult your physician and
the manufacturer of your
implant before using this
product.
vAfter using the product,
disconnect the mains plug
from the mains socket.
DANGER!
Risk of suffocation!
Small parts can be easily swal-
lowed. There is also a risk that
the polybag can suffocate tod-
dlers.
vKeep toddlers away when
you assemble the product.
DANGER!
Electric shock!
Risk of injury due to electric
shock.
• The product must be supplied
through a residual current
device (RCD) having a rated
residual operating current
not exceeding 30 mA.
The product must only be operated
with the 36 V (DC) power supply unit
provided. Do not use an adapter.
Protect the 36 V (DC) power supply
unit from moisture and direct sun-
light when connected.
Install the Irrigation Control in
aweatherproof location.
Check the power cord for damage
before use.
4
en
The product must be used only for
controlling commercially available
24V (AC) valves. The electric power
consumption per channel must
not exceed 500 mA (a GARDENA
Irrigation Valve Art. 1278 requires
150 mA).
5
en
2. ASSEMBLY
2.1 Location of installation of the Irrigation Control:
The Irrigation Control is splash-proof. We recommend installing the Irrigation
Control in a location protected from the weather.
2.2 Cable cross-section of the connection cable:
The maximum permissible distance between the product and the valve
depends on the cross-section of the connection cable. For a distance of
30m, the cross-section is 0.5 mm² and 0.75 mm² for a distance of 45m.
No more than 2 valves (except for the master valve) must be in operation
at the same time.
The GARDENA Connection Cable Art. 1280 has a cross-section of
0.5mm² and is 15 m long.
This cable allows to connect up to 6 valves. For a waterproof connection
of the cable, use the GARDENA Cable Clip Art. 1282.
6
en
2.3 To assemble the Irrigation Control on the wall:
Both screws and wall plugs are included in the scope of delivery.
The distance between the holes is 120 mm.
WARNING!
Risk of falling!
If you install the Irrigation Control at a height of more than 2.0 m, you risk
falling to the ground during installation.
vInstall the Irrigation Control at a height of 2.0 m maximum.
vDo not climb on a ladder or similar aid to install the Irrigation Control.
v Keep both feet firmly on the ground when mounting the Irrigation
Control.
1
1. Remove the cover 1.
7
en
36 VDC VALVES
S/N: 00000000
MASTER
1+ –23456CCM
TOP
RESET 5s
120 mm
2. Mark the positions of the holes. To do this, hold the Irrigation Control
horizontally against the wall and mark 2 holes at a distance of 120mm.
3. Drill the holes and install the Irrigation Control at the wall using the
2 wall plugs and screws supplied.
NOTE:
The cables must be led downwards!
Pay attention to the cable lengths, especially during initial installation.
If you want to mount several Irrigation Controls, install them one above the
other with a vertical distance of 150 mm.
The cable routing allows you to install up to 3 irrigation controls one above
the other.
8
en
3. INSTALLATION
3.1 To remove the cable strain relief:
VALVES
S/N: 00000000
TOP
RESET 5s
MASTER
1234 56CCM
36 VDC
+–
4
3
vLoosen both screws 3and remove the cable strain relief 4.
9
en
3.2 Connection overview:
123456CCCC 123456CCCC
VALVES
S/N: 00000000
TOP
RESET 5s
MASTER
123456CCM
36 VDC
POWER
SUPPLY
PUMP
CONTROL
V1 V2 V3
(ART. 1278)(ART. 1278)
(ART. 1255)
(ART. 1278)
V4 V5 V6
(ART. 1278) (ART. 1278) (ART. 1278)
(ART. 1255)
36 VDC
+–
Valve Box Art. 1255 Valve Box Art. 1255
