Ganz DR8NRT Manual de usuario
1
2
Specification & Organization -------------------------------------------------- 5
Specifications --------------------------------------------------------- 5
Product Contents List -------------------------------------------------- 7
System Organization ---------------------------------------------------- 8
Product Description -------------------------------------------------------- 9
Front panel description --------------------------------------------------- 9
Rear panel description --------------------------------------------------- 10
Remote Controller description --------------------------------------------- 11
HDD, DVD-RW Connect ----------------------------------------------------------- 12
Power On ---------------------------------------------------------------- 13
Live Display --------------------------------------------------------------- 14
Configuring the live display ---------------------------------------------- 14
PTZ -------------------------------------------------------------------- 15
Search ----------------------------------------------------------------- 16
Normal Search -------------------------------------------------------- 16
Sequence Search ------------------------------------------------------ 21
Thumbnail Search ----------------------------------------------------- 22
S m a r t S ea r c h - --------------------------------------------------- 23
Backup ----------------------------------------------------------- 24
Backup -------------------------------------------------------------- 24
Backup Data Management ----------------------------------------------- 25
Configuration-System ------------------------------------------------------ 26
Camera --------------------------------------------------------- 26
Alarm/Event ------------------------------------------------------ 29
Display ------------------------------------------------------- 35
Audio ----------------------------------------------------------- 38
User ------------------------------------------------------ 39
Network ------------------------------------------------------- 41
S y s t e m ------------------------------------------------------- 43
S t o r age ----------------------------------------------------- 45
3
Configuration-Record -------------------------------------------------- 46
Record mode --------------------------------------------------------- 46
Normal record ---------------------------------------------------- 48
Intensive record ----------------------------------------------------- 50
Panic record ----------------------------------------------------- 52
Sequence -------------------------------------------------------- 53
Digital Zoom ------------------------------------------------------- 54
Keylock ---------------------------------------------------------------- 55
Panic Start/Stop ----------------------------------------------------------- 56
Shutdown ---------------------------------------------------------------- 57
Error Code List ---------------------------------------------------------- 57
RemoteSW installation ------------------------------------------------------- 58
System Requirement ---------------------------------------------------- 58
Introduce ------------------------------------------------------------ 59
RemoteSW Local Setup ----------------------------------------------------- 60
local setup ---------------------------------------------------- 62
RemoteSW Search --------------------------------------------------------- 64
Search Function Introduce ------------------------------------------------ 64
Search Method -------------------------------------------------------- 65
Search Option -------------------------------------------------------- 66
RemoteSW DVR System Setup ------------------------------------------------- 71
Camera ------------------------------------------------------------ 72
A l ar m/E v en t - - - --- - - ------------------------------------------------ 73
Display ---------------------------------------------------------- 76
Audio ----------------------------------------------------------- 78
User ----------------------------------------------------------- 78
RemoteSW DVR Record Setup ------------------------------------------------- 79
Record Mode ---------------------------------------------------------- 80
Normal record -------------------------------------------------------- 81
Intensive record -------------------------------------------------------- 83
Panic record ---------------------------------------------------------- 84
Web Client Installation -------------------------------------------------- 85
4
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's
instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has
two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety.
When the provided plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use the attachments/accessories specified by the manufacturer.
12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15) This equipment is indoor use and all the communication wirings are limited to inside of the
building.
16) The socket-outlet shall be installed near the equipment and shall be easily accessible.
17) CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
# Operation Max temperature : 40℃
# USB Load condition: USB Ports( 5 Vdc, Max. 500 mA)
5
SPECIFICATION&ORIGANIZATION
Specifications
MODEL DR8NRT,DR16NRT
Operation PENTAPLEX PENTAPLEX performance
( Simultaneous Live Display/Recording/Playback/Archiving/
Networking effectively without interfering each operations)
Video in Channels 16/8
Connection BNC, 1.0Vpp composite 75ohm balanced
Loop through BNC,1.0Vpp composite 75ohm unbalanced, auto termination
Audio in Channels 4
Connection line level unbalanced
Main Displays BNC 1.0Vpp composite 75ohm unbalanced
VGA 15 pin D-SUB 1024 x 768 @ 60Hz
Screen display modes 1 , 4 , 9 , 16 User defined channels for each mode
Sequence Adjustable dwell time, user defined sequences
Spot displays Channels 4 fully programmable
Connection BNC, 1.0Vpp composite 75ohm unbalanced
Display mode Full screen sequence, adjustable dwell time
Audio out Channels 1
Connection RCA, line level unbalanced
External alarm Inputs 16(16 Open collector TR), NO or NC common ground
Outputs 16, high(+5V) or low(0V) selectable, common ground
User interface On screen display GUI, alpha blending
Control Front panel/IR Remote/USB Mouse
Recording Video CODEC MPEG-4
Resolution options for each channel CIF (352 x 240, 352 x 288), 2 CIF (704 x 240, 704 x 288), D1 (704 x 480, 704 x 576)
Maximum total frame rate 480/240FPS(NTSC) / 400/200 FPS (PAL)
Image quality Highest, High, Standard, Low
Pre-event recording 5 seconds max
Recording modes Continuous / Motion detection / Alarm / User event / Panic
Frame rate options for each channel 30 – 15 – 7.5 – 4 – 2 – 1
Schedule Configurable recording time
limits
Weekly / Daily per Camera
Audio Audio inputs independently assigned to each channel
Motion detection 16 x 16 selectable grid with 10 levels of sensitivity
Covert recording Yes, selectable by channel
6
Camera title English and Numeric
Playback Speed Forward / reverse. 1x, 2x, 3x, 4x, 8x, 16x, 32x, 64x, 128x
Control Front panel buttons and Jog / Shuttle /USB Mouse
Search method Calendar / timeline, event log, Sequence, Thumbnail, Smart Search
Split screen display modes 1,4,16
Audio synchronization Yes at any frame rate
Archiving Storage DVD±RW, USB Memory stick, Network
Format Watermarked AVI
Archive data Independent channels selection (video / audio), backup log, event log
Time Time zone Worldwide, Selectable
DST Yes
PTZ RS-485 Multi protocol, baud rate and speed control for each channel
System Watchdog Yes
Abnormal shutdown detection Yes, with system auto recovery
HDD error detection Yes, SMART monitoring
Network Connection RJ45, 10 / 100 Ethernet
DHCP Yes
DDNS Yes
Two way network audio Yes
Bandwidth management Yes
Remote client Client software Yes, Included
Remote configuration Yes
Remote PTZ control Yes
Email event notification Yes
Storage Maximum Capacity Not limited
Storage 4 x HDD maximum
Recording options Write once / Overwrite
Event handling Source Alarm in, motion detection, video loss, HDD error, User event
Action Record, alarm out, email notification, log, remote client popup, buzzer, full screen
popup
Security User levels ADMIN, MANAGER, USER
Key Lock Yes, password protected
Physical Dimensions 428mm(w) x 475mm(d) x 93mm(h)
Weight 12Kgs
7
SPECIFICATION&ORIGANIZATION
Product Contents List
Please check if all the product contents are present after opening the package.
①Basic Contents
Remote Controller Instruction Manual Remote Agent
Installation CD
AAA Battery x 2
AC Power Cable
②Optional Contents
Internal Hard Disk Drive Internal DVD-RW Drive USB Thumb Drive
DR8NRT,16NRT Unit
8
SPECIFICATION&ORIGANIZATION
System Organization
NETWORK
Camera
Alarm Sensor Relay Out
VCR VGA
Monitor A/V Monitor
Remote Client PC Image Printer
Video In
Video Out
TCP/IP
Alarm Input/Out
Remote
Controller
DVD-RW
Backup
AVI Backup
WEB Client
USB USB Mouse
9
PRODUCT DESCRIPTION

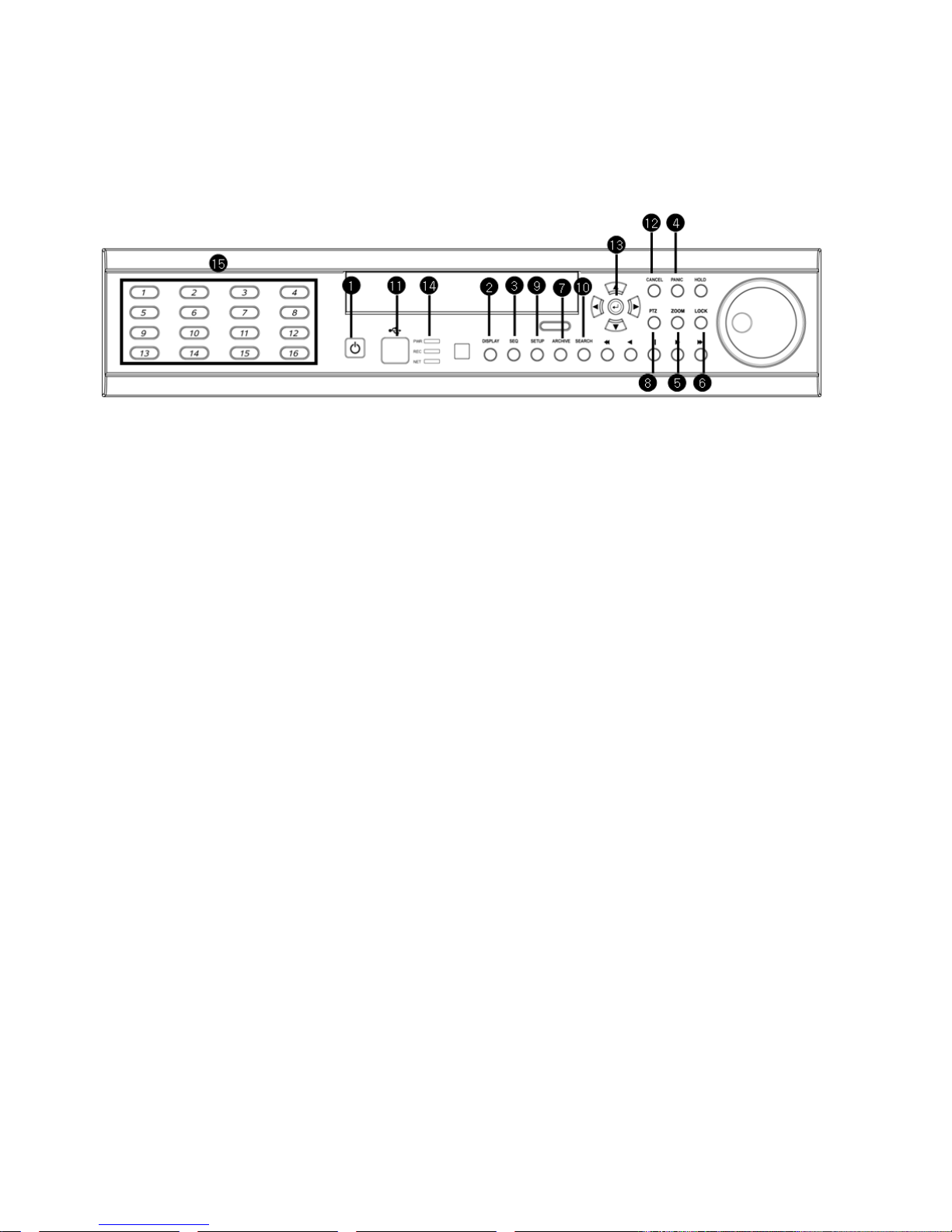

Front Panel
① Power : System Power On/Off
② DISPLAY : Select Screen Division Mode or Rotation Mode
③ SEQUENCE : Select Sequence Screen Mode
④ PANIC : Trigger Panic Recording Mode and Panic Relay Output
⑤ ZOOM : Digital Zoom on Live or Playback Image
⑥ LOCK : Front Panel Lock Button
⑦ ARCHIVE : Go to Archiving Menu
⑧ PTZ : Go to Camera PTZ Control
⑨ SETUP : Go to System Setup Menu
⑩ SEARCH : Go to Search Menu
⑪ USB PORT: USB Port for use of a USB Memory Stick and/or USB HDD Backup.
⑫ Mouse left Click
⑬ Mouse Right Click
⑭ LED Indicator : Indicates Present System Status. (POWER, REC, NETWORK)
⑮ Channel Selection Buttons (1~8/16) : Select Channel or Input Password
- Directional / Navigation Buttons (UP, DOWN, LEFT, RIGHT, ENTER)
- Remote Controller Input Sensor (IR)
- EJECT : Eject DVD-RW
- ◀ ◀ / ◀ : Focus Adjust (Near/Far) or Reverse Play / Rewind
- Ⅱ: Pause Playback
- ▶ / ▶ ▶ : Iris Adjust (Open / Close) or Forward Play / Fast Forward
- JOG / SHUTTLE : Outer wheel – variable REW or FF; Inner wheel – scroll frame-by frame while
PAUSE.
- HOLD : Hold Current JOG / SHUTTLE Position
10
PRODUCT DESCRIPTION
Rear Panel
① Video IN / Loop : BNC Video Input Port, BNC Video Loop Output
② Monitor out : BNC Monitor Output
SVHS : Output Video by Connected SVHS.
③ Spot #1 ~ #4 : 4 x BNC Output to Individually-Sequenced Spot Monitors
④ Audio In : 4 x RCA Audio Line Input Terminal
⑤ Audio Out : RCA Audio Line Out Terminal
⑥ Alarm : 16 x Input TTL Alarm/Sensor Input Terminal
⑦ Relay : 16 x Relay Output Terminal
⑧ USB PORT: USB Port for use of a USB Memory Stick and/or USB HDD Backup
⑨ VGA OUT : VGA Main Monitor Output
⑩ RS-232C : Serial Configuration Port for Program Debugging
⑪ RS-485 : Serial Interface for PTZ device connection and control
⑫ RJ-45 jack : 10/100 Ethernet LAN/WAN connection (for Remote Access and Configuration)
⑬ AC Power Input
• For System Installation, please install after turning off System’s Power.
• VGA monitor is the main monitor. Thus if you connect the CRT monitor with
monitor out, you cannot see the menu.
Tip
Otros manuales para DR8NRT
1
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de DVR de Ganz
Ganz
Ganz ZR-DH921NP Manual de usuario
Ganz
Ganz Digimaster Series DR8HRD Manual de usuario
Ganz
Ganz Digimaster DR4N-Lite Manual de usuario
Ganz
Ganz ZR-DH1621NP Manual de usuario
Ganz
Ganz digimaster DR-4FX1 Manual de usuario
Ganz
Ganz NR4HL Manual de usuario
Ganz
Ganz CDR-01S Manual de usuario
Ganz
Ganz DIGIMASTER DR-16FX5-3TB Manual de usuario
Ganz
Ganz DR16NRT Manual de usuario
Ganz
Ganz ZR-DHC1630NP Manual de usuario
Ganz
Ganz AI BOX 4CH Manual de usuario
Ganz
Ganz ZR-DHC830NP Manual de usuario
Ganz
Ganz DR8NRT Manual de usuario
Ganz
Ganz digimaster DR-4FX1 Manual de usuario
Ganz
Ganz ZR-DH1621NP Manual de usuario
Ganz
Ganz DigiMAster DR4H Manual de usuario
Ganz
Ganz DR-16F44-AT Manual de usuario
Ganz
Ganz DIGIMASTER SERIES Manual de usuario
Ganz
Ganz DIGIMASTER SERIES Manual de usuario
Ganz
Ganz DIGIMASTER DR-16M55-RA-4TB Manual de usuario
