Gama Sonic GS-94C-D Manual de usuario

VICTORIAN SOLAR LAMP

with CENTRAL SOLAR PANEL

US Patent # 7172307

Instruction Manual

Model: GS-94C-D

Introduction

Thank you for your purchase. GAMA SONIC® solar-charged accent lighting

eliminates the problems associated with most solar lighting available today.

GAMA SONIC® solar-charged lights are brighter and last all night with a

typical solar charge. Unique design, superior light output and numerous

installation options confirm the outstanding value of our product.

GAMA SONIC® has been recognized as a worldwide leader in the lighting

industry for over 20 years. The company also offers unique multi-purpose

rechargeable products that range from fans with built in radios to emergency

lighting products.

For technical assistance and more information call our Toll Free number:

1-800-835-4113

(only within the US)

or visit our website at:

www.gamasonic.com

Please read the instruction manual carefully to obtain the best results from

your purchase.

Tools that are needed but not supplied with your lamp are: A screwdriver

Solar Lamp Location:

For optimum light duration throughout the night, it is very important to place

your solar lamp in a spot where it will receive the maximum amount of direct

sunlight throughout the day.

Note:

For best results, allow the solar lamp to be charged for two consecutive

sunny days in the “On” position.

Note:

Before drilling anywhere consult with a contractor.

WARNING

Do not dispose of Li-Ion battery in the regular trash, municipal waste stream

or by fire as batteries may leak or explode. Do not open, short circuit, or

mutilate batteries as injury may occur. Preserve our environment by recycling

Li-Ion batteries or disposing of them in accordance with local, State and

federal regulations. Do not mix old and new batteries.

Maintenance

Clean the solar panels regularly with a damp towel to guarantee optimum

performance. Do not use any type of solvent for cleaning and be careful not

to put too much pressure on the solar panels while cleaning.

Troubleshooting

If your solar charged light does not come on at dusk despite observance of all

the instructions, please try the following steps:

1. Make sure that the solar lamp is not being affected by any

other light source.

2. Ensure the solar lamp is not positioned in the shade during

the day.

3. Make sure the switch in the lamp head is in On (Summer or

Winter) position.

4. Check that the batteries are installed correctly.

Note: The performance of the solar lamp will vary with the time of year. It will

deliver more light when it has had a full day in the sun rather than a day in

overcast weather.

WINTERTIME TIPS

For optimal performance, be sure to remove any snow or debris

accumulation from solar panel(s). A solar panel free of debris will charge the

batteries much more efficiently.

WARNING

Please keep out of reach of children.

Operation Instructions

Make sure that the lamp is turned to the "high" or "low" position as shown

below. (Low - lasts longer using dimmer light. High - Brighter light

output.)

Replacing the Batteries

(After several years of use, the battery may need replacing).

1. Remove the battery cover from Part B.

2. Disconnect the clip connecting the battery to the lamp and

clip in the new battery. Make sure the new battery is a

Gama Sonic 3.2V/6,000mAh Lithium-Ion Rechargeable

battery with connector. (Part #GS32V60)

3. Place the battery in the compartment on the back side of the

battery door and hold it against Part B while screwing it back into

place.

What's Inside?

Open your package and remove the contents. Check to make sure all pieces

are present and accounted for.

Lamp (x2)

GS-94C-D PARTS

Solar Panel

Arms

Lamp Cap (x2)

Wrench

Concrete Anchor (x3)

Assembly Instructions

Lamp Head

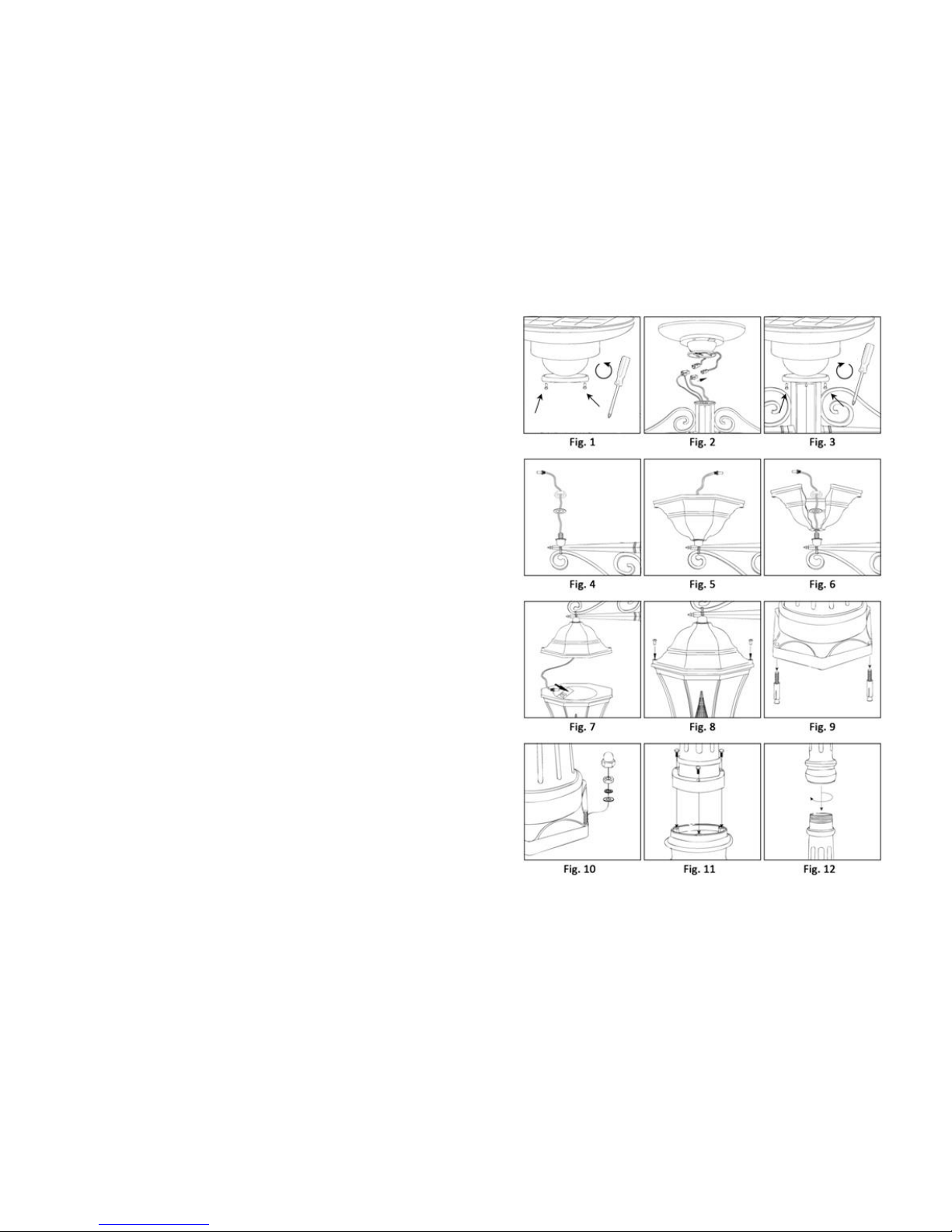

1. Remove the screws from the top of part A as shown (Fig. 1).

2. Connect the two black clips together from Part A to Part B (Fig. 2).

3. Place wires inside of Part B, attach Part A to part B using the screws

from step one and Tighten them (Fig. 3).

4. Flip the assembly (AB) over and remove the nuts and washers from

each side (Fig. 4).

5. Slide the wire from one side of Assembly AB through the hole in part

C and set part C on the threaded rod (Fig. 5).

6. Slide washer and nut on threaded rod and tighten as much as

possible with a 14mm wrench (Fig. 6). (Part C may twist slightly if

pressure is applied, please note this is normal)

7. Repeat steps 5 and 6 to attach the other side.

8. Connect the wire to the clip in part D (Fig. 7).

9. Connect Parts D and C using the Phillips head screws provided

(Fig. 8).

10.Repeat steps 8 and 9 for the other side.

Lamp Post

1. Use an electric drill to make three holes in concrete, which

should be similar to but slightly larger than the concrete

anchors. The holes should be lined up with the holes of the

lamp base (H).

2. Place the anchors into the drilled holes with their threaded

ends facing up.

3. Place lamp base (H) onto anchors (Fig 9) and secure base

with the washers, lock washers and nuts using a wrench.

Cover the bolts with the plastic covers provided (Fig. 10).

4. Make sure the lamp base (H) is stable before installing

Part G.

5. Place Part G on top of Part H and tighten with the provided

screws using a wrench (Fig.11).

6. Screw Part F into Part G, Part E into Part F, and the lamp

head assembly onto Part E (Fig. 12).
