Gama Sonic 105BP250040 Manual de usuario

BAYTOWN II SCONCE

SOLAR LAMP

Model: 105BP250040

Version 1.1

Instruction Manual

US Patent # 9458970 #7478919

Solar Lamp Location:

Tools that are needed but not supplied with the solar post

lamps are: a screwdriver, power drill.

For optimum light duration throughout the night, it is very important

to place your solar lamp in a spot where it will receive the maximum

amount of direct sunlight throughout the day.

Note: For best results, the solar lamp post must be charged for two

sunny days in the “ON” (High or Low) position.

Open your package and remove the contents. Check to

make sure all pieces are present and accounted for.

page 2

Thank you for your purchase. GAMA SONIC® solar charged lights are brighter and last all

night with a full day solar charge. Unique designs, superior light output, and numerous

installation options conﬁrm the outstanding value of our product.

For technical assistance and more information call our Toll-Free number:

800-835-4113 (only within the US)

visit our website or download the latest version of your instruction manual:

www.gamasonic.com Or www.gamasonic.com/user-guides

Please read the instruction manual carefully to obtain the best results from your purchase.

A. Fixture Body C. BulbB. Wall bracket

What’s Inside:

WARNING: GAMA SONIC® Light bulbs are built and designed for Gama Sonic products only.

They are not designed to be used in other electrical sockets.

For the same reason, regular AC and/or Low Voltage bulbs cannot be used in Gama Sonic products.

page 3

1. Using the mounting

bracket as a template, mark

where the two holes will

need to be to hang your

light.

2. Using a drill, make two

holes where those marks

are and insert the wall

anchors.

3. Place the bracket in line

with the holes and secure

with the provided screws.

(make sure the bracket is

installed so the two tabs

are not against the wall)

4. Install the lamp onto the

bracket making sure the

two tabs slide into the

grooves on the back of the

lamp.

1. Make sure the lamp is in the OFF (O)

position (Fig. 1).

2. Detach the back of the lamp unit (B)

by removing the 2 screws at the base

of the lamp (Fig. 2).

3. Remove the existing bulb by turning it

counterclockwise (Fig 3). (If Replacing)

4. Install the new GS Solar LED Bulb by

turning it clockwise into the bulb socket

5. Reassemble the unit by reversing the

above steps.

6. Make sure the High/OFF/Low switch is in

the ON (High) or (Low) position (Fig. 1).

Make sure the new bulb you purchase is

compatible with this model (C37 bulb)

Operation Instructions

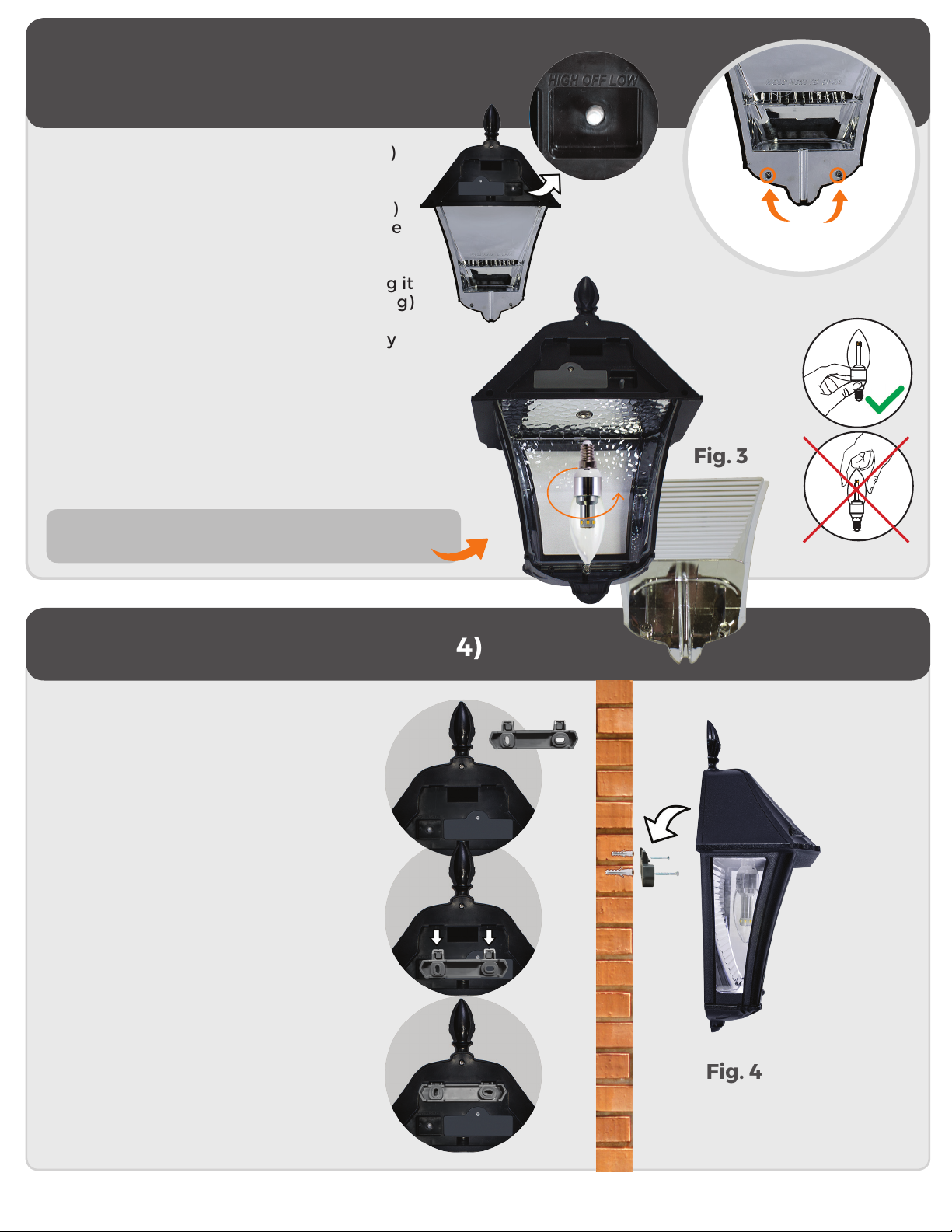

Installation Instructions (Fig 4)

Fig. 1

Fig. 2 SCREWS

Fig. 3

Fig. 4

page 4

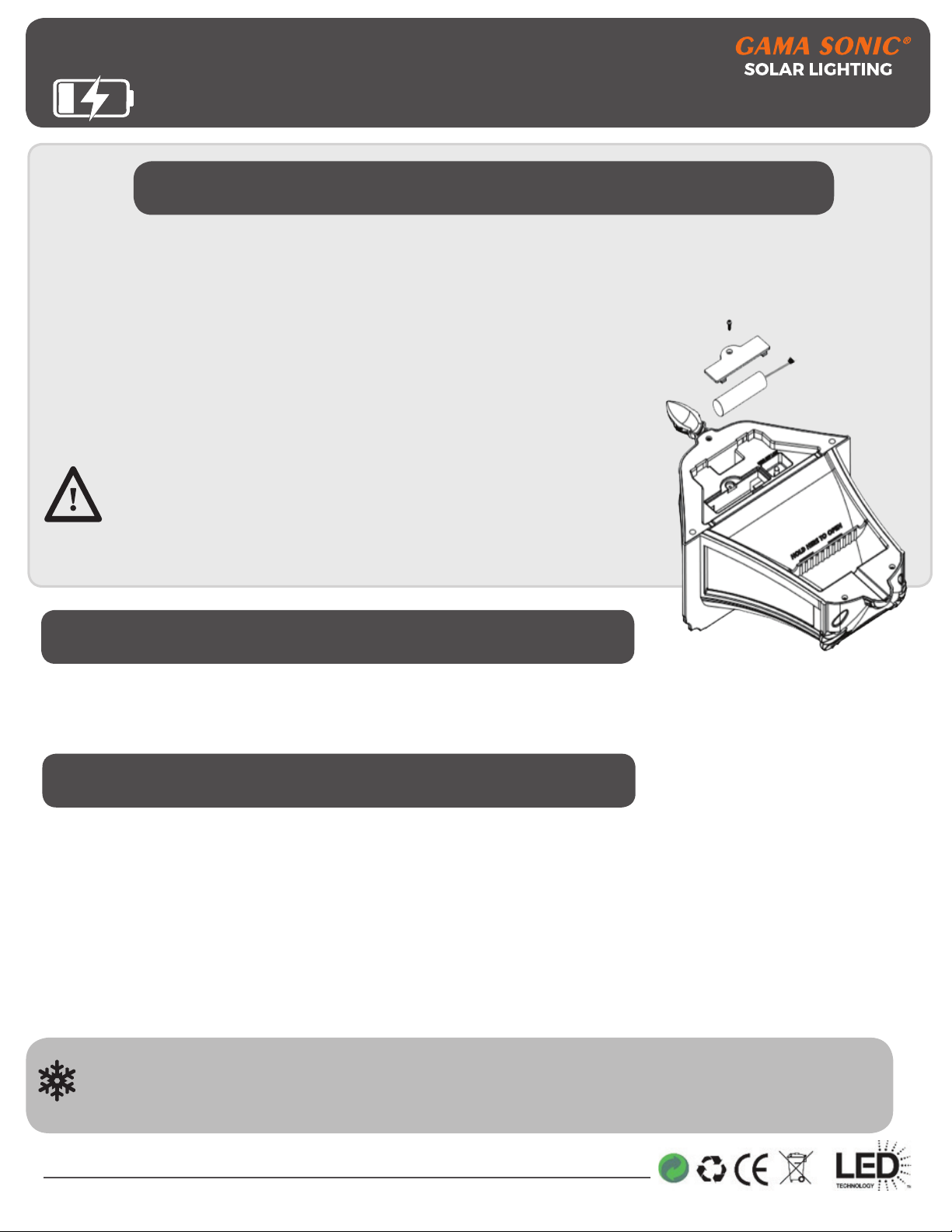

Replacing the Batteries

Replacement batteries are available

at www.gamasonic.com or via our Toll free number: +1-800-835-4113

After several years of use, the battery may need replacing.

1. Make sure the ON/OFF switch is in the OFF (O) position.

2. Unscrew the one screw and detach the cover.

3. Unclip the connector and remove the old battery. (Fig. 5)

4. Make sure the new battery is a Gama Sonic –

3.2V/1,500mAh, Li-ion Rechargeable Battery with a connector.

5. Clip on the new battery and place it inside

the battery compartment.

6. Re-Install the battery compartment cover.

WARNING: Do not dispose of Li-On battery in the regular trash,

municipal waste stream or by ﬁre as batteries may leak or explode.

Do not open, short circuit, or mutilate batteries as injury may occur.

Preserve our environment by recycling Li-Ion batteries or disposing

of them in accordance with local, State and federal regulations. Do

not mix old and new batteries.

Maintenance

Clean the solar module regularly with a damp towel to guarantee optimum performance

of the solar panel. Do not use any type of solvent for cleaning and be careful not to put too

much pressure on the module while cleaning.

Trouble Shooting

If your solar charged light does not come on at dusk despite

observance of all the instructions, please try the following steps:

1. Make sure that the solar light is not being affected by any other light source.

2. Ensure the solar light is not positioned in the shade during the day.

3. Make sure the switch in the lamp head is in the ”LOW” or "HIGH" position.

4. Check that the batteries are installed correctly.

NOTE: The performance of the solar light will vary with the time of year. It will deliver

longer duration when it has had a full day in the sun rather than a day in overcast

weather.

WINTERTIME TIPS: For optimal performance, be sure to remove any snow or debris

accumulation from solar panel(s). A solar panel free of debris will charge the batteries

much more efﬁciently.

WARNING: Please keep out of reach of children.

Fig. 5
