Thank you for purchasing our product.
Before using this unit, please read this manual in order to avoid improper handling and use
ofthedevice.
Description
The appliance works on the base of the heat pump (SSD thermoelectric Peltier element). This
is a high-performance thermoelectric system with extremely reliable technology. This system
ensures that your food and drinks stored in the car cooler will be perfectly chilled or vice versa still
warm (depending on mode). The appliance is ideal for the use in homes, offices, for camping and
travelling.
Function
1. Cooling: the appliance is able to work in temperatures up to 20°C. The best effect can be
achieved if you put into the car cooler cold drinks and food. The appliance will only keep the food
and drinks cold. Car cooler is able to cool food from room temperature in approximately 2 hours.
2. Warming: you can set the thermostat from 45 - 65°C. The appliance is designed so that it can
keep food warm. The appliance is able to warm food up. The appliance needs more than 2hours
but then turned off is still able to keep food warm for several hours.
Specification
Voltage
Alternating current (AC)
220 - 240 V
Direct current (DC) 12 V
Heating power 45 - 65°C
Cooling power Up to 12°C-15°C below
ambient temperature
Length of the power
cable (DC) 2,0 m
Energy
consumption
Direct current 56 W max. Length of the power
cable (AC) 1,8 m
Alternating
current 65 W max. Size 446x330x485 mm
Capacity 33 l Weight 5,8 kg
Climate class N Ambient temperature 10°C - 32°C
EN
Parts description
Accessories
DCAC
1 Caster 9 Control panel
2 Divider for separating storages 10 Blue Led indicator / COLD
3 Top cover 11 Red Led indicator / HOT
4 Internal fan 12 HOT / COLD switch
5 Power cord 13 AC / DC switch
6 Ventilator 14 DC socket
7 Extension puller 15 AC socket
8 Carry handle
34
2
7
68
9
1
5
15
14
13
12
11
10
Maintenance
How to connect the power cord
Warning: Switch AC / DC switch to the off position before plugging the power cord into the wall
socket.
AC power supply: DC power supply:
Warning: Do not use any other methods of connecting to power supply. This could result in fire or
electric shock.
How to use AC / DC switch
1. Set the switch to the AC
position, connect the appli-
ance into the classic house-
hold socket and switch on the
appliance by switching the
switch to the ON position.
2. Set the switch to the DC
position, connect the applian-
ce into the car cigarette ligh-
ter socket and switch on the
appliance by switching the
switch to the ON position.
3. If you will set the switch to
the OFF position, the applian-
ce stops to work.
How to use cooling/warming mode selector when you plug the appliance into the wall socket
with alternating current
1. Set the switch to the AC position.
2. If you set the switch to the cooling mode, the blue LED will light up.
3. If you set the switch to the warming mode, the red LED will light up.
4. If you set the switch to the OFF position, the appliance does not work.
12 3
12 34
How to use cooling / warming mode selector when you plug the appliance into the wall socket
with direct current
1. Set the switch to the DC position.
2. If you set the switch to the cooling mode, the blue LED will light up.
3. If you set the switch to the warming mode, the red LED will light up.
4. If you set the switch to the OFF position, the appliance does not work.
Warning: When you change modes do not use immediate switching from cooling to warming
and vice versa, always leave the switch at least 5 minutes in the OFF position. This could cause
damage to the cooling/heating system.
2 1 3 4
Do not put electrical appliances into the cooling box.
Do not disconnect the appliance from the power supply with wet or moist hands and
do not wash the fan and electrical parts with water. Do not immerse the appliance
into water.
It is prohibited to dismantle and repair the appliance on your own.
Before unplugging the appliance always turn the switch to the OFF position and wait
until the appliance stops to work.
The appliance is equipped with polarized plug. The plug must always be exactly the
type of wall socket. Do not use the appliance in any other type of the outlet than that
for witch it is intended, do not use reduction. Do not replace the plug on your own.
Warning: Do not pull the cable to remove the plug from the socket.
MAX
MAX
Warning
Warning
Warning: If the appliance is not in use, disconnect the plug from the wall socket. Permanent
connection can have an impact on the life of the product and may result in a risk of fire or electric
shock.
1. Do not expose to rain or
moisture.
2. Do not wash directly
under the running water.
3. Use of the appliance in high
temperatures may lead to
drop formation under the co-
ver – this is not a defect, wipe
it with dry cloth.
4. Do not step on the cord and do not put any
obstacles on it. It could destroy the protective
layer.
5. If there is too much condensed water in
the appliance it is possible to run it off. Only
lift up the cover at the bottom side of the
appliance.

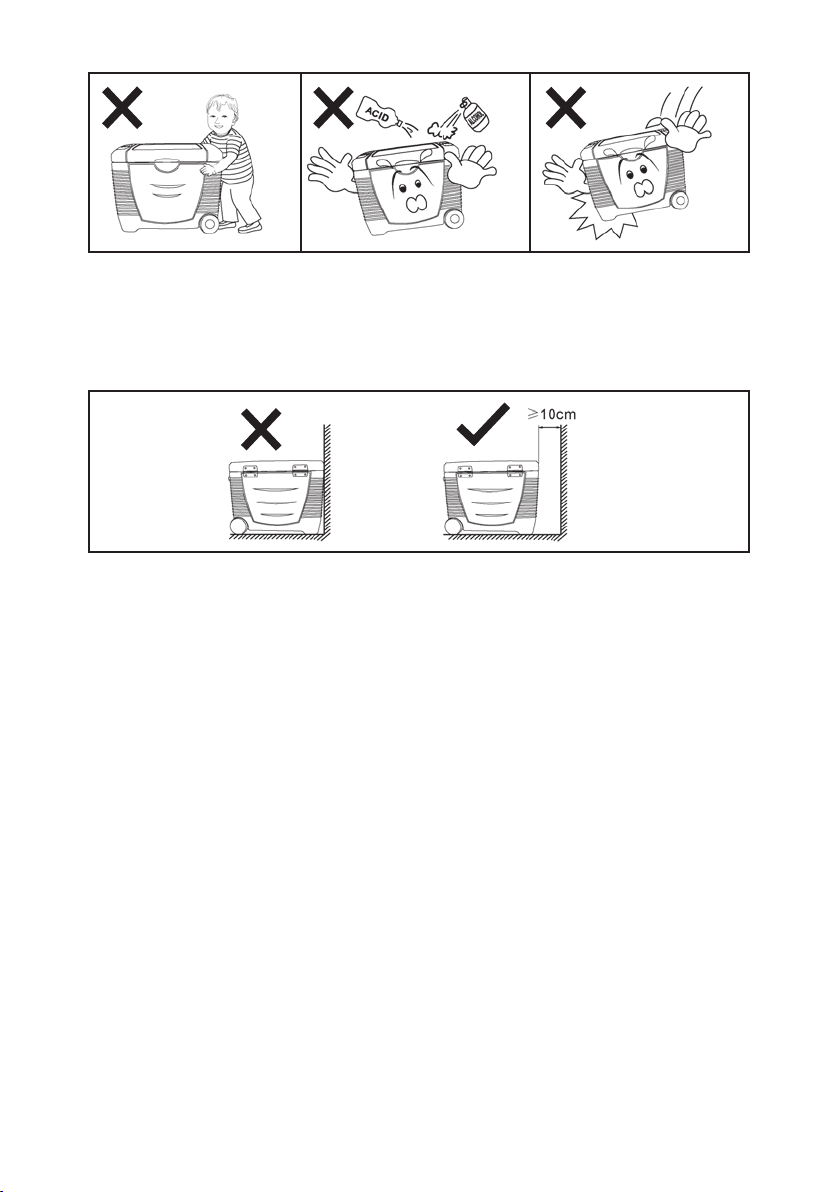

6. The appliance is not
intended for children.
Children under the
8years are not allowed
to use the car cooler.
Children cannot play with
the appliance.
7. Do not use aggressive
detergents or alcohol deter-
gents as this may damage the
unit surface.
8. Do not let the appliance
fall on the floor. It could cause
damage to electrical parts or
the whole appliance.
9. Ensure that the cooler/
warmer is in a well-ventilated
area and avoid blocking or in-
terfering with the flow of air to
the ventilator.
10. Use the appliance at least 10 cm far from the wall or other obstacles.
Maintenance
1. Before cleaning the cooler / warmer disco-
nnect the power cable.
2. Use the neutral detergents and damp cloth
or sponge to clean grease.
3. Dust or dirt in the ventilator may decrease cooling efficacy. It is appropriate to clean dirt with
vacuum cleaner or brush.
Do not forget to clean all plugs. Dust can cause short circuit and fire.
