FYC JK0805E-3 Manual de usuario
Electric Folding
Treadmill
0805E-3
JK
Thank you very much for purchasing our product. Please read
this manual carefully before useing it
and keep the manual at the proper place.
As shoppers, we're always trying to find the
perfect balance between quality & value. At
FYC, we believe we've achieved that. Our
diverse catalog of everyday essentials is
tailored especially to our customers &
guaranteed to hit that sweet spot of high quality
& low price.
Always
11
ŸFor safety , do not stand on the running belt while starting.
ŸPlease stop using immediately if you feel vomiting or jerky during using.
ŸPlease speed up slowly if needed.
ŸAdjustment of belt is prohibited during using.
ŸIt is suggested to wear sports shoes and gym suit while using this equipment.
ŸChildren, the elder, the pregnant, and patients are prohibited from using this treadmill.
ŸPlease clip the safety key on your clothing during using.
ŸPlease firmly hold the handle bars during using.
To avoid injury please read this manual carefully before operating this machine
ŸPlease put the treadmill on the flat ground. It is unsuitable to put the treadmill in the
following places:
ŸThe proper power for the treadmill is A.C 110V.
ŸError may appear on display if the power is not stable. Please do not use the same
socket together with computer, air conditioner etc.
ŸIt is suggested to wear sports shoes and gym suit while useing the treadmill.
ŸPlease speed up or speed down slowly.
ŸMake sure no child or other objects is near while folding or unfolding the treadmill.
ŸThe treadmill should not be located near water or wet object. Error or damage may be
caused if water or other liquids drop into the equipment.
SAFETY NOTICE
CAUTION
1
2Slant ground or slant places on the balcony.
3Sunlight area or near heater.
4Noisy places.
Outdoors. (The treadmill is specially designed for indoor use only).
2
ŸIf you do not feel well before using, please consult your doctor or coach.
ŸPlease unplug the equipment when not in use.
ŸPlease unplug the treadmill before cleaning, moving or change parts for the treadmill.
ŸChildren, the elder and the pregnant are prohibited from using the treadmill. Patients
should consult their doctor before starting any exercise routine.
ŸPlease place the treadmill on a level flat surface. There should be 2M of clearance
behind thetreadmill.
ŸDo not start the treadmill when it is folded.
ŸKeep all electrical components, especially motor, power cord and plug, away from
water or other liquids.
ŸDo not wear clothes like long dress, which might catch on any part of the treadmill while
using.
ŸDo not place the treadmill in an area that will block any vent or air openings.
ŸDo not put any objects on the treadmill.
ŸPut away the plug from heated place or fire seat.
ŸPlease switch off all functions and unplug after using.
ŸDo not stand on the belt while you're preparing to use the treadmill.
ŸDo not disassemble the treadmill without consulting professional technicians.
ŸPlease make sure the running belt is fastened before using.
CAUTION DURING USE
Keep both the machine and power cord away from heated surfaces.
TOOLS REQUIRED
HARDWARE
Safety Key Round Washer Arc Washers
Short BoltLock Knob Stretch Knob
PRODUCTS MAIN PARTS
2、
Side Rail
7、
8、
3-Level Incline
11、
End Cap
12、
3
1、
1 PCS 2 PCS 2 PCS
4 PCS1 PCS 1 PCS
265
123
6
45
12
3
5
4
6
7
8
9
10
11 12
Mobile Wheel
10、
9、
5、
Running Belt
Cup Holder
Motor Cover
Upright Tube
Side Rail
6、 Safety Key
4、Heart Indüctor
3、
Display
Console
ALLEN WRENCH
(PROVIDED)
SILICONE OIL
(PROVIDED)
SAPNNER
(PROVIDED)
4
PARTS

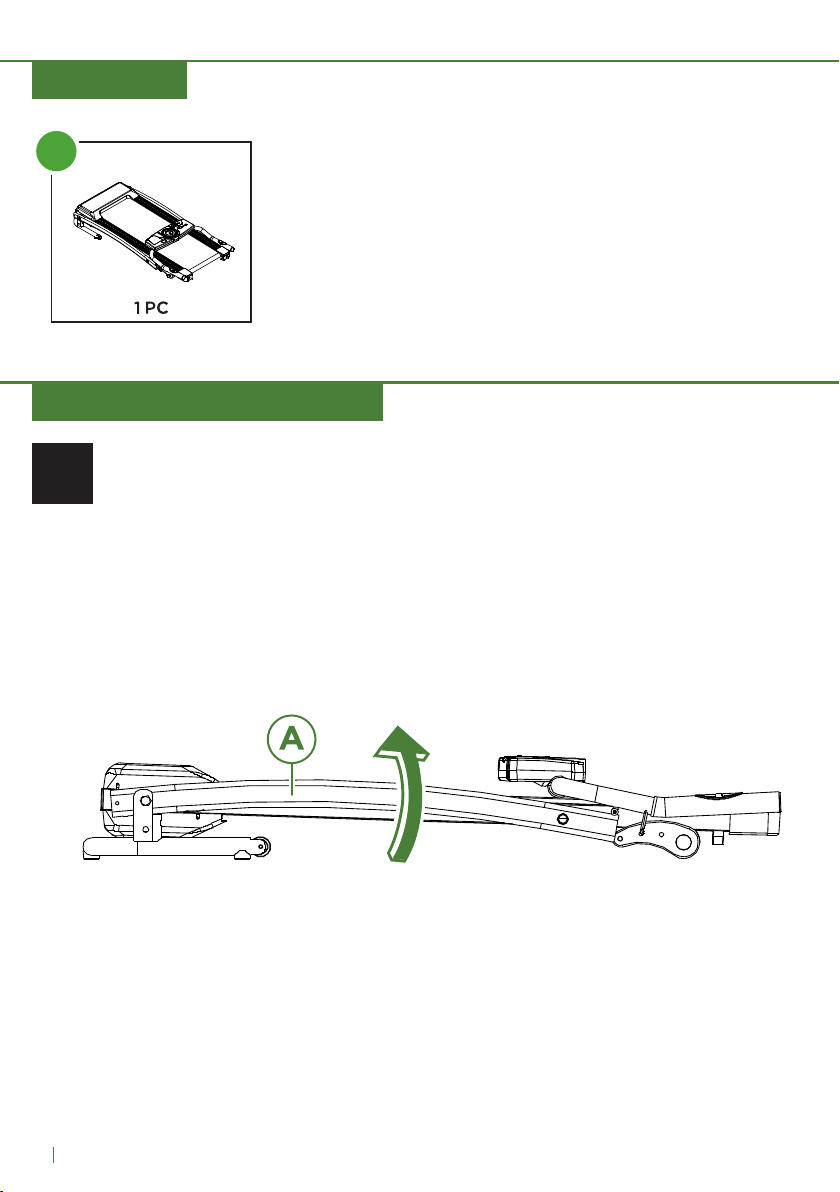

RUNNINGDECK
PARTS
PARTSPRODUCT ASSEMBLY
1
A
Lift the tubes with handrails
Tips:
Open the package and take out the treadmill.Make sure there are no missing parts:
5
PARTSPRODUCT ASSEMBLY
2
Use Short Bolts (Part 6) & Arc Washers (Part 3) to fix the front of left & right
upright tubes with the base frame.
Then use Short Bolts (Part 6) & Round Washers (Part 2) to fix the side of left &
right upright tubes with the base frame. Finally, use the Lock Knob (Part 4) to fix
the base frame.
6
2
4
3
6
PARTSPRODUCT ASSEMBLY
3
Check if the connector wire cable between the upright tube and handrail is
connected well. Then lay down the handrails, use the preset bolts and washers
to fix the console to the upright tubes.
4
Lift up the control panel; fix the Stretch Knob (Part 5) to the left upright tube
5
6
PARTSPRODUCT ASSEMBLY
5
Put safety key and finish the assembly..
1
7
PARTS
FOLDING UP AND SETTING DOWN
FOLD:
1. Unscrew the fixed knob then lift the base frame. Pull out the stretch knob, aimed at the base
frame then release the knob to fix the machine. Move the machine.
FOLDING UP AND SETTING DOWN
Product name JK0805E-3
Voltage 110V
Frequency 50-60Hz
Speed 0.5-7.5MPH
8
UNFOLD:
1. Pull out the stretch knob then fall down the running board and fix the machine with the fixed
knob then use the machine after plug in.
