Futurecom PDR8000 Guía de referencia rápida

Futurecom Systems Group, ULC

PDR8000 Portable Digital Repeater

Deployment Guide

ATTENTION!

Please read the RF Safety Booklet provided with the product

before proceeding with deployment

Document: 8K088X03

Revision: R3.0

Date: 2018-07-20

Document 8K088X03 R3.0

PDR8000 Portable Digital Repeater Deployment Guide

Page 2of 24

Document Revisions

Subscribe to our newsletter if you want to be informed about new releases and updates.

Please visit http://futurecom.com/support/newsletter/

Proprietary Statement

2017 Futurecom Systems Group ULC.

No part of this document, or any software included with it, may be reproduced and distributed

without the prior written permission of the copyright holder.

Futurecom Systems Group ULC. reserves the right to make changes or improvements to the

equipment, software or specification described in this document at any time and without prior

notice. These changes will be incorporated in the new releases of this document.

This document may contain technical inaccuracies or typographical errors.

Futurecom Systems Group ULC. waives responsibility for any labour, materials or costs

incurred by any party as a result of using this document.

MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or

registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All

other trademarks are the property of their respective owners.

Revision

Date

Notes & References

2017-05-09

Trial Release

R1.0

2017-05-25

Initial Release

R2.0

2017-10-02

Contents applicable to R2.0 and R1.0; added newsletter info

R2.1

2018-02-26

Correction of DC voltage 13.8V made

R3.0

2018-07-19

R3.0 Updates - Keypad/Display, V.24 interface details, cable pinouts

Document 8K088X03 R3.0

PDR8000 Portable Digital Repeater Deployment Guide

Page 3of 24

Contents

Introduction ...................................................................................................................5

Step 1- Internal Connections........................................................................................7

Step 2- External Connections ......................................................................................9

Step 3- V.24 Connection.............................................................................................12

Step 4- Power ..............................................................................................................13

Step 5- Power Up Confirmation .................................................................................15

Step 6- Keypad/Display...............................................................................................18

STEP 7 - Open/Closed Case Operation.....................................................................21

Appendix A - V.24 Cable.............................................................................................22

Appendix B - DC Cable...............................................................................................23

Appendix C –LIST OF ACRONYMS...........................................................................24

Document 8K088X03 R3.0

PDR8000 Portable Digital Repeater Deployment Guide

Page 4of 24

Table of Figures

Figure 1 - Internal Duplexer Hardware Configuration 5

Figure 2 - Simplex Hardware Configuration 5

Figure 3 - Internal Duplexer and Booster Pack* Hardware Configuration 6

Figure 4 - External Duplexer Hardware Configuration 6

Figure 5 - External Duplexer and Booster Pack* Hardware Configuration 6

Figure 6 - Removable Top Panel 7

Figure 7 - Top Panel Removed 7

Figure 8 - PDR8000 Side Panel Cover 9

Figure 9 - Pull Release Latch 9

Figure 10: External Connectors 10

Figure 11 - PDR8000 External Connectors' Specifications 10

Figure 12 - DC connector alignment 13

Figure 13 - DC Connector plugged in 13

Figure 14 - Pull to unplug DC Power 13

Figure 15 - Pull AC Power Dust Cover 14

Figure 16 - AC Power Connection to PDR8000 14

Figure 17 - PDR8000 LED Panel 15

Figure 18 - General LED Status Definitions 15

Figure 19 –PDR8000 Dedicated Status LEDs Definition 16

Figure 20 - PDR8000 Keypad/Display 18

Figure 21 - Open case operation 21

Figure 22 - Closed case operation 21

Figure 23 - V.24 Power PinOut specification for DIU or CCGW 22

Figure 24 - V.24 Connection between two PDR8000s 22

Figure 25 - DC Power Cable 23

Document 8K088X03 R3.0

PDR8000 Portable Digital Repeater Deployment Guide

Page 5of 24

Introduction

The PDR8000 is typically a self-contained device but is easily modified to utilize an alternate

duplexer and/or a transmit power Booster Pack* when required. Multiple RF hardware

configurations are supported, using accessible internal and external connection points to enable

the desired configuration. This manual provides installation instructions for each of these

configurations. The figures below are also screened on the back of the removable top panel

inside the PDR8000.

Figure 1 - Internal Duplexer Hardware Configuration

Figure 2 - Simplex Hardware Configuration

Document 8K088X03 R3.0

PDR8000 Portable Digital Repeater Deployment Guide

Page 6of 24

Figure 3 - Internal Duplexer and Booster Pack* Hardware Configuration

Figure 4 - External Duplexer Hardware Configuration

Figure 5 - External Duplexer and Booster Pack* Hardware Configuration

* Booster Pack is not yet released by Futurecom

Note: External Duplexer Cabling supplied by user

Document 8K088X03 R3.0

PDR8000 Portable Digital Repeater Deployment Guide

Page 7of 24

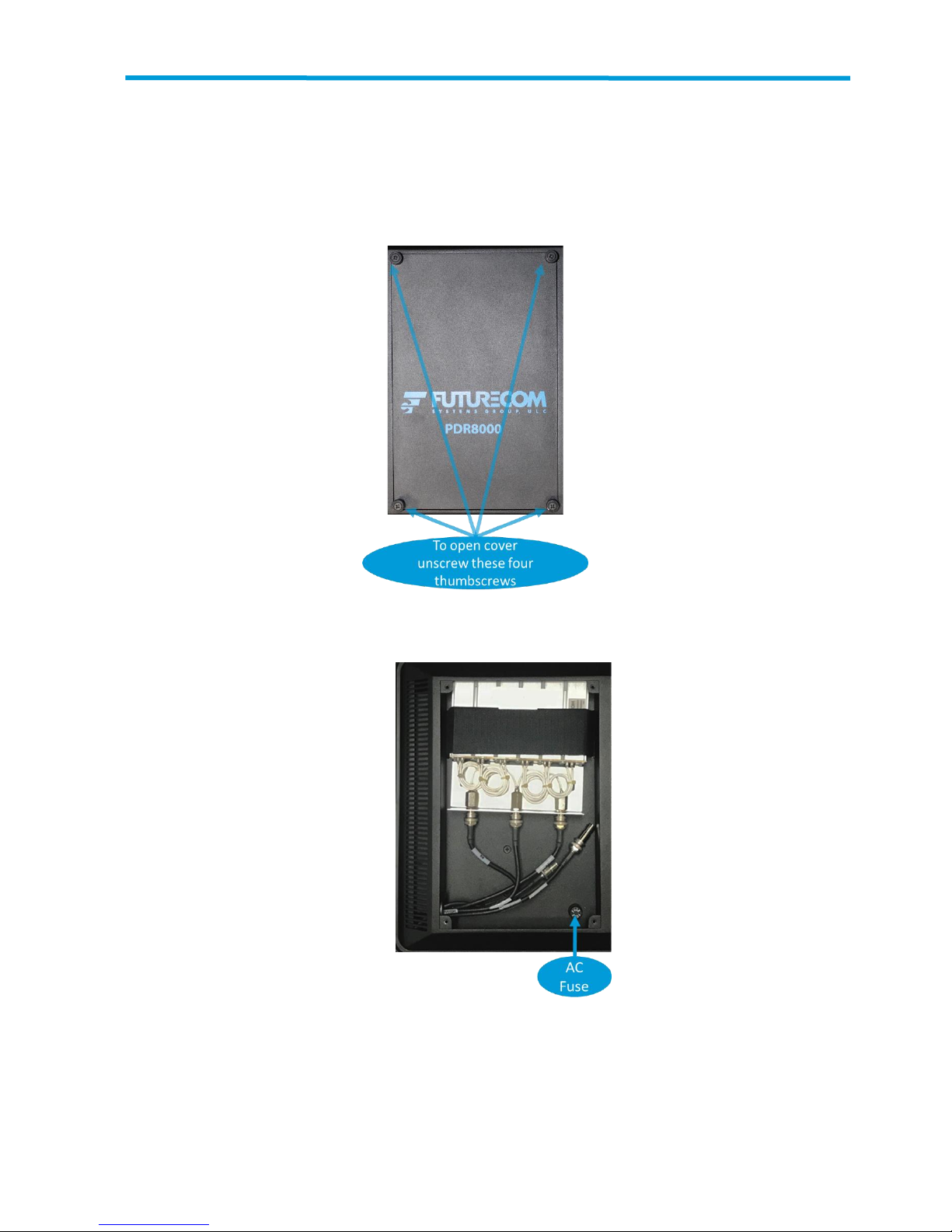

Step 1- Internal Connections

Determine the required RF hardware configuration and confirm the internal connections

correspond to the instructions below. To access the internal connections, unscrew the four

corner thumbscrews of the top panel and remove it.

Figure 6 - Removable Top Panel

Figure 7 - Top Panel Removed

Document 8K088X03 R3.0

PDR8000 Portable Digital Repeater Deployment Guide

Page 8of 24

Internal Duplexer Cable Connections

•RX labelled cable is connected to RX port on Duplexer

•TX labelled cable is connected to TX port on Duplexer

•ANTENNA labelled cable is connected to ANTENNA port on Duplexer

Simplex Cable Connections

•TX labelled cable is connected to ANTENNA labelled cable using the supplied Female-

Female adapter

Internal Duplexer and Booster Pack* Cable Connections

•RX labelled cable is connected to RX port on Duplexer

•RF IN labelled cable is connected to TX port on Duplexer

•ANTENNA labelled cable is connected to ANTENNA port on Duplexer

•TX labelled cable is connected to RF OUT labelled cable

External Duplexer Cable Connections

•TX labelled cable is connected to RF OUT labelled cable

•RX labelled cable is connected to RF IN labelled cable using the supplied Female-

Female adapter

External Duplexer and Booster Pack* Cable Connections

•TX labelled cable is connected to RF OUT labelled cable

•RX labelled cable is connected to RF IN labelled cable using the supplied Female-

Female adapter

Once connections are complete, replace the top cover and screw back in place.

* Booster Pack is not yet released by Futurecom

Document 8K088X03 R3.0

PDR8000 Portable Digital Repeater Deployment Guide

Page 9of 24

Step 2- External Connections

Based on the required RF hardware configuration, proceed with the external connections as per

the instructions below. To access the external connections, pull the release latch and remove

the side panel. When replacing the side panel, hook left side of panel in place first and then

push the right side of panel in place. A click will be heard when it locks in place.

Figure 8 - PDR8000 Side Panel Cover

Figure 9 - Pull Release Latch

Document 8K088X03 R3.0

PDR8000 Portable Digital Repeater Deployment Guide

Page 10 of 24

Figure 10: External Connectors

Conne

ctor

Label

Type

Manufactu

rer

Model Ref*

Open/Close Mechanism

V.24

RJ-45

CONEC

17-111574

Screw/Unscrew Dust Cap

2**

LAN

RJ-45

CONEC

17-111574

Screw / Unscrew Dust Cap

13V/7A DC

DC Power Input

LEMO

EGL.2K.30

2.CLA

Push Pull Dust Cap

100-240V/4A

AC Power Input

NEUTRIK

NAC3MPX

Push Pull Sealing Cover

AUX

Circular

Receptacle

LEMO

EGG.1K.30

6.CLL

Push Pull Dust Cap

ANTENNA

N Female

N/A

Screw/Unscrew Dust Cap

RF OUT

N Female

N/A

Screw/Unscrew Dust Cap

RF IN

N Female

N/A

Screw/Unscrew Dust Cap

Ground Lug 10-

32x12.7mm

(0.5")

N/A

Figure 11 - PDR8000 External Connectors' Specifications

Internal Duplexer

•ANTENNA cable is connected ANTENNA connector

•AUX, RF OUT, and RF IN are not connected

Simplex

•ANTENNA cable is connected ANTENNA connector

•AUX, RF OUT, and RF IN are not connected
