Fusion Encounter EN-AM3002 Manual de usuario
ENCOUNTER

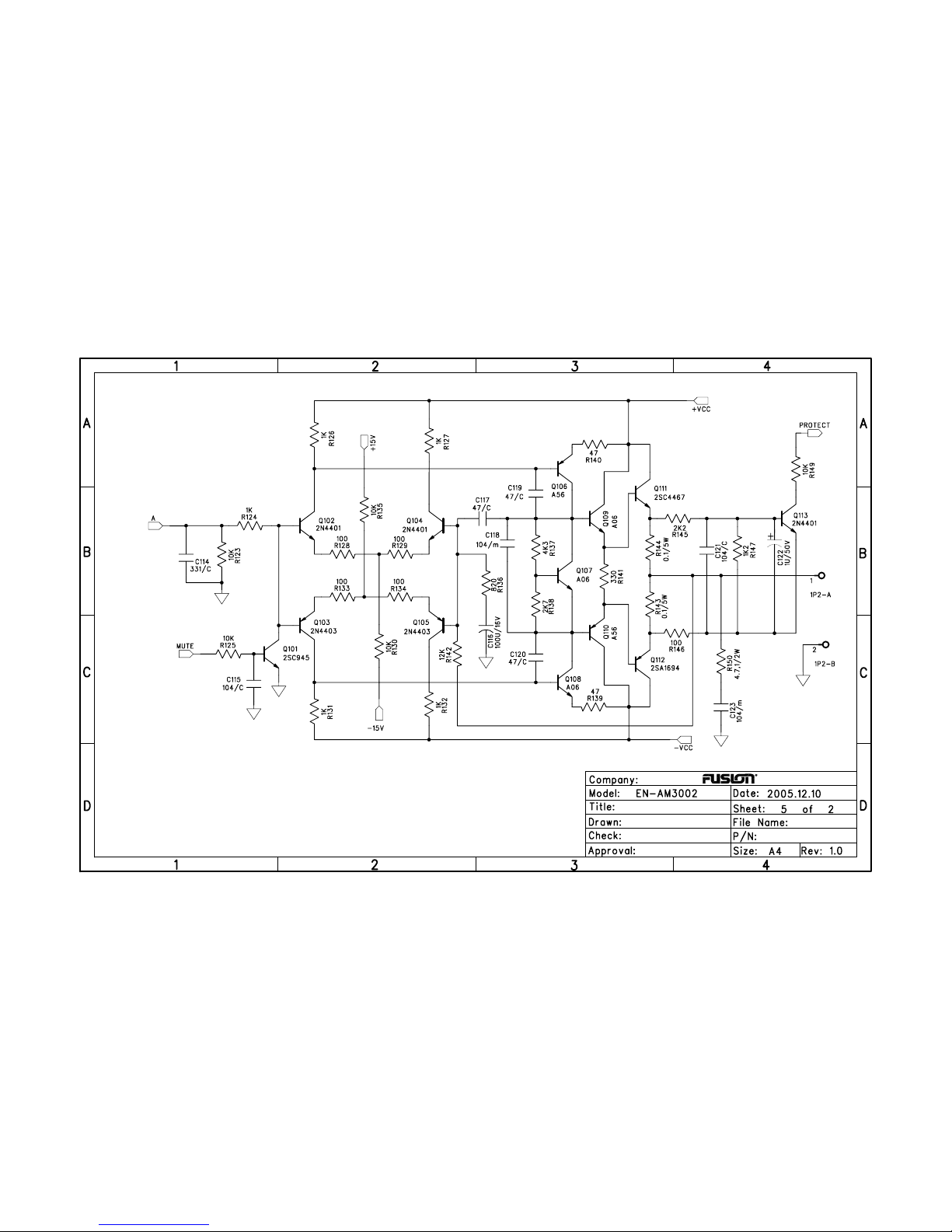

SERVICE MANUAL
AMPLIFIER MODEL
EN−AM3002
1/8
Part Number Items Q'ty Position
0 ASY-ENAM3002
1… WZ-ENAM3002
2… DIO1N4004R diode 1 D2
2… DIO1N4148R diode 8 D3~10
2… ECT016V107MDR capacitor 3 C7.C116.C216
2… ECT016V477MDR capacitor 2 C19~20
2… ECT025V107MBR capacitor 1 C28
2… ECT025V226MDR capacitor 1 C5
2… ECT050V103KTR capacitor 1 C40
2… ECT050V104KTR capacitor 11 C12.C15~16.C21~22.C26.C115.C121.C215.C221.C24
2… ECT050V105MBR capacitor 1 C10
2… ECT050V105MDR capacitor 3 C8.C122.C222
2… ECT050V106MDR capacitor 2 C101.C201
2… ECT050V331KTR capacitor 4 C102.C114.C202.C214
2… ECT050V470KTR capacitor 8 C103.C117.C119~120.C203.C217.C219~220
2… ECT050V681KTR capacitor 1 C11
2… ECT100V104DSR capacitor 5 C1.C118.C123.C218.C223
2… ECT100V393DSR capacitor 2 C105.C205
2… ECT100V472DSR capacitor 1 C2
2… ECT100V473DSR capacitor 2 C3~4
2… ECT100V563DSR capacitor 2 C104.C204
2… PCBEN30021AR PCB 1
2… RESCF121Y101JR resistor 15 R7.R30~31.R108.R128~129.R133~134.R146.R208.R2
28~229.R233~234.R246
2… RESCF121Y102JR resistor 16 R25~27.R43.R102.R124.R126~127.R131~132.R202.R
224.R226~227.R231~232
2… RESCF121Y103JR resistor 23 R4.R9~10.R16~17.R19~20.R23.R41~42.R104~105.R1
23.R125.R130.R135.R149.R205.R223.R225.R230.R23
5.R249
2… RESCF121Y104JR resistor 1 R6
2… RESCF121Y122JR resistor 5 R13.R103.R147.R203.R247
2… RESCF121Y123JR resistor 3 R2.R142.R242
2… RESCF121Y152JR resistor 1 R22
2… RESCF121Y153JR resistor 1 R15
2… RESCF121Y181JR resistor 1 R1
1… RESCF121Y183JR resistor 2 R107.R207
2… RESCF121Y205JR resistor 1 R14
2… RESCF121Y222JR resistor 2 R145.R245
2… RESCF121Y224JR resistor 1 R5
2… RESCF121Y272JR resistor 2 R138.R238
2… RESCF121Y302JR resistor 3 R8.R21.R50
2… RESCF121Y331JR resistor 2 R141.R241
2… RESCF121Y392JR resistor 1 R24
2… RESCF121Y393JR resistor 1 R18
2… RESCF121Y432JR resistor 2 R137.R237
2… RESCF121Y433JR resistor 1 R12
EN-AM3002 Material list
2/8
Part Number Items Q'ty Position
EN-AM3002 Material list
2… RESCF121Y470JR resistor 4 R139~140.R239~240
2… RESCF121Y472JR resistor 2 R3.R11
2… RESCF121Y473JR resistor 3 R101.R106.R201
2… RESCF121Y563JR resistor 1 R206
2… RESCF121Y681JR resistor 2 R28~29
2… RESCF121Y682JR resistor 2 R109.R209
2… RESCF121Y821JR resistor 2 R136.R236
2… RESCF251Y102JR resistor 2 R48~49
2… TRA2N4401R triode 7 Q1.Q102.Q104.Q113.Q202.Q204.Q213
2… TRA2N4403R triode 8 Q2~5.Q103.Q105.Q203.Q205
2… TRAA06R triode 4 Q108~109.Q208~209
2… TRAA56R triode 4 Q106.Q110.Q206.Q210
2… WIR060R6R jumper wire 21 J1~21
2… WIR080R6R jumper wire 15 J22~36
2… WIR100R6R jumper wire 11 J37~47
2… WIR130R6R jumper wire 6 J48~53
2… WIR150R6R jumper wire 4 J55~58
2… WIR170R6R jumper wire 3 J59~61
2… WIR200R6R jumper wire 3 J62~64
2… WIR230R6R jumper wire 2 J65~66
2… WIR250R6R jumper wire 2 J67~68
1… ZD1N5239BR diode 1 ZD1
2… ZD1N5241BR diode 1 ZD2
2… ZD1N5245BR diode 2 ZD3~4
1… WS-ENAM3002
2… DIO1N5402R diode 1 D1
2… DIOFMG22RR diode 1 D11
2… DIOFMG22SR diode 1 D12
2… ECT025B228MER capacitor 2 C23.C25
2… ECT035B228MDR capacitor 2 C13~14
2… ERT154K01R resistor 1 RT1
2… FAN05002RR tube 1
2… FUS1JK201R fuse holder 1 FUSE
2… ICBA4558D8PR IC 1 IC2
2… ICBA4558S8PR IC 3 IC101~103
2… ICKIA494PR IC 1 IC3
2… ICPC17K1R IC 1 IC1
2… IND3U1R8H1R coil 1 L1
2… MOSIRFZ44NR mosfet 2 Q11~12
2… RCAJU4RWAR RCA 1 RCA1
2… RESCEM502NR10KR resistor 4 R143~144.R243~244
2… RESCF501R4R7JR resistor 2 R150.R250
2… RESMO102R220JR resistor 1 R40
2… RESMO202L331JR resistor 2 R44~45
2… ST3DOWHI002R terminal 1 3PIN
2… ST4DOWHI002R terminal 1 4PIN
2… SW12P3T06002R power switch 1 SW1
2… TRA2SA1694R transistor 2 Q112.Q212
3/8
Part Number Items Q'ty Position
EN-AM3002 Material list
2… TRA2SC4467R transistor 2 Q111.Q211
2… TRA2SC945R transistor 2 Q101.Q201
2… TRAA06R triode 2 Q107.Q207
2… TRR29612001R transformer 1 TR-1
2… VRRB10402J10R VR 1 VR2
2… VRRB50302J1001R VR 2 VR1.VR3
2… W020831002R copper wire 2 COP1~2
2… W051P2207001R ground wire 1 GND
1… E-ENAM3002 1
2… FUS0425R032VR fuse 1
2… LEDRGR302R LED 1 LED1
1… A-ENAM3002
2… BRA0300102R bar 2
2… BRA0420102R bar 2
2… BRAPP400201R bracket 4
2… BZB20100T5R BZ 1 For slide switch
2… ECEN300201R plastic endcap 1
2… ECEN300202R plastic endcap 1
2… EVA08125TR EVA foam 2 Q107.Q207
2… FPEN3002R front panel 1
2… HSEN3002R heatsink 1
2… INN08030T7R insulation pad 2 For copper pole
2… RPEN3002R rear panel 1
2… RUB101012T7R rubber pad 2
2… SC5R0901R copper pole 2 To fix PCB
2… SD3R3LZR pad 1 For ground wire
2… SD8R0GZR pad 1 For varistors
2… SF3R0DHR screw nut 4 For panels
2… SIP035240101R pad 1
2… SIP048290101R pad 2
2… SM3R006PKR screw 6 For copper pole and rear panel
2… SM3R008SKR screw 4 For end caps
2… SM3R014SKR screw 1 For plastic ones
2… SM4R013GKR screw 4 For bars
2… SP2R006PKR screw 2 For fuse holder
2… SP3R005PKR screw 2 For varistors and ground wire
SP3R006PKR screw 4 For big PCB
SP3R008PKR screw 11 For front panel、RCA、terminal、plastic cover
1… B-ENAM3002
2… BCEN3002R bottom chassis 1
2… BGF350330R PE bag 1
2… BOXEN3002R master carton 0.25
2… EVA140070T5R EVA pad 2
2… GIBEN3002R giftbox 1
2… INSEN3002R manual 1
2… LABEN300201LR S/N label 2 For amp, GB
2… PADEN3002R pad 0.5
2… SHEEN300201R pad 2
2… SP3R006PKR scre
w
6 for bottom chassis
