Furuno GP-310B Manual de usuario
Installation Manual
GPS RECEIVER GP-310B
SAFETY INSTRUCTIONS...........................................................................i
SYSTEM CONFIGURATION ......................................................................1
EQUIPMENT LISTS ...................................................................................2
1. MOUNTING ............................................................................................3
2. WIRING ..................................................................................................4
3. DEFAULT SETTINGS .............................................................................7
SPECIFICATIONS................................................................................SP-1
PACKING LIST.......................................................................................A-1
OUTLINE/INTERCONNECTION DRAWING ..........................................D-1
i
CAUTION
SAFETY INSTRUCTIONS
Confirm that the power supply voltage
is compatible with the voltage rating
of the equipment.
Connection to the wrong power supply can
cause fire or equipment damage.
Do not use the equipment for other than
its intended purpose.
Improper use of the equipment can result
in personal injury or equipment damage.
CAUTION
No one navigation device should ever
be solely relied upon for the navigation
of a vessel.
Always confirm position against all
available aids to navigation, for safety of
vessel and crew.
This page is intentionally left blank.
1

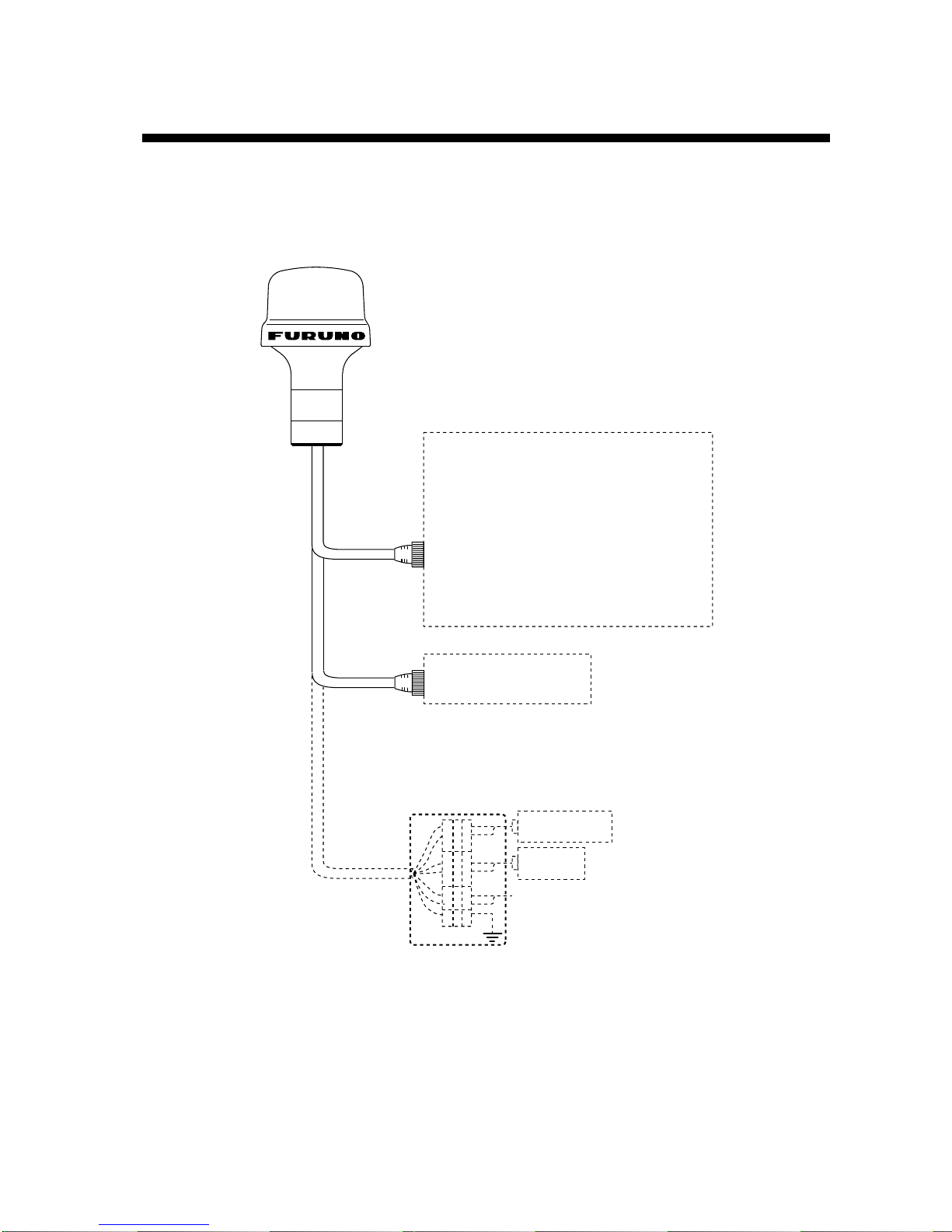

SYSTEM CONFIGURATION
This antenna incorporates a GPS receiver. It can be connected directly to NAVnet
equipment and Multi Display RD-30. However, if it connected to an equipment other than the
NAVnet product, a junction box (local supply) is required.
NAVnet Series
non-NAVnet
JUNCTION BOX
Model 1722/1722C
Model 1732/1732C
Model 1742/1742C
Model 1762/1762C
GD-1700C
GD-1700
GD-XXXX
GR-80
Ship's Main (12-24 VDC)
Multi Display RD-30
Model 1833C
Model 1933C
Model 1943C
GD-1900C
Model 1833
Model 1933
Model 1943
2
EQUIPMENT LISTS
Standard supply
No. Name Type Code No. Qty Remarks
1 GPS Receiver GP-310B 1 With 10m cable
Optional equipment
No. Name Type Code No. Qty Remarks
1 Cable Assembly MJ-A7SPF/SRMD-100 000-144-534 1 10m
2 Mast mounting kit CP20-0111 004-365-780 1
3
1. MOUNTING
Mounting considerations
When selecting a mounting location for the antenna unit keeps in mind the following points.
•
The antenna may be mounted three ways: screwed into a pipe (local supply), fixed to a
post with the optional mast mounting kit, or screwed into an optional mounting base. For
fixing by the post or pipe, it is recommended to use stays to prevent damage to the GPS
receiver.
•
Select a location out of the radar beam. The radar beam will obstruct or prevent reception
of the GPS satellite signal.
•
The location should be well away from a VHF antenna.AGPS receiver is interfered by a
harmonic wave of a VHF antenna.
•
The location should be well away from an Inmarsat-B antenna. Transmission of
Inmarsat-B will obstruct or prevent reception of the GPS satellite signal.
•
There should be no interfering object within the line-of-sight to the satellites. Objects
within line-of-sight to a satellite, for example, a mast may block reception or prolong
acquisition time.
•
Mount the antenna unit as high as possible. Mounting the antenna unit as high as
possible keeps it free of interfering objects and water spray, which can interrupt reception
of GPS satellite signal if the water freezes.
•
If the antenna cable is to be passed through a hole which is not large enough to pass the
connector, you may cut the cable with cutting pliers. Re-connect it after running the cable
through the hole. Wrap cable with vulcanizing tape and then vinyl tape. Bind the tape end
with cable-tie.
Mounting
Install the antenna unit by referring to installation diagram of page D-1.
4
2. WIRING
This unit outputs position and speed to external equipment, mainly to NAVnet equipment. To
connect to NAVnet equipment, connect waterproof connector directly to NAVnet equipment.
For connection to other equipment, use a junction box (local supply), which provides seven
terminals. A ten meter cable is attached to this unit. If the distance between this unit and
monitor more than 10 m, use optional extension cable (10 m). Up to four extension cables
can be connected serially.
Connecting to FURUNO NAVnet equipment
Total length: Max. 50 m
10 m
10 m
Cable assy. (option)
MJ-A7SPF/SRMD-100
w/cable
NAVnet
Waterproofing connector
If you use the optional extension cable(s), wrap connector(s) with vulcanizing tape and then
vinyl tape for waterproofing. Bind the tape end with cable-tie.
5

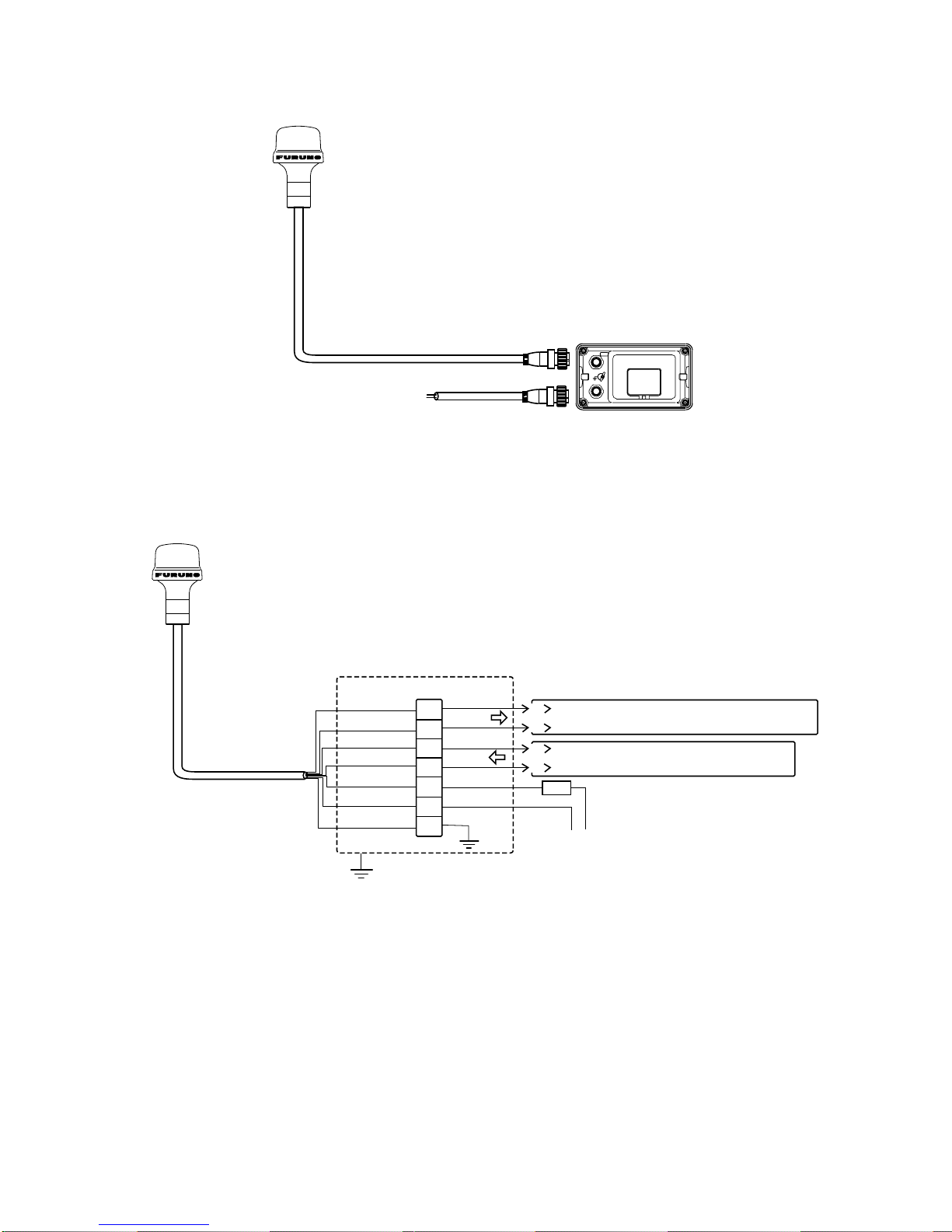

Connecting to FURUNO Multi Display RD-30
10 m
w/cable
MULTI DISPLAY
RD-30
AUX port
IN/OUT port
12-24 VDC
AUX
IN/OUT
12-24
VDC
Rear Panel
Connecting to other type of equipment
Cut the connector and fabricate the cable end, using a crimp-on lug similar terminal.
Prepare a junction box locally.
10 m
w/cable non-NAVnet
RS-422* input for radar/plotter
RS-422 output from GR-80
NMEA0183 Ver.2.00
*: RS-422 output can be received by current loop.
1
2
3
4
5
6
7
WHITE
BLACK
YELLOW
JUNCTION BOX
GREEN
RED
BLUE
Drain Wire
1
2
3
4RD-A
RD-B
TD-A
TD-B Fuse 0.5A
12-24 VDC (ship's battery)
(Input current: 105-55 mA)
Note1) Maximum input voltage is 31.2 VDC. Voltage higher than that will damage the
antenna. To connect battery of over 31.2 VDC, contact your dealer to request
connection of external circuit.
Note2) When connecting a FURUNO external DGPS beacon receiver (such as the GR-80)
to this unit, set the external DGPS beacon receiver as follows:
Byte Format, 8-6; First Bit, LSB; Parity Bit, None; Stop Bit, 1; Bit Rate, 8.
Note3) The signal ground and frame ground are separated, however the power line is not
isolated. Therefore, do not connect the signal ground to the frame ground when
connecting other equipment to a positive ground battery.
6
Output/Input data format
Priority Input data Output data Setting
of Output
Cycle
Default
GPDTM Geometric datum Yes Yes
XXGGA Position GPGGA GPS fix data Yes Yes
XXZDA UTC date GPZDA UTC time and date Yes Yes
XXGLL Position GPGLL Geographic
position Yes
GPGSA Fixing state, DOP Yes
GPGSV Satellite
information Yes Yes
GPVTG Course over
ground and ground
speed
Yes Yes
High
↑
↓
Low
XXRMC Position, UTC
date GPRMC Recommended
minimum specific
GPS/TRANSIT
data
Yes
Note1) Data output in order from high to low priority.
Note2) GPDTM data is attached in front of GPGGA, GPGLL and GPRMC when each of
those sentences is output.
Note3) XX means talker not specified.
