FURUNO GP-1670F OPERATIONAL PROCEDURE*

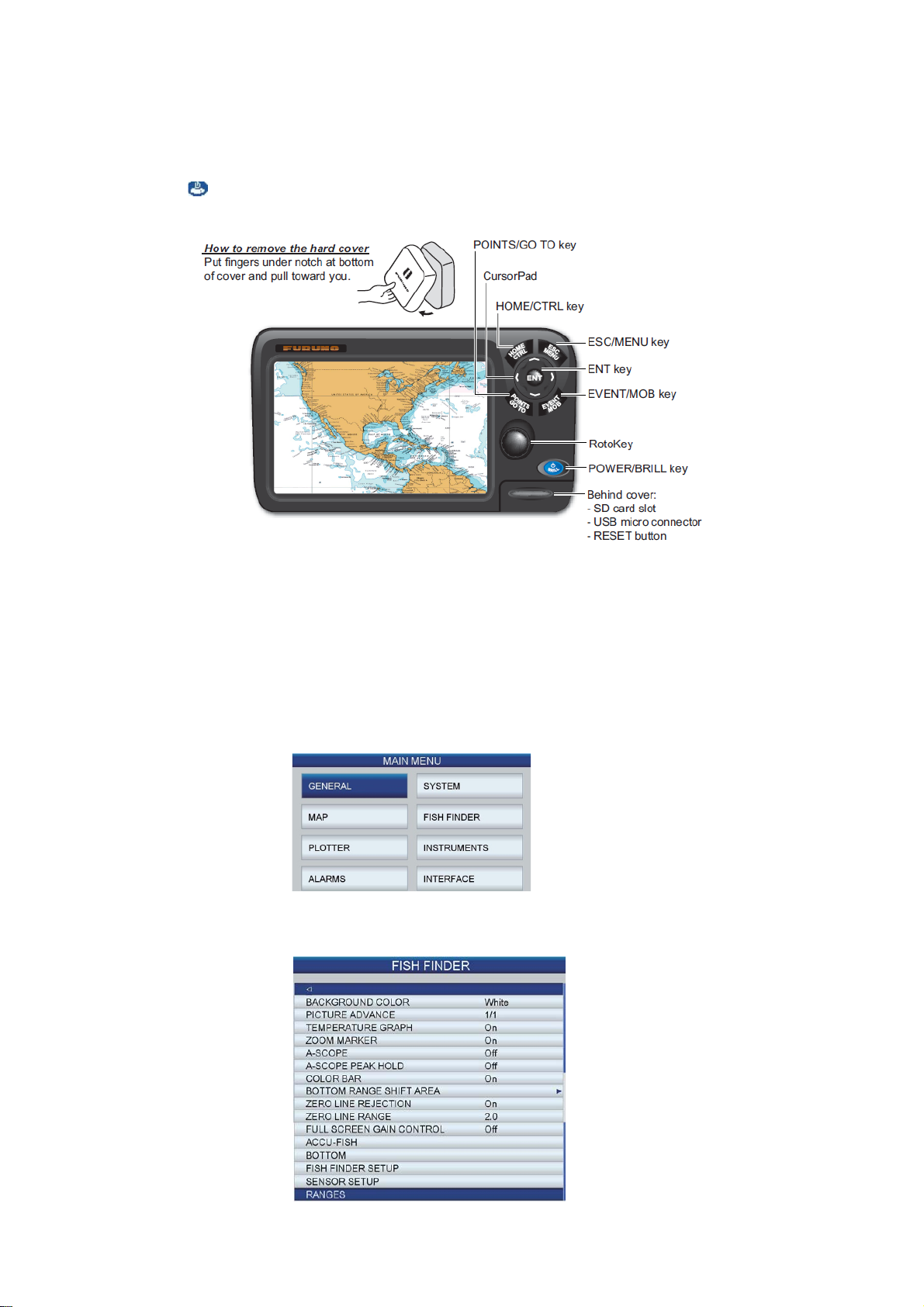

1) Turn the Power On, FURUNO GP-1670F

Press to turn the power ON.

※This figure is quoted from “FURUNO GPS PLOTTER/SOUNDER GP1670F, GP1870F OPERTOR’S

MANUAL” of product GP-1670F of Furuno Electric Co., Ltd.

2) Menu Operation

This section shows how to operate the menu. There are eight menus, [General], [Map], [Plotter],

[Alarms], [System], [Fish Finder], [Instruments] and [Interface].

Long-push of the ESC/MENU key will show the main menu. Select “FISH FINDER”

3) Select “BOTTOM RANGE SHIFT AREA”for RANGE selection

[RANGES]: The default range settings are suitable for most applications. However, the ranges

can be customized to suit one’s needs, i.e. [RANGE 1] - [RANGE 8]. Set the ranges in

descending order. Make sure that each range is lower than its preceding range.

Select a display range

Range can be selected automatically or manually. Open the RotoKey menu then

select [Auto Range] and [Auto] or [Manual].

Select manual operation, the [RANGE] window, which appears on the right. Turn

the key clockwise to increase the range and counterclockwise to decrease the range.

Select the Range at 20 m.

4) Adjust the Gain

The gain controls how echoes of different strengths are displayed. Gain is automatically adjusted;

however, the gain can be fine tuned accordingly to meet local characteristics, etc. Set the gain to show a

slight amount of noise on the screen. Increase the gain for greater depths and lower the gain for shallow

waters.

To adjust the gain, open the RotoKey menu then select [Gain 50k] or [Gain 200k] followed by the soft

control labeled with the frequency that is desired to be adjusted, then the corresponding adjustment

window appears. Rotate the key clockwise to increase the gain, counterclockwise to decrease it.

How to adjust the gain

Since the gain controls how echoes of different strengths are displayed, set the gain to show a slight

amount of noise on the screen. Increase the gain for greater depths and lower the gain for shallow waters.

Gain too high Gain proper Gain too low

5) Home Screen (Display Selection)

Select a display from the home screen which has eight displays. Press the HOME/CTRL key to show

the home screen. Operate the CursorPad or rotate the RotoKeyTM to select a display. The current

selection is circumscribed by a red rectangle. Press the RotoKeyTM or ENT key to confirm your

selection.

Select a display for the right half then push RotoKeyTM. For example, select the fish finder

display. Control returns to the home screen. The result of your selection appears on the home

screen.

Plotter, fish finder display

CAUTION

Adjust the gain correctly. Incorrect

adjustment can lead to a dangerous situation

especially if the boat is steered according to the

depth indication.

DATA COLLECTION OPERATION PROCEDURE

1) Turn on FURUNO GP-1670F

-Select the Range at 20 m.

2) Turn on Computer with Windows 7

3) Start PicoScope 6

4) Start FishFinder V.3.6

When FishFinder program is running, a window on monitor screen will display an echogram

which is indicated by water depth range and echo color scale.

5) Start Hyper Terminal: (GPS – Hyper Terminal)

When Hyper Terminal program is running, a window on monitor screen will display echo

sounder information in various format of terminal information.

6) Echo sounder data collection

-Move mouse cursor into the echogram window and use right bottom mouse click for

data collection drop down menu.

-Select “Collecting Start” button, left bottom mouse click. The echo sounder data will

automatically create new data recorded file using current date and time as file name on

Desktop folder. The format of file name will start with “FishFinder” followed by Date

such as “FishFinder_yyyymmdd_hhmmss.csv”.

-To stop data recording, select “Collecting Stop” button, and use left bottom mouse

click.

7) Ship position data collection

-In Hyper Terminal window, select drop down menu of “Transfer”, Capture Text” and

enter Capture Text folder and file name.

-Select “Start” button. The echo sounder information text will automatically be recorded

into defined data file name.

-To stop data recording, select “Transfer”, Capture Text” and “Stop”

ECHO SOUNDER DATA ANALYSIS PROCEDURE

The Echo Sounder Data Collection System (AQFI-1301) was designed to display echogram

(Figure 17) and data recorded digital echo signal (50 kHz) into PC screen and hard disc. The

Echo Sounder Data Collection System was set up at fixed sampling rate of 0.0512 msec with

total 800 sampling echo data of digital value echo-signal recorded into the PC hard disc for

each transmitting ping.

Figure 17. Echogram and A-scope display pattern shown on PC screen.
