ETERNUS DX60 and DX80
Product Introduction
Copyright Fujitsu Technology Solutions, Release June 2009
1
Product Introduction ETERNUS DX60 and DX80
Highlights
Highlights
Low environmental impact
Highly scalable & versatile connectivity
User friendly management systems
Outstanding reliability
Copyright Fujitsu Technology Solutions, Release June 2009
2
Product Introduction ETERNUS DX60 and DX80
Overview (1)
Overview (1)
DX60 DX80 Note
Maximum number of drives 24 120
SAS 10.8 TB 54 TB With 450 GB disks
Maximum storage capacity
(Physical) Nearline SAS 24 TB 120 TB With 1 TB disks
Maximum cache capacity 2 GB 4 GB
FC FC 4 Gbps FC 8 Gbps / 4 Gbps
iSCSI 1 Gbps* 1 Gbps*Host interfaces
SAS 3 Gbps* 3 Gbps*
ETERNUS DX60 and DX80 are designed
to meet the needs of all environments from
small to large. They provide the right size
data storage solution for departmental level
computing through mission critical systems.
ETERNUS DX60 and DX80 are designed
to meet the needs of all environments from
small to large. They provide the right size
data storage solution for departmental level
computing through mission critical systems.
Max. 24 drives
ETERNUS DX60
* To be released in 3Q of CY2009
Max. 120 drives
Supports FC 8 Gbps
ETERNUS DX80ETERNUS DX80
ETERNUS DX80
Copyright Fujitsu Technology Solutions, Release June 2009
3
Product Introduction ETERNUS DX60 and DX80
Overview (2)
Overview (2)
ETERNUS DX60 ETERNUS DX80
Number of Controllers 1 or 2 1 or 2
Cache Capacity per system 2 GB 4 GB
Cache Data backup Write back to NAND Flash Memory powered
by SCU
Write back to NAND Flash Memory
powered by SCU
Cache Hold Time No Limitation No Limitation
FC 4 Gbps 4 or 8 Gbps
iSCSI 1 Gbps* 1 Gbps*
Host Interfaces
Base Copy Functions SnapOPC+ or QuickOPC
SAS 3 Gbps* 3 Gbps*
Drive Types SAS / NL-SAS (3 Gbps), SSD* SAS / NL-SAS (3 Gbps), SSD*
RAID Levels 0,1,1+0,5,6,5+0 0,1,1+0,5,6,5+0
3.5” 24 (12 in 2U) 120 (12 in 2U)
Maximum number of HDDs
Number of HDD / Enclosure
SnapOPC+ or QuickOPC
2.5” 24 * (24 in 2U) 120 * (24 in 2U)
Maximum number of LUNs 512 1024
Maximum number of HBAs 64 (16/port) 128 (32/port)
RAID migration x x
Optional Copy Functions SnapOPC+, OPC, QuickOPC, EC, SnapOPC+, OPC, QuickOPC, EC, REC**
Encryption xx
ECO mode xx
Supported OS Windows, Linux, VMware, Unix Windows, Linux, VMware, Unix
*2nd Release **3rd Release
Copyright Fujitsu Technology Solutions, Release June 2009
4
Product Introduction ETERNUS DX60 and DX80
Optional Modules (1)
Optional Modules (1)
ETERNUS
DX60
Basic configuration
(1 enclosure)
Basic configuration
(1 enclosure)
Flexible response to business expansion
Flexible response to business expansion
Max. configuration
(2 enclosures)
Max. configuration
(2 enclosures)
Expand
Expand
Up to 12 disk drives
Max. 5.4 TB (SAS)
Max. 12 TB (NL-SAS )
Up to 24 disk drives
Max. 10.8 TB (SAS)
Max. 24 TB (NL-SAS)
Up to 12 disk drives
…
Copyright Fujitsu Technology Solutions, Release June 2009
5
Product Introduction ETERNUS DX60 and DX80
Optional Modules (2)
Optional Modules (2)
ETERNUS
DX80
Flexible response to business expansion
Flexible response to business expansion
Up to 12 disk drives
Max. 5.4 TB (SAS)
Max. 12 TB (NL-SAS )
Up to 120 disk drives
Max. 54 TB (SAS)
Max. 120 TB (NL-SAS)
Basic configuration
(1 enclosure)
Basic configuration
(1 enclosure) Max. configuration
(10 enclosures)
Max. configuration
(10 enclosures)
Expand
Expand
Up to 12 disk drives
…
Copyright Fujitsu Technology Solutions, Release June 2009
6
Product Introduction ETERNUS DX60 and DX80
Optional Modules (3)
Optional Modules (3)
Single controller system can be expanded to a dual controller
system
ETERNUS DX Advanced Copy License
Allows up to 512/1024 Snapshots and Clones
HW License Default With Advanced Copy License
Number of sessions 8 512 (DX60) or 1024 (DX80)
Control by GUI/CLI VSS GUI/CLI/VSS
SnapOPC+ X (via GUI/CLI) X (via GUI/CLI)
QuickOPC X (via VSS) X (via VSS)
Copyright Fujitsu Technology Solutions, Release June 2009
7
Product Introduction ETERNUS DX60 and DX80
Identification
Identification
The Serial Number of the ETERNUS DX60 and ETERNUS
DX80 is located on top left hand side of the shelf
Copyright Fujitsu Technology Solutions, Release June 2009
8
Product Introduction ETERNUS DX60 and DX80
Technical Overview
Technical Overview
Copyright Fujitsu Technology Solutions, Release June 2009
9
Product Introduction ETERNUS DX60 and DX80
Technical Overview
Technical Overview
Battery free cache protection
8 Gbit Fiber Channel interface
High Availability
Advanced Data Protection
Dynamic LUN Migration
LUN Concatenation
Logical Device Expansion
Data Encryption
EcoMode
Copyright Fujitsu Technology Solutions, Release June 2009
10
Product Introduction ETERNUS DX60 and DX80
Block Diagram
Block Diagram
Base System (a.k.a. Controller Enclosure)
Expansion Shelf (a.k.a. Drive Enclosure)
BPPSU PSU
PSU PSUBP
SCU
LSI
RoC Cache
Expander
Nonvolatile
memory
Panel
Monitor
PLD
CM#1
RoC
Expander
Cache
LSI
Nonvolatile
memory
SCUSCU
Monitor
PLD
CM#0
EXP#0 EXP#1
Panel
Monitor
PLD
Monitor
PLD
Expander Expander
To Expansion
Shelves
(SAS interface)
RAID-on-Chip
(RAID Controller)
SAS Expander
Controller
Interconnect
(PCI Express x4)
Host Interface
(Fiber Channel)
System Capacitor
Unit
Controller Module
BP
BP
Copyright Fujitsu Technology Solutions, Release June 2009
11
Product Introduction ETERNUS DX60 and DX80
Battery Free Cache Protection (1)
Battery Free Cache Protection (1)
Reduced maintenance window
SCU* is maintenance free for 5 years
• Battery replacement was required every
three years in the previous models
Avoid data loss during extended power
outages
Migrating cache data to a nonvolatile memory
ensures unlimited data retention time
• Previously battery back up supported cache
data for approximately 96 hours
Cached write performance recovered
almost immediately after power restoration
SCU recharge time about 3 minutes
• Exact battery recovery time depends on how long the power has been
unavailable
In the event of a power failure, the data is migrated from cache to a nonvolatile RAM.
For improved reliability, power for the migration process is supplied by a SCU* (System
Capacitor Unit) rather than a battery
In the event of a power failure, the data is migrated from cache to a nonvolatile RAM.
For improved reliability, power for the migration process is supplied by a SCU* (System
Capacitor Unit) rather than a battery
• SCU is a unit with electric double layer
capacitor. Electric double layer
capacitor has the advantages of being
very resistant to degrading and by
providing a short recharge time
compared to traditional batteries.
DataData
Migrate cache data to a
nonvolatile memory at high
speed through a dedicated line
SCU
SCU* supplies
power when power
fails
Nonvolatile
memory
Memory
LSI RoC Memory
Copyright Fujitsu Technology Solutions, Release June 2009
12
Product Introduction ETERNUS DX60 and DX80
Battery Free Cache Protection (2)
Battery Free Cache Protection (2)

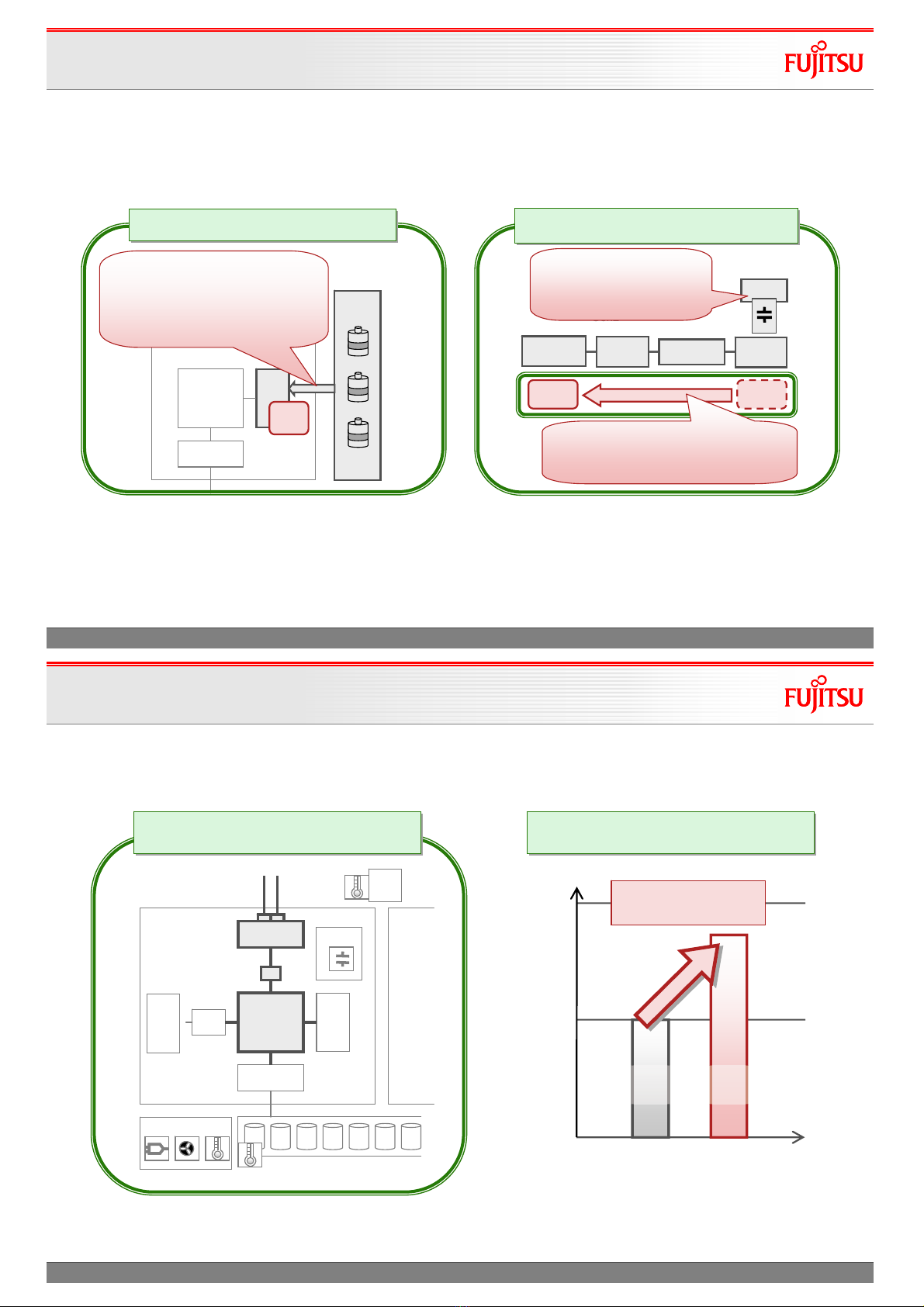

Technology comparison
DataData
Migrate cache data to a
nonvolatile memory at high
speed through a dedicated line
RoC Memory
BBU
CM#0
Data
Power is supplied from BBU*
to memory when power fails.
Cache data can be kept as
long as the battery has power
Previous technology (ETERNUS 2000)
Previous technology (ETERNUS 2000)
BBU = Battery Backup Unit
New way (ETERNUS DX60 & DX80)
New way (ETERNUS DX60 & DX80)
FC8/4/2Gbps
PCI Express
Gen2
SCU
SCU* supplies
power when power
fails
Nonvolatile
memory
Memory
LSI RoC Memory
Copyright Fujitsu Technology Solutions, Release June 2009
13
Product Introduction ETERNUS DX60 and DX80
Support for 8 Gbps FC Interface (DX80)
Support for 8 Gbps FC Interface (DX80)
Improved throughput performance
Potential for 1.5 (or greater)
throughput
Potential for 1.5 (or greater)
throughput
Throughput
FibreCAT
SX80
ETERNUS
DX80
8 Gbps FC connector
8 Gbps FC connector
1.5 times or more
SCU
LSI
RoC Memory
FC 8 Gbps
PCI Express
Gen2
CM#1CM#0
PSU
panel
RoC (RAID-on-Chip)
Nonvolatile
Memory
Copyright Fujitsu Technology Solutions, Release June 2009
14
Product Introduction ETERNUS DX60 and DX80
High Availability
High Availability
Duplicated components
Basic configuration contains
always two Power Supplies
The Controller Module can be
optionally duplicated
Components are hot
swappable
Hot expansion of disk drives
Hot firmware upgrade
supported
PSU: Power Supply Unit , SCU: System Capacitor Unit, RoC: RAID-on-Chip
PSU PSU
PSU PSU
BP
BP
SCU
LSI RoC Cache
Expander
CM#0
NAND
Flash
Monitor
PLD
SCU
Base System
Expansion Shelf
CM#1
RoC
Expander
Cache LSI
NAND
Flash
SCU
Monitor
PLD
Expander Expander
EXP#0 EXP#1
Panel
Monitor
PLD
Monitor
PLD
Panel
Copyright Fujitsu Technology Solutions, Release June 2009
15
Product Introduction ETERNUS DX60 and DX80
Advanced Data Protection
Advanced Data Protection
Data Block Guard
Data Block Guard function saves additional 8-byte check code to every
512-byte of data to ensure data integrity both on the disk and in the
cache
Controller Module
A0 A1 A2CC CC CC
Write Read
DISK
(3)
Verify Check Code
(2)
Apply Check Code
(1)
Written data
A0 A1 A2CC CC CC
A0 A1 A2
User data
Delete Check Code
(3)
Cache
ECC Protected
(2) (2)
(1)
A0 A1 A2
A0 A1 A2CC CC CC
User data
CC: Check Code
Copyright Fujitsu Technology Solutions, Release June 2009
16
Product Introduction ETERNUS DX60 and DX80
Dynamic LUN Migration
Dynamic LUN Migration
LUNs can be migrated on the fly to
Other drives and different RAID groups
Other drives and different drive types (e.g. SAS to NL SAS, SAS to SSD)
Benefits
Reduce hot spots
Move LUNs to more suitable disk type or RAID type if requirements
change
LUN 1
LUN 0
RAID
migration
LUN 0
LUN 1
RAID
Group #0
RAID
Group #1
Copyright Fujitsu Technology Solutions, Release June 2009
17
Product Introduction ETERNUS DX60 and DX80
LUN Concatenation
LUN Concatenation
Can expand the capacity of existing LUN by creating new LUN
and concatenating it to an existing LUN
Data on existing LUN will be kept
• Independent of RAID level in use
• Minimum required capacity of a LUN is greater than 1 GB
• Maximum number of LUNs that can be concatenated is 16
• Maximum capacity of a concatenated LUN is 32 TB
Create LUN
and Concatenate
existing LUN
LUN 0
LUN 1
RAID
Group #0
RAID
Group #1
ETERNUS
ETERNUS LUN 1
LUN 0
ETERNUS
ETERNUS
LUN x
Copyright Fujitsu Technology Solutions, Release June 2009
18
Product Introduction ETERNUS DX60 and DX80
Logical Device Expansion
Logical Device Expansion
Expand free space of RAID Group by adding disks or by
changing the RAID Level
No need to prepare a complete new RAID Group to expand
New
New
RAID 1+0
New
New
RAID 5
RAID 1+0
RAID 1+0
RAID 1+0
Free
Free
RAID 5
Add disks and/or
change RAID level
ETERNUS
ETERNUS ETERNUS
ETERNUS
Copyright Fujitsu Technology Solutions, Release June 2009
19
Product Introduction ETERNUS DX60 and DX80
Data Encryption
Data Encryption
Key is generated automatically by the system
Encryption can be configured per volume
Protects your data even on defective or
decommissioned disk drives
Protects your data even on defective or
decommissioned disk drives
??? ??? ???
???
???
???
123 123 123
123 123 123
Encrypted
Data encryption can be
activated on each LUN
Not encrypted
Otros manuales para ETERNUS DX60
10
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Almacenamiento de Fujitsu
Fujitsu
Fujitsu ETERNUS DX Disk Manual de usuario
Fujitsu
Fujitsu ETERNUS DX60 S2 Manual de usuario
Fujitsu
Fujitsu ETERNUS LT270 S2 Manual de usuario
Fujitsu
Fujitsu ETERNUS AF250 Manual de usuario
Fujitsu
Fujitsu MPF3XXXAT Manual de usuario
Fujitsu
Fujitsu MAB3091FC Series Manual de usuario
Fujitsu
Fujitsu ETERNUS2000 100 Manual de usuario
Fujitsu
Fujitsu ETERNUS DX S5 Series Manual de usuario
Fujitsu
Fujitsu MHW2060BK - Mobile 60 GB Hard Drive Manual de usuario
Fujitsu
Fujitsu MAW3073 SERIES Manual de usuario
Fujitsu
Fujitsu MBC2036RC SERIES Manual de usuario
Fujitsu
Fujitsu MAP3147NC - Enterprise - Hard Drive Manual de usuario
Fujitsu
Fujitsu ETERNUS AF250 S2 Instrucciones de montaje
Fujitsu
Fujitsu Eternus DX80 S2 Guía de instalación
Fujitsu
Fujitsu MHW2160BJ Manual de usuario
Fujitsu
Fujitsu ETERNUS AX Series Manual de usuario
Fujitsu
Fujitsu ETERNUS DX60 S3 Manual de usuario
Fujitsu
Fujitsu MHE2043AT Manual de usuario
Fujitsu
Fujitsu MAT3300FC Manual de usuario
Fujitsu
Fujitsu MAS3367FC Manual de usuario
Manuales populares de Almacenamiento de otras marcas
Spectra Logic
Spectra Logic T-Series Spectra T50e Manual de usuario
Panasonic
Panasonic LKM-F931-1 Manual de usuario
Tabernus
Tabernus Enterprise Erase E2400 Manual de usuario
Rocstor
Rocstor COMMANDER 3F series Manual de usuario
HP
HP P9000 Manual de usuario
Western Digital
Western Digital Ultrastar Data60 Manual de usuario
