Fujitsu GP 7000F Manual de usuario

Edition December 1999

GP 7000F

M200, M200R, M400A, M400R, M600,M600R

CopyrightandTrademarks

Allrightsreserved.

Deliverysubjecttoavailability;rightoftechnicalmodificationsreserved.

Allhardwareandsoftwarenamesusedaretrademarksoftheirrespectivemanufacturers.

U42335-J-Z775-1-76 1

1 Preface

ThismanualcontainstheoperatinginstructionsfortheGranPower7000(GP7000F)system

from Fujitsu Siemens Computers. A chapter about the connection of Siemens specific de-

vices precedes the actual operating instructions.

U42335-J-Z775-1-76 3

2 Console connections to GP 7000F

This chapter describes connections to the M200, M200R, M400A, M400R, M600 and

M600R models of the Fujitsu Siemens Computers GP 7000F system with a view to

attachingexistingcomponentsofSiemensdevicestoFujitsuequipment.Graphicalor serial

consoles can be connected.

The GP 7000F systems do not support SIDATA

(installation by customer is not allowed).

2.1 Graphical console

It is preferable to connect graphical consoles.

system

GP 7000F

V.24 (B)

V.24 (A)

10/100 Mbit Eth

Monitor

Keyboard/mouse

PCI graphics

controller

D:GP70F-CC10

(option)

SUNAdapt

Keyboard Mouse

Teleservice

preferably

(Keyboard with trackball

in the 19" rack)

Graphical console Console connections to GP 7000F

4U42335-J-Z775-1-76

The following technical requirements must be met in order to connect graphical consoles:

– PCI graphics controller D:GP70F-CC10

The GP 7000F models can be made into a workstation or server with a graphical

console by means of a PCI graphics card featuring a frame buffer.

– An RM keyboard and mouse can be connected via the D:GP70F-AN10 interface

converter. All models in the GP 7000F server family have a Sun-compatible

keyboard/mouse interface. The adapter converts the interface signals to allow the

keyboard and 3-button mouse featuring a PC-compatible interface to be connected

to the server.

Keyboard/mouse adapter

– Monitor (CRT or LCD)

– Keyboard

–Mouse

The same monitor, keyboard and mouse types have been released as for the Siemens

systems.

PS/2 M aus

PS/2 Tastatur

SUN-

Tastatur/M aus-

Schnittstelle

PS/2 mouse

PS/2 keyboard

Sun keyboard/

mouse interface

Console connections to GP 7000F Serial console

U42335-J-Z775-1-76 5

2.2 Serial console

A converter is used here to convert the 25-pin connector of the GP 7000F system to the

usual 9-pin V.24/COM connector. This converter is preinstalled at the factory. A VT100 or

VT200 emulation must be available for a serial console to be used.

25/9-pin converter

9polig

V.24/C O M

25polig

Dsub

9-pin

25-pin

Serial console Console connections to GP 7000F

6U42335-J-Z775-1-76

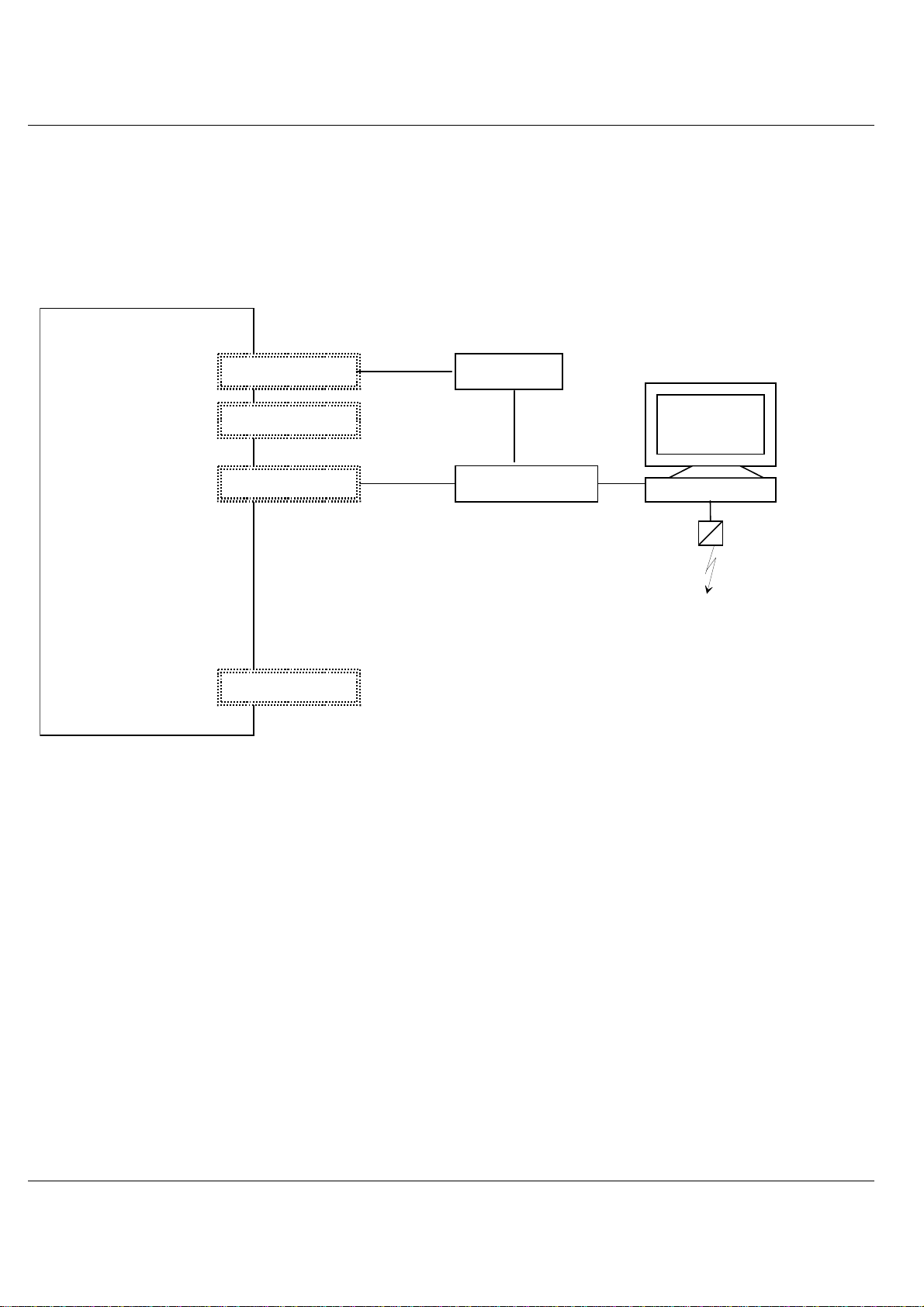

2.2.1 LAN console

ASolarisPCisconnectedas aLANconsolevia an RCA(RemoteCommunicationAdapter)

attached to the V.24 console interface. Up to six servers can be attached to one RCA.

RCA

system

GP 7000F

V.24 (B)

V.24 (A)

10/100 Mbit Eth

Keyboard/mouse

LAN

console

Ethernet hub

Teleservice

Console connections to GP 7000F Serial console

U42335-J-Z775-1-76 7

2.2.2 Standard PC with terminal emulation

a) Windows 98 or NT (with NetTerm, for instance, but not with HyperTerminal)

b) LINUX (with Minicom or Seyon)

c) Solaris (cu)

system

GP 7000F

V.24 (B)

V.24 (A)

10/100 Mbit Eth

Keyboard/mouse

(NT, Windows)

preferably

Teleservice

Teleservice Console connections to GP 7000F

8U42335-J-Z775-1-76

2.2.3 TC20 or T100

Use of these terminals is intended as a migration solution only.

When operating with theLAN console, TC20 orT100 it isnot possibleto access the

Open Boot PROM using the BREAK signal.

2.3 Teleservice

The teleservice modem has to be connected via V.24 to the system board. The modem has

to be ordered separately owing to national variants.

If a LAN console is used, connection of the modem is to the LAN console PC. Thus one

teleservice port serves all connected servers.

GP 7000F

system

V.24 (B)

V.24 (A)

10/100 Mbit Eth

Keyboard/mouse

αα

αconsole

preferably

Teleservice
