Fujitsu Fi-4750L Manual del instalador

fi-4750L

IMAGE SCANNER

ILLUSTRATED PARTS CATALOGUE

C150-G015-04EN

HOWTO USE THIS MANUAL

ILLUSTRATION

The illustration gives an exploded view of an assembly, and

separate parts and how they fit together. Each part has a number

corresponding to an Index No.on the parts list.

PARTS LIST

(1) INDEX NO.

The number which corresponds with a part’ s number in the

illustration.

- When the mark “ * ” precedes the index number, the

parts is a Recommended Spare Parts or a Consumables.

- When a “ - ” is given, the part (screw or washer) is not

shown in the illustration.

- When blank, and the QUANTITY and SPECIFICATION

are given, a whole of that part is not shown in the

illustration or that part is illustrated for detail

breakdown in the other page.

(2) COMPOSITION & QUANTITY

These columns are shown the relationship between units,

assemblies, subassemblies, and parts. A unit indicated in a

column is assembled the parts indicated in the next right column.

The figure is the quantity needed to assemble into on higher

assembled unit.

(3) SPECIFICATIONS

Part number of the units, assemblies, subassemblies, or parts.

(4) DESCRIPTION

The part name, applicable device number, and other information

are given in this column.

OTHERS

The parts other than the parts marked with “ * ” in INDEX NO.

column are listed in SPARE PARTS LIST REPAIR.

CONTENTS

FIGURE 1 FINAL ASSEMBLY-1 ....................................................................... 1

FIGURE 2 FINAL ASSEMBLY-2 ....................................................................... 3

FIGURE 3 PLATE and PCA ASSEMBLY ........................................................... 5

FIGURE 4 CARRIER UNIT ............................................................................... 7

FIGURE 5 ADF ASSEMBLY ............................................................................... 9

FIGURE6 OPTICALUNIT ............................................................................... 11

FIGURE7 DOCUMENTCOVER ASSEMBLY (1) .................................................. 13

FIGURE8 DOCUMENTCOVER ASSEMBLY (2) .................................................. 15

A. fi-4750L Page

TABLE B.1 LIST OF THE FASTENER

FIGURE B.1 TP SCREW ........................................................................................ 17

FIGUREB.2 MACHINESCREWWITHWASHER .............................................. 17

FIGUREB.3 FLAT HEAD SCREW ........................................................................ 18

FIGUREB.4 RETAININGRING(E-RING) ........................................................... 18

FIGURE B.5 PT SCREW ........................................................................................ 18

FIGURE B.6 TUMB SCREW ................................................................................. 18

FIGUREB.7 SCREW ............................................................................................. 19

FIGUREB.8 SCREW ............................................................................................. 19

FIGUREB.9 NYRONBAND ................................................................................. 19

B.LIST OF STANDARD FASTENERS

FIGURE 1. FINAL ASSEMBLY-1

NDEX

NO.

FIGURE 1. FINAL ASSEMBLY-1

COMPOSITION

& QUANTITY SPECIFICATION DESCRIPTION

1 CA02956-2300 2371 03 fi-4750L Image Scanner

1 1 PA03237-E028 Top cover ASY

2 1 PA03237-Y156 Top cover LH 03

3 1 PA03237-F006 Front cover ASY

*4 1 PA050951-0201 03 Console unit

*5 1 PA03237-D029 Document cover ASY (Fig7)

6 1 PA03001-Y024 ADF cover

7 1 PA03237-Y621 Cap (ADF Lever)

8 1 PA03237-E008 Stacker ASY

9 1 PA03237-Y608 Stacker

10 1 PA03237-Y609 Extention

11 1 PA03237-Y617 Stopper

12 1 PA03237-E062 03 Adjustment Stacker

13 1 PA70002-0626 IF Cable LH 0

FIGURE 2. FINAL ASSEMBLY-2

25 26

3034

567

03 37

NDEX

NO.

FIGURE 2. FINAL ASSEMBLY-2

COMPOSITION

& QUANTITY SPECIFICATION DESCRIPTION

1 CA02956-2300 2371 03 M4097D Image Scanner

2 1 PA02201-Y973 ADJ Metal Fitting

3 1 PA02201-Y506 Collar

4 1 PA02201-Y512 ADJ spring

5 1 PA02201-Y972 ADJ shaft

6 1 PA02201-Y971 ADJ Pulley

7 2 U120-4300-Z817 Spacer

8 1 PA03002-Y126 Spring

9 1 PA03237-Y620 Sheet B

10 4 PA03001-Y107 Foot

11 1 PA03001-Y074 Cover Sheet

12 1 PA03237-Y619 Sheet A

13 1 PA02201-Y890 CR Rail

14 1

15 1 PA03237-Y605 JC Plate

*16 1 PA03237-D021 Carrier unit (FIG-4)

17 1 PA03237-E005 E029 03 Plate ASY (FIG-3)

*18 1 PA20108-B05X Junction PCA

19 1 PA70001-0950 CSL Cable

20 1 PA53003-0131 Core

21 1 PA70002-0297 CR Cable

*22 1 PA03237-F002 FB Motor Unit

23 1 03

24 1 03

25 1 03

26 1 03

27 1 03

28 1 03

29 1 03

30 1 PA47003-0018 Sensor

31 1 PA02201-Y500 Shipping Lock Metal fitting

32 1 PA02201-Y989 FG Spring

34 1 PA70002-0295 HP Cable

35 1 PA70002-0296 FB Cable

37 1 PA03237-Y631 Frame Sheet

39 2 PA03237-G024 Fulcrum Plate

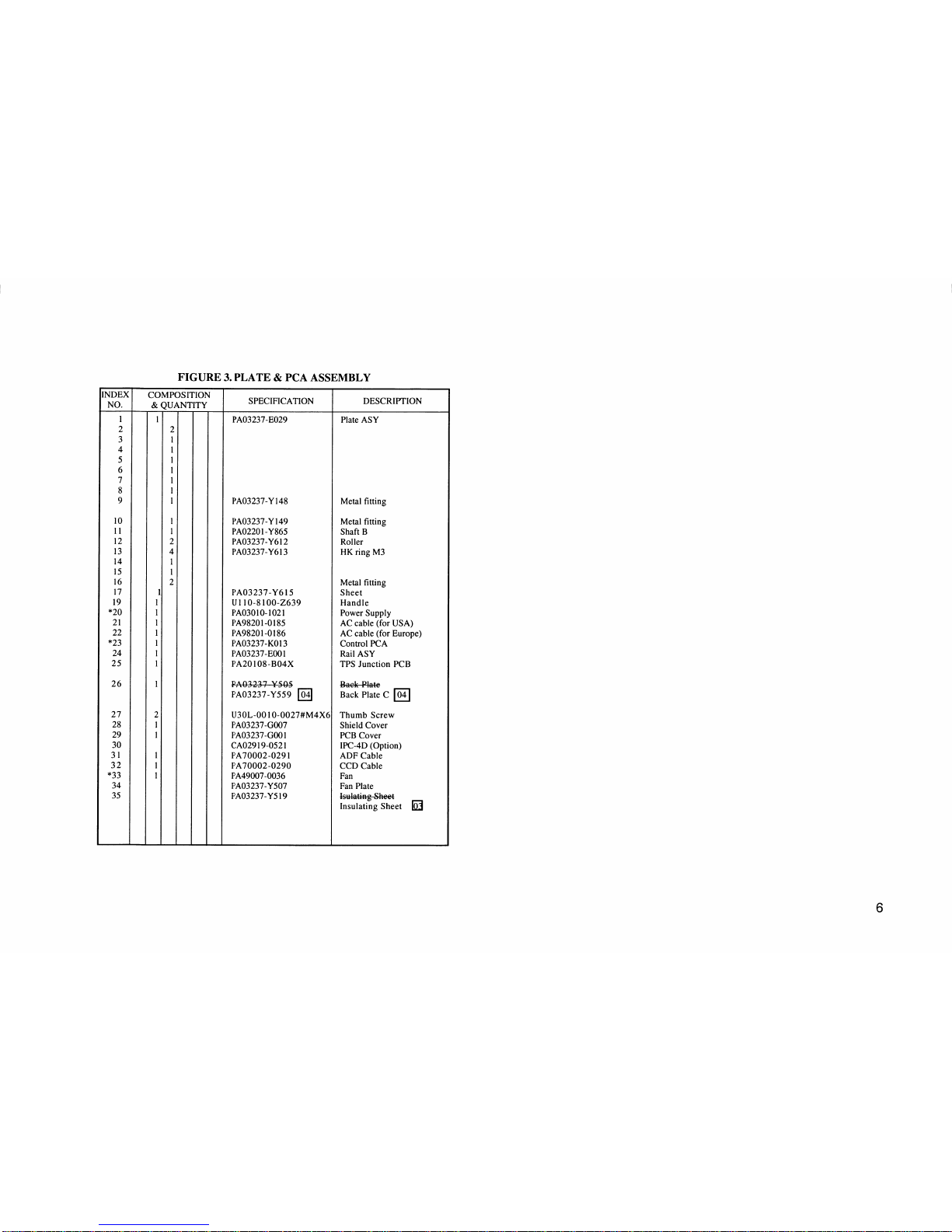

FIGURE 3. PLATE & PCA ASSEMBLY
