fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

CG00002-293601 Version A

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT

AND CLEANING INSTRUCTION

fi-748PRB Imprinter

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

Consumable Replacement Procedure

Pick Rollers Qty 2 Brake Roller Qty 1

Pick Roller Kit

Part Name

Part Number

Remarks

Pick-Roller-Kit

PA03670-0002

A shaft is not included in the Pick-Roller-Kit. When

replacing the pick roller, reuse the old Pick shaft.

Brake Roller Kit

Part Name

Part Number

Remarks

Brake-Roller-Kit

PA03710-0001

A shaft is not included in the Brake-Roller-Kit. When

replacing the brake roller, reuse the old brake shaft.

Brake Roller Assembly (with shaft) Pick Roller Assembly (with shaft)

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE BRAKE ROLLER

The Glass inside the ADF becomes very hot when the scanner is being used. Before

you replace the consumables, turn off the power, unplug the power cable, and let cool

for 15 minutes

1. Remove all documents from the ADF paper chute

2. Open the ADF

When the ADF is open, it might close accidentally. Use caution when the ADF is open.

3. Remove the Brake Roller Shaft Assembly

a. Hold both Ends of the cover and open it in the direction of the arrow.

b. Lift the right side of the roller. Pull out the shaft form the slot on the left

4. Remove the brake roller from the Brake Roller Shaft Assembly

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

5. Attach a new brake roller on the Brake Roller Shaft Assembly

a. Insert the Protrusion on the Brake Roller Shaft Assembly into the slot on the brake roller.

6. Attach the Brake Roller Shaft Assembly

a. Insert the left end of the Brake Roller Shaft Assembly into the hole in accordance with the

hole shape and then attack the right side of the shaft

b. Close the cover

7. Close the ADF

8. Reset the Brake Roller Counter

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

Replacing the Pick Roller

The Glass inside the ADF becomes very hot when the scanner is being used. Before

you replace the consumables, turn off the power, unplug the power cable, and let cool

for 15 minutes

1. Remove the documents from the ADF paper Chute

2. Remove the ADF Paper Chute

3. Open the ADF - Open the ADF by pressing the ADF Open Lever and Pull the ADF towards

the front of the scanner in the direction of the arrow shown in the pictures below.

When the ADF is open, it might close accidentally. Use caution when the ADF is open.

4. Remove the Pick Shaft Assembly

a. Open the sheet guide by lifting the tabs

b. Rotate the bushing on the Pick Shaft Assembly in the direction of the arrow

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

c. Remove the Pick Shaft Assembly

d. Hold and lift the bushing in the direction of the arrow below (1)

e. Pull the bushing up in the direction of the arrow below (2)

f. Lift the Pick Shaft Assembly up in the direction of the arrow below (3)

*Be careful not to touch the gear near the bushing on the shaft as it contains grease*

5. Remove the two (2) pick rollers from the Pick Shaft Assembly on at a time.

a. Pull out one of the pick rollers from the as you press the retaining clip.

b. Pull out the other pick roller from the Pick shaft Assy as you press the retaining clip

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

6. Attach two (2) new pick rollers on the Pick shaft Assembly one at a time

a. Insert the retaining clip of the pick roller into the slot

b. Insert the retaining clip of the other pick roller into the slot

Check that the pick rollers are attached properly. Otherwise, it may cause feeding

errors such as paper jams. Make sure to insert the pick rollers until they lock in place.

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

7. Reinstall the Pick Shaft Assembly

a. Insert the left end of the shaft into the slot and lower the other end gradually.

b. Rotate the bushing on the pick shaft in the direction of the arrow below

c. Close the sheet guide. Make sure that both ends of the sheet guide are locked firmly.

Confirm that the pick Shaft Assembly is installed properly

Otherwise, it may cause feeding errors such as paper jams

8. Close the ADF

9. Attach the ADF paper Chute

10. Reset the pick Roller Counter

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

If you find the counts are close to or over 200,000 and cleaning doesn’t

resolve a feeding issue it might be time to replace the consumables.

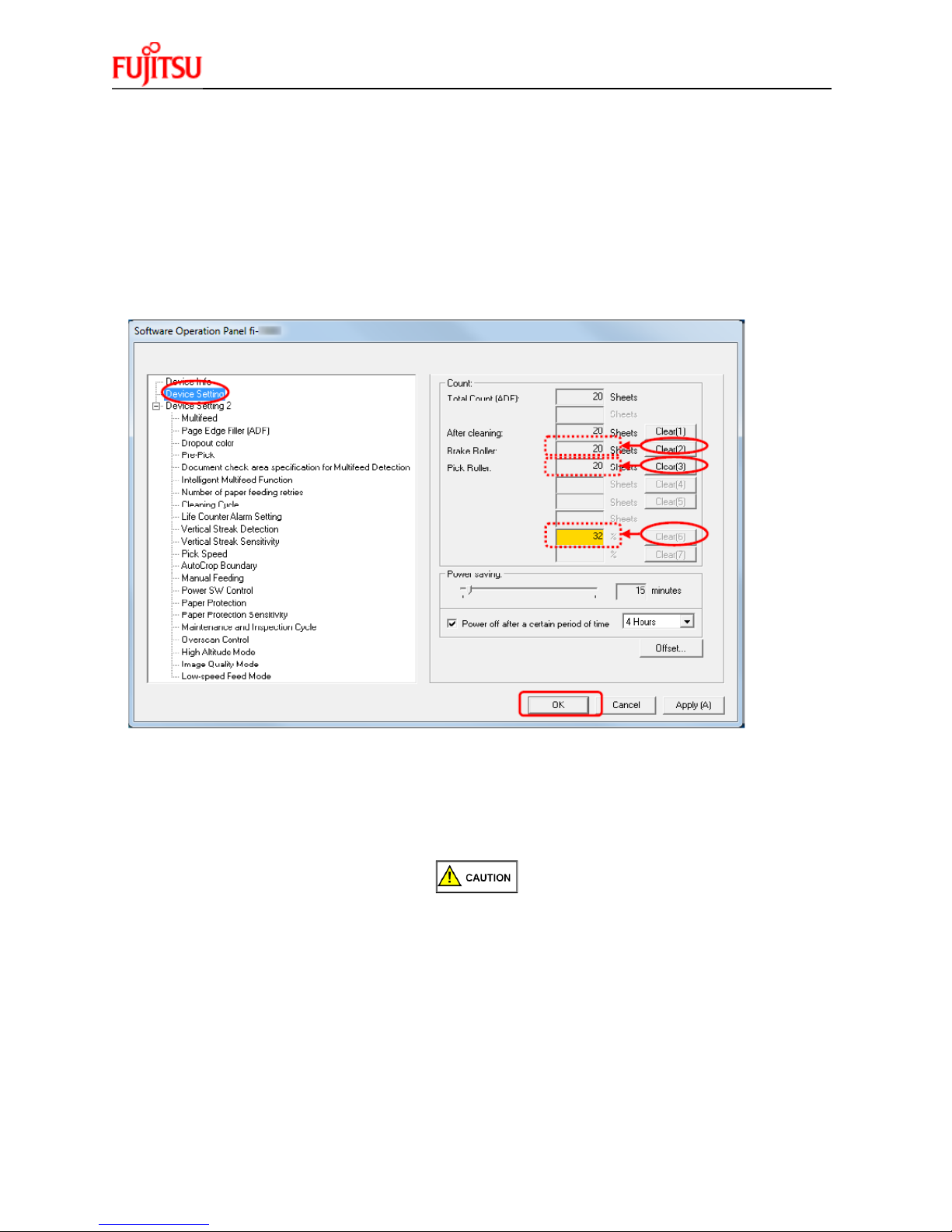

1. Checking and resetting the Sheet Counters After Consumable Replacement

a. Start up the Software Operation Panel (SOP)

b. From the listing on the left, Select “Device Setting”

c. Resetting the sheet counters

d. Click the “Clear(2) button for “Brake Roller” -> the counter is reset to “0”

e. Click the “Clear(3) button for “Pick Roller” -> the counter is reset to “0”

If the glass surface or the rollers are still dirty after they are wiped with a dry cloth, use a cloth moistened

with 90% or higher Isopropyl Alcohol. As the scanner continues to feed documents, paper dust will

accumulate inside the ADF and it may cause scanning errors. Cleaning should be performed

approximately every 5,000 sheers scanned.

The glass inside the ADF can be very hot when the scanner is being used. Before you start

cleaning the inside, make sure to turn off the power, unplug the power cable and wait at least 15

minutes for the inside of the ADF to cool down.

Note -

Do not use water or mild detergent to clean the ADF

When using Isopropyl Alcohol, use small quantities. Excessive amount of alcohol may take a

while to dry

Do not us alcohol on the plastic frame. It may deteriorate the frame

fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

CLEANING INSTRUCTIONS

The following table shows the specifications of consumables and their standard replacement cycle. It is

recommended that you stock extra consumables before the ones in the scanner reach the end of their

service life. The consumables must be replaced periodically. You can check the number of scanned

pages for the Brake roller unit and the Pick roller unit by referring to each counter on this scanner.

Description Qty Life Fujitsu P/N

Pick Rollers (2) 1 200,000 PA03710-0001

Brake Roller 1 200,000 PA03670-0002

Note: Replacement Cycles are estimated guidelines established by testing with A4/Letter sized wood free

and wood based 17 lb. paper. NCR or Carbonless paper has chemical composition which damages the

pad and the pick roller. Cleaning of the consumables will be required more frequently to avoid feed

problems. Consumable life will be reduced if NCR or Carbonless paper is scanned.
