Fujitsu D3161 Manual de usuario

Mainboard

Short Description

Mainboard D3161/D3162

Congratulations, you have decided to buy an

innovative Fujitsu product.

The latest information about our products, useful tips, updates etc. is available

from our website: "http://ts.fujitsu.com"

For automatic driver updates, go to: "http://ts.fujitsu.com/support/index.html"

Should you have any technical questions, please contact:

• our Hotline/Service Desk (see the Service Desk list or visit:

"http://ts.fujitsu.com/support/servicedesk.html")

• Your sales partner

• Your sales ofﬁce

We hope you really enjoy using your new Fujitsu system.

Fujitsu Technology Solutions 2012/04

Published by

Fujitsu Technology Solutions GmbH

Mies-van-der-Rohe-Straße 8

80807 Munich, Germany

Contact

http://ts.fujitsu.com/support

offered or liability accepted in regard of the completeness, correctness, or current applicability of any data or illustrations. Brand

names may be protected trademarks of the respective manufacturer and/or protected by copyright. Use of these by the third parties

may constitute an infringement of the holders’ rights. Further information can be found at "http://ts.fujitsu.com/terms_of_use.html"

Order No. Fujitsu Technology Solutions GmbH: A26361-D3161-Z320-1-7419, edition 2

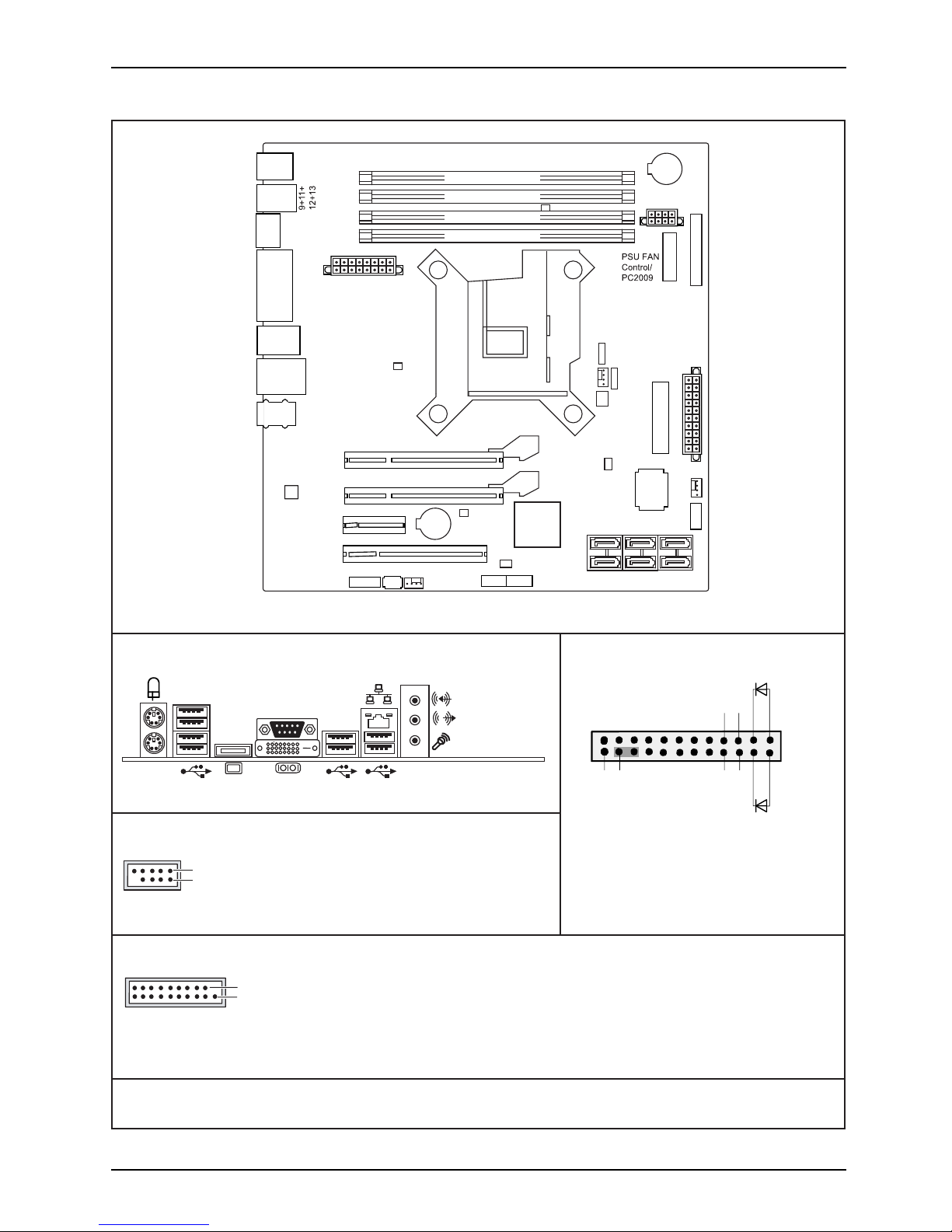

Internal connectors and slots

External connectors rear

1 = 5V USB

2 = 5V USB

3 = Data negative Port X

4 = Data negative Port Y

6 = Data positive Port Y

Data positive Port X

7 =

5 =

GND

8 = GND

9 = Key

10 = Not connected

Front panel

Recovery inserted = The system starts

DVI-I

Channel B, Slot 2

Channel B, Slot 4

Channel A, Slot 1

Channel A, Slot 3

Battery

Audio PS2

COM

DVI-I

Display

Port USB

USB

3.0

0+1

6+7

2.0

PCI

PCIe4(16)

Intrusion

FAN1

FAN2

HDD Power

Frontpanel

Audio

Frontpanel

SATA

0+1

SATA

4+5

SATA

2+3

Power Supply

USB

8+10

FAN 3

Parallel Port

PCIe16

PCIe1

Super

I/O

Power Supply

Connector OEM

TPM Enable

Temp. Sensor

USB

4+5

Desc Override

Enable

Intel-LAN

HD-LED

Recovery

Reset

Power

On/Off

Power LED

LAN

USB

from USB stick and allows a BIOS recovery.

Details can be found in the BIOS manual.

A26361-D3161-Z320-1-7419

Battery

CPU

LGA1155

USB 3.0 1 = 5V USB

2 = USB3_RX negative (P2)

3 = USB3_RX positive (P2)

4 = GND

USB3_TX negative (P2)

5 =

6 = USB3_TX positive (P2)

7 = GND

8 = Data negative (P2)

9 = Data positive (P2)

10 = FP Detect

11 = Data positive (P3)

12 = Data negative (P3)

13 = GND

14 = USB3_TX positive (P3)

USB3_TX negative (P3)

15 =

16 = GND

17 = USB3_RX positive (P3)

18 = USB3_RX negative (P3)

19 = 5V USB

20 = Not connected

USB 3.0

2+3

PCH

USB 2.0

USB 3.0

Fujitsu Technology Solutions

Internal connectors and slots

List of onboard Features D3161 D3162

Chipset Intel® Q75 Intel® Q77

Board size μATX μATX

DVI-I / VGA* / DisplayPort / / / /

Stereo Audio / 5.1 Multichannel Audio - / -/

Buzzer / int. Speaker Support -/ -/

LAN1Gbit/100Mbit/10Mbit / / / /

LAN ASF / Aol / WoL / Remote Boot / iAMT - / - / / / -/-/ / /

SATA2 / SATA3 / RAID / eSATA-support 4/1/-/ 4/2/ /

FireWireTM / USB 2.0 / USB 3.0 - / /-/ /

FAN monitored PSU** / CPU (FAN1) / System (FAN2) /

AUX2 (FAN3)*** / AUX2 (FAN4) -/ //-/- ///-/-

FAN controlled PSU** / CPU (FAN1) / System (FAN2) /

AUX2 (FAN3)*** / AUX2 (FAN4) -/ //-/- ///-/-

TEMP monitored CPU / ONB1 / ONB2 / ONB3 / SIO / PCH / / /

/ /

/ / /

/ /

Fujitsu Technology Solutions Keyboard Power Button Support

Special onboard features D3161 D3162

Silent Fan / Silent Fan LT / System Guard / Silent Drives -/ / / /-/ /

Recovery BIOS / Desk Update / Multi Boot / / / /

HDD Password / Logo Boot / /

* only in conjunction with an adapter

** not supported by standard Power Supplies

*** not supported by D3162-A

Special Features

Green Edition Halogen-free and lead-reduced product

Silent Fan Independent temperature related processor fan and system fan supervision

and control

System Guard View and adjust Silent Fan (only OEM version)

Silent Drives Noise reduction for optical and hard disk drives

Recovery BIOS Restores a corrupted BIOS

Desk Update Simple driver update with DU CD or Internet

Multi Boot Comfortable boot from any boot device

HDD Passwort Access protection for disk drives

Silent Fan LT Independent temperature related processor fan and system fan control

Fujitsu Technology Solutions

Internal connectors and slots

Risk of Explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

Il y a risque d’explosion si la batterie est remplacée par une batterie de type incorrect.

Mettre au rebut les batteries usagées conformément aux instructions.

Explosionsgefahr, wenn die Batterie mit einem inkorrekten Batterietyp ersetzt wird.

Alte Batterien gemäß Gebrauchsanweisung entsorgen.

Fujitsu Technology Solutions

Internal connectors and slots

Fujitsu Technology Solutions

Mainboard D3161/D3162

First-time setup

Deutsch 7

English 15
