1. Introduction

In the following description, the EMC design guide of 16-bit Fujitsu microcontrollers will be

discussed. It describes how external power supply should be connected to the Vcc and Vss

pins and offers some suggestions. An overview of internal supply of MCU is made as well to

have a better understanding of the design. The EMI measurements in the following described

tests are just example measurements. The measured emissions are no data, which are

specified in the DS of the microcontroller series.

During the last designs the EMI of the Fujitsu 16LX microcontroller series could be reduced

step by step. The PLL multiplier circuit allows the usage of low crystal frequency to reduce

high-frequency noise from the oscillator circuit.

The clock tree is mostly the cause of the noise. Therefore the driver capability of clock

buffers is optimised and for one big buffer are used several small clock buffers.

Further countermeasures like using of the MCU flash and core on a base of 3.3V level

reduces the noise level of the package. For the PWM outputs it is possible to use the slew

rate control. This means that the rise and fall time can ease to reduce the harmonics.

The integration of On-chip bypass capacitors reduces the noise ripple on the internal power

supply net so that the broadband noise on the IO pins is improved.

The following description is based on the MB90F540 and 590 series, but the same situation

exists for all current series of the 16LX family, with or without an external bus interface.

2. Rules to create a good Layout

1. Use max. trace-width and min. length to connect VSS and VDD µC-pins to

decoupling capacitors (DeCap)

2. Don’t use stub line to connect the DeCap to µC-pins, let flows the noise current direct

through pads of DeCap

3. Use close ground plane direct below MCU package as shield

4. Use different ground systems for analogue, digital, power-driver and connector

ground

5. Avoid loop current in the ground system, check for ground loops.

6. Use a star point ground below MCU for analogue and digital ground, use a second

star point ground below 5V regulator for MCU, power-driver and connector ground

7. Don't create signal loop on the PCB, minimize trace length

8. Partitioned system into analogue, digital and power-driver section

9. Place series resistor or RC-block for the IO-circuit nearby MCU-pin to reduce the

noise on the signal line.

10. Use a capacitor for each connector pin to reduce the noise of external lines, place

this capacitor close to connector pin

3. Crystal Oscillator Circuit

Figure 1shows the oscillator for the Fujitsu 16-bit family. For best performance, the PCB

layout of this circuit should cover only a very small area. For the layout is recommended a

PCB with two or more layers. Make sure to provide bypass capacitors via shortest distance

from X0, X1 pins, crystal oscillator, and ground lines. The lines of the oscillation circuit should

not cross lines of other circuits.

Oscillator

X1X0

Microcontroller

Figure 1:Principle of the Oscillator circuit

It is necessary to avoid coupling noise into the power supply (pin 81/84) of the clock circuit.

The crystal oscillator has to be connected with short lines to X0/X1 and Vss. Note that pin X1

is the output of inverter. Particularly this track should have a short length.

C2C1

Quartz

Crystal

Connection to

ground layer

Quartz Crystal package

has to be grounded

Connection to

ground layer

Connection to

ground layer

Decoupling capacitor C

the back side of the PCB

VccVss

X0 X1

a) Layout example for a leaded quartz crystal b) Layout example for a SMD quartz crystal

worse layout design, because C1 and C2 better layout design, because C1 and C2

are wrong connected to VSS are connected to Vss and than after with

the system ground

Figure 2: Layout example for oscillator circuit

Via to ground island

on the back side

Decoupling capacitor CBon

the back side of the PCB

VccVss

X0 X1

SMD

Quartz Crystal

C1 C2

Via to system VccVia to ground island

and system ground

Single ground island

on the back side

4. Power supply routing

One topic our noise reduction technology is lowering internal power supply voltage on 3V

level to reduce the current flow. Fig. 2 shows the structure of 5V and 3V power supply.

A/D+D/A

AVcc AVss

I/O-PORT

Vcc

Vss

Vcc3

Vss

FLASH

3V Regulator

RAM

CPU

SCI / TIMER / etc.

External capacitor

Figure 3: Structure of power supply for MCU core and IO-Port

Only the right placement and the value of decoupling capacitor (DeCap) guaranty the

function of decoupling capacitors. The high speed current (di/dt) will be supported from

DeCap only. The exactly use of DeCap is important for the noise reduction on the PCB.

GND

VCC

µC

DeCap

GND

VCC

µC

DeCap DeCap

µC

VCC

GND

a) VCC and GND lead to supply

noise current flows not via

DeCap, DeCap has not effect

b) GND lead noise to system GND

noise current flows partly via

DeCap, DeCap has hardly effect

c) GND lead noise to System GND

noise current flows partly via

DeCap, DeCap has hardly effect

µC

DeCap

GND

VCC

DeCap

µC

VCC

GND

µC

DeCap

GND

VCC

d) VCC and GND lead to supply

noise current flows not via

DeCap, DeCap has not effect

e) GND is not short connected to

DeCap. between GND and

DeCap flows a loop current

DeCap has hardly effect

f) DeCap correct connected to µC

and power supply.

high speed current will be

supported from DeCap

Figure 4: The exactly use of the DeCap (decoupling capacitor)

The high-speed current (di/dt) will be supported from the decoupling capacitor only.

Therefore use traces with max. width and min. length between Vss/Vcc pin and DeCap.

After DeCap use thin traces to route the trace to the power supply system.

µC

VCC

GND

high Z low Z

short length

max. width

use EMC filter for

µC-supply

Figure 5: The noise current flows return over the ground line

The exactly use of decoupling capacitors for the Vcc and Vss pins is the basis to reduce the

noise, but also the return way between load and MCU ground is not neglect.

R C

clock

unit

core IO-driver

HVCC

HVSS

VCC

VSS

µC

Iload

Load

IreturnIcrossbar

Isupply

Ifast

dt/di

Islow

min. length

max. width min. length

max. width low-Z

high-Z

choking coil

Figure 6: The noise current flows return over the ground line

To ensure an efficient decoupling of the power supply, two capacitors should be placed close

on each Vcc pin. The values of both capacitors should have a relationship of about 1:100.

Typical values are e.g. 100nF (XR7) and 1nF (COG). The accurate value is depended on the

application board, e.g. impedance of PCB or the length of supply lines. However, all of the

DeCaps on the PCB should have the same value.

Cboard

VDD

GND

IC1 IC2 ICn

DeCap C1

DeCap C2

DeCap Cn

Lboard Lboard

Figure 7: The use of several values of DeCaps lead to undefined resonance frequencies,

that’s why all DeCaps should have the same value.

For 2-layer boards should be used a closed ground plane (located directly below the MCU).

The Vcc supplies should be taken from the bottom layer.

For 4-layer boards should be used the inside layers for GND and Vcc supplies. In this case,

both layers form additional capacitor (broadband behaviour) for the power supply.

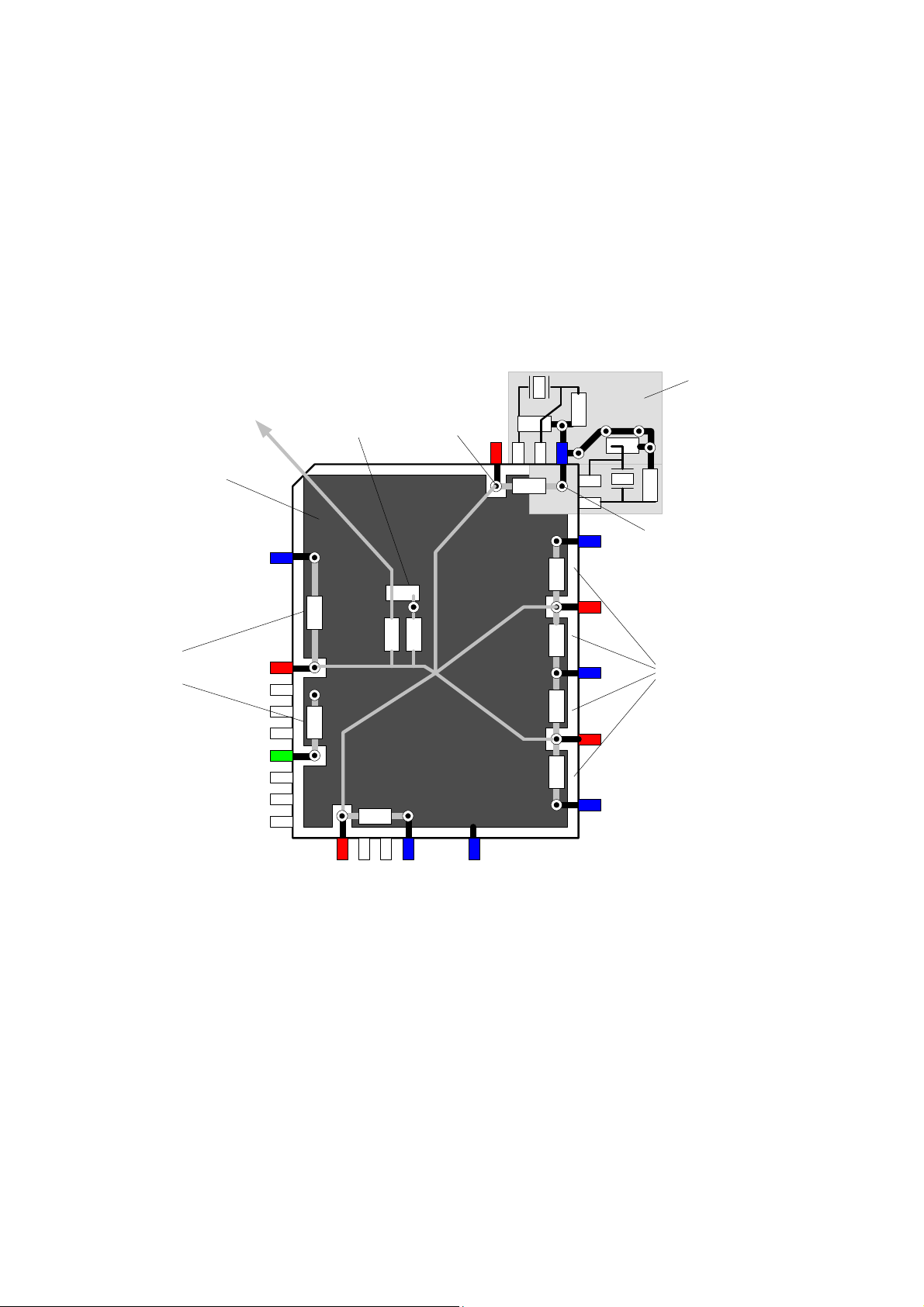

Figure 8shows an example of a star connection for Vcc supplies on the MCU.

This method of Vcc connection reduces the loop of the Vcc lines around the MCU, thus

reducing noise emission. A variation of this circuit may be needed, if separate filtered supply

voltages are routed to the A/D supplies (pin 34/37).

Figure 8:16LX family with a subclock or stepper motor driver,

recommended layout for multiple layers PCB

Note: All decoupling capacitors on the Vcc pins should have the same value.

These capacitors should be placed close to the Vcc pin. The Vcc/Vss current should flows

through the pad of the capacitor.

X1A

X0A

Vcc

Vss

ground plane

on top and

botton layer

CBCB

VSS

AVss

AVR-

AVR+

AVcc

Vcc

Vss

VCC3C

HVss

HVcc

Connection to

power supply

ground plan

below package

on the top side

Decoupling capacitor CBon

the back side of the PCB

Decoupling capacitor CBon

the back side of the PCB

Single ground island

on the back side

Via to ground island

and system ground

Decoupling capacitor CBon

the back side of the PCB

Decoupling capacitor CBon

the back side of the PCB

Via to MCU supply

star point and noise

filter for

Vcc and ground

on the back side

5. Noise reduction for general IO pins

To reduce noise, make sure to connect the Vss or Vcc with smoothed power supply,

because the noise on the power supply will also distributed via IO-pin, which is configured as

static low or high output. Figure 9shows an example to reduce the noise on output lines.

length of trace

µC

IO-Port

µC

IO-Port Noise

length of trace

Figure 9: Place the series resistor close to IO pin because so will be reduced the noise

of output

Note: To reduce noise, make sure to connect unused input pins to Vss or Vcc (Use pull-down

or pull-up resistor, please check the DS of the microcontroller series).

Also, especially if CMOS Logic is used, floating gates could generate problems regarding high

input currents and latch up.

6. Function of certain MCU pins

Pin name Pin no. Function

VCC

Main supply for IO buffer MCU core

close to input the internal 3.3V regulator

close to crystal oscillator

VSS

Main supply for IO buffer and MCU core

close to the internal 3.3V regulator

close to crystal oscillator

C27 External smooth capacitor for internal 3.3V regulator

output, it is used for supply of the MCU core

Note, that this pin leads the most of noise

AVCC 34 Power supply for the A/D converter

AVSS 37 Power supply for the A/D converter

AVRL 35 Reference voltage input for the A/D converter

AVRH 36 Reference voltage input for the A/D converter

DVCC

HVCC 58

68 Power supply for the PWM (high current) outputs, it is not

connected to VCC,

should be connected to extra power supply

DVSS

HVSS 53

63 Power supply for the PWM (high current) outputs, it is not

connected to VSS,

should be connected to extra power supply

X0A 82

80 Oscillator input, if not used so shall be connected with

pull-up or pull-down resistor (see please DS)

X1A 83

79 Oscillator output, the crystal and bypass capacitor must

be connected via shortest distance with X1 pin,

if not used so shall be open

Otros manuales para F2MC-16LX Series

Tabla de contenidos

Otros manuales de Microcontrolador de Fujitsu

Fujitsu

Fujitsu F2MC-16LX Series Manual de usuario

Fujitsu

Fujitsu FR Family FR60 Lite Manual de usuario

Fujitsu

Fujitsu MB88121 SERIES Instrucciones de instalación y funcionamiento

Fujitsu

Fujitsu MB2140 Series Manual de usuario

Fujitsu

Fujitsu F2MC-8L Family series Manual de usuario

Fujitsu

Fujitsu MB91460 SERIES Instrucciones de instalación y funcionamiento

Fujitsu

Fujitsu MB86R02 Instrucciones de instalación y funcionamiento

Fujitsu

Fujitsu F2MC-8FX MB95200H/210H Series Instrucciones de instalación y funcionamiento

Fujitsu

Fujitsu F2MC-8FX Series Manual de usuario

Fujitsu

Fujitsu MB89140 Series Manual de usuario

Fujitsu

Fujitsu F2MC-16LX Series Manual de usuario

Fujitsu

Fujitsu F2MC-16L Series Manual de usuario

Fujitsu

Fujitsu F2MC-8FX Series Manual de usuario

Fujitsu

Fujitsu MB904 Series Instrucciones de instalación y funcionamiento

Fujitsu

Fujitsu F2MC-8FX Series Manual de usuario

Fujitsu

Fujitsu MB91150 Series Manual de usuario

Fujitsu

Fujitsu MB90420/5 (A) Series Manual de usuario

Fujitsu

Fujitsu BBF2004 Series Manual de usuario

Fujitsu

Fujitsu MB86R01 Instrucciones de instalación y funcionamiento

Fujitsu

Fujitsu F2MC-8FX Series Manual de usuario

Fujitsu

Fujitsu MB95200H Series Manual de usuario

Fujitsu

Fujitsu MB95210H Series Instrucciones de instalación y funcionamiento

Fujitsu

Fujitsu MB91260B Series Manual de usuario

Fujitsu

Fujitsu MB96300 series Manual de usuario

Manuales populares de Microcontrolador de otras marcas

AMS

AMS AS7261 Demo Kit Manual de usuario

Novatek

Novatek NT6861 Manual de usuario

Espressif Systems

Espressif Systems ESP8266 SDK Guía de configuración

Nuvoton

Nuvoton ISD61S00 ChipCorder Guía

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manual de usuario

Texas Instruments

Texas Instruments Chipcon CC2420DK Manual de usuario

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manual de usuario

NEC

NEC 78GK0S/K 1+ Series Instrucciones de instalación y funcionamiento

Mikroe

Mikroe SEMITECH N-PLC Click Instrucciones de instalación y funcionamiento

Intel

Intel Agilex Manual de usuario

Cypress

Cypress CY4607 HX2VL Manual de usuario

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manual de usuario

Texas Instruments

Texas Instruments TMS320F2837 D Series Manual de usuario

CYPRES

CYPRES CY14NVSRAMKIT-001 Manual de usuario

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manual de usuario

Espressif Systems

Espressif Systems ESP8266EX Instrucciones de funcionamiento

Abov

Abov AC33M8128L Manual de usuario

Laird

Laird BL654PA Manual de usuario
