Fujitsu FPCCR05 Manual de usuario

The charge-only cradle is designed for a desktop, counter

top, or wall-mounted installation where a quick connection

to a DC power source is needed. The Tablet PC can be

placed in the charge-only cradle and used while external DC

power is supplied to the cradle. The connector pins on the

cradle are “high-usage” type pins and are designed to with-

stand a large number of insertions and removals. The cradle

includes two adapters that fit over the Tablet PC’s DC-in

port to make it more suitable for the high-usage environ-

ment.

The cradle can accommodate a Tablet PC with a standard

main battery or an optional high-capacity battery. A remov-

able spacer is included with the cradle to make the cradle

usable with either battery.

INSTRUCTIONS

Charge-Only Cradle

User’s Guide

FPCCR05

Fujitsu Computer Systems

Charge-only cradle.fm Page 1 Thursday, February 26, 2004 2:50 PM

Installing the System in the Cradle

To install the Tablet PC in the charge-only cradle, you must

first attach a DC adapter to the system’s DC port.

Attaching the DC Adapter

1. Hold your system so that the left side (when viewed in

portrait mode) with the DC-in port is facing you

(Figure 1).

Figure 1. Attaching the DC Adapter

2. Attach the DC adapter to the system by inserting the

plugs inside of the adapter into the lock slot and the

DC-in port on the system (Figure 1). The adapter

should fit snugly into position.

When powering your charge-only cradle, use

only the AC Adapter that is compatible with

your Tablet PC.

Lock Slot DC-In Port

DC Adapter

Charge-only cradle.fm Page 2 Thursday, February 26, 2004 2:50 PM

Verifying Battery Size

Determine whether your Tablet PC has a standard main

battery or an optional high-capacity main battery installed.

■If your Tablet PC has a high-capacity main battery

installed, remove the spacer (Figure 2) that is located

inside the cradle on the right. Pull it upwards to

remove it from the slot.

Stow the spacer in the spacer tray inside the charge-

only cradle so that it will be available for occasions in

which you use the standard battery. To remove the

spacer from the tray, press down on the right side of the

spacer, causing its left side to lift up.

■If your Tablet PC has a standard main battery installed,

be sure the spacer is installed in the slot on the inside

right of the cradle (Figure 2).

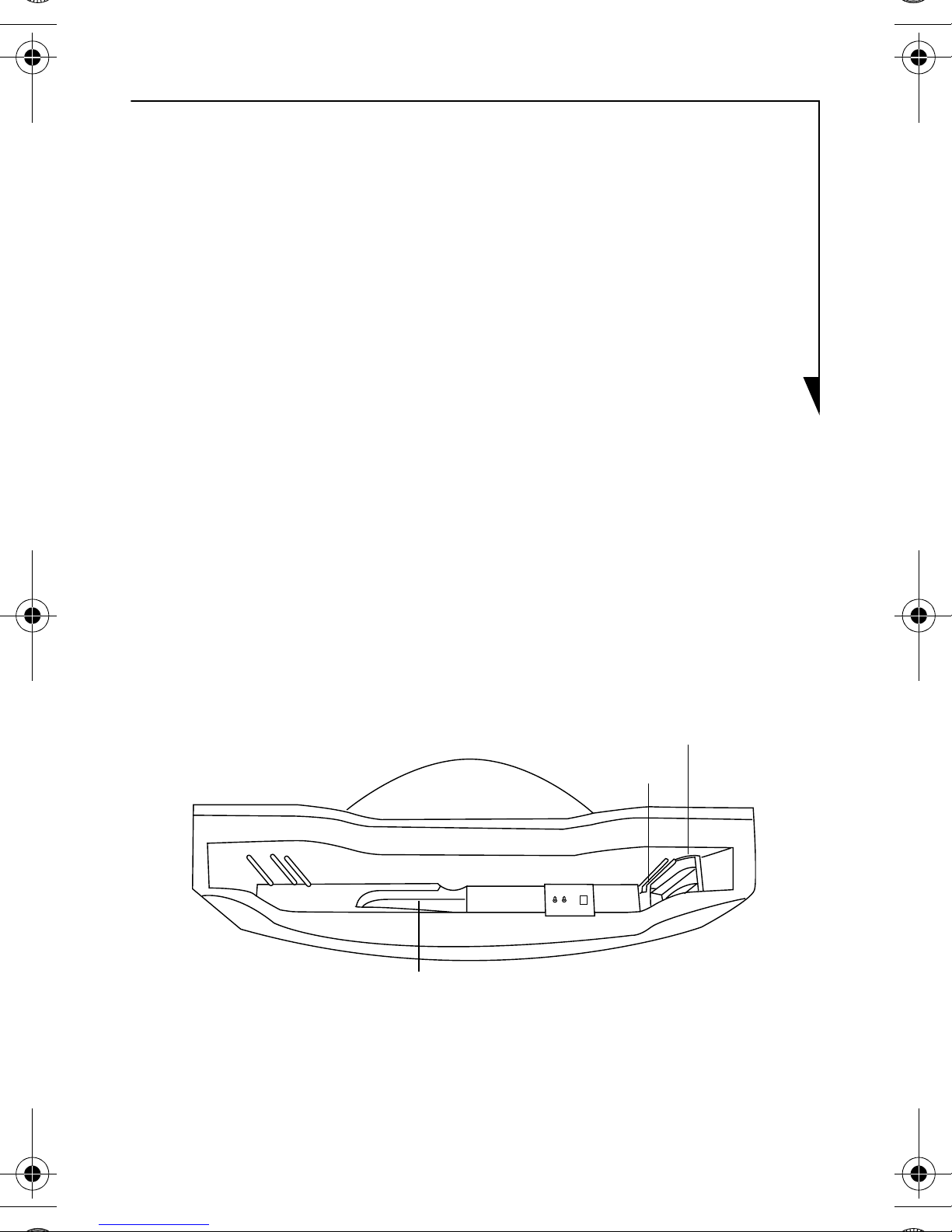

Figure 2. Inside the Charge-Only Cradle

Spacer

Spacer Tray

Slot

Charge-only cradle.fm Page 3 Thursday, February 26, 2004 2:50 PM

Installing the Tablet PC in the Charge-Only Cradle

1. Place the cradle on the flat, stable location in which it

will be used.

2. After verifying that the spacer is configured correctly

and the DC adapter is attached to the DC-in port, hold

the system in landscape mode, with the buttons

arranged across the top (Figure 3).

Figure 3. Installing the Tablet PC in the Cradle

3. Insert the tablet into the cradle until it rests securely on

the bottom of the cradle.

4. Plug the system AC adapter into the DC-in port on the

right side of the cradle, and the other end into a power

outlet.

Charge-only cradle.fm Page 4 Thursday, February 26, 2004 2:50 PM

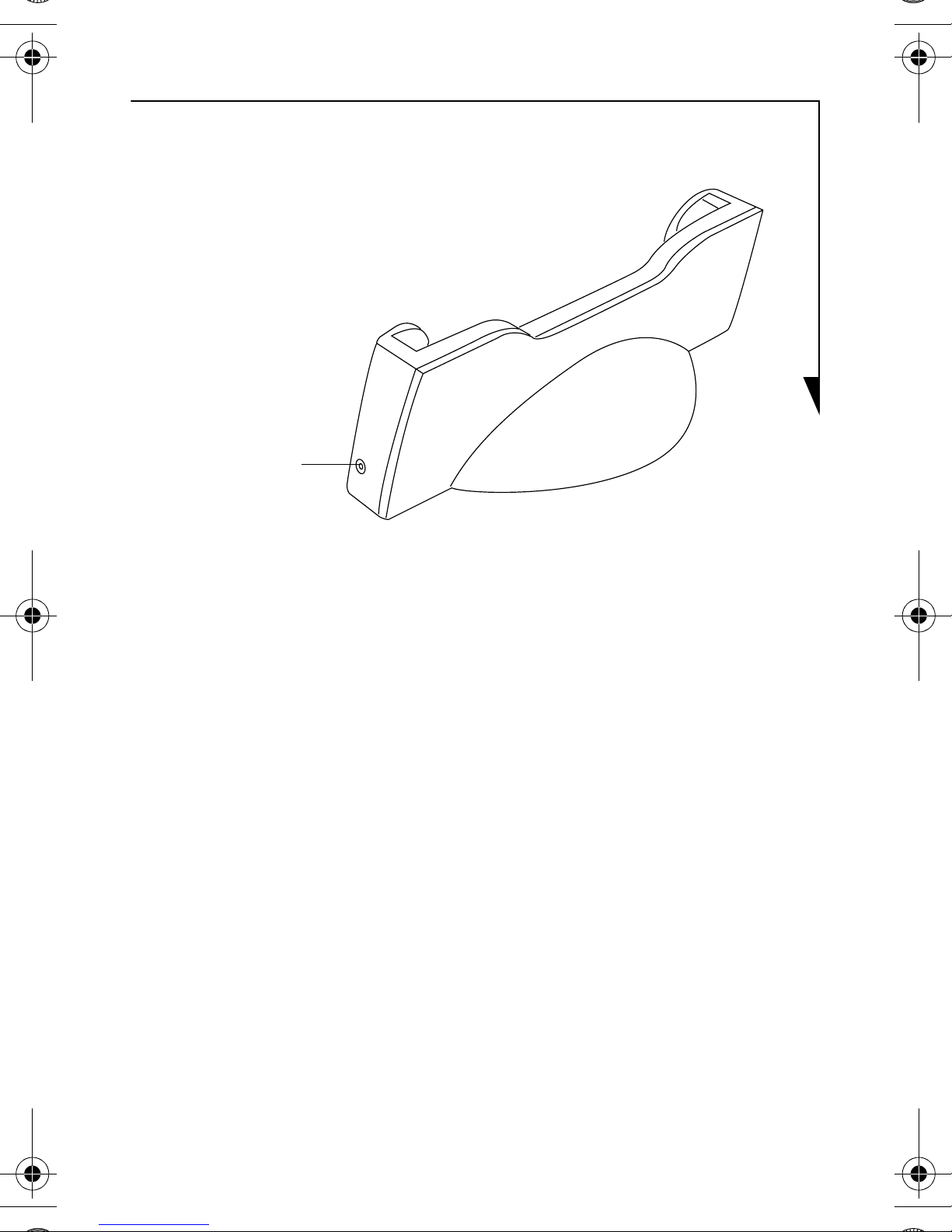

Figure 4. DC-In Port on Cradle

Removing the Tablet PC from the Charge-Only Cradle

While holding the base of the cradle with one hand, gently

pull the Tablet PC out of the cradle.

Mounting the Cradle on a Wall

The charge-only cradle is designed so that it can be easily

mounted to a wall. The cradle consists of two large compo-

nents: a base and a cradle. Before mounting the cradle to a

wall, the base component must be removed.

To separate the two components, perform the following

steps:

1. Holding the cradle portion with one hand and the base

portion with the other, lift the cradle section while

pushing down on the base section until the two halves

disengage at the separation point (Figure 5).

DC-In Port

Charge-only cradle.fm Page 5 Thursday, February 26, 2004 2:50 PM

Figure 5. Separating the Cradle

2. Once disengaged, store the base section in a safe place

for future use.

3. The back of the cradle section has four holes for wall-

mounting and six holes for reattaching the base section.

Figure 6. Wall-Mount holes

Base

Section

Cradle Section

Separation Point

Wall-mount Holes

Base Attachment Holes (6 total)

Charge-only cradle.fm Page 6 Thursday, February 26, 2004 2:50 PM

4. Attach four screws (sheet metal, #14 panhead, zinc-

plated recommended, or equivalent) to the wall as

shown in Figure 7. The screw heads should extend from

the wall approximately 0.25”.

Figure 7. Wall-mount Screw Dimensions

5. Align the wall-mount holes on the cradle (Figure 6)

with the mounting screws so that the screw heads

extend into the round portions of the wall-mount

holes. (Figure 8)

Figure 8. Wall-mount Hole

6. When the four screw heads are aligned, press the cradle

firmly against the wall and slide it to the right and

downwards, so that the screws move to the top of the

slotted portion of the holes, locking it in place.

12.25" (311.0 mm)

4.26" (108.0 mm)

Round portion

Slotted portion

Charge-only cradle.fm Page 7 Thursday, February 26, 2004 2:50 PM

Fujitsu Computer Systems Corporation

1250 E. Arques Avenue (M/S 122)

Sunnyvale, CA 94085

For more information, visit our Web site

at: us.fujitsu.com/computers

For technical support call:

1-800-8Fujitsu (1-800-838-5487)

or e-mail us at: 8fujitsu@us.fujitsu.com

Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu, Ltd. All other trademarks

mentioned herein are the property of their respective owners. We cannot guarantee the

accuracy of the contents of this document. We disclaim liability for errors, omissions or

future changes.

FPC58-1087-01
