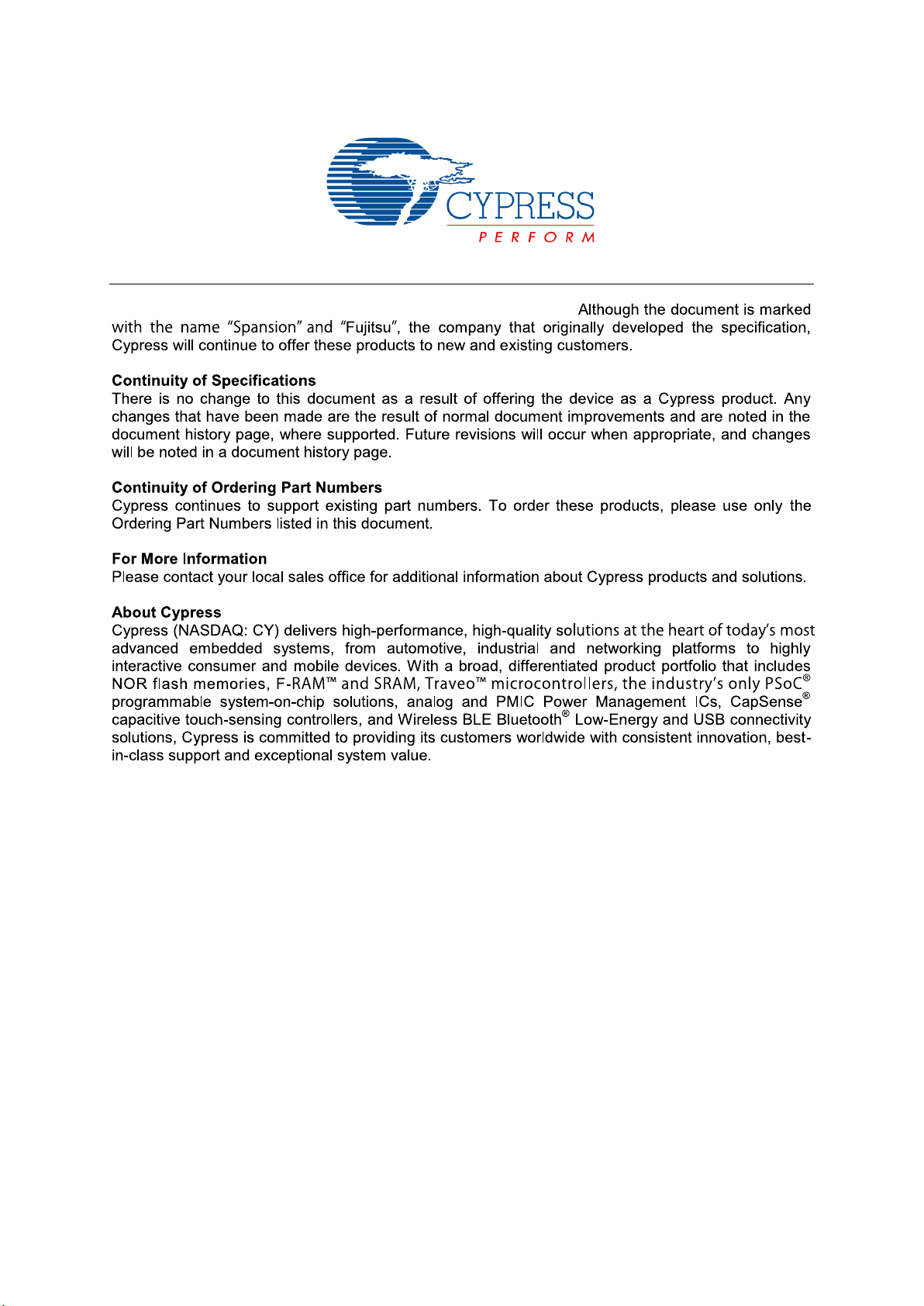

The following document contains information on Cypress products.

SS01-44007-1E

SUPPORT SYSTEM

FUJITSU SEMICONDUCTOR

LQFP-120P DAUGHTER BOARD

OPERATION MANUAL

MB2031-20

PREFACE

Thank you for purchasing the MB2031-20 (F2MC*1-16LX series LQFP-120P*2USB daughter board

(hereinafter called the daughter board)).

This product is an optional MB2031-01 tool connected to the MB2031-01 (USB evaluation board).

This product is compatible with the following MCUs: F2MC-16LX MB903303 Series (LQFP-120P).

This manual explains how to use the MB2031-20. Before using the MB2031-20, be sure to read

this manual.

*1: F2MC is the abbreviation of FUJITSU Flexible Microcontroller.

*2: The applicable package is the FPT-120P-M05.

■ Caution of the products described in this document

Cautions in the following correspond to the products described in this document.

CAUTION The wrong use of a device will give an injury and may cause

malfunction on customers system.

CutsThis product has parts with sharp points that are exposed.

Do not touch edge of the product with your bare hands.

DamageThe method and environment for using this daughter board must conform to the

MB2031-01 specifications, otherwise the daughter board and user system are damaged.

Damage Before setting a mode, be sure to power off all related systems, otherwise the

MCU and user system are damaged.

Damage Before setting the analog pins, be sure to power off all related systems,

otherwise the MCU and user system are damaged.

Damage Before mounting the MCU, be sure to power off all related systems, otherwise

the MCU and user system are damaged.

Damage Before connecting the USB evaluation board, be sure to power off all related

systems, otherwise the USB evaluation board and user system are damaged.

• The contents of this document are subject to change without notice.

Customers are advised to consult with FUJITSU sales representatives before ordering.

• The information, such as descriptions of function and application circuit examples, in this document are presented solely for

the purpose of reference to show examples of operations and uses of Fujitsu semiconductor device; Fujitsu does not warrant

proper operation of the device with respect to use based on such information. When you develop equipment incorporating the

device based on such information, you must assume any responsibility arising out of such use of the information. Fujitsu

assumes no liability for any damages whatsoever arising out of the use of the information.

• Any information in this document, including descriptions of function and schematic diagrams, shall not be construed as license

of the use or exercise of any intellectual property right, such as patent right or copyright, or any other right of Fujitsu or any

third party or does Fujitsu warrant non-infringement of any third-party' s intellectual property right or other right by using such

information. Fujitsu assumes no liability for any infringement of the intellectual property rights or other rights of third parties

which would result from the use of information contained herein.

• The products described in this document are designed, developed and manufactured as contemplated for general use, including

without limitation, ordinary industrial use, general office use, personal use, and household use, but are not designed, developed

and manufactured as contemplated (1) for use accompanying fatal risks or dangers that, unless extremely high safety is secured,

could have a serious effect to the public, and could lead directly to death, personal injury, severe physical damage or other loss

(i.e., nuclear reaction control in nuclear facility, aircraft flight control, air traffic control, mass transport control, medical life

support system, missile launch control in weapon system), or (2) for use requiring extremely high reliability (i.e., submersible

repeater and artificial satellite).

Please note that Fujitsu will not be liable against you and/or any third party for any claims or damages arising in connection

with above-mentioned uses of the products.

• Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from such

failures by incorporating safety design measures into your facility and equipment such as redundancy, fire protection, and

prevention of over-current levels and other abnormal operating conditions.

• If any products described in this document represent goods or technologies subject to certain restrictions on export under the

Foreign Exchange and Foreign Trade Law of Japan, the prior authorization by Japanese government will be required for export

of those products from Japan.

1. Checking the Delivered Product

Before using the daughter board, confirm that all of the parts and user's guides listed below are

included in the shipment.

•

••

•

LQFP-120P USB daughter board: 1

•

••

•

HQPACK120SE* (IC Socket cover): 1

•

••

•

HQPACK fixing screws (M2 x 6mm, Supplied with HQPACK120SE): 4

•

••

•

User’s guide (Japanese), (English, this manual): 1

*: This is IC Socket cover of mounting the mass-produced MCU (hereinafter called

HQPACK).

2. Handling Precautions

The daughter board is precision-manufactured to improve dimensional accuracy and to ensure

reliable contact. The daughter board is therefore sensitive to mechanical shock, and must be handled

carefully. To ensure correct use in the appropriate environment, use the products only as instructed in

Section 3, "Using This Daughter Board".



3. Using This Daughter Board

■ Setting an MCU mode

•

••

•

The mode setting short plug (S2) on the daughter board is used to set the operation mode

(MD0 - MD2 pin) of the MCU mounted on the daughter board.

•

••

•

To set the pin to High, move the short plug to the VCC side.

•

••

•

To set the pin to Low, move the short plug to the GND side.

•

••

•

For details on how to set the operation mode of the mounted MCU, refer to the MCU

hardware manual.

MODE SELECT

GND

VCC

MD0 MD1 MD2

Figure 1 Mode settings

■ Setting the analog power supply pins

The short plug (S1) for analog power supply pin setting on the daughter board is used for switching

analog power supply pins (AVCC/AVRH/AVSS).

For the information on the analog power supply pins of the MCU, refer to the MCU hardware

manual.

ANALOG VCC

AVSS AVRH AVCC

GND VCC VCC

Figure 2 Analog power supply setting

4. Mountings Mass-production MCU

■ Mounting

To mount the mass production MCU to user's system without an emulator, use an accessory socket

cover (HQPACK120SE).

1. To mount the mass production MCU on the user system, match the first pin (▲) (see

Figure 3) on the NQPACK120SE (hereinafter called NQPACK) mounted on the user

system with the first pin on the mass-produced MCU.

2. Confirm that the MCU is securely mounted on the NQPACK, insert HQPACK with

aligning the direction of the NQPACK and that of the HQPACK as shown in Figure 4.

3. Insert a screw for fixing HQPACK in each of four screw holes and tighten the screws

diagonally.

Tightening the screws too tight might result in a defective contact.

The index mark

on the NQPACK

Figure 3 The index mark no the NQPACK

User system board

HQPACK

NQPACK

HQPACK

Screw for securing

Mass-produced MCU

Figure 4 Mounting the mass-produced MCU

NOTE : Do not connect a probe header when mounting the MCU.



5. Connecting the USB evaluation board

■ Connection

To connect the USB evaluation board to the daughter board, attach the daughter I/F connector on the

USB evaluation board to the main I/F connector on the daughter board.

The daughter I/F connector has silk-screened symbols A, B1, and B2. The main I/F connector has

silk-screened symbols A and B.

Connect silk-screened symbols A and B1 of the daughter I/F connector correctly to silk-screened

symbols A and B of the main I/F connector.

USB evaluation board Daughter board

Figure 5 USB evaluation board connection

6. Connector Pin Assignment

Table 1 lists the correspondence between the function pins of the MCU and USB evaluation board.

Table 2 lists the correspondence between the general I/F connector pins of the MCU and USB

evaluation board.

Table 1 Connector pin assignment

MCU USB evaluation board

Short plug side A Short plug side B

Pin No. MB9033X Pin name Connection destination function

(Pin name)

Connection destination function

(Pin name)

86 P55/HAKX USB-HUB(D4-) FIFO(Q7)

85 P54/HRQ USB-HUB(D4+) FIFO(Q6)

84 P53/WRHX USB-HUB(D3-) FIFO(Q5)

83 P52/WRLX USB-HUB(D3+) FIFO(Q4)

82 P51/RDX USB-HUB(D2-) FIFO(Q3)

81 P50/ALE USB-HUB(D2+) FIFO(Q2)

77 HVM USB-HUB(D1-) FIFO(Q1)

78 HVP USB-HUB(D1+) FIFO(Q0)

21 P60/INT0 USB-LED(HUB-SUSP) FIFO(xFL/xRT)

20 P47/A15/SCK1 USB-LED(SUSP) FIFO(xFF)

19 P46/A14/SOT1 USB-LED(LINK) FIFO(xEF)

7 P36/A06 RS-232C(DR/RX EN) FIFO(xR)

6 P35/A05 RS-232C(DSR) FIFO(xW)

1 P30/A00/TIN1 RS-232C(RTS) FIFO(D7)

11 P42/A10/SIN0 RS-232C(RD) FIFO(D6)

12 P43/A11/SOT0 RS-232C(TD) FIFO(D5)

17 P44/A12/SCK0 NC FIFO(D4)

94 P01/AD01/D01 USB-HUB(Power4 EN) FIFO(D3)

93 P00/AD00/D00 USB-HUB(Power3 EN) FIFO(D2)

92 P57/CLK USB-HUB(Power2 EN) FIFO(D1)

91 P56/RDY USB-HUB(Power1 EN) FIFO(D0)

5 P34/A04 RS-232C(RI) NC

4 P33/A03/TOT2 RS-232C(CTS) NC

3 P32/A02/TIN2 RS-232C(DCD) NC

18 P45/A13/SIN1 USB-HUB (Power monitor 4 0C) NC

10 P41/A09/TOT0 USB-HUB (Power monitor 3 0C) NC

9 P40/A08/TIN0 USB-HUB (Power monitor 2 0C) NC

8 P37/A07 USB-HUB (Power monitor 1 0C) NC

2 P31/A01/TOT1 RS-232C(DTR) NC

Note : “NC” indicates that the pin is not connected.
