Fujitsu Modular Optical Drive Manual de usuario

his guide contains information on your modular optical

drive and its associated software. We recommend that you

read this guide before using the drive, even if you are already

familiar with notebook computers and optical drives.

Optical drives can be one of several

configurations (e.g., DVD, CD-ROM, CD-RW,

Combo Drive). For more information on using

your modular optical drive (or the other

available optical drives), see your computer’s

User’s Guide.

INSTRUCTIONS

Modular Optical Drive

User’s Guide

Fujitsu Computer Systems

B5FY-4011-03EN-00.fm Page 1 Tuesday, February 3, 2004 8:54 AM

First Time Installation

To install the modular optical drive in your LifeBook

notebook flexible bay, follow these steps. (The configuration

of your system may differ from the illustrations. See your User’s

Guide for the location of your flexible bay and method of

releasing the module.)

1. Select the Unplug or Eject (Windows® 2000) or Safely

Remove Hardware (Windows® XP) icon from the

system tray and select the device you want to remove.

2. Disengage the flexible bay release latch to release the

current device. (Figure 1). This will push your device

out slightly, allowing you to remove the device.

3. Slide your device out until it is clear of the bay.

4. Slide the optical drive into your notebook until it clicks

into place (Figure 2).

Your notebook automatically detects the drive and activates

it within your system. The drive letter associated with the

drive will be created and listed under My Computer and

Microsoft® Windows® Explorer.

Be careful when aligning and seating devices

in the bay. If the fit is incorrect, you may

damage the bay or the device. If the device

does not move easily in the bay, remove it,

and check for dirt or foreign objects. It will

require a firm push to latch the device in place.

B5FY-4011-03EN-00.fm Page 2 Tuesday, February 3, 2004 8:54 AM

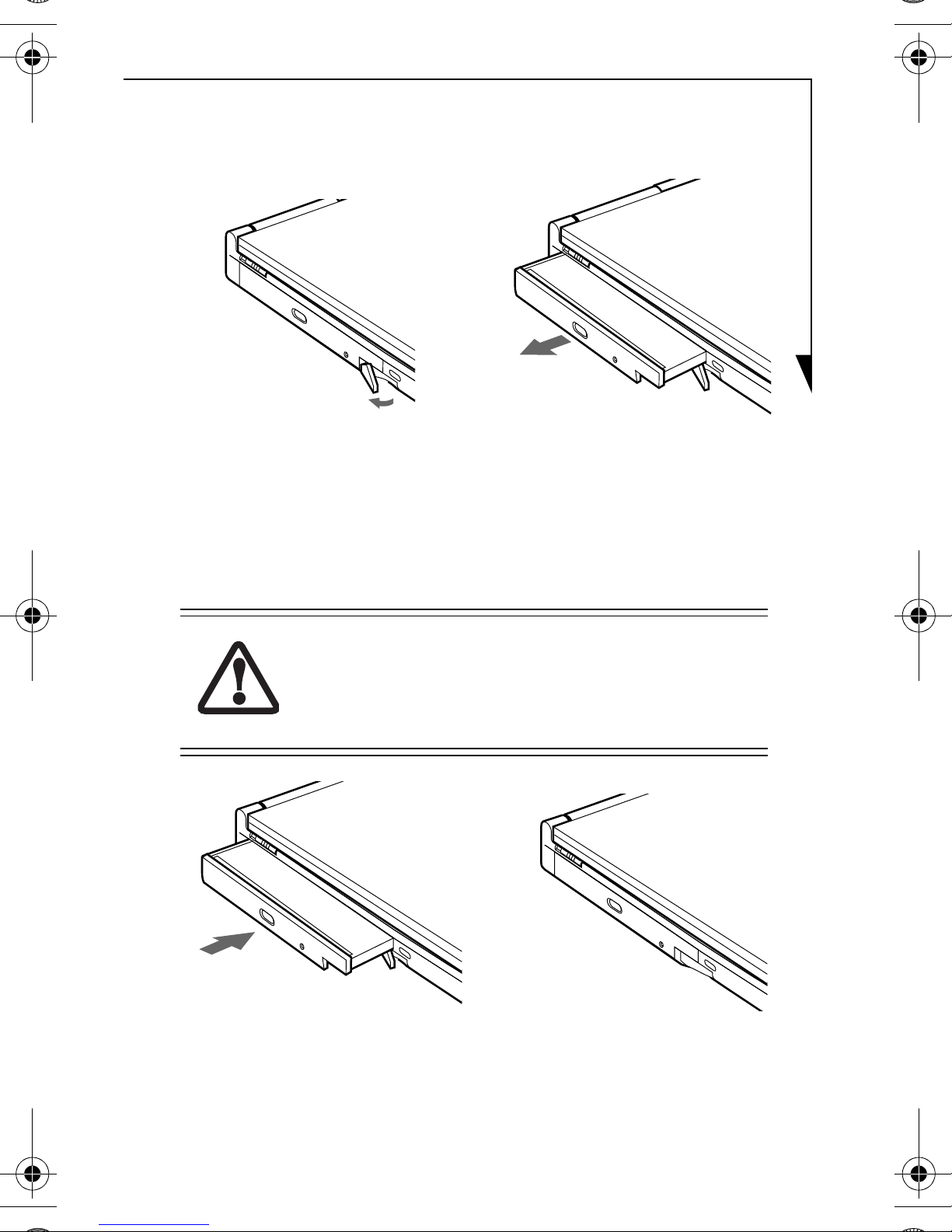

Figure 1. Removing a device from flexible bay

Figure 2. Inserting a device into flexible bay

You should never leave the flexible bay empty

when the notebook is in operation; doing so

could result in system contamination.

Note that the configuration of your system may not be exactly

as shown; your drive bay may be in a different location and latch

action may be slightly different. Refer to your system User’s Guide

for specific location.

B5FY-4011-03EN-00.fm Page 3 Tuesday, February 3, 2004 8:54 AM

Figure 3. Inserting a disk

Using the modular optical drive

To install a disk in your optical drive, refer to Figure 3:

a. Press the eject button on the drive.

b. The drive automatically opens.

c. Insert a disk into the drive.

d. Push the drive back into the bay.

For specific information about using your optical drive,

refer to the User’s Guide that accompanies your system. The

User’s Guide is also available on the Fujitsu Web site:

us.fujitsu.com/computers.

a. b.

c. d.

B5FY-4011-03EN-00.fm Page 4 Tuesday, February 3, 2004 8:54 AM

Do not operate your modular optical drive

unless your notebook is sitting on a flat

surface. Using your modular optical drive

when the drive is not level may damage the

drive or prevent proper operation.

B5FY-4011-03EN-00.fm Page 5 Tuesday, February 3, 2004 8:54 AM

B5FY-4011-03EN-00.fm Page 6 Tuesday, February 3, 2004 8:54 AM

B5FY-4011-03EN-00.fm Page 7 Tuesday, February 3, 2004 8:54 AM

Fujitsu Computer Systems Corporation

1250 E. Arques Avenue (M/S 122),

Sunnyvale, California 94085

For more information, call

1-877-372-3473 or visit our Web site at:

us.fujitsu.com/computers

For technical support call: 1-800-8Fujitsu (1-800-838-5487)

or e-mail us at: 8fujitsu@us.fujitsu.com

The media player incorporates copyright protection technology that is

protected by method claims of certain U.S. patents and other intellectual

property rights owned by Macrovision Corporation and other rights users.

Use of this copyright protection technology must be authorized by Macrovi-

sion Corporation (www.macrovision.com), and is intended for home and

other limited viewing uses only unless authorized by Macrovision Corpora-

tion. Reverse engineering or disassembly is prohibited.

Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu,

Ltd. All other trademarks mentioned herein are the property of their respec-

tive owners.

Product description data represents Fujitsu design objectives and is provided

for comparative purposes; actual results may vary based on a variety of

factors. Specifications are subject to change without notice.

B5FY-4011-03EN-00
