FujiFilm PICTROGRAPHY 4500 Manual de usuario
First Edition
DIGITAL IMAGE PRINTER
PICTROGRAPHY
4500/4000II
PRINTER DRIVER SOFTWARE
Installing to Mac OS X
PP3-B504E
INSTRUCTION MANUAL
SUPPLEMENT
LICENSING AGREEMENT
1. Copyright
The copyright for this software is owned by Fuji Photo Film Co., Ltd. ("FUJI").
2. Prohibitions
You may not (1) copy, modify or adapt any or all parts of this software; (2) provide this
software to a third party in the form of a copy, loan or gift; or (3) reverse engineer this
software.
3. After-Sale Service
Should the software fail to function properly due to a defect in the medium within 7 (seven)
days after the date of purchase, please return the software to the place of purchase for a
replacement.
4. Exemptions
(1) FUJI does not guarantee that this software will achieve the results intended by the
purchaser.
(2) FUJI is not liable for problems that arise from the quality or performance of this software.
(3) FUJI is not liable for damages incurred directly or indirectly by the purchaser or a third
party through the use of this software.
1
INTRODUCTION
This manual gives procedures for installing and using the PICTROGRAPHY 4500/4000II printer driver for
Mac OS X, as well as several precautions. For information that is not contained in this instruction manual
see the first edition (Ref. No.PP3-B498E) of the instruction manual for Printer Driver Software.
This software requires a SCSI adapter. Before installation, check that a functioning SCSI adapter has been
installed in your computer.
For issues directly involving Windows, Macintosh, or other operating systems, please refer to the manual
provided with the particular operating system.
The functions and screen contents presented in this manual are subject to change as software may be
upgraded at any time. Screen contents and set-up procedures may differ according to the operating
environment which is employed (e.g. type of OS or SCSI adapter).
This manual may not be copied or transcribed in whole or in part without prior approval from the publisher.
• Adobe Photoshop is a trademark of Adobe Systems Inc. in several nations.
• Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corp. in the US and other countries.
• Macintosh, Mac OS, and AppleTalk are registered trademarks of Apple Computer Inc.
• PICTROGRAPHY is a registered trademark of Fuji Photo Film Co, Ltd.
• Other product and company names are registered trademarks of the respective companies.
2
1. PICTROGRAPHY 4500/4000II PRINTER DRIVER FOR MAC OS X............................ 3
1.1 Operating environment .................................................................................................................. 3
1.2 Setting up TCP/IP.......................................................................................................................... 3
2. INSTALLATION............................................................................................................. 4
2.1 For Local Printing........................................................................................................................... 4
2.2 For Network Printing ...................................................................................................................... 7
2.2.1 Installing to the server .................................................................................................. 7
2.2.2 Installing to client computers ........................................................................................ 8
3. UNINSTALL................................................................................................................. 10
4. USING PRINTER DRIVER........................................................................................... 11
4.1 Work flow through printing ........................................................................................................... 11
4.2 Print setup and printing................................................................................................................ 11
4.3 Print Center.................................................................................................................................. 13
4.3.1 Print Center Outline.................................................................................................... 13
4.3.2 Checking the print status............................................................................................ 13
4.3.3 Canceling printing....................................................................................................... 14
5. RESTRICTIONS........................................................................................................... 15
CONTENTS
3
1. PICTROGRAPHY 4500/4000II PRINTER DRIVER FOR MAC OS X
1.1 Operating environment
The PICTROGRAPHY 4500/4000II Printer
Driver for Mac OS X runs in the personal
computer operating environments detailed
below:
Hardware
• Model: Power Macintosh G3 or greater
• Memory: 128MB or more of available space
• HDD: 96MB or more of available space
• SCSI Adapter made by Adaptec
Software
• OS: Mac OS X 10.2.1 or later
1.2 Setting up TCP/IP
You need to set up TCP/IP to enable network
(Ethernet) printing.
Perform setup so as to permit the use of TCP/IP.
4
2. INSTALLATION
2.1 For Local Printing
To enable local printing, install the printer driver
by performing the following procedure:
1. Insert the [PICTROGRAPHY 4000II/4500
Printer Driver] CD-ROM into the PC.
2. Open the [Mac OS X] folder on the CD-ROM.
The following appears.
3. Double-click the "PG4K2_4500SCSI
Install.pkg" file in the "Mac OS X" folder.
The following dialog box appears.
4. Enter the administrator's name and pass-
word, and then click the [OK] button.
The following dialog box appears.
5. Click the [Continue] button.
The following dialog box appears.
6. Select a destination volume to install the
printer driver and then click the [Continue]
button.
The following dialog box appears.
7. Click the [Install] button.
The following dialog box appears.
5

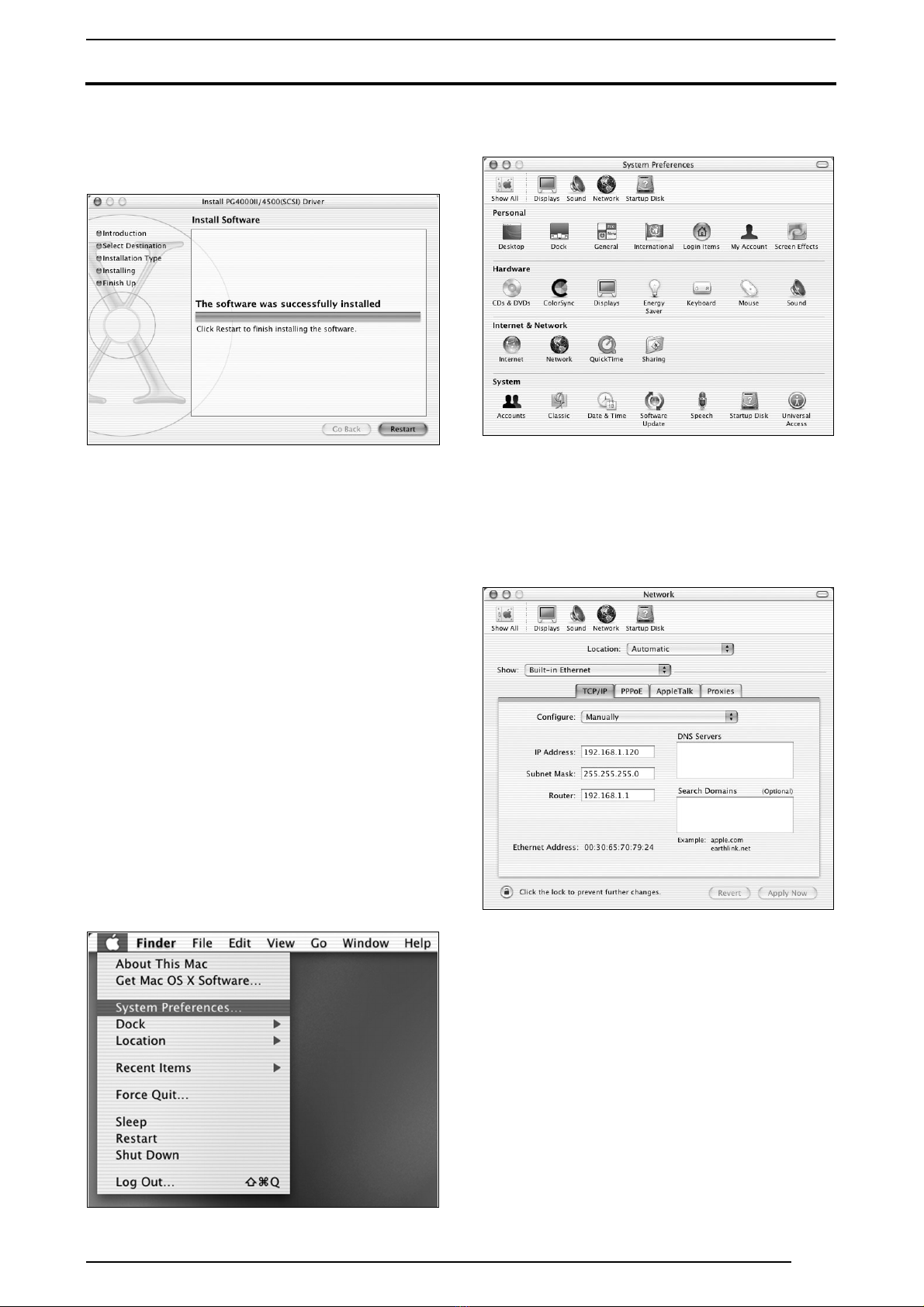

2. INSTALLATION
8. Click the [Continue Installation] button.
When installation is completed, the following
appears.
9. Click the [Restart] button to restart the
computer.
Installation of PICTROGRAPHY 4000II/4500
Printer Driver for Mac OS X is completed.
When the installation of PICTROGRAPHY
4500/4000II Printer Driver for Mac OS X is
completed, perform settings for making prints
with the PICTROGRAPHY 4500/4000II that is
connected to the computer.
10.Confirm that the PICTROGRAPHY 4500/
4000II and the computer are connected
properly.
11.Turn ON the PICTROGRAPHY 4500/4000II
and wait until the "Self Check" message
appears on the LCD display.
When network printing is not performed,
proceed to Step 14.
12.Select [System Preferences] from the Apple
menu.
The [System Preferences] window appears.
13.Click [Network].
The [Network] window appears.
Select [Built-in Ethernet] from the [Show]
pop-up menu and then click the [TCP/IP] tab.
The following appears.
Confirm that the TCP/IP settings are correct,
and then close the window.
6
2. INSTALLATION
14.Open the [Applications]>[Utilities] folders on
the hard disk. The following appears.
15.Drag the [Print Center] file to Dock on the
desktop.
The [Print Center] icon is added as an item in
Dock.
16.Click the [Print Center] icon in Dock.
The [Printer List] window appears.
∗If the "You have no printers available"
message is displayed, press the [Add...]
button and then proceed to the next step.
17.Click the [Add] button.
The following appears.
7
2. INSTALLATION
18.Select [FUJIFILM Pictro SCSI] from the pop-
up menu.
When a PICTROGRAPHY 4500/4000II con-
nected to the computer is found, its printer
name is displayed on the [Product] column.
(Screen shot for PG4500)
19.Select the PICTROGRAPHY 4500/4000II to
be used and then click the [Add] button.
The selected PICTROGRAPHY 4500/4000II
is added to the printer list.
(Screen shot for PG4500)
20.Select [Quit Print Center] from the [Print
Center] menu.
∗After adding a printer, be sure to quit Print
Center. If printing is performed without
Print Center quit, the following error
message is displayed.
Settings for making prints with the PICTRO-
GRAPHY 4500/4000II are completed.
2.2 For Network Printing
For network printing, install printer drivers on
both server and client computers by the
following procedures:
∗For network printing, Mac OS X 10.2.x must
be running on both server and client
computers.
2.2.1 Installing to the server
1. To install the printer driver, follow Steps 1.
through 22. in "2.1 For Local Printing".
2. Select [System Preferences] from the Apple
menu.
3. The [System Preferences] window appears.
8
2. INSTALLATION
4. Click [Sharing].
The [Sharing] dialog box appears.
5. Click the [Services] tab.
The following appears.
6. Mark the [Printer Sharing] check box with a
"
√" and close the [Sharing] window.
Installation of PICTROGRAPHY 4500/4000II
Printer Driver for Mac OS X is completed.
To enter the comment displayed on the
[Location] column of the [Printer List] window,
perform the following procedure.
7. Click the [Print Center] icon in Dock.
The [Printer List] window appears.
8. Click to select the installed PICTROGRA-
PHY.
9. Select [Show Info] from the [Printers] menu.
The [Printer Info] window appears.
(Screen shot for PG4500)
10.Click the [Location] box and enter
appropriate comments.
The comments entered in this box are also
displayed on the client computer.
2.2.2 Installing to client computers
1. The server should be started beforehand.
The printer driver must be installed in the
server, and the server and client must be in
the same network segment of TCP/IP.
2. To install the printer driver, follow Steps 1.
through 9. in "2.1 For Local Printing".
This completes the installation of the printer
driver.
To display information on shared printers,
perform the following procedure.
