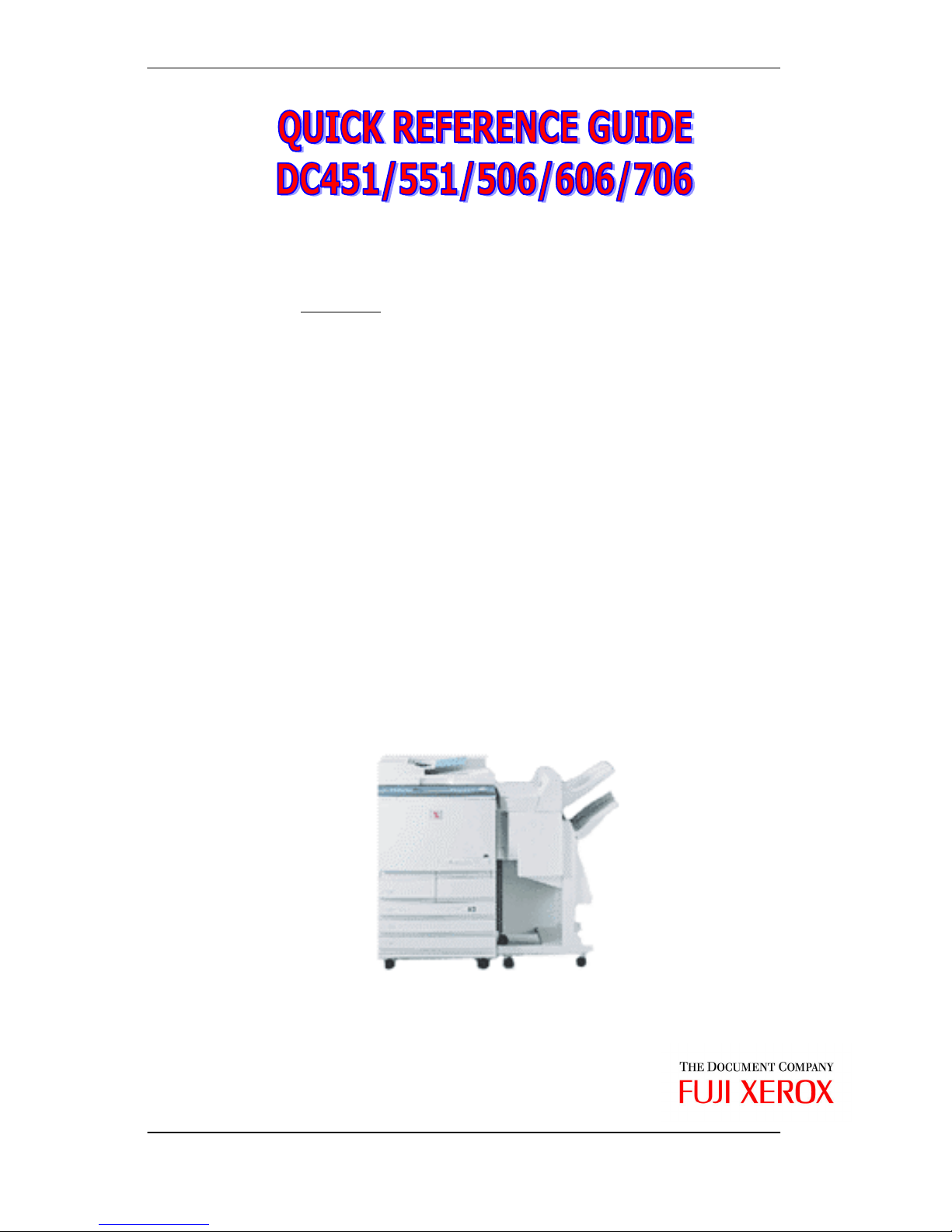

Fuji Xerox DC451 Manual de usuario



   

!"#

CONTENT

Page

1 Copy Mode

1.1 Paper Supply 2

1.2 Reduce / Enlarge

1.3 Original Type

1.4 2 Sided Copying 3

1.5 Output Finishing

1.6 Image Shift

1.7 Edge Erase / Copy All

1.8 Book Copying

1.9 Transparency Separators

1.10 Multi-Up 4

1.11 Mixed Size Originals

1.12 Negative Image 5

1.13 Mirror Image

1.14 Image Repeat (name card)

1.15 IC Printing 6

1.16 Covers ( front cover only)

1.17 Booklet Creation ( only on dc 506/606/706 ) 7

Service : 6766-8888 ( press 1 )

Serial Nos : ………………………….



   

!"#

COPY MODE

The above model is classified into 4 different folders.

There are :

Basic Features :- Allows you to select paper supply,R/E %, 2 sided and

Output Finishing.

Customised Features :- lighter/darker, book copying, multi-up, mixed size, etc

Features Menu :- All features available in the machines.

Stored Jobs :- Allows you to store jobs that are frequently used.

For further information p/s refer to the diagram and the notes attached.

FEATURES

1. Paper Supply

Tray 1 - B5 to A3 Max 2 reams.

Tray 2.1 - B5 to A3 Max 100 sheets

Tray 2.2 - B5 to A3 Max 100 sheets

Tray 2.3 - B5 to A3 Max 100 sheets.

Tray 3/4 - B5 to A3 Max 1 ream.

Tray 5(Bypass) - A6 to A3 Max 50 sheets (only available on DC506/606/706)

- Paper Type : Plain ( 64-220gsm ), Transparency

Tray 6 (HCF) - 3600 sheets

2. Reduce / Enlarge

100% - Size to size

Auto % - Reduce or enlarge to a standard size as in A5, A4, A3 and B4.

Variable % - Preset %, manual % from Min 25% to Max 400%

3. Original Type

Text - For normal letter or typewritten text

Text & Photo - For Document with typewritten text and photo

Photo - For colored document so as that the document appeared to be sharper

and clearer.



   

!"#

4. 2-Sided Copying

Used to make a double sided document.

1 – 2 - Single sided document to a double sided document

2 – 2 - Double sided document to a double sided document

2 – 1 - Double sided document to a single sided document

Note : When loading a document in a portrait position, always select Left or Right.

When loading a document in a landscape position, always select Top or Bottom.

5. Output

Collated - Sort document into offset in/out sequence set.

Uncollated - Document with the same page will be stacked together.

Finishing - Option to select staple / hole-punch

6 .Image Shift

Auto Centre, Corner Shift , Variable Shift: right, left, top and bottom.

Max 50mm

7. Edge Erase/Copy All

Able to erase - Top and Bottom Edges.

- Left and Right Edges.

- Centre erase (i.e. Book)

8.Book Copying

- Used to copy a book into a 2 A4 size paper.

- Choose to be in descending order

- Choose to be in ascending order

- Choose

9. Transparency Separators

Used to copy transparency

No Separators - Transparency only

Blank Separators - Transparency with blank paper

Blank Separators & N Sets - Transparency with hard copy

Note : Please load transparency on the bypass tray

LEFT PAGE THEN RIGHT

RIGHT PAGE THEN LEFT

TOP PAGE THEN BOTTOM



   

!"$#

10. Multi-Up

Used to copy 2, 4 or 8 document on one side.

2 Up - Place 2 or more A4 paper portrait on the document feeder

- Select Multi-up / (N up)

- Select 1up / 2 up / 4 up / 8 up

- Press

Output as follows : (2 up)

Output as follows : (4 up)

11. Mixed Size Originals

- Used to copy document of different standard size without having to sort them out.

- Only can be done on the document feeder and make sure that paper supply is set to

auto.

- By selecting Auto % onto A4 landscape all the different standard size document can

be reduce or enlarge to fix in i.e. A4 paper size. (i.e. all the output will be on A4

paper)

START



   

!"%#

12. Negative Image

- Touch

- Select

- Press

13. Mirror Image

- Touch

- Select

- Press

14. Image (name card) Repeat

- Place name card on platen glass

- Touch

- Select

- Press

- Touch

- Enter X/Y axis using the scale on platen glass

- Press

- Touch

- Select

- Enter paper long ( 1 – 6 )

- Enter paper short ( 1- 6 )

- Press

Negative Image

Save

Start

Feature Menu

Paper Supply

Save

Original Size

Save

Repeat Image

Start

Feature Menu

Mirror Image

Start

Save



   

!"&#

15. IC Printing

Note: * this list of function can be program or store in the Store Job List.

- Touch

- Press

- Press (2 times)

- Touch

- Select

- Press

- Touch

- Select (Landscape Only)

- Press

- * Press

- Press (e.g. 1)

- Enter (Name the job, e.g. IC)

- Press

16. Covers

- Place originals on the document feeder

- Touch

- Select

- Select desire paper tray for covers and body page

- Press

Output Format

Front Cover

Save

Start

Originals / Image Order

Save

Booklet Creation

Left Bind

Original Size

Save

Paper

Supply

Features Menu

Last Originals as Back Cover

Store Jobs

Store Current Selections

Job Name

Save



   

!"##

17. Booklet Creation (Only available in DC506/606/706)

- Sheets of A4 can be reduced and form a booklet.

- Place originals A4 document portrait on the document feeder

- Select

- Enter original sided

- Touch

- Press

- Select desire paper size A3 or A4 (must be landscape paper)

Press t



This Quick Reference guide may not be reproduced, in full or in part, and in any form or by any

means, electronic or mechanical, including photocopying without the written permission of Fuji Xerox

Singapore Pte Ltd.

Feature Menu

Booklet Creation

Left Bind

1 Sided or 2 Sided

Save

Basic Copying

Start

Originals Image Order

Este manual sirve para los siguientes modelos
