Frigidaire GLWS1339E Manual de usuario

Product No. GLWS1339ES0

Series Frig Gallery

Market North America

Color white

Volts 120

Wiring Diagram 134403300

Owner's Guide 131843000

Installation Instructions 131964000

Operating Instructions 134223200

Energy Guide 134565100

P12L0038.eps P12V0019.eps P12T0078.eps P12M0010.eps P12C0339.eps

134403300.eps 134403300-FR.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995439840

05/06/22

(EN/SERVICE/BJH)

361

TOP-LOAD WASHING

MACHINE

Model No.

GLWS1339E

Publication No: 5995439840 GLWS1339ES0

06/05 2

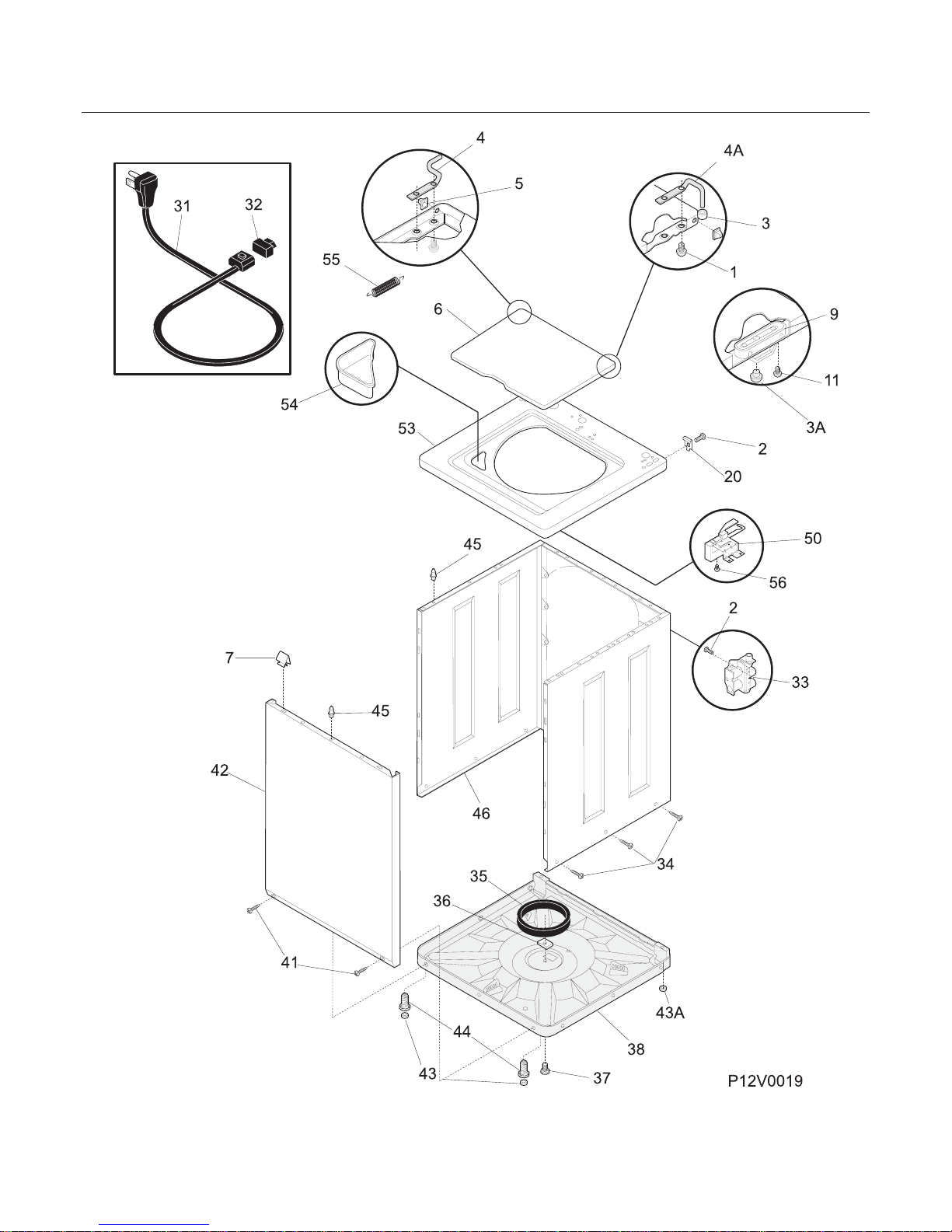

CABINET/TOP

GLWS1339ES0 Publication No: 5995439840

# Functional Parts 3 06/05

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 134203900 Screw, pan hd phillips, 6-32 x 0.337, dog point

2 131168200 Screw, pan head, 8-18B x 0.31

3 131433300 Bumper, lid hinge

3A 134075500 Bumper, lid, front

4 131385910 Hinge Bar, LH

4A 131374220 Hinge Bar, RH

5 5303208743 Grommet, hinge

6 131374401 Lid, white

7 3205821 Clip, top-to-front

9 131390000 Lid Strike

11 3204368 Screw, lid strike mtg, 6-20B X 0.375

20 5303208751 Hinge, top panel, cabinet rear

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

33 # 134211400 Valve, water, 115 V

34 131205500 Screw, cab body, 1/4-14 x 0.625, side-to-base

35 5308002385 Snubber Ring

36 3204380 Shipping Block

37 131658900 Screw, shipping, 1/4-20 x 1.001, yellow, unit base, thread forming

38 5303311213 Base Assembly

41 131258400 Screw, 10-16AB x 0.500

42 131104303 Panel, front, white

43 131422100 Pad, leveling leg, front

43A 131422200 Pad, self lvlg leg, rear

44 5303309673 Screw, leveling leg, with pad

45 131346400 Pin, panel locator

46 134046600 Cabinet Assy, white, back and sides

50 # 134101800 Lock, lid, w/ext switch

53 131452692 Panel, white, top

54 5303208778 Dispenser, bleach

55 5303212876 Spring, lid assist

56 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

Publication No: 5995439840 GLWS1339ES0

06/05 4

MOTOR/TUB

P12T0078

35 36 37

23A

GLWS1339ES0 Publication No: 5995439840

# Functional Parts 5 06/05

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131551102 Cover, splash tub, with seal

3* 131901400 •Seal, splash cover

4 # 131212301 Capacitor, motor

6 131454100 Hose, water inlet, 4 ft., hose & washer

7 5303161296 Washer, inlet hose

9 5303304824 Clamp

10 131726300 Hose Assy, w/nozzle, clamp

11 # 131605901 Agitator Assy, dual action

12 131221300 Tub, spin

13 5303283293 Screw, trunion, 5/16-18 x 0.625, (5)

14 131192800 Screw, lockplate, 5/16-18 x 1.625

15 5308001923 Plate, lock

16 131545101 Trunnion

18 131557201 Tub, splash, w/air dome, brg

19 131205300 Screw, 10-16 x 0.750

20 3205150 Screw, tub bearing, 8-12B x 0.750

21 5308002401 Washer, spin bearing, upper

22 131373610 Leg & Dome Assy

23 5303208858 Spring, vertical, short

23* 5303212877 Insert, spring adjuster, vertical

23A 5303208860 Spring, vertical

24 131373900 Spring, horizontal

26 # 3204405 Bearing, outer tub

27 5303304825 Screw, set, hex hd cup, 5/16-18 x 0.85, xmsn pulley, hex head cup pt

28 # 134511600 V-Belt, washer drive, standard 4L

29 # 131498301 Pulley, xmsn drive

30 # 131862900 Idler Arm Assy, VAW, with pulley

33 3204425 Spring, torsional

34 3204426 Sleeve, idler pivot

35 3161433 Ring, retaining

36 5303261031 Washer, pivot shaft

37 5303161306 Washer, spring type

38 5303318708 Nut, hex flange, motor mounting

40 # 134159500 Motor, 3/4 hp, 2 speed, with pulley

41 # 131715800 Shield, motor assy, w/capacitor, nut

43 # 134051200 Pump, drain

45 134049200 Hose, drain

45* 131453000 Bushing, snap-in

45* 131462500 Clip, drain hose, base

45* 131506500 Clip, drain hose, back sheet, (2)

45* 131663500 Cushion, drain hose, base

48 131306234 Clamp, pump to trap

49 # 131494800 Hose, pump to tub

51 134164400 Screw, hex washer head, 5/16-18 x 0.625

53 5300771996 Tube, pressure, vinyl

56 131468900 Screw, agitator mtg, 5/16-18 x 1.250

57 131339600 Spacer, agitator mtg, rubber

58 134160900 Screw, quadrex, 10-16AB X 0.750

60 131304300 Washer, 0.21 x 0.71, 0.06 thick

62 131258400 Screw, 10-16AB x 0.500

66 131624500 Agitator Cap Assy, dispenser cup, dual action

67 131606210 Mechanism, disp cap assy, dual action

68 131707800 Ring, drain hose

68* 5303309503 Clip, drain hose, back sheet

Publication No: 5995439840 GLWS1339ES0

06/05 6

TRANSMISSION

GLWS1339ES0 Publication No: 5995439840

# Functional Parts 7 06/05

* Non-Illustrated Parts

TRANSMISSION

POS. NO PART NO. DESCRIPTION

2 131475100 Hub, drive, agitator

3 # 131878402 Transmission Assy, H+helical gear

6 134197900 Screw, hex washer head, 1/4-20 x 0.437

26 5303279394 Seal Assy, tub, transmission

27 131784300 Washer, bearing block, transmission

28 131784400 Spacer, bearing block, transmission

Publication No: 5995439840 GLWS1339ES0

06/05 8

CONTROL/PANEL

GLWS1339ES0 Publication No: 5995439840

# Functional Parts 9 06/05

* Non-Illustrated Parts

CONTROL/PANEL

POS. NO PART NO. DESCRIPTION

2 134096100 Spacer, console mtg

4 134034900 Knob, rotary, white

5 # 134421000 Switch, pressure, infinite

8 # 134049500 Timer, 5-off

9 131992910 Panel, backsheet, console

11 134019900 Closure, console trim, white, front

12 131168200 Screw, pan head, 8-18B x 0.31

15 # 134407700 Switch, temp selector, 3 posn rotary

16 131477001 Screw, pan head, 10-16AB x 0.375

17 131993040 Bracket, control mtg.

18 134292200 Panel, trimplate, console front

20 134019610 End Cap, white, LH

21 134035200 Knob, timer, white, assy

22 131266330 Screw, 8-18 x 1.250

25 134035100 Pointer, timer knob, white, dark gray ind

27 131197000 Clip, console mtg

29 # 134401600 Wiring Harness, controls

31 134019600 End Cap, white, RH

33 # 131243200 Switch, 2 position

56 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

Publication No: 5995439840 GLWS1339ES0

06/05 10

WIRING DIAGRAM
