Frigidaire GLTF2940ES3 Manual de usuario

Product No. GLTF2940ES3

Series Gallery

Market North America

Color white

Volts 120

Wiring Diagram 134730700

Owner's Guide 134667900

Energy Guide 134454400

Installation Instructions 134678000

Operating Instructions 134726400

P12L0052.eps P12C0361.eps P12V0085.eps P12T0088.eps 134730700.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995463998

06/03/23

(EN/SERVICE/KC)

361

FRONT-LOAD

WASHING MACHINE

Model No.

GLTF2940E

Publication No: 5995463998 GLTF2940ES3

03/06 2

CONTROL PANEL

GLTF2940ES3 Publication No: 5995463998

# Functional Parts 3 03/06

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 # 134732003 Control Board, pc, with housing

3 134471500 Knob, program

4 134347700 Pin, program knob

6 134429100 Light Pipe, array, 1 row of 5

7 134429300 Light Pipe, array, 3 row of 3

8 134429200 Light Pipe, array, 2 row of 4

9 134429400 Light Pipe, array, 4 start group

10 134447100 Push Button, #1

11 134447500 Push Button, #5

12 134447400 Push Button, #4

13 134349400 Spring, push button

14 134447201 Push Button, #2

16 134364800 Bracket, top front

17 # 134407800 Switch, pressure, analog

18 131302800 Screw, 10-16AB x 0.375

19 134402900 Screw, phillips, 6-19 x 0.650

20 134452600 Cover, hole plug

21 134407900 Dampener, vibration

23 # 134436600 Wiring Harness, controls

23*# 134543100 Wiring Harness, main

26 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

27 134442700 Panel, control console

28 131205300 Screw, 10-16 x 0.750

31 134441300 Bezel, knob flange

32 134371700 Hose, disp-to-bellows

33 131306216 Clamp

34 134446300 Clamp, hose, bellows

35 134371800 Gasket, disp hose seal

36 # 134371220 Valve, dispenser, NTC/short tube

36* 131311900 Screw, quadrex ph, 8-18AB x 0.500

37 134372300 Hose, disp-to-tub

38 134372400 Clamp, tub hose

39 134446120 Housing, dispenser, w/valve, cover

39* 134371300 Gasket, disp-to-valve

40 134372100 Tube, disp-to-overflo

41 134372200 O-ring, overflow tube

42 131168200 Screw, pan head, 8-18B x 0.31

44 134370200 Cover, dispenser

45 134370000 Drawer, dispenser

46 134349500 Spring, door latch

47 134386500 Latch, dispenser, slider lock

48 134465800 Handle, dispenser, front

49 134386200 Frame, drawer handle

50 134370100 Conveyor, dispenser, lower

53 134447301 Push Button, #3

55 134428900 Lens, digital display

56 134503400 Light Pipe, digital display

57 # 134503300 Display, digital

Publication No: 5995463998 GLTF2940ES3

03/06 4

CABINET/TOP

GLTF2940ES3 Publication No: 5995463998

# Functional Parts 5 03/06

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 131454100 Hose, water inlet, 4 ft., hose & washer

2 131168200 Screw, pan head, 8-18B x 0.31

4 # 134409902 Control Board, motor

4* # 134547600 Wiring Harness, motor control

5 134522900 Bracket, angle, motor control

8 # 131763200 Door Lock/Switch Assy

8* # 134606800 Wiring Harness, door switch

9 131303300 Screw, pan head, 10-16AB x 0.500, locking

11 134366400 Panel, door glass

12 134507301 Panel, inner door, with bumper

13 131302901 Screw, 10-16 x 0.750

14 131763310 Striker, door/lock/sw

15 134412400 Hinge, door

16 134178901 Screw, 8-18AB x 0.455

17 134408700 Clip, assembly

18 134321702 Panel, front service, white

19 131258400 Screw, 10-16AB x 0.500

20 134434901 Bracket, LS panel, reinforcement

20* 134434900 Bracket, RS panel, reinforcement

21 134424700 Screw, comb flat head, 8-18AB x 0.75

22 134364700 Retainer, spring steel

23 134522100 Screw, #12 flat head, 10-14P, quad drive

24 134365000 Panel, work top, white

26 134521600 Screw, hex washer head, M5 0.8 x 15

28 134364300 Panel, service access, rear

29 134363300 Panel, cabinet front, white

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

35 134365100 Bracket, top support, rear

36 134548800 Leveling Leg, screw, plastic

42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

45 # 134369400 Hose, drain, external

46 134472202 Handle, door

48 134412103 Panel, outer door, white

50 134364600 Bracket, tub suspension

51 134562100 Protector, tub brkt, spring hook, (2)

52 131931202 Dampener, vibration, foam

53 134507403 Adapter, door glass ring

54 134364900 Fastener, wire harn clip

60 134372000 Grommet, dispenser, back panel

66 134366500 Bumper, door

* 134596200 Shipping Support Kit

* 134591500 Plug Assy, shippingholes, back

Publication No: 5995463998 GLTF2940ES3

03/06 6

MOTOR/TUB

GLTF2940ES3 Publication No: 5995463998

# Functional Parts 7 03/06

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131793303 Bolt, carriage, 1/4-20 x 2.60

6 134362200 Counterweight, front, one piece

7 134365300 Spring, bellows clamp, retainer

8 134365200 Bellows, door boot

10 131304700 Nut, hex, 1/4-20 UNC-2B, (2)

11 131276900 Washer, Bellville, spring steel

12 134430600 Plate, counterweight

13 134362000 Shell, tub, front

14 # 134362800 Spring Assy, suspension

15 134408300 Screw, hex head, 6.5 x 51 mm

16 134360900 Drum Assy, spin basket

17 134509600 Vane Kit, drum

18 131302800 Screw, 10-16AB x 0.375

19 # 134362500 Motor, 120 V

20 131303500 Screw, 12-14AB x 1.50, motor mtg.

21 134361900 O-ring, tub

22 134509510 Shell, outer tub, rear, w/bearing, seal

25 # 134051001 Belt, drive, poly-V, 6-rib

26 # 134362600 Pulley, drum drive, large, rear

29 134408400 Screw, 10.9 class, M10 x 25 mm

30 134560400 Shock Absorber, dual stage

31 131268300 Pin, shock mtg.

32 134363200 Bracket, shock mtg.

33 134160900 Screw, quadrex, 10-16AB X 0.750

34 134446300 Clamp, hose, bellows

35 # 134051200 Pump, drain

40 134565200 Filter, pump

41 134455900 Hose, drain, tub>pump, coin trap

42 131333101 Clamp

43 134369000 Chamber, air

44 134369900 Hose, air pressure

48 131306234 Clamp, hose, wire

49 134527100 Clamp, bellows, spring held

52 131202300 Screw, 10-16AB x 0.625

55 # 134679000 Hose, internal drain

56 134369800 Fastener, hose clip, (3)

56* 134261300 Clip, drain hose, push-mount

* 134454400 Energy Guide

Publication No: 5995463998 GLTF2940ES3

03/06 8

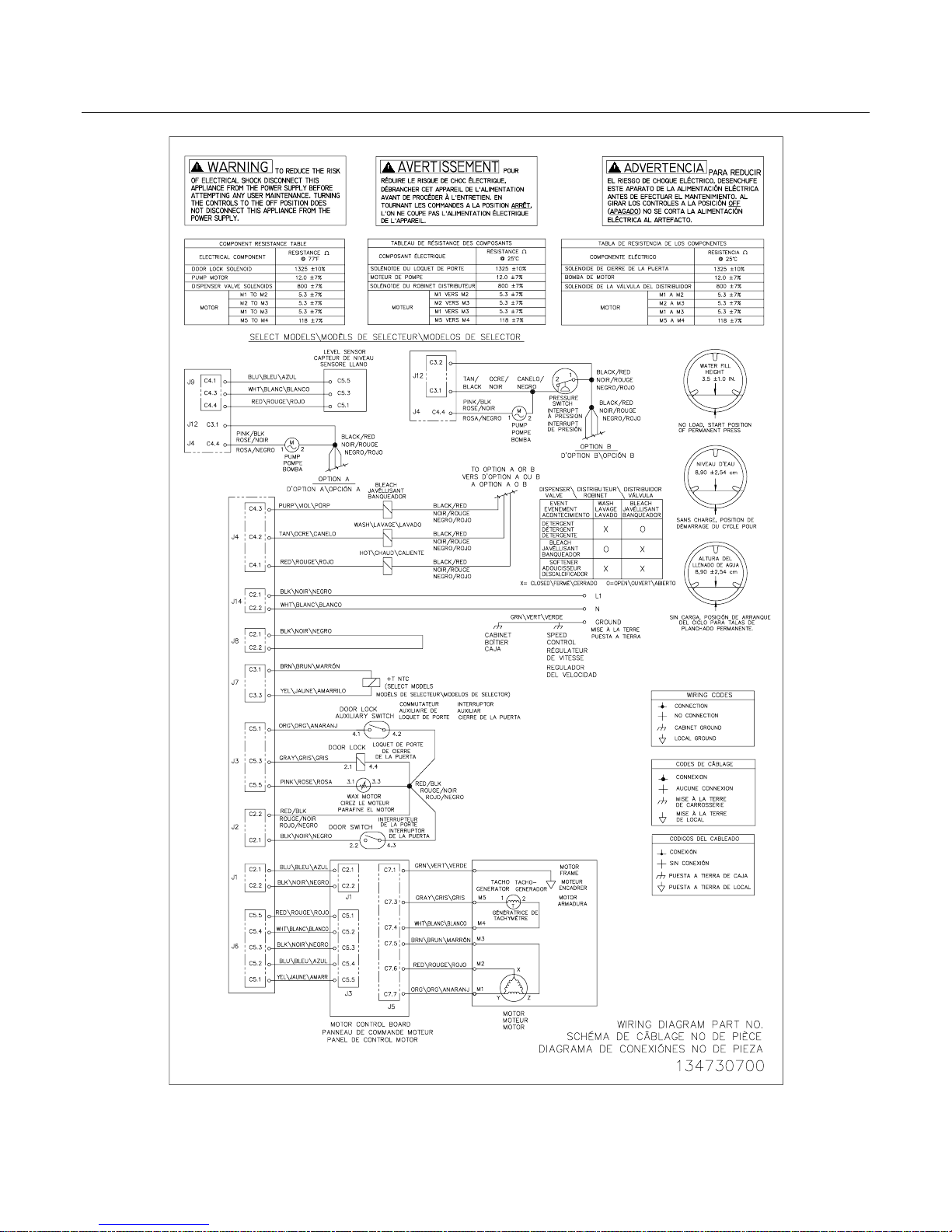

WIRING DIAGRAM
