Frigidaire FTF1040A Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR

FTF1040AS0 FTF1040A White

Publication No.

5995355137

010625

ENG/SERVICE/JAM

361

WASHER

Model No.

FTF1040A

FACTORY PARTS CATALOG

FRONTLOAD WASHER

WIRING DIAGRAM - # 131854700

OWNER’S GUIDE - # 134031900

OPERATING INSTRUCTIONS - # 131932500

06/2001 2

Publication No. FTF1040AS0

5995355137 CONTROL PANEL

# = Functional Part 3 06/2001

* = Non-Illustrated Part

FTF1040AS0 Publication No.

5995355137

POS. NO PART NO DESCRIPTION

1 131272100 Cover-bleach

2 131272000 Cover-softener

3 131271900 Drawer-dispenser

6 131374500 Latch-handle

7 131427500 Spring

8 131373800 Magnet

9 131691244 Asmy-disp drwr handle/trim

12 131505901 Switch-reed

13 131729000 Switch-water temp

14 131724500 Buzzer

15 131243200 Switch-extra rinse/speed

16 131724700 Light-pilot

17 # 131273700 Switch-pressure

18 131802100 Timer-washer Mallory FHP

19 131243800 Screw-brkt top, pan hd locking,

8-32CA x 0.375, cr/sq drive

21 131243700 Screw, pan head, 8-18AB x 0.375,

cr/sq drive

26 131823400 Scr 8-18 x 2.000

27 131887282 Asmy-cons frame/trim

29 131761704 Knob-rotary

30 131853500 Knob-timer

31 131853900 Pointer-timer wht/drk gray ind

32 131786100 Hose-dispenser

33 131306215 Clamp

36 131974700 Asmy-disp valve/seal

37 131271600 Hose-tub

38 131803700 Asmy-detergent dispenser

39 131863300 Siphon

42 131168200 Screw, 8-18 x 0.31

43 131749200 Gasket-seal

44 131786000 Hose-dispenser

45 5303321107 Bushing

46 131810012 Panel-cont mtg-wing bend

52 131306242 Clamp

53 131724800 Lens-pilot light

69 131907500 Harness-dispenser

70 5303015671 Screw, 8-18 x .375

* 134041600 Harness-Sole/Mallory

* 131307900 Clamp-siphon to bellows

* 131931201 Vibration dampener

CONTROL PANEL

06/2001 4

Publication No. FTF1040AS0

5995355137 CABINET,DOOR &TOP

# = Functional Part 5 06/2001

* = Non-Illustrated Part

FTF1040AS0 Publication No.

5995355137

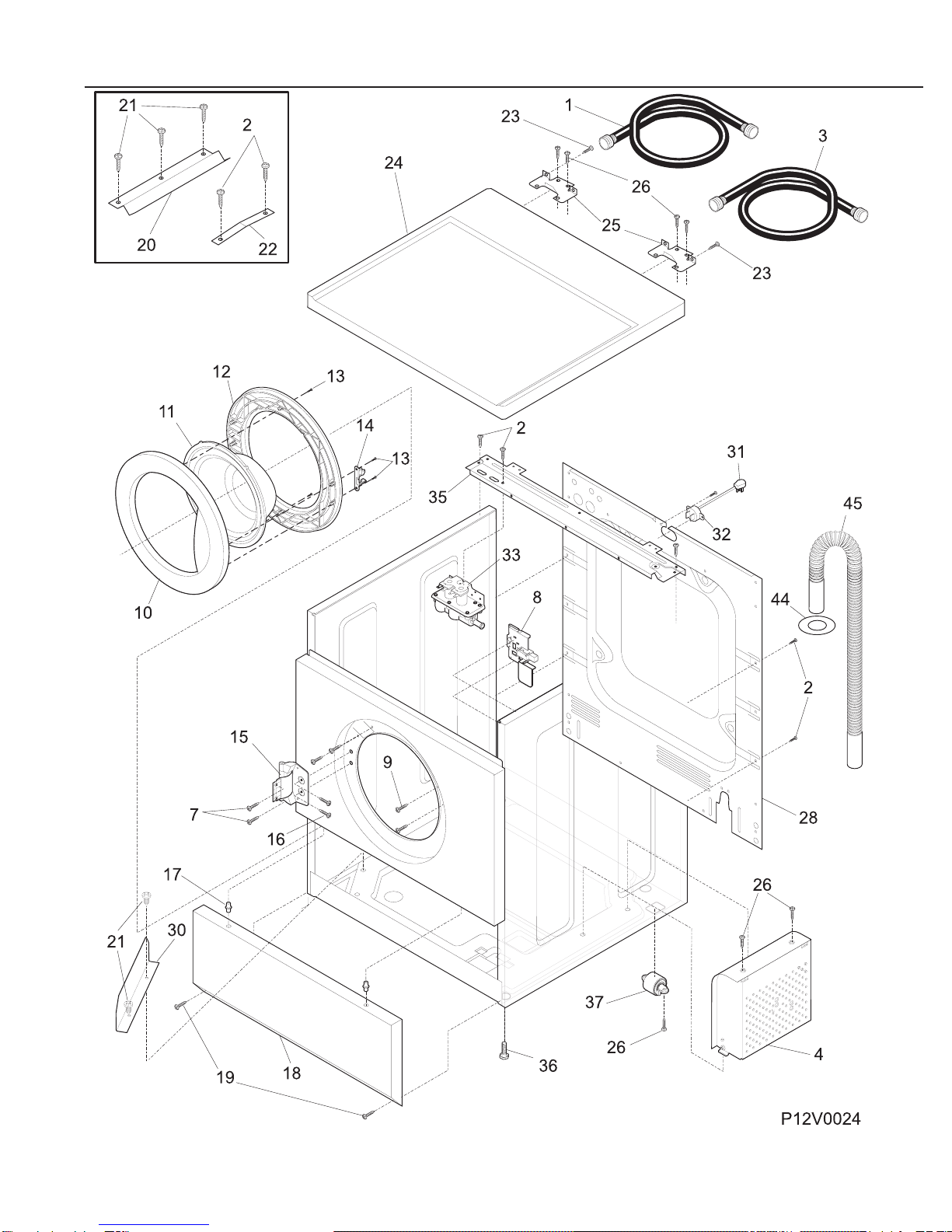

CABINET,DOOR &TOP

POS. NO PART NO DESCRIPTION

1 131279602 Asmy-Inlet Hose Cold

2 131168200 Screw, 8-18 x 0.31

3 131279603 Asmy-Inlet Hose-Hot

4 131770700 Speed cont-Mallory/Sole motor

7 131205300 Screw, 10-16 x .75

8 131763200 Door lock/switch USCC

9 131303300 Screw-lock, ph ab, 10-16 x .50

10 131278700 Door-outer

11 131278800 Glass-door

12 131278900 Door-inner

13 131302901 Screw, 10-16 x .75

14 131763300 Catch, door/lock sw, intr door frame

15 131269300 Hinge-door

16 131696300 Screw 10-16 x .312 quad pn hd

17 131346400 Pin-locating

18 131279300 Panel-service, white

19 131358400 Screw-panel, hwhd ab, 8-18 x 1.125

20 131460900 Bracket-top front

21 131243700 Screw, pan head, 8-18AB x 0.375,

cr/sq drive

22 131279500 Retainer-spring

23 131243800 Screw-brkt top, pan hd locking,

8-32CA x 0.375, cr/sq drive

24 131677308 Panel-top

25 131668200 Bracket-top pnl

26 131311900 Screw, quadrex ph ab, 8-18 x 1/2

28 131978500 Panel-back

30 131859600 Shield-overflow

31 5303208765 Cord-service

32 5303209428 Bushing-cord

33 # 5303207418 Valve-water

35 131732901 Reinforcement brkt

36 131003900 Leg, pad/nut

37 131304200 Roller Assy

44 131707800 Ring-drain hose

45 # 131461200 Hose-drain, 90 inch

* 131453001 Bushing-top panel

* 131883101 Base-mounting-SCU

06/2001 6

Publication No. FTF1040AS0

5995355137 TUB & MOTOR

# = Functional Part 7 06/2001

* = Non-Illustrated Part

FTF1040AS0 Publication No.

5995355137

TUB & MOTOR

POS. NO PART NO DESCRIPTION

3 131793302 Bolt-carriage 1/4-20 x 4.0

6 131975300 One piece counterweight

7 131277300 Spring-boot

8 131277100 Bellows

10 131304700 Nut

11 131276900 Washer-spring

12 131793500 Plate-weight

13 131618600 Shell-front tub

14 131663600 Spring/sleeve

15 131303900 Screw, hxwhd a, 1/4-10 x 2.165

16 131618500 Tub-spin

17 131274600 Vane

18 131302800 Screw-vane, quad ph ab, 10-16 x .375

19 131770600 Motor-Sole

20 131303500 Screw-motor, hwhd ab, 12-14 x 1.50

21 131275900 Seal-shell

22 131462800 Shell-rear/bearing

23 131709300 Weight-upper back

25 # 131276300 Belt

26 131883400 Pulley-drum-reinforced

27 131304400 Washer .41 x 1.500 x .120

28 131304500 Washer-lock, 3/8

29 131303700 Screw-pulley, m10 x .92

30 131268200 Level-shock

31 131268300 Pin-level

32 131268100 Bracket-shock

33 131303100 Screw, hwhd ab, 10-16 x .625

34 131304300 Washer .21 x .71 x .06

35 131889800 Pump-drain H axis wshr 40MM

41 131784700 Hose-coin trap-tub to pump

42 131333101 Clamp

43 131277500 Chamber-air

44 131277600 Tube-pressure

45 131306202 Clamp

48 131306234 Clamp-pump

* 131560000 Sleeve-lower spring, tub

* 131592200 Sleeve-upper spring, tub

06/2001 8

Publication No. FTF1040AS0

5995355137 WIRING DIAGRAM
