Frigidaire FAHE4044MW0 Manual de usuario

TABLE OF

Important Safety Instructions .............................. 2-3

Installation Requirements ................................... 4-6

Unpacking Washer ................................................. 7

Installation Instructions ...................................... 8-9

CONTENTS

Accessories ......................................................... !0

Fran_ais .............................................................. 11

Espa_01.............................................................. 21

",,3

-b-

r',--'

[;

Please read all instructions before using this washer.

Recognize safety symbols, words and

labels

Safety items throughout this manual are labeled with

a WARNING or CAUTION based on the risk type as

described below:

Definitions

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all safety

messages that follow this symbol to avoid possible injury

or death.

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

CAUTION indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

IMPORTANT indicates installation, operation or

maintenance information which is important but not

hazard-related.

Shipping Hardware

[] Foam shipping restraint (inside wash tub)

removed and stored

[] Shipping bolt (underneath appliance) removed

and stored

Leveling

[] Washer is level, side-to-side and front=to-back

[] Cabinet is setting solid on all corners

Water Supply

[] Use only new hoses and verify rubber sealing

washers are installed

[] HOT supply is connected to HOT inlet and

COLD supply is connected to COLD inlet

[] HOT and COLD water supply turned on

[] No leaks present at water supply connections

or appliance inlet connections -

recheck in 24 hours

Drain

[] Stand pipe or wall drain height minimum 33"

[] Drain hose secured in place with cable tie

(shipped in drum)

Electrical Power

[] House power turned on

[] Washer plugged in

Final Checks

[] Installation Instructions and Use and

Care Guide read thoroughly

[] Water enters drum when cycle starts with lid

lowered.

[] Registration card sent in

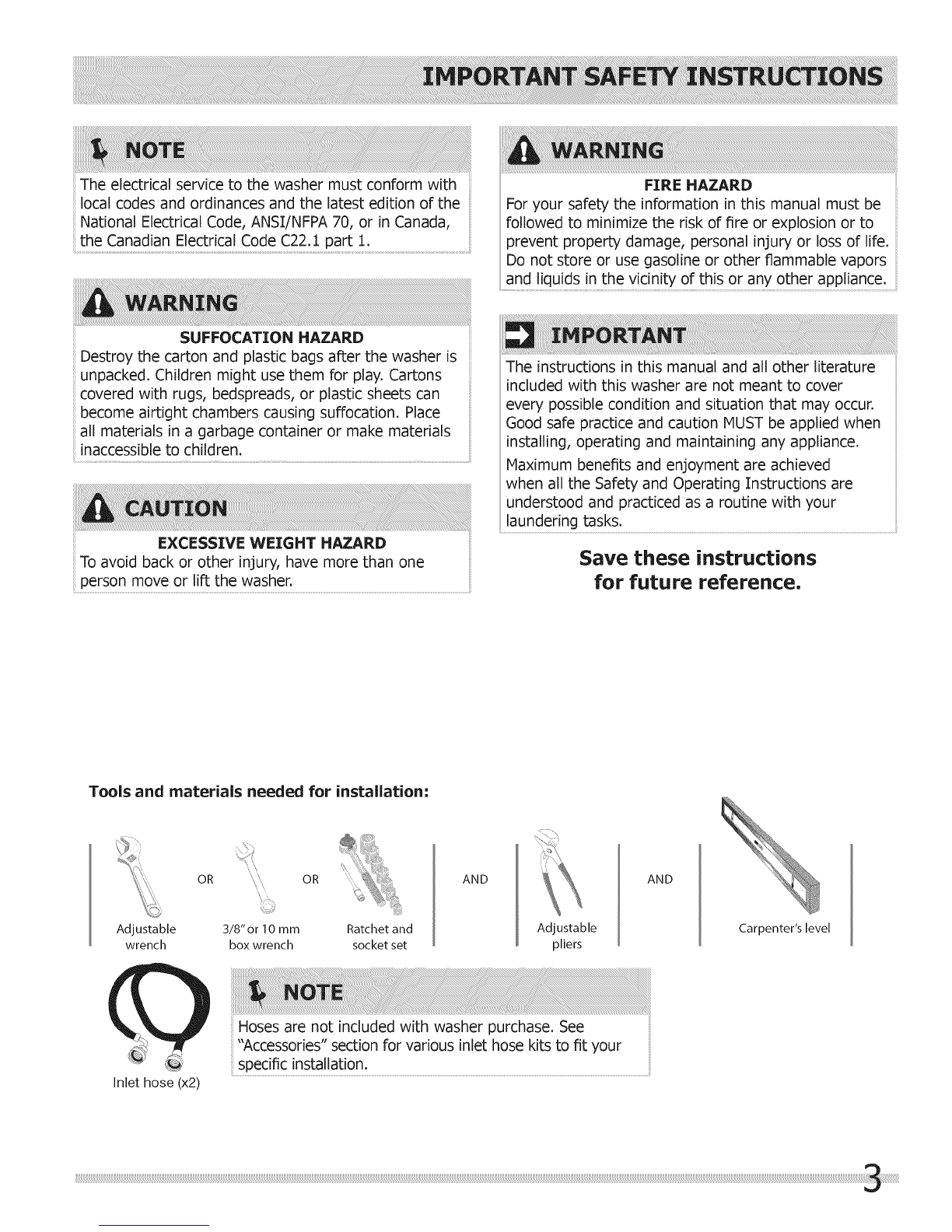

The electrical service to the washer must conform with

local codes and ordinances and the latest edition of the

National Electrical Code, ANSI/NFPA 70, or in Canada,

the Cahad!an E!ectr!ca! CO pa_ .......................................................................................................................

FIRE HAZARD

For your safety the information in this manual must be

followed to minimize the risk of fire or explosion or to

prevent property damage, personal injury or loss of life.

Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

SUFFOCATION HAZARD

Destroy the carton and plastic bags after the washer is

unpacked. Children might use them for play. Cartons

covered with rugs, bedspreads, or plastic sheets can

become airtight chambers causing suffocation. Place

all materials in a garbage container or make materials

inaccesS!ble t0 ch!ldren: ..............................................................................................................................................................................

EXCESSIVE WEIGHT HAZARD

To avoid back or other injury, have more than one

person move or lift the washer.

The instructions in this manual and all other literature

included with this washer are not meant to cover

every possible condition and situation that may occur.

Good safe practice and caution MUST be applied when

installing, operating and maintaining any appliance.

Maximum benefits and enjoyment are achieved

when all the Safety and Operating Instructions are

understood and practiced as a routine with your

laundering tasks.

Save these instructions

for future reference,

Tools and materials needed for installation"

OR :",

Adjustable 3/8"or 10 mm Ratchet and

wrench box wrench socket set

AND

Adjustable

pliers

Hoses are not included with washer purchase. See

"Accessories" section for various inlet hose kits to fit your

AND

Carpenter's level

Inlet hose (x2)

Electrical system requirements

CIRCUIT =Individual, properly polarized and grounded

15 amp. branch circuit fused with 15 amp. time delay

fuse or circuit breaker.

POWER SUPPLY= 2 wire, with ground, 120 volt single

phase, 60 Hz, Alternating Current.

Because of potentially inconsistent voltage capabilities,

the use of this washer with power created by gas

powered generators, solar powered generators, wind

powered generators or any other generator other than

the !oca! ut!!ity company is not recommended- .................................................................

OUTLET RECEPTACLE=Properly grounded 3=prong

receptacle to be located so the power supply cord is

accessible when the washer is in an installed position.

wall l

Do not, under

any circumstances, J

cut, remove,

or bypassthe

grounding prong.

Ground requirements

ELECTRICAL SHOCK HAZARD

Improper connection of the equipment grounding

conductor can result in a risk of electrical shock. Check

with a licensed electrician if you are in doubt as to

whether the appliance is properly grounded.

The washer MUST be grounded. In the event of

malfunction or breakdown, grounding will reduce

the risk of electrical shock by a path of least

resistance for electrical current.

Since your washer is equipped with a power supply

cord having an equipment=grounding conductor

and a grounding plug, the plug MUST be plugged

into an appropriate, copper wired receptacle that is

properly installed and grounded in accordance with

all local codes and ordinances or in the absence

of local codes, with the National Electrical Codes,

ANSI/NFPA 70 (latest edition). If in doubt, call a

licensed electrician. DO NOT cut off or alter the

grounding prong on the power supply cord. In

situations where a two-slot receptacle is present,

it is the owner's responsibility to have a licensed

electrician replace it with a properly grounded three

prong grounding type receptacle.

Powercord with

3-prong grounded plug

GFI (Ground Fault Interrupter) receptacle is not

Water supply requirements

Hot and cold water faucets MUST be 3/4 inch (1.9 cm)

with threading for laundry hose connection. Water

pressure MUST be between 30 and 120 psi. Pressure

difference between hot and cold cannot be more than 10

psi. Your water department can advise you of your water

pressure.

Drain system requirements

1Drain capable of eliminating 17 gals (64.3 L) per

minute.

2 A standpipe diameter of 1-1/4 in. (3.18 cm)

minimum.

3 The standpipe height above the floor should be:

Minimum height: 33 in. (84 cm)

Maximum height: 96 in. (244 cm)

Installation in aRecess or Closet

If washer and dryer are installed in the same closet,

door ventilation is required: A minimum of 120 square

inches (774.2 cm2) of opening, equally divided at the top

and bottom of the door, is required. Louvered openings

should be located 3 inches (7.6 cm) from bottom and

top of door. Air openings are required to be unobstructed

when a door is installed. A Iouvered door with equivalent

air openings for the full length of the door is acceptable.

96"

(244cm)

max. [

33"

(84cm)

rain.

0 _

For installations requiring a longer drain hose, have a

qualified technician install a longer drain hose (according

to your model number) available from an authorized parts

distributor. For drain systems in the floor, install a syphon

break k!t ava!!ab!e from your/oca! hardware store:......................................................

i(7.6cm)

i \

closet door

Clearance requirements

DO NOT INSTALL YOUR WASHER:

1 In an area exposed to dripping water or outside

weather conditions. The ambient temperature

should never be below 60° F (15.6 ° C) to

maximize detergent effectiveness.

2 In an area (garage or garage-type building)

where gasoline or other flammables (including

automobiles) are kept or stored.

3 On carpet. Floor MUST be solid with a maximum

slope of 1 inch (2.5 cm). To minimize vibration

or movement, reinforcement of the floor may be

MINIMUM INSTALLATION CLEARANCES - Inches (cm)

SIDES REAR TOP FRONT

Alcove 0" (0 cm) 0" (0 cm)* 23" (58.5 cm) n/a

Closet 0" (0 cm) 0" (0 cm)* 23" (58.5 cm) 1" (2.5 cm)

0" 0"

(0 cm) (0 cm)

;,,

-._',',.,,--- _ -,,---

(0 cm)

Washer Dimensions

power cord attachment

location on rear of unit 1

water supply

connection on

rear of washer-_._

drain hose reten-

tion clamp on rear

of washeF

60" (152,5 cm)

to clear open lid

: : 12"

,___. (30.5cm)

27" (68,5 cm)

37 H

(94 cm)

43 Ir

(109 cm)

<.:11,

29" (73.5 cm) ---------------------_

1Powersupply cord length on gas unit approximately 60 inches (152.5 cm).

2Loosedrain hose length beyond clamp approximately 52 inches (132 cm).

Unpacking Instructions

To prevent vibration, possible machine damage and

maximize performance, the following steps must be

completed.

1. If foam tub block has been removed, reinsert it now

and retape the lid securely.

If the washer is to be transported at a later date, the

tub blocking pad, shipping bolt, and plastic spacer

block should be retained.

4. Carefully return the washer to an upright position.

5. Remove the tape holding the lid shut and open the lid.

6. Remove the foam tub block and other tub contents.

2. Using a rug, blanket or piece of cardboard to protect

the floor, carefully lay the washer on its left side.

EXCESSIVE WEIGHT HAZARD

To avoid back or other injury, have more than one

Person move or !! heapplian ce:..............................................................................................................................................

PLASTIC

SPACER

SHIPPING

BOLT

PLASTIC

CLAMP

7. From the back of the washer, remove the wire

shipping clip securing the drain hose.

8. DO NOT remove the PLASTIC CLAMP which secures

the drain hose to the right side of the washer

backsheet. It helps form a standpipe to prevent water

siphoning.

9. Carefully move the washer to within 4 feet of the final

location for the start of the installation.

3. Using a ratchet with 3/8" (10 mm) socket, remove the

mechanism shipping bolt and plastic spacer block from

the center of the base.

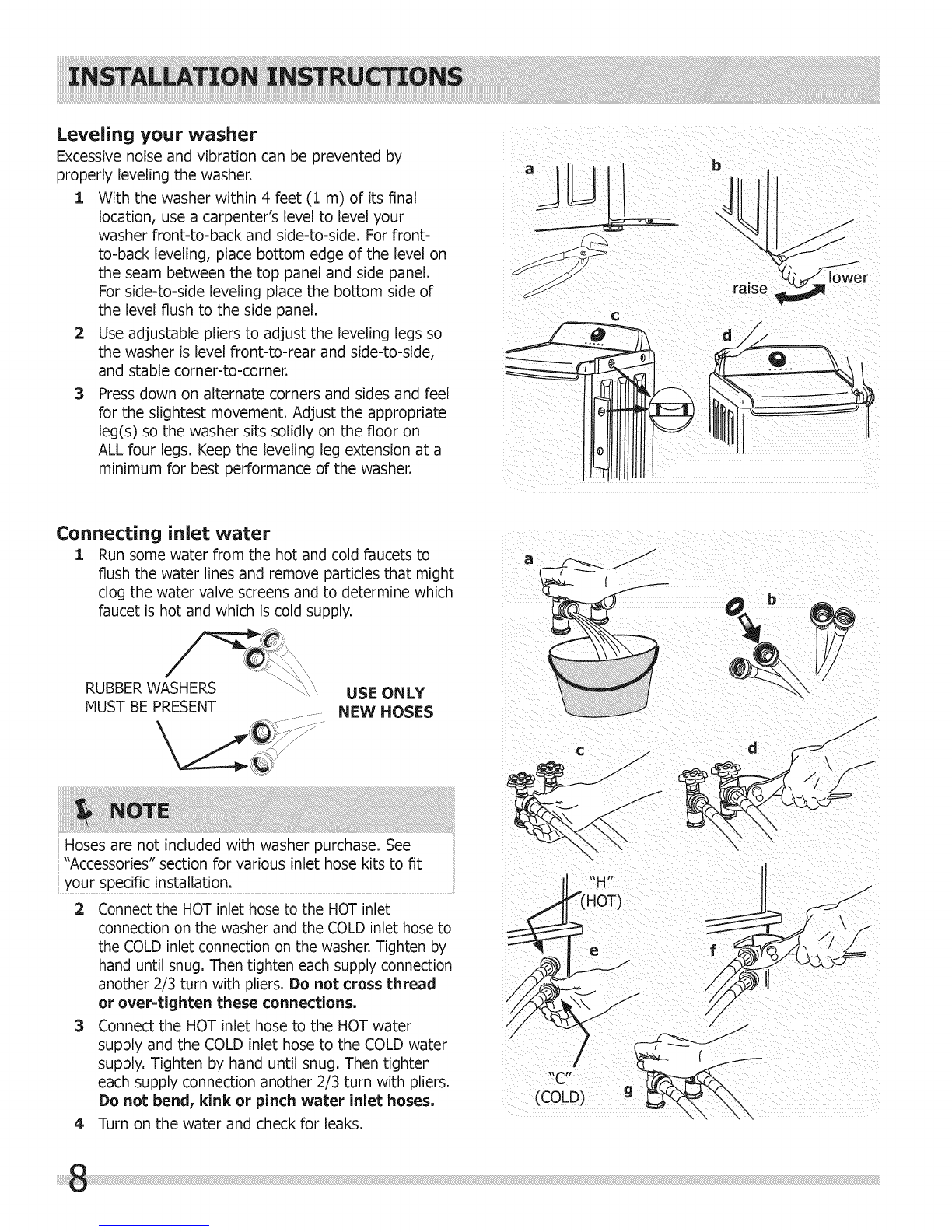

Leveling your washer

Excessive noise and vibration can be prevented by

properly leveling the washer.

1 With the washer within 4 feet (1 m) of its final

location, use a carpenter's level to level your

washer front-to-back and side-to-side. For front-

to-back leveling, place bottom edge of the level on

the seam between the top panel and side panel.

For side-to-side leveling place the bottom side of

the level flush to the side panel.

2 Use adjustable pliers to adjust the leveling legs so

the washer is level front-to-rear and side-to-side,

and stable corner-to-corner`

3 Press down on alternate corners and sides and feel

for the slightest movement. Adjust the appropriate

leg(s) so the washer sits solidly on the floor on

ALL four legs. Keep the leveling leg extension at a

minimum for best performance of the washer.

lower

Connecting inlet water

1 Run some water from the hot and cold faucets to

flush the water lines and remove particles that might

clog the water valve screens and to determine which

faucet is hot and which is cold supply.

RUBBERWASHERS

MUST BE PRESENT

XUSE ONLY

NEW HOSES

Hoses are not included with washer purchase. See

"Accessories" section for various inlet hose kits to fit

your specific insta!lat!on- ....................................................................................................................................................................................................

2 Connect the HOT inlet hose to the HOT inlet

connection on the washer and the COLD inlet hose to

the COLD inlet connection on the washer, Tighten by

hand until snug. Then tighten each supply connection

another 2/3 turn with pliers. Do not cross thread

or over=tighten these connections.

3 Connect the HOT inlet hose to the HOT water

supply and the COLD inlet hose to the COLD water

supply. Tighten by hand until snug. Then tighten

each supply connection another 2/3 turn with pliers.

Do not bend, kink or pinch water inlet hoses.

4 Turn on the water and check for leaks.

Connecting drain and electrical

1 Form a "U" shape on the end of the drain hose with the

hose pointed toward the drain. Place the formed end in

a laundry tub or a standpipe and secure with a cable tie

provided in the enclosure package.

2 Place the hook end of the drain hose in the drain

opening. Secure the drain hose with the cable tie

(provided in the enclosure package) to the standpipe,

inlet hose, laundry tub, etc. so the hose does not pull

out from the force of the water.

The standpipe inside diameter must be 1-1/4" (3.2 cm)

minimum. There must be an air gap around the drain hose in

the standpipe. A snug hose fit can cause a siphoning action.

Check to ensure the power is off at a circuit breaker/fuse

box before plugging the power cord into an outlet.

3 Plug the power cord into a grounded outlet.

Grounding

type wall

recePtacle

Do not, under any circumstances,_

cut, remove, or bypass the |

grounding prong, J

with 3:prong

grounded plug

4 Turn on the power at the circuit breaker/fuse box.

5Carefully slide the washer to its final position. Recheck

for level and rock corners for stability.

6 Read the Use &Care Guide provided with the washer.

It contains valuable and helpful information that will

save you time and money.

7 Run the washer through a complete cycle, checking for

water leaks and proper operation.

8 If you have any questions during initial operation,

please review the "Avoid Service Checklist" in your Use

& Care Guide before calling for service.

9 Place these instructions in a location near the appliance

for future reference.

MOBILE HOME INSTALLATION KIT

P/N137067200

Installation in a mobile home requires the use of a

MOBILE HOME INSTALLATION KIT.

INLET HOSE KITS

Please call 866-233-8353 (in Canada, 800-265-8352)

to explore hose kit options that will meet your specific

installation needs.

UNIVERSAL APPLIANCE WRENCH

P/N 137019200

A UNIVERSAL APPLIANCE WRENCH is available to aid in

dryer/washer feet adjustment.

TOUCH UP PAINT PENS*

ClassicWhite TouchUp Pen- P/N5304468812

*Other colors may be available, Contact the source where you

purchased your washer.

Failure to use accessories manufactured by (or approved

by) the manufacturer could result in personal injury,

property damage or damage to the washer.

Technical Sheet/Wiring Diagram,'

A wiring diagram and technical data sheet are located

inside the washer console,

To remove the console faceplate follow the directions

below:

Disconnect washer from electrical source.

Remove the hole plugs on the back of the console

housing.

3. Insert a small, straight blade screw drive to gently pry

downward on each faceplate retaining tab.

4. Gently lay the console faceplate forward without

pulling wires to access technical/wiring diagram.

5. When finished with repair, return sheet inside console,

snap faceplate to console housing and reinstall hole

plugs.

TECH DATA SHEET/

WIRING DIAGRAM

Replacement parts:

If replacements parts are needed for your washer,

contact the source where you purchased your washer or

refer to your Use and Care Guide for more information. ELECTRICAL SHOCK HAZARD

Label all wires prior to disconnection when servicing

controls, Wiring errors can cause improper and dangerous

operation. Verify proper operation after servicing,

Otros manuales para FAHE4044MW0

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Arandela de Frigidaire

Frigidaire

Frigidaire FAFW3574KR0 Manual de usuario

Frigidaire

Frigidaire FWT449GF Manual de usuario

Frigidaire

Frigidaire MWS939ZAS Manual de usuario

Frigidaire

Frigidaire ATF8000FE2 Manual de usuario

Frigidaire

Frigidaire LTF8000FE0 Manual de usuario

Frigidaire

Frigidaire FAFW3801L W Manual del propietario

Frigidaire

Frigidaire FTF530FS0 Manual de usuario

Frigidaire

Frigidaire FFTW1001PW? Manual de usuario

Frigidaire

Frigidaire FWS545RF Manual de usuario

Frigidaire

Frigidaire MWX233RB Manual de usuario

Frigidaire

Frigidaire GLTF1240AS0 Manual de usuario

Frigidaire

Frigidaire GLTF1670AS0 Manual de usuario

Frigidaire

Frigidaire FRFW3700L W Instrucciones de uso

Frigidaire

Frigidaire 134670900 Manual de usuario

Frigidaire

Frigidaire FLBY06GGAWFD Manual de usuario

Frigidaire

Frigidaire FWFB9200ES0 Manual de usuario

Frigidaire

Frigidaire FTF2140FS - 27" Front-Load Washer Manual de usuario

Frigidaire

Frigidaire LT15Y Manual de usuario

Frigidaire

Frigidaire FCCW3000ES0 Manual

Frigidaire

Frigidaire FWS933FS - 9 Cycle Washer Manual de usuario

Frigidaire

Frigidaire Gallery FWTR549GG Manual de usuario

Frigidaire

Frigidaire GLWS1339E Manual de usuario

Frigidaire

Frigidaire GLGH1642FS0 Manual de usuario

Frigidaire

Frigidaire Gallery GLWS1349A Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
