INTRODUCTION

Doors

Handles are secure and tight

Door seals completely to cabinet on

all sides

Leveling

Refrigerator is level side-to-side and

slightly elevated in front to assist

with door and drawer closing (front

should be higher than back)

Cabinet is setting solid on all corners

Electrical Power

House power turned on

Refrigerator plugged in

Ice Maker

House water supply connected to

refrigerator

No water leaks present at all

connections - recheck in 24 hours

Ice maker is turned ON

Ice & water dispenser operates

correctly

Final Checks

Shipping material removed

Fresh food and freezer

temperatures set

Registration card sent in

Installation Checklist



Welcome to our family

Thank you for bringing Frigidaire into

your home! We see your purchase as the

beginning of a long relationship together.

This manual is your resource for the use

and care of your product. Please read

it before using your appliance. Keep it

handy for quick reference. If something

doesn’t seem right, the troubleshooting

section will help you with common issues.

FAQs, helpful tips and videos, cleaning

products, and kitchen and home accessories

are available at Frigidaire.com.

We are here for you! Visit our website,

chat with an agent, or call us if you need

help. We may be able to help you avoid

a service visit. If you do need service, we

can get that started for you.

Let’s make it ocial! Be sure to register

your product.

Keep your product info here so it’s easy

to ﬁnd.

Model Number

Serial Number

Purchase Date

jfk;fkda;jfdajfk;fkda;jfdajfk;fkda;jfdajfk;fkda;jfda

Serial Number Location

WARNING

WARNING indicates a potentially

hazardous situation which, if not

avoided, could result in death or serious

injury.

IMPORTANT

IMPORTANT indicates installation, oper-

ation or maintenance information which

is important but not hazard-related.

DANGER

DANGER indicates an imminently

hazardous situation which, if not

avoided, will result in death or serious

injury.

CAUTION

CAUTION indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

Safety Deﬁnitions

This is the safety alert symbol. It is

used to alert of potential personal injury

hazards. Obey all safety messages that

follow this symbol to avoid possible injury

or death.

WARNING

CALIFORNIA RESIDENTS ONLY

Cancer and Reproductive Harm

www.P65Warnings.ca.gov

IMPORTANT SAFETY INFORMATION

WARNING

Please read all instructions before using

this refrigerator.

DANGER

DANGER Risk of ﬁre or explosion.

Flammable refrigerant used. Do not use

mechanical devices to defrost refrigera-

tor. Do not puncture refrigerant tubing.

DANGER Risk of ﬁre or explosion.

Flammable refrigerant used. To be

repaired only by trained service person-

nel. Use only manufacturer-authorized

service parts. Any repair equipment

used must be designed for ﬂammable

refrigerants. Follow all manufacturer

repair instructions. Do not puncture

refrigerant tubing.

CAUTION

CAUTION Risk of ﬁre or explosion.

Dispose of refrigerator properly

in accordance with the applicable

federal or local regulations. Flammable

refrigerant used.

CAUTION Risk of ﬁre or explosion

due to puncture of refrigerant tubing.

Follow handling instructions carefully.

Flammable refrigerant used.

4IMPORTANT SAFETY INFORMATION

Safety Instructions

• DO NOT store or use gasoline, or

other ﬂammable liquids in the vicinity

of this or any other appliance. Read

product labels for warnings regard-

ing ﬂammability and other hazards.

• DO NOT operate the refrigerator in

the presence of explosive fumes.

• Avoid contact with any moving parts

of automatic ice maker.

• Remove all staples from the carton.

Staples can cause severe cuts, and

also destroy ﬁnishes if they come in

contact with other appliances

or furniture.

Child Safety

Destroy or recycle the carton, plastic

bags, and any exterior wrapping material

immediately after the refrigerator is

unpacked. Children should NEVER use

these items to play. Cartons covered with

rugs, bedspreads, plastic sheets or stretch

wrap may become airtight chambers, and

can quickly cause suocation.

Proper Disposal of Refrigerator

or Freezer

Risk of child entrapment

Child entrapment and suocation are not

problems of the past. Junked or aban-

doned refrigerators or freezers are still

dangerous – even if they will sit for “just

a few days”. When disposing of an old

refrigerator or freezer, please follow the in-

structions below to help prevent accidents.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appli-

ance recycling/disposal methods. Check

with the utility company or visit energy-

star.gov/recycle for more information on

recycling an old refrigerator.

IMPORTANT

CFC/HCFC Disposal

Some old refrigerators may have a cool-

ing system that used CFCs or HCFCs

(chloroﬂuorocarbons or hydrochloro-

ﬂuorocarbons). CFCs and HCFCs are

believed to harm stratospheric ozone if

released to the atmosphere. Other re-

frigerants may also cause harm to the en-

vironment if released to the atmosphere.

If disposing of an old refrigerator, make

sure the refrigerant is removed for proper

disposal by a qualiﬁed technician. Inten-

tionally released refrigerant may subject

one to ﬁnes and imprisonment under

provisions of environmental legislation.

Before disposing of an old refrigerator/

freezer:

• Remove doors.

• Leave shelves in place so children

may not easily climb inside.

• Have refrigerant removed by a

qualiﬁed service technician.

IMPORTANT SAFETY INFORMATION

Grounding type wall receptacle

Power cord with

3-prong grounded plug

Do not, under

any circumstances,

cut, remove,

or bypass the

grounding prong.

Electrical information

• The refrigerator must be plugged

into its own dedicated 115 Volt, 60

Hz., 15 Amp, AC only electrical outlet.

The power cord of the appliance

is equipped with a three-prong

grounding plug for protection against

electrical shock hazards. It must

be plugged directly into a properly

grounded three prong receptacle.

The receptacle must be installed in

accordance with local codes and

ordinances. Consult a qualiﬁed

electrician. Avoid connecting

refrigerator to a Ground Fault

Interrupter (GFI) circuit. Do not use

an extension cord or adapter plug.

• If the power cord is damaged, it

should be replaced by an authorized

service technician to prevent any risk.

• Never unplug the refrigerator by

pulling on the power cord. Always

grip the plug ﬁrmly, and pull straight

out from the receptacle to prevent

damaging the power cord.

• Unplug the refrigerator before

cleaning and before replacing a light

bulb to avoid electrical shock.

• Performance may be aected if

the voltage varies by 10% or more.

Operating the refrigerator with

insucient power can damage the

compressor. Such damage is not

covered under the warranty.

• Do not plug the unit into an electrical

outlet controlled by a wall switch or

pull cord to prevent the refrigerator

from being turned o accidentally.

IMPORTANT

Accessories are available for refrigerator and can be purchased at Frigidaire.com or

by calling 1-800-374-4432.

Frigidaire Gallery

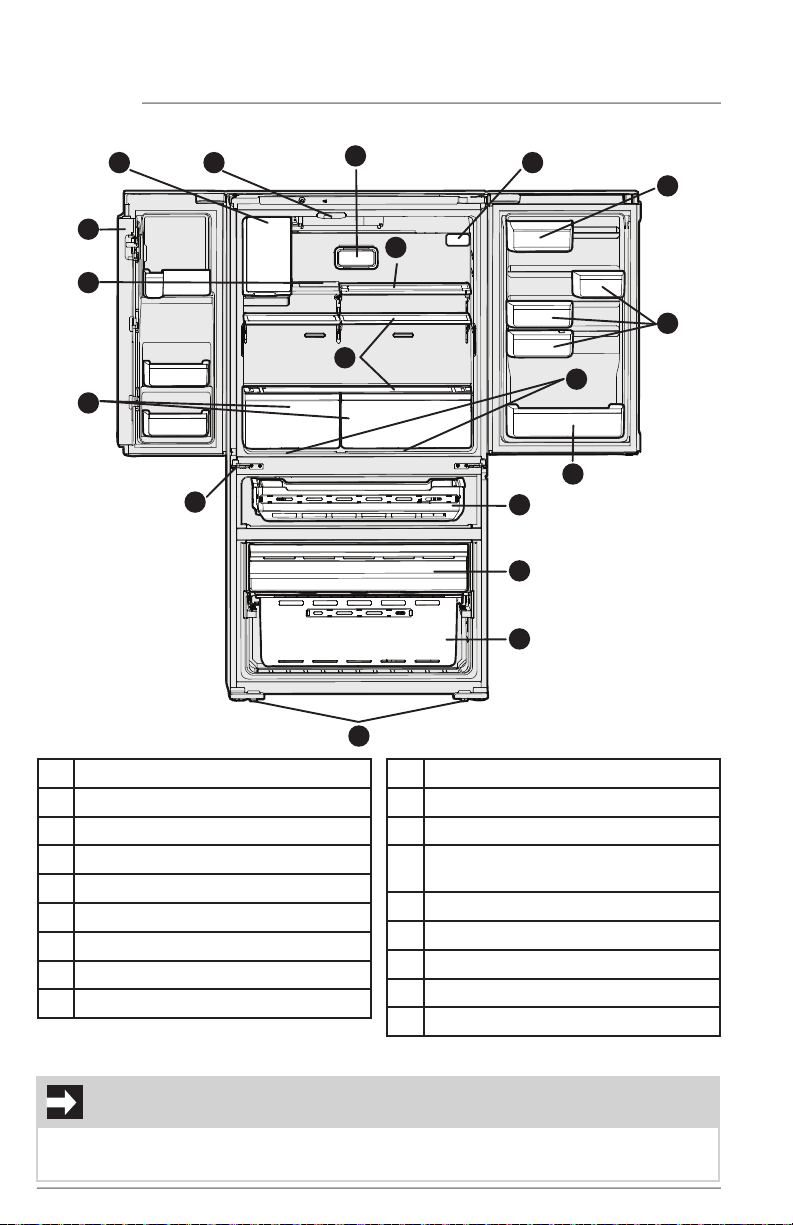

6FEATURES

*Features may vary according to model

A Adjustable Hinges

B Auto CrispSeal™ Drawers

C Flip Shelf*

D Flipper Mullion

E Fresh Food Ice Maker*

F Flipper Guide

G Air Filter

H Water Filter

I Dairy Compartment*

J Slide-Under Shelf*

K Cantilever Shelves

L Adjustable Door Bins

MSnackZone™ Storage Compartments

(Recessed below Crispers)

N Door Bin*

O Custom-Flex™ Temp Drawer

P Freezer Drawer

Q Freezer Basket

R Anti-tip Leg

E F GH

IMPORTANT

Accessories are available for refrigerator and can be purchased at Frigidaire.com or

by calling 1-800-374-4432.

*Features may vary according to model

Frigidaire Professional

FEATURES

ASnackZone™ Storage Compartments

(Recessed below Crispers)

B Adjustable Hinges

C Auto CrispSeal™ Drawers

D Flip Shelf*

E Flipper Mullion

F Fresh Food Ice Maker*

G Flipper Guide

H Air Filter

I Water Filter

J Dairy Compartment*

K Slide-Under Shelf*

L Cantilever Shelves

M Adjustable Door Bins

N Door Bin*

O Custom-Flex™ Temp Drawer

P Ice Maker

Q Freezer Basket

R Anti-tip Leg

FGHI

NOTE

If the refrigerator is placed with the

door hinge side against a wall, allow

additional space so the door can be

opened wider.

8INSTALLATION

CAUTION

Do Not install the refrigerator where

the temperature will drop below 55°F

(13°C) or rise above 110°F (43°C).

The compressor will not be able to

maintain proper temperatures inside

the refrigerator.

This Use & Care Manual provides general

installation and operating instructions for

this model. We recommend using a service

or kitchen contracting professional to

install the refrigerator. Use the refrigerator

only as instructed in this Use & Care

Manual. Before starting the refrigerator,

follow these important ﬁrst steps.

Location

• Choose a place that is near a

grounded, non-GFCI, electrical outlet.

Do Not use an extension cord or an

adapter plug.

• If possible, place the refrigerator

out of direct sunlight and away from

the range, dishwasher, or other heat

sources.

• The refrigerator must be installed

on a ﬂoor that is level and strong

enough to support a fully loaded

refrigerator.

• Consider water supply availability for

models equipped with an automatic

ice maker.

Installation

Allow the following clearances for ease

of installation, proper air circulation, and

plumbing and electrical connections:

Sides & Top ⅜" (9.5 mm)

Back 1" (25.4 mm)

Door opening

The refrigerator should be positioned

to allow easy access to a counter

when removing food. For best use of

refrigerator drawers and freezer baskets,

the refrigerator should be in a position

where both can be fully opened.

Tools Necessary:

Phillips Head

Quadrex Head

Screwdriver

(OR) OR

8mm Socket

Wrench

Adjustable

Wrench

⅜"

Fixed

Wrench

ANDAND

6mm

Allen Wrench

INSTALLATION

3. Ensure both doors are bind-free with

their seals touching the cabinet on all

four sides and that cabinet is stable.

Cabinet Leveling & Refrigerator

Door Alignment (if necessary)

Guidelines for ﬁnal positioning of refrigerator:

• All four corners of the cabinet must

rest ﬁrmly on the ﬂoor.

• The front should be slightly elevated

to ensure that doors close and

seal properly.

• Doors should align with each other

and be level.

Most of these conditions can be met by raising

or lowering the adjustable anti-tip legs.

To level the cabinet using the anti-tip legs:

1. Slightly open freezer drawer.

2. Lower anti-tip legs until they are

both touching the ﬂoor. Use a pair of

pliers to adjust.

To raise unit: turn leg clockwise.

To lower unit: turn leg counterclockwise.

Raise

Flipper Mullion

Adjust Flipper Mullion for proper

connection with the mullion guide by

ensuring the ﬂipper mullion is folded and

perpendicular to the fresh food door. If

the mullion guide is not in the correct

position, it could prevent the door from

closing completely.

WRONG

Anti-Tip

Legs

Door

To make ﬁnal door height adjustments:

1. Open Custom-Flex™Temp drawer to

make lower hinge visible.

2. Insert 6 mm AllenTM wrench into the

shaft of the lower hinge.

To lower door: turn adjustment

screw clockwise.

To raise door: turn adjustment

screw counterclockwise.

NOTE

Use care while pulling the water tube

from the door to be sure that tube does

not kink.

NOTE

Approximately four feet of water tube

will be pulled from the refrigerator door.

10 DOOR REMOVAL

Getting through narrow spaces

If refrigerator will not ﬁt through an

entrance area, doors can be removed.

Check ﬁrst by measuring the entrance.

To prepare for removing the doors:

1. Make sure the electrical power cord

is unplugged from the wall outlet.

2. Remove any food from the door

shelves and close the doors.

To remove the refrigerator doors:

1. Open doors to 90°.

2. Remove all ﬁve PhillipsTM screws

from top hinge cover and lift up.

Phillips Screws

Top

Hinge

Cover

5. Pull up on water line gently to

remove from door.

Waterline

3. Trace lightly around the door’s top

hinges with a pencil. This makes

reinstallation easier.

4. Disconnect electrical harness

running from door to hinge cover. 6. Remove three 8 mm bolts from both

top hinges. Lift doors up o lower

hinges and carefully set aside.

CAUTION

Be sure doors are set aside in a secure

position where they cannot fall and cause

personal injury, or damage to the doors or

handles.

Otros manuales para PRMC2285AF

Tabla de contenidos

Otros manuales de Refrigerador de Frigidaire

Frigidaire

Frigidaire FRSHT5EF Manual de usuario

Frigidaire

Frigidaire FRS6B6EE Manual de instrucciones

Frigidaire

Frigidaire FRT18IQGH Manual de usuario

Frigidaire

Frigidaire FRS26KR4D Manual de usuario

Frigidaire

Frigidaire FRS3LR5E Manual de usuario

Frigidaire

Frigidaire FRS6R3JW4 Manual de usuario

Frigidaire

Frigidaire FRT21NGJ Manual de usuario

Frigidaire

Frigidaire GLHS237ZA Manual de usuario

Frigidaire

Frigidaire R 1520 Manual de usuario

Frigidaire

Frigidaire FPUS2686LF Instrucciones de instalación

Frigidaire

Frigidaire FRT18B5JM - 18' Refrigerator - Mist Manual de instrucciones

Frigidaire

Frigidaire FRT18S6A Manual de usuario

Frigidaire

Frigidaire FRT21G4A Manual de usuario

Frigidaire

Frigidaire FRT21TSG Manual de usuario

Frigidaire

Frigidaire FGHB2844LE Manual de usuario

Frigidaire

Frigidaire EFMIS197 Manual del propietario

Frigidaire

Frigidaire FKCH17F7HW - 16.7 cu. Ft. Upright Freezer Instrucciones de instalación

Frigidaire

Frigidaire FRT21HC5D Manual de usuario

Frigidaire

Frigidaire FGHT1834K W Manual de usuario

Frigidaire

Frigidaire FRS24ZRH Manual de usuario

Frigidaire

Frigidaire 242321500 Manual del propietario

Frigidaire

Frigidaire FRT21FS6D Manual de usuario

Frigidaire

Frigidaire FRT21GC5J Manual de instrucciones

Frigidaire

Frigidaire FRT18INLH Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Beko

Beko LSP4579W Manual de usuario

Teledyne

Teledyne 6712FR and Instrucciones de funcionamiento
