Frigidaire FRT18L4F Manual de usuario

N05L00001.eps N05DAACCA0.eps N05BBAABA17.eps N05SAAAEF16.eps

N05CAAAAA18.eps 240398801.eps 240398601.eps

Product No. FRT18L4FW0

Series R134a

Color white

Volts 115

Wiring Diagram 240398801

Owner's Guide 241694400

Market North America

Energy Guide 241613737

Service Data Sheet 240379018

Installation Instructions 240568301

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995474474

06/09/18

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18L4F

Publication No: 5995474474 FRT18L4FW0

09/06 2

DOOR

13A

21C

N05DAACCA0

48A

48B

FRT18L4FW0 Publication No: 5995474474

# Functional Parts 3 09/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 240542115 Gasket-frzr door, white, magnetic

2 240542118 Gasket-refr door, white, magnetic

7 240337712 Door-dairy

8 240534801 Rack-door

10 240381301 Plug-button, white, hinge brg hole, (2)

11 240412501 Door, frzr, white, complete assy

12 240415201 Label-nameplate, white

13 240312403 Door Stop, white, ref

13A 240312404 Door Stop, white, frzr

14 240494001 Plug-button, white

15 240412601 Door, refr, white, complete assy

18 218668001 Handle-door, white

21 240383406 Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

37 215870629 Trim-handle, 2.47", white, w/satin AL band

48 240338101 Bin-door, pseudo, bottom

48A 240337901 Bin-door, refr

48B 240338001 Bin-door, pseudo, gallon, refr

Publication No: 5995474474 FRT18L4FW0

09/06 4

CABINET

12A

35A 36

N05BBAABA17

43 21C

21C

FRT18L4FW0 Publication No: 5995474474

# Functional Parts 5 09/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 241652301 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 241652214 Cover-evap coil

10* 240568601 Seal-coil cover

10*# 241520701 Harness-wiring, freezer

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 240369702 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433204 Screw, hex washer head, 8-18 x 5/16

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314011 Bracket-lower hinge, zinc

34 240311303 Washer, hinge, nylon, (2)

35 240313806 Bracket-ctr hinge, zinc

35A 240336802 Spacer-hinge, center

36 240516402 Pin-center hinge

37 241611301 Trim-cabinet corner, white, (2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge, white

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241709301 Roller Assy, adjustable, front, (2)

56 240516502 Pin-lower hinge

58 5304456287 Screw, hex washer head, 8-15A x 0.500

59 240442706 Screw-#10-32 X 3/4, zinc

72 240368205 Grille/Kickplate, white

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 Cover-access, with label

89* 241500304 Screw, hex washer head, 8-18AB x 0.625

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 218515401 Clip

* 240479601 Plug, button, cab liner holes

* 5303321319 Paint, touch-up, white

Publication No: 5995474474 FRT18L4FW0

09/06 6

SHELVES

25 47

N05SAAAEF16

22A

24A

123

25C

FRT18L4FW0 Publication No: 5995474474

# Functional Parts 7 09/06

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

10 215667501 Tray, ice cube, plastic

11 240358005 Shelf, freezer, full-width, wire

12 241542001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241559801 Socket-light

17 240352701 Control Box

17* 240568607 Seal

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 Timer-defrost

23* 5304455649 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240372409 Frame, sliding shelf, full width

24A 240372410 Frame, sliding shelf, full width, w/hanger tabs

25 240364713 Cover-crisper pan, with beam, humid cont

25C 241613502 Control-humidity, LH

26 240337103 Pan-crisper, clear, (2), no graphics

29 240357704 Trim-shelf, front

31 240530811 Pan-meat, w/o graphics, clear

40 240350620 Glass-shelf, 23.78" x 16.34"

41 240561502 Trim-shelf, rear

42 240530601 Track, meat pan hanger, LH

42 240530701 Track, meat pan hanger, RH

47 240350608 Insert-pan cover, 23.82" x 15.50", glass

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16

* 241613737 Energy Guide

Publication No: 5995474474 FRT18L4FW0

09/06 8

SYSTEM

17 21

N05CAAAAA18

FRT18L4FW0 Publication No: 5995474474

# Functional Parts 9 09/06

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 241682902 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 # 241607001 Harness-wiring, machine compt

6* 241520701 Harness-wiring, freezer

6* # 240388701 Wiring Harness, control box

14 # 240356214 Heater-defrost

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 241551901 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241665503 Base-compressor

22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500

23 241659701 Grommet, compressor

25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 241683601 Pan-defrost

29 # 5303918325 Compressor, w/electricals

30 216954201 Controller, compressor

32 216954300 Clip, controller

34 240405201 Grommet, rubber, black, cond tube/wire

41 240433204 Screw, hex washer head, 8-18 x 5/16

44 5304456288 Clamp-wiring harness, strain relief, galv steel

45 241500304 Screw, hex washer head, 8-18AB x 0.625

55 218909913 Capacitor, run, 220 VAC, 15 microfarad

57 240542601 Clip-wiring harness

58 218897004 Screw, hex washer head, 8-32 x 0.375

59 5304430246 Bracket-cond motor assy

59* 240346701 Tape-foam seal, shroud

59* 240359403 Screw-fan shroud, (2)

60 240525402 Motor, condensor fan

61 # 240524101 Fan Blade, galv steel, condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 Tube-drain, rubber, lower

85 241665801 Tube-connector, suction

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 5303918263 Heat Exchanger Kit, suction line

* 5303918222 Hot Tube Repair Kit, service

Publication No: 5995474474 FRT18L4FW0

09/06 10

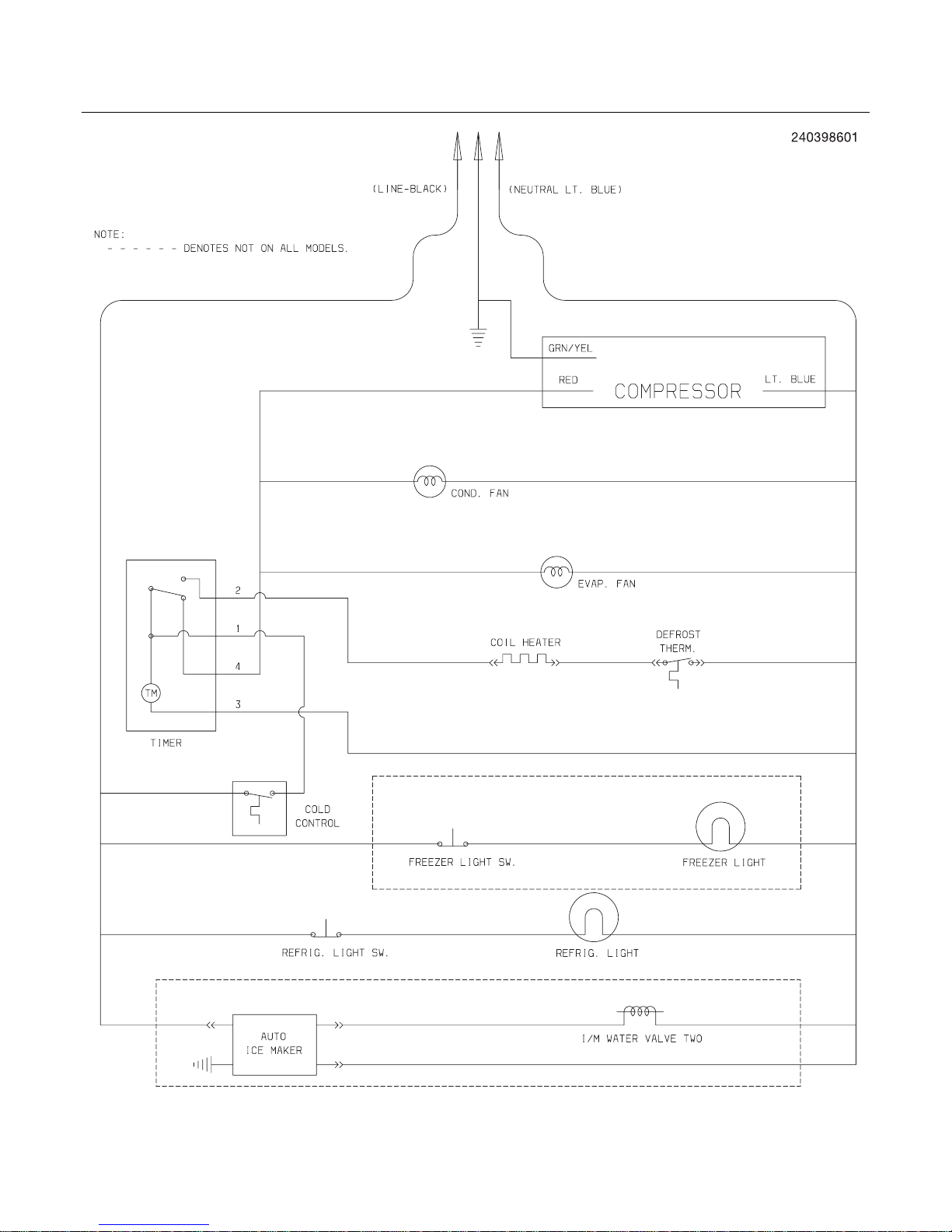

WIRING SCHEMATIC
