Frigidaire PLHS67EG Manual de usuario

N58L00001.eps N58FFDBAB1.eps N58RFCBBC6.eps N58BAAAAB7.eps

N58SKDCBD11.eps N58TCAAAB4.eps N58CAAAAA10.eps N58XEAAAA0.eps

N58YAAAAA0.eps N58I115.eps W241689601.eps S241689601.eps

Product No. PLHS67EGSB0

Series Professional

Color stain/blk

Volts 115

Wiring Diagram 241689601

Owner's Guide 241695101

Market North America

Energy Guide 241649272

Service Data Sheet 240389627

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995464962

06/04/11

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

PLHS67EG

Publication No: 5995464962 PLHS67EGSB0

04/06 2

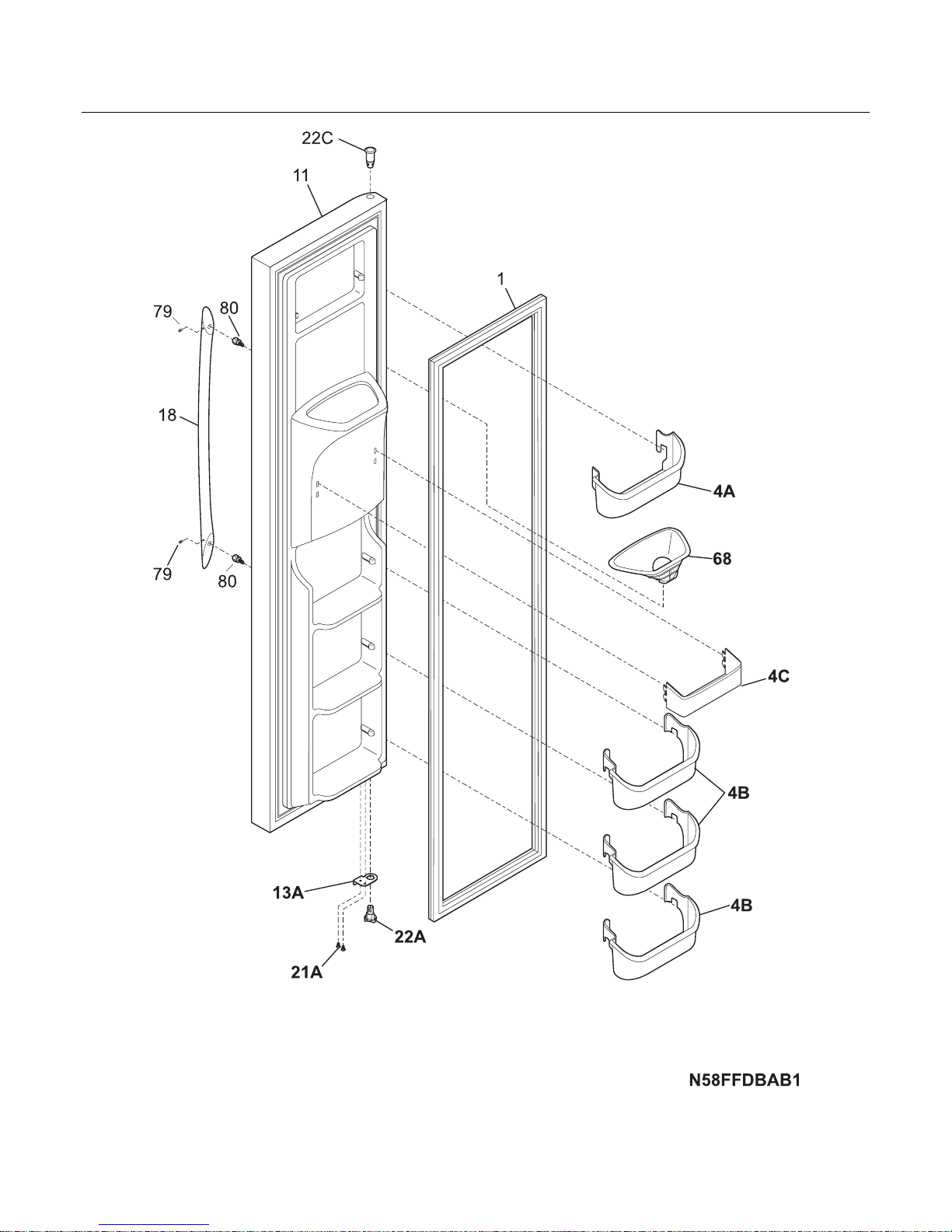

FREEZER DOOR

PLHS67EGSB0 Publication No: 5995464962

# Functional Parts 3 04/06

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241674806 Gasket-frzr door, black, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

4C 240351701 Bin-door, frzr-dispenser

11 241668500 Door-frzr, stainless, complete assy

13A 240581906 Door Stop, black, frzr

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22A 240328204 Bearing-hinge(frz), black, closer

22C 240328404 Bearing-hinge, black, upper

68 241525101 Chute-ice

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

* 240352102 Connector-water, straight

* 240552102 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995464962 PLHS67EGSB0

04/06 4

REFRIGERATOR DOOR

PLHS67EGSB0 Publication No: 5995464962

# Functional Parts 5 04/06

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241674805 Gasket-refr door, black, magnetic

4 240323002 Bin-door, pseudo, bottom

7 240326203 Door-dairy

12 240558802 Label-nameplate

13 240581905 Door Stop, black, ref

15 241534541 Door-refr, stainless steel, complete assy

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

27A 240396102 Retainer, tall bottle

49 240430312 Bin-door, gallon

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995464962 PLHS67EGSB0

04/06 6

CABINET

14A

100

21C

30A

10A

N58BAAAAB7

PLHS67EGSB0 Publication No: 5995464962

# Functional Parts 7 04/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435906 Cover-air duct

10A 240475907 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 Bracket-lower hinge, ref

30A 241603702 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327201 Bracket-upper hinge

40 241555103 Cover-hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, adjustable, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mtg, side, (2)

58 241595401 Screw-#10-32 X 3/4

66 5304424968 Damper Cover Assy

66* 240518802 Pin-push, push-in, plastic

72 240324406 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 Cover access

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes

* 5303321321 Paint, touch-up, black

Publication No: 5995464962 PLHS67EGSB0

04/06 8

SHELVES

11A

126

52A

109

51A

49B

101

N58SKDCBD11

100

25A

47A

15A

16A

26A

42A

123

24A

140

120

11C

24B

PLHS67EGSB0 Publication No: 5995464962

# Functional Parts 9 04/06

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510604 Trim-basket

11 240350668 Shelf-freezer, glass, lower

11A 240350667 Shelf-freezer, glass, upper

11C 240324101 Shelf-pizza

15A 241555401 Light Bulb

16A# 241513901 Socket-light

16A* 241537602 Harness-wiring

21 5303001001 Screw, hx wshr hd sems, 8-15A x 0.625

24 240355203 Shelf-"Spill-Safe", fixed

24A 240355205 Shelf-"Spill-Safe", fixed

24B 240350106 Shelf-"Spill-Safe", cantilever, sliding

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351005 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240362201 Control-humidity

27 240351205 Pan-crisper, lower

39 240367602 Trim-shelf, front

42 240356501 Track, meat pan hanger, RH

42A 240349701 Hanger-meat pan, LH

42A* 240349901 Block-meat pan rail, LH

42A* 240350001 Spring-meat pan rail

47 240350602 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

49B 240530504 Basket-sliding, upper, full

51 240343002 Hanger-basket, RH

51A 240395502 Hanger-basket, RH

52 240343102 Hanger-basket, LH

52A 240395602 Hanger-basket, LH

62 240342805 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy, coiled tubing, front filter

100 240326302 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 240342901 Shelf-ice cream

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

Publication No: 5995464962 PLHS67EGSB0

04/06 10

CONTROLS

149

139

138

198

199

137

200

151

150

21A

115

101

N58TCAAAB4
