Frigidaire PRFC2383AF Manual del propietario

Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352

use

care

REFRIGERATOR

A22204003 February 2022)

Introduction.......................................................2

Important Safety Information ....................3

Features..............................................................7

Installation .........................................................9

Door Removal.................................................. 11

Door Handle Installation............................. 16

Water Supply Connection.......................... 17

controls and settings................................... 19

Automatic Ice & Water Dispenser ......... 24

Ice Maker ......................................................... 28

Storage Features..........................................30

Storing Food and Saving Energy...........36

Normal Operating Sounds........................ 37

Filter Replacement ...................................... 38

Care & Cleaning ............................................. 41

Troubleshooting ..........................................43

Limited Warranty .........................................48

2INTRODUCTION

Doors

Handles are secure and tight

Door seals completely to cabinet on

all sides

Leveling

Refrigerator is level side-to-side and

slightly elevated in front to assist with

door and drawer closing (front should

be higher than back)

Cabinet is setting solid on all corners

Electrical Power

House power turned on

Refrigerator plugged in

Ice Maker(s)

House water supply connected to

refrigerator

WARNING: Potable water supply

only.

No water leaks present at all

connections - recheck in 24 hours

Ice maker(s) is/are turned ON

Ice & water dispenser operates

correctly

Final Checks

Shipping material removed

Refrigerator and freezer temperatures

set

Registration card sent in

Installation Checklist



Welcome to our family

Thank you for bringing Frigidaire into

your home! We see your purchase as the

beginning of a long relationship together.

This manual is your resource for the use

and care of your product. Please read

it before using your appliance. Keep it

handy for quick reference. If something

doesn’t seem right, the troubleshooting

section will help you with common issues.

FAQs, helpful tips and videos, cleaning

products, and kitchen and home accessories

are available at www.frigidaire.com.

We are here for you! Visit our website,

chat with an agent, or call us if you need

help. We may be able to help you avoid

a service visit. If you do need service, we

can get that started for you.

Let’s make it ocial! Be sure to register

your product.

Keep your product info here so it’s easy

to ﬁnd.

Model Number

Serial Number

Purchase Date

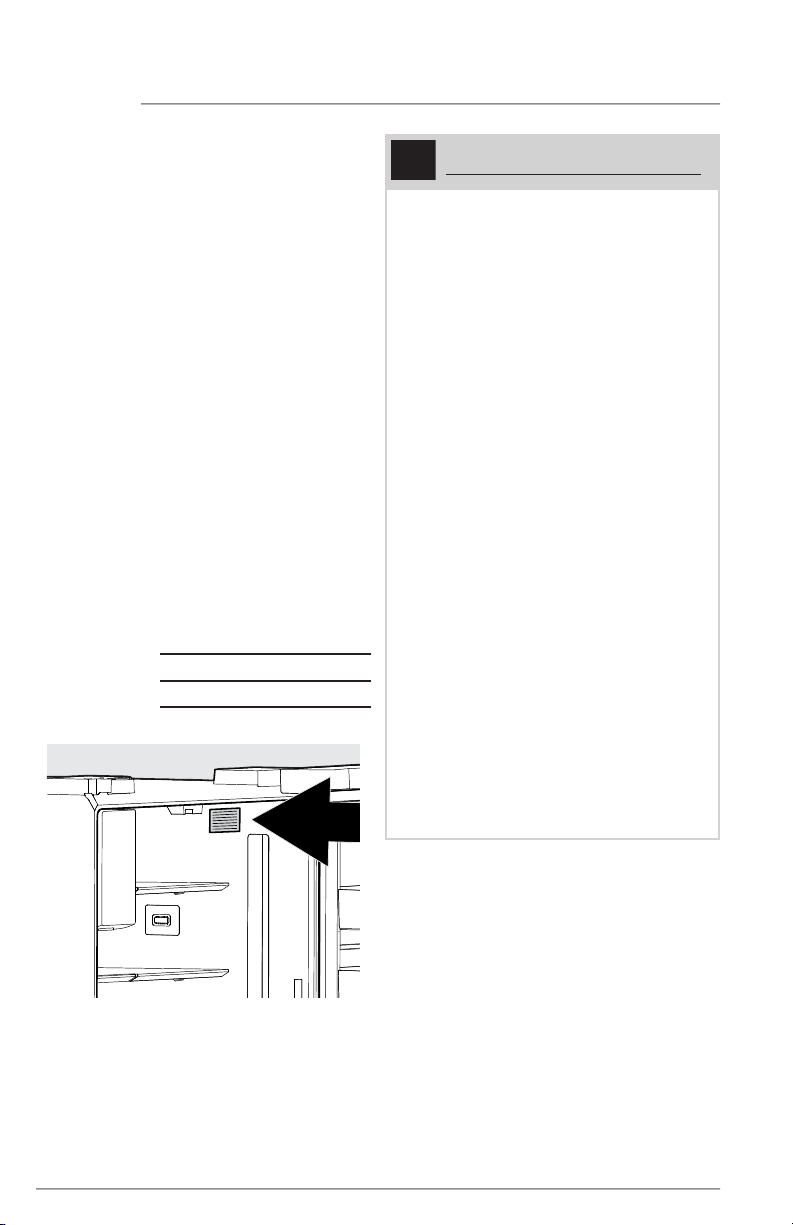

Serial Number Location

WARNING

WARNING indicates a potentially

hazardous situation which, if not avoided,

could result in death or serious injury.

IMPORTANT

IMPORTANT indicates installation, oper-

ation or maintenance information which

is important but not hazard-related.

DANGER

DANGER indicates an imminently

hazardous situation which, if not avoided,

will result in death or serious injury.

CAUTION

CAUTION indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

Safety Deﬁnitions

This is the safety alert symbol. It is

used to alert of potential personal injury

hazards. Obey all safety messages that

follow this symbol to avoid possible injury

or death.

WARNING

Please read all instructions before using

this appliance.

IMPORTANT SAFETY INFORMATION

CAUTION

CAUTION Risk of ﬁre or explosion.

Dispose of refrigerator properly

in accordance with the applicable

federal or local regulations. Flammable

refrigerant used.

CAUTION Risk of ﬁre or explosion

due to puncture of refrigerant tubing.

Follow handling instructions carefully.

Flammable refrigerant used.

DANGER

DANGER Risk of ﬁre or explosion.

Flammable refrigerant used. Do not use

mechanical devices to defrost refrigera-

tor. Do not puncture refrigerant tubing.

DANGER Risk of ﬁre or explosion.

Flammable refrigerant used. To be re-

paired only by trained service person-

nel. Use only manufacturer-authorized

service parts. Any repair equipment

used must be designed for ﬂammable

refrigerants. Follow all manufacturer

repair instructions. Do not puncture

refrigerant tubing.

WARNING

CALIFORNIA RESIDENTS ONLY

WARNING! Cancer and Reproductive Harm

www.P65Warnings.ca.gov

IMPORTANT

CFC/HCFC Disposal

Your old refrigerator may have a cool-

ing system that used CFCs or HCFCs

(chloroﬂuorocarbons or hydrochloroﬂuo-

rocarbons). CFCs and HCFCs are believed

to harm stratospheric ozone if released to

the atmosphere. Other refrigerants may

also cause harm to the environment if

released to the atmosphere.

If you are throwing away your old refrig-

erator, make sure the refrigerant is re-

moved for proper disposal by a qualiﬁed

technician. If you intentionally release

refrigerant, you may be subject to ﬁnes

and imprisonment under provisions of

environmental legislation.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appliance

recycling/disposal methods. Check with your

utility company or visit www.energystar.gov/

recycle for more information on recycling

your old refrigerator.

Before you throw away your old

refrigerator/freezer:

• Remove doors.

• Leave shelves in place so children

may not easily climb inside.

• Have refrigerant removed by a

qualiﬁed service technician.

IMPORTANT SAFETY INFORMATION

Safety Instructions

• DO NOT store or use gasoline,

or other ﬂammable liquids in

the vicinity of this or any other

appliance. Read product labels for

warnings regarding ﬂammability and

other hazards.

• DO NOT operate the refrigerator in

the presence of explosive fumes.

• Avoid contact with any moving parts

of automatic ice maker.

• Remove all staples from the carton.

Staples can cause severe cuts, and

also destroy ﬁnishes if they come

in contact with other appliances or

furniture.

Child Safety

Destroy or recycle the carton, plastic

bags, and any exterior wrapping material

immediately after the refrigerator is

unpacked. Children should NEVER use

these items to play. Cartons covered with

rugs, bedspreads, plastic sheets or stretch

wrap may become airtight chambers, and

can quickly cause suocation.

WARNING

Do not use electrical appliances inside

the food storage compartments of the

appliance unless they are of the type

recommended by the manufacturer.

Proper Disposal of your

Refrigerator or Freezer

Risk of child entrapment

Child entrapment and suocation are

not problems of the past. Junked or

abandoned refrigerators or freezers are

still dangerous – even if they will sit for

“just a few days”. If you are getting rid

of your old refrigerator or freezer, please

follow the instructions below to help

prevent accidents.

Electrical information

• The refrigerator must be plugged

into its own dedicated 115 Volt, 60

Hz., 15 Amp, AC only electrical outlet.

The power cord of the appliance

is equipped with a three-prong

grounding plug for your protection

against electrical shock hazards.

It must be plugged directly into

a properly grounded three-prong

receptacle. The receptacle must be

installed in accordance with local

codes and ordinances. Consult

a qualiﬁed electrician. Avoid

connecting refrigerator to a Ground

Fault Interrupter (GFI) circuit. Do

not use an extension cord or adapter

plug.

• If the power cord is damaged, it

should be replaced by an authorized

service technician to prevent any

risk.

• Never unplug the refrigerator by

pulling on the power cord. Always

grip the plug ﬁrmly, and pull straight

out from the receptacle to prevent

damaging the power cord.

• Unplug the refrigerator before

cleaning to avoid electrical shock.

• Performance may be aected if

the voltage varies by 10% or more.

Operating the refrigerator with

insucient power can damage the

compressor. Such damage is not

covered under your warranty.

• Do not plug the unit into an

electrical outlet controlled by a wall

switch or pull cord to prevent the

refrigerator from being turned o

accidentally.

IMPORTANT

To turn o power to your refrigerator

you must unplug the power cord from

the electrical outlet.

Grounding type wall receptacle

Power cord with

3-prong grounded plug

Do not, under

any circumstances,

cut, remove,

or bypass the

grounding prong.

CAUTION

To avoid personal injury or property

damage, handle tempered glass shelves

carefully. Shelves may break suddenly

if nicked, scratched, or exposed to

sudden temperature change.

IMPORTANT SAFETY INFORMATION

IMPORTANT

Accessories are available for your appliance and may be purchased at

Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in

Canada) or from an authorized seller.

AWater Filter

BCondiment Bin

CL-Shaped Bin

DDairy Bin

EFlipper Mullion

FGallon Bin

GSlim Bin

HFresh Food Ice Maker & Bin

IFlipper Guide

JAir Filter

KSlide Under ¼& ½ width shelves

LEdge-to-edge Glass Shelving

MStandard bins

NCrisper Drawers

OAdjustable Temp Drawer (ATD)

ATD Controls

Upper Freezer Basket

RLower Freezer Basket

SFreezer Ice Maker

TSide control Display(Functions)

UExternal Control Display

(Ice/Water)

FEATURES

External Water Dispenser Model

FEATURES

IMPORTANT

Accessories are available for your appliance and may be purchased at

Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in

Canada) or from an authorized seller.

AWater Filter

BCondiment Bin

CL-Shaped Bin

DDairy Bin

EFlipper Mullion

FInternal Water Dispenser

GStandard Bin

HFlipper Guide

IAir Filter

JSlide Under ½ width shelves

KEdge-to-edge Glass Shelving

LStandard Bin

MCrisper Drawers

NAdjustable Temp Drawer (ATD)

ATD Controls

Upper Freezer Basket

QLower Freezer Basket

RFreezer Ice Maker

SSide Control Display

Internal Water Dispenser Model

B B

CAUTION

Do Not install the refrigerator where

the temperature will drop below 55°F

(13°C) or rise above 110°F (43°C).

The compressor will not be able to

maintain proper temperatures inside

the refrigerator.

This Use & Care Manual provides general

installation and operating instructions

for your model. We recommend

using a service or kitchen contracting

professional to install your refrigerator.

Use the refrigerator only as instructed in

this Use & Care Manual. Before starting

the refrigerator, follow these important

ﬁrst steps.

Location

• Choose a place that is near a

grounded, non-GFCI, electrical

outlet. Do Not use an extension cord

or an adapter plug.

• If possible, place the refrigerator

out of direct sunlight and away from

the range, dishwasher, or other heat

sources.

• The refrigerator must be installed

on a ﬂoor that is level and strong

enough to support a fully loaded

refrigerator.

• Consider water supply availability

for models equipped with an

automatic ice maker.

Top Hinge

Cover Front

Screw

Top Hinge

Cover Rear

Screw

Lower

Hinge

Screw

Top

Hinge

Screw

Components Provided:

Tools Necessary:

Phillips Head

Quadrex Head

Screwdriver

(OR) OR

⅜" and ¼"

Socket

Wrench

Adjustable

Wrench

⅜"

Fixed

Wrench

ANDAND

6mm

Allen Wrench

INSTALLATION

WARNING

Installation

Allow the following clearances

for ease of installation, proper air

circulation, and plumbing and electrical

connections:

• Sides & Top ³⁄8inch (9.5 mm)

• Back 1 inch (25.4 mm)

WARNING

This appliance is intended for use

in residential household and similar

interior applications such as:

• Kitchen / Kitchenette

• Pantry Room

• Basement

• Enclosed Garage

• Other interior residential type

environments

NOTE

If your refrigerator is placed with the

door hinge side against a wall, you may

have to allow additional space so the

door can be opened wider.

NOTE

Product is shipped with doors adjusted

to the lowest position on the hinges.

INSTALLATION

Door opening

Your refrigerator should be positioned

to allow easy access to a counter

when removing food. For best use of

refrigerator drawers and freezer baskets,

the refrigerator should be in a position

where both can be fully opened.

3. Ensure both doors are bind-free with

their seals touching the cabinet on all

four sides and that cabinet is stable.

4. After unit is leveled, lower the anti-

tip leg until it ﬁrmly contacts the

ﬂoor. An adjustable wrench may be

necessary for adjustment.

Cabinet Leveling & Refrigerator

Door Alignment (if necessary)

Guidelines for ﬁnal positioning of refrigerator:

• All four corners of the cabinet must

rest ﬁrmly on the ﬂoor.

• The front should be slightly elevated

to ensure that doors close and seal

properly.

• Doors should align with each other

and be level.

Most of these conditions can be met by

raising or lowering the adjustable front rollers.

To level the cabinet using the front rollers:

1. Slightly open freezer drawer to

reveal adjustable rollers at bottom of

cabinet.

2. Use the front roller height adjusting

screws to make initial cabinet

adjustments. Use a 3/8 inch socket

wrench to turn the adjustment

screws (1 per side).

To raise unit: Turn adjustment

screw clockwise.

To lower unit: Turn adjustment screw

counterclockwise.

Door

To make ﬁnal door height adjustments:

1. Open freezer drawer to access

hinges for fresh food doors.

2. Insert 6mm AllenTM wrench into the

shaft of the lower hinge. (Included

with unit)

To lower door: turn adjustment

screw counter-clockwise if looking

at the door from below.

To raise door: turn adjustment

screw clockwise if looking at the

door from below.

Raise

Lower

Anti-tip

Leg

10 INSTALLATION

Adjusting Flipper Mullion Screw

2. Adjust ﬂipper mullion height. For

proper connection with the ﬂipper

mullion guide, there should be a

separation about the thickness of

a coin (0.060 inches, or 1.5 mm)

between the guide and ﬂipper

mullion.

3. Re-tighten screws.

To adjust the ﬂipper mullion:

1. Loosen the two screws located on

the ﬂipper mullion hinge.

Adjusting Flipper Mullion Height

Flipper

Mullion

Screws

Flipper Mullion

Adjust Flipper Mullion for proper

connection with the mullion guide by

ensuring the ﬂipper mullion is folded and

perpendicular to the fresh food door. If

the mullion guide is not in the correct

position, it could prevent the door from

closing completely.

WRONG

Flipper

Mullion

Guide

Thickness

of a Coin

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Frigidaire

Frigidaire

Frigidaire FGHS2634KQ - Gallery 26 cu. Ft. Refrigerator Guía del usuario

Frigidaire

Frigidaire EFMIS121-RED Manual del propietario

Frigidaire

Frigidaire FRT18NNG Manual de usuario

Frigidaire

Frigidaire FGHT1846Q F Manual de lista de piezas

Frigidaire

Frigidaire FGUS2647LF Instrucciones de instalación

Frigidaire

Frigidaire FRT18IB4A Manual de usuario

Frigidaire

Frigidaire FRT15B3A Manual de usuario

Frigidaire

Frigidaire FGHT1844KF - Gallery 18.28 cu. Ft. Top Freezer... Manual de usuario

Frigidaire

Frigidaire FGHC2345LF Manual de usuario

Frigidaire

Frigidaire FFHT1513LB Manual del propietario

Frigidaire

Frigidaire FRT18S6A Manual de usuario

Frigidaire

Frigidaire FRT21S6J Manual de instrucciones

Frigidaire

Frigidaire DF35A Manual de usuario

Frigidaire

Frigidaire FRS26KF5CQ1 Manual de usuario

Frigidaire

Frigidaire FRS3HF6JSB - 22.6 cu. Ft. Refrigerator Guía del usuario

Frigidaire

Frigidaire PLHS238ZC Manual de usuario

Frigidaire

Frigidaire FRT21FG3D Manual de usuario

Frigidaire

Frigidaire 242108500 Manual de usuario

Frigidaire

Frigidaire FRS3R3J Manual de instrucciones

Frigidaire

Frigidaire FRT15G4B Manual de usuario

Frigidaire

Frigidaire FRT18GS6A Manual de usuario

Frigidaire

Frigidaire FRT17G5A Manual de usuario

Frigidaire

Frigidaire FRT17G4A Manual de usuario

Frigidaire

Frigidaire GLRSF266J Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Beko

Beko LSP4579W Manual de usuario

Teledyne

Teledyne 6712FR and Instrucciones de funcionamiento
