Frigidaire FRT21C5A Manual de usuario

N05L00004.eps N05DBDCKA0.eps N05BBAABA6.eps N05SAAAEA13.eps

N05CABBAB6.eps 240398801.eps 240398601.eps

Product No. FRT21C5AQF

Series R134a

Color bisque

Volts 115

Wiring Diagram 240398801

Owner's Guide 240400112

Market North America

Service Data Sheet 240379014

Installation Instructions 240568300

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995427118

05/01/19

(EN/SERVICE/DCS)

357

TOP-MOUNT

REFRIGERATOR

Model No.

FRT21C5A

Publication No: 5995427118 FRT21C5AQF

01/05 2

DOOR

21A

18A

13A

21C

22 18A

21A

N05DBDCKA0

FRT21C5AQF Publication No: 5995427118

# Functional Parts 3 01/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 240514607 Gasket, seal, white, frzr door, magnetic

2 # 240514608 Gasket, seal, white, refr door, magnetic

4 240534901 Rack-door

4B 240534701 Rack-door, 4B

7 240337703 Door-dairy, w/o graphics, clear

8 240534801 Rack-door

10 240381302 Plug-button, bisque, hinge brg hole, (2)

11 240450305 Door, frzr, bisque

12 240415203 Label-nameplate, bisque

13 240312407 Door Stop, bisque, ref

13A 240312408 Door Stop, bisque, frzr

14 240494002 Plug-button, bisque

15 240450405 Door, refr, bisque

18A 218428119 Handle-door, bisque, w/block & screw

21 240383401 Screw, truss hd quad, #10-16 x .500

21A 240521301 Screw, #10-16 x 1/2

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995427118 FRT21C5AQF

01/05 4

CABINET

FRT21C5AQF Publication No: 5995427118

# Functional Parts 5 01/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355402 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240313610 Cover-evap coil, w/o light

10* 240568606 Seal-coil cover

10*# 240524701 Wiring Harness, freezer section

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 240369702 Motor-evap fan

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head, 8-18 x 0.375

18 240411901 Support-evap cover, (2)

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774919 Plug-button, bisque, upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314001 Bracket-lower hinge, zinc

34 240311303 Washer, hinge, nylon, (2)

35 240313801 Bracket-ctr hinge, zinc

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 240337604 Trim-cabinet corner, bisque, (2)

38 240313701 Bracket-upper hinge

40 240354403 Cover-upper hinge, bisque

41 5303001609 Grommet, shelf mtg, 0.69", RH

41* 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442701 Screw-#10-32 X 3/4, zinc

72 240368206 Grille/Kickplate, bisque

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 Cover-access, w/label

89* 241500301 Screw, hex washer head, 8-18AB x 0.500

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 Plug, button, cab liner holes, (2)

* 5304414035 Paint, touch-up, bisque

Publication No: 5995427118 FRT21C5AQF

01/05 6

SHELVES

FRT21C5AQF Publication No: 5995427118

# Functional Parts 7 01/05

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

10 215667501 Tray, ice cube, plastic

11 240358003 Shelf, freezer, full-width, wire

12 240545901 Diffuser-air, top

13 240362601 Diffuser, air, bottom

14# 241554901 Switch-light/lamp

15 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241500701 Socket-light/lamp

17 240368101 Control Box

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 5303916855 Tube, sensor sleeve, plastic, clear

23 # 215846606 Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360904 Shelf, sliding, wire

25 240364717 Cover-crisper pan

25B 240361202 Knob, humidity cont.

25C 240361301 Damper, humidity cont.

26 240343801 Pan-crisper, (2)

30 240361801 Cover, meat pan hanger, drop through

31 240530803 Pan-meat, w/o graphics, clear

47 240350609 Insert-pan cover, glass

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995427118 FRT21C5AQF

01/05 8

SYSTEM

N05CABBAB6

FRT21C5AQF Publication No: 5995427118

# Functional Parts 9 01/05

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 240444401 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 240581701 Harness-wiring, machine compt

6* # 240388701 Wiring Harness, control box

6* # 240524701 Wiring Harness, freezer section

6* # 240581801 Harness-wiring, compressor

14 # 5303918247 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 240518402 Insulation, evap block, foam, LH/RH

21 # 5303918202 Thermostat-defrost, kit

22 241602001 Base-compressor

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332602 Pan-defrost drain

29 # 5303918297 Compressor, w/electricals

30 # 5304433579 Relay

31 # 5304433578 Overload Protector

34 240405201 Grommet, rubber, black, cond tube/wire

41 240555001 Screw-#8-32 X 3/8

44 215174700 Clamp-service cord, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

56 240582001 Cover-terminal

57 240542601 Clip-wiring harness

58 218897002 Screw, hex washer head, 8-32 x 0.375

59 5304430246 Bracket-cond motor assy

59* 240346701 Tape-foam seal, shroud

59* 240359401 Screw-fan shroud, (2)

60 # 240525402 Motor, condensor fan

61 # 240524101 Fan Blade, galv steel, condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 240493101 Tube-connector, suction

86 240409302 Spacer-cond tube, black

* 5303918210 Heat Exchanger Kit, suction line

* # 5304421289 Hot Tube Repair Kit, service

Publication No: 5995427118 FRT21C5AQF

01/05 10

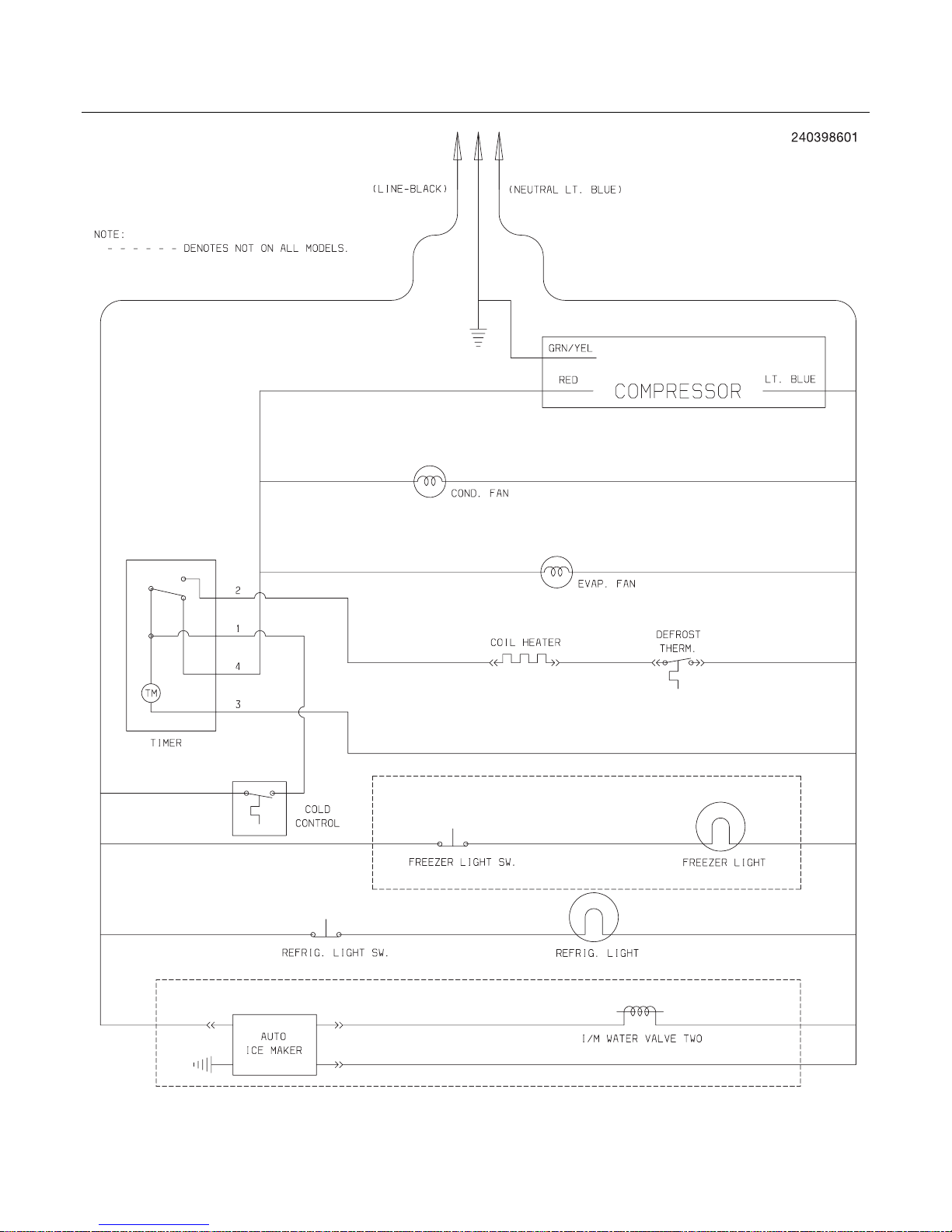

WIRING SCHEMATIC
