Frigidaire FRT21HS6D Manual de usuario

Product No. FRT21HS6DB9 FRT21HS6DQ9 FRT21HS6DW9

Series R134a R134a R134a

Color black bisque white

Volts 115 115 115

Wiring Diagram 240398801 240398801 240398801

Owner's Guide 240400112 240400112 240400112

Market North America North America North America

Energy Guide 241538724 241538724 241538724

Service Data Sheet 240379014 240379014 240379014

Installation Instructions 240568300 240568300 240568300

N05L00003.eps N05DCDBCA1.eps N05BBAABA22.eps N05SABAFI1C.eps

N05CAAAAC3.eps 240398801.eps 240398601.eps

u x Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995453379

05/11/07

(EN/SERVICE/WC)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT21HS6D

Publication No: 5995453379 FRT21HS6D

11/05 2

DOOR

48A

48B

13A

21C

N05DCDBCA1

21 14B

14B

18A

FRT21HS6D Publication No: 5995453379

# Functional Parts 3 11/05

* Non-Illustrated Parts

DOOR

Model Index: AFRT21HS6D (FRT21HS6DB9)

BFRT21HS6D (FRT21HS6DQ9)

CFRT21HS6D (FRT21HS6DW9)

POS. NO PART NO. DESCRIPTION

1 # 240514611 A - - Gasket, seal, black, frzr door, magnetic

1 # 240514607 - B C Gasket, seal, white, frzr door, magnetic

2 # 240514612 A - - Gasket, seal, black, refr door, magnetic

2 # 240514608 - B C Gasket, seal, white, refr door, magnetic

7 240337703 A B C Door-dairy, w/o graphics, clear

10 240381303 A - - Plug-button, black, hinge brg hole

10 240381302 - B - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - - C Plug-button, white, hinge brg hole, (2)

11 240450312 A - - Door, frzr, black

11 240450306 - B - Door, frzr, bisque

11 240450302 - - C Door, frzr, white

12 240416304 A - - Nameplate, black

12 240416303 - B - Label-nameplate, bisque

12 240416301 - - C Label-nameplate, white

13 240312405 A - - Door Stop, black, refr

13 240312407 - B - Door Stop, bisque, ref

13 240312403 - - C Door Stop, white, ref

13A 240312406 A - - Door Stop, black, frzr

13A 240312408 - B - Door Stop, bisque, frzr

13A 240312404 - - C Door Stop, white, frzr

14 240494003 A - - Plug-button, black

14 240494002 - B - Plug-button, bisque

14 240494001 - - C Plug-button, white

14B 240383603 A - - Plug-button, black, door handle

14B 240383602 - B - Plug-button, bisque, door handle

14B 240383601 - - C Plug-button, white, door handle

15 240450412 A - - Door, refr, black

15 240450406 - B - Door-refr, refr, bisque, complete assy

15 240450402 - - C Door, refr, white

18 240339203 A - - Handle-door, black, refr-LH/frzr-RH

18 240339204 - B - Handle-door, bisque, refr-LH/frzr-RH

18 240339201 - - C Handle-door, white, refr-LH/frzr-RH

18A 240339208 A - - Handle-door, black, refr-RH/frzr-LH

18A 240339209 - B - Handle-door, bisque, refr-RH/frzr-LH

18A 240339206 - - C Handle-door, white, refr-RH/frzr-LH

21 240383401 A B C Screw, truss hd quad, #10-16 x .500

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A - - Bearing-hinge, black

22 240527101 - B C Bearing-hinge, natural color

48 240338101 A B C Bin-door, pseudo, bottom

48A 240337901 A B C Bin-door, refr

48B 240338001 A B C Bin-door, pseudo, gallon, refr

49 240495804 A B C Bin-door, pseudo, frzr

Publication No: 5995453379 FRT21HS6D

11/05 4

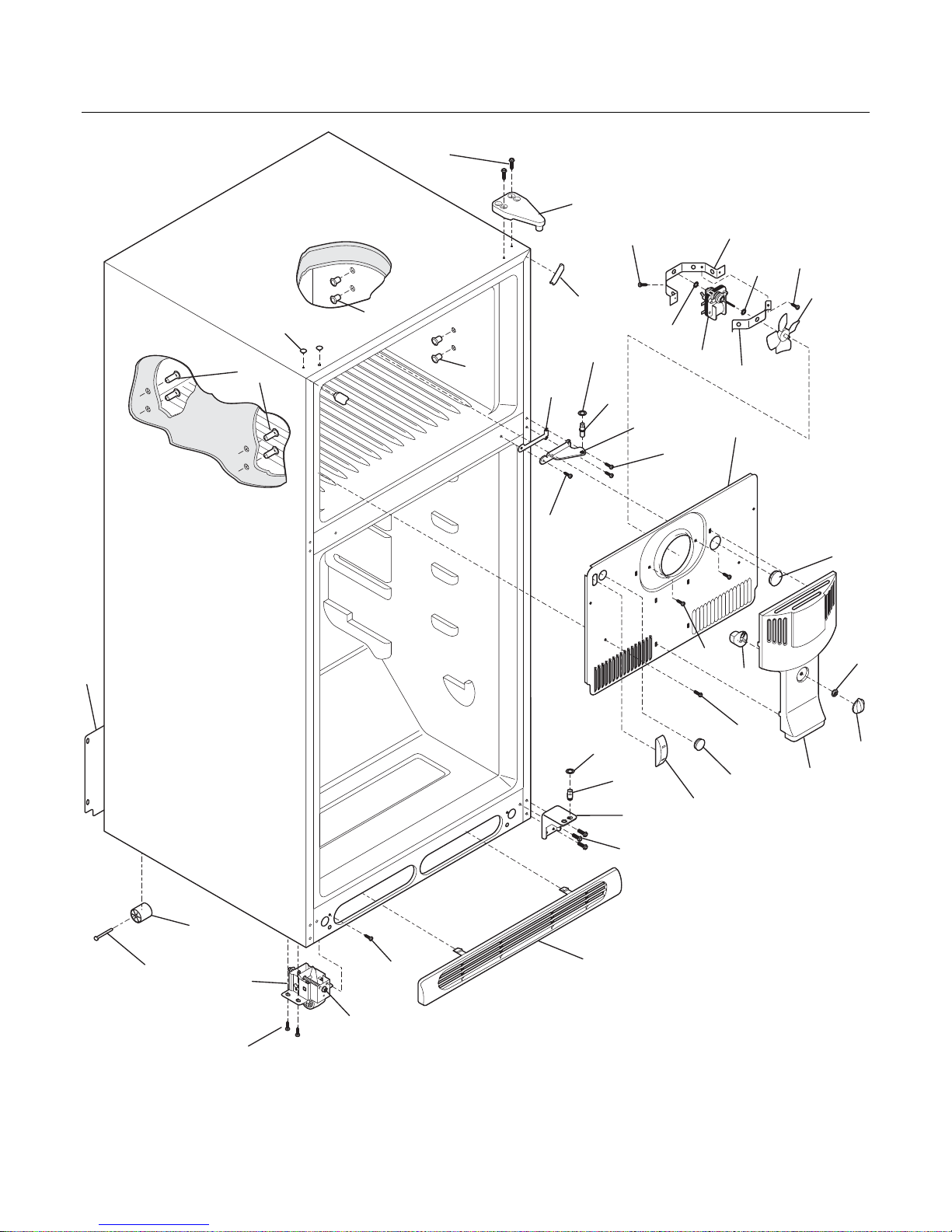

CABINET

12A

35A 36

N05BBAABA22

43 21C

21C

FRT21HS6D Publication No: 5995453379

# Functional Parts 5 11/05

* Non-Illustrated Parts

CABINET

Model Index: AFRT21HS6D (FRT21HS6DB9)

BFRT21HS6D (FRT21HS6DQ9)

CFRT21HS6D (FRT21HS6DW9)

POS. NO PART NO. DESCRIPTION

1 240355402 A B C Cover-fan

2 240367001 A B C Knob-damper control

3 5303001028 A B C Nut, push-on

4 241523701 A B C Damper-fan cover

5 5308000010 A B C Fan Blade, red, evaporator fan

8 5300157666 A B C Bushing-motor mtg, (2)

9 5303292396 A B C Bracket-motor mtg, front

10 240313610 A B C Cover-evap coil, w/o light

10* 240568606 A B C Seal-coil cover

10*# 240524701 A B C Wiring Harness, freezer section

11 5303208309 A B C Plug-hole, factory test

12 241557601 A B C Plug-ice maker harness, rectangular

12* 218843800 A B C Screw, hex wshr hd, 8-15A x 0.500

12A 240374401 A B C Plug-wtr inlet tube, round, 1"

12A* 240566301 A B C Plug-wtr inlet tube, round

12A* 241586701 A B C Plug-foam-wtr-inlet, round

13# 240369702 A B C Motor-evap fan

13* 218931001 A B C Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B C Bracket-motor mtg, rear

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A - - Plug-button, black, upr hinge holes

22 215774919 - B - Plug-button, bisque, upr hinge holes

22 215774901 - - C Plug-button, white, upr hinge holes

28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 A - - Bracket-lower hinge, black

30 240314001 - B C Bracket-lower hinge, zinc

34 240311303 A B C Washer, hinge, nylon, (2)

35 240313803 A - - Bracket-ctr hinge, black

35 240313801 - B C Bracket-ctr hinge, zinc

35A 240336802 A B C Spacer-hinge, center

36 240516401 A B C Pin-center hinge

37 240337603 A - - Trim-cabinet corner, black, (2)

37 240337604 - B - Trim-cabinet corner, bisque, (2)

37 240337601 - - C Trim-cabinet corner, white, (2)

38 241622603 A - - Hinge-up-plastic-blk, plastic, black

38 241622604 - B - Hinge-up-plastic-bis, plastic, bisque

38 241622601 - - C Hinge-up-plastc-wht, plastic, white

41 5308009759 A B C Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C Roller Assy, adjustable,front, (2)

56 240516501 A B C Pin-lower hinge

58 5303001343 A B C Screw, hex washer head, 8-15A x 0.500

59 240442703 A - - Screw-#10-32 X 3/4, black

59 240442701 - B C Screw-#10-32 X 3/4, zinc

72 240368207 A - - Grille/Kickplate, black

72 240368206 - B - Grille/Kickplate, bisque

72 240368205 - - C Grille/Kickplate, white

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995453379 FRT21HS6D

11/05 6

CABINET

12A

35A 36

N05BBAABA22

43 21C

21C

FRT21HS6D Publication No: 5995453379

# Functional Parts 7 11/05

* Non-Illustrated Parts

CABINET

Model Index: AFRT21HS6D (FRT21HS6DB9)

BFRT21HS6D (FRT21HS6DQ9)

CFRT21HS6D (FRT21HS6DW9)

POS. NO PART NO. DESCRIPTION

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 A B C Cover-access, w/label

89* 241500301 A B C Screw, hex washer head, 8-18AB x 0.500

92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 A B C Plug, button, cab liner holes, (2)

* 5303305345 A - - Paint, touch-up, black

* 5304414035 - B - Paint, touch-up, bisque

* 5303305324 - - C Paint, touch-up, white

Publication No: 5995453379 FRT21HS6D

11/05 8

SHELVES

FRT21HS6D Publication No: 5995453379

# Functional Parts 9 11/05

* Non-Illustrated Parts

SHELVES

Model Index: AFRT21HS6D (FRT21HS6DB9)

BFRT21HS6D (FRT21HS6DQ9)

CFRT21HS6D (FRT21HS6DW9)

POS. NO PART NO. DESCRIPTION

10 215667501 A B C Tray, ice cube, plastic

11 240358006 A B C Shelf, freezer, full-width, wire

11* 5303299664 A B C Spacer, shelf

12 240545901 A B C Diffuser-air, top

13 240362601 A B C Diffuser, air, bottom

14 # 241554901 A B C Switch-light/lamp

15 240436702 A B C Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241559801 A B C Socket-light

17 240368101 A B C Control Box

17*# 240388701 A B C Wiring Harness, control box

18 240360801 A B C Knob, temp control

21# 5304445058 A B C Control-temperature

22A 5303916855 A B C Tube, sensor sleeve, plastic, clear

23 # 215846606 A B C Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240358909 A B C Shelf-"Spill-Safe", sliding

24A 240358910 A B C Shelf-"Spill-Safe", sliding, meat pan track

25 240364718 A B C Cover-crisper pan

25B 240361201 A B C Control-humidity

25C 240361301 A B C Damper, humidity cont.

26 240343803 A B C Pan, crisper, (2)

31 240530803 A B C Pan-meat, w/o graphics, clear

34 240385201 A B C Container, ice bin

47 240350654 A B C Insert-pan cover, glass

58 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

* 241538724 A B C Energy Guide

Publication No: 5995453379 FRT21HS6D

11/05 10

SYSTEM

61B

59B

59A

59A 58

N05CAAAAC3
