Frigidaire FRT12B2D Manual de usuario

N05L00004.eps PFRT12B2DW0.tif 334851.eps

Product No. FRT12B2DK0 FRT12B2DW0

Color white (LH) white (RH)

Volts 115 115

Wiring Diagram 334851 334851

Owner's Guide 5304454793 5304454793

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995461414

06/02/21

(EN/SERVICE/DCS)

099

TOP-MOUNT

REFRIGERATOR

Model No.

FRT12B2D

Publication No: 5995461414 FRT12B2D

02/06 2

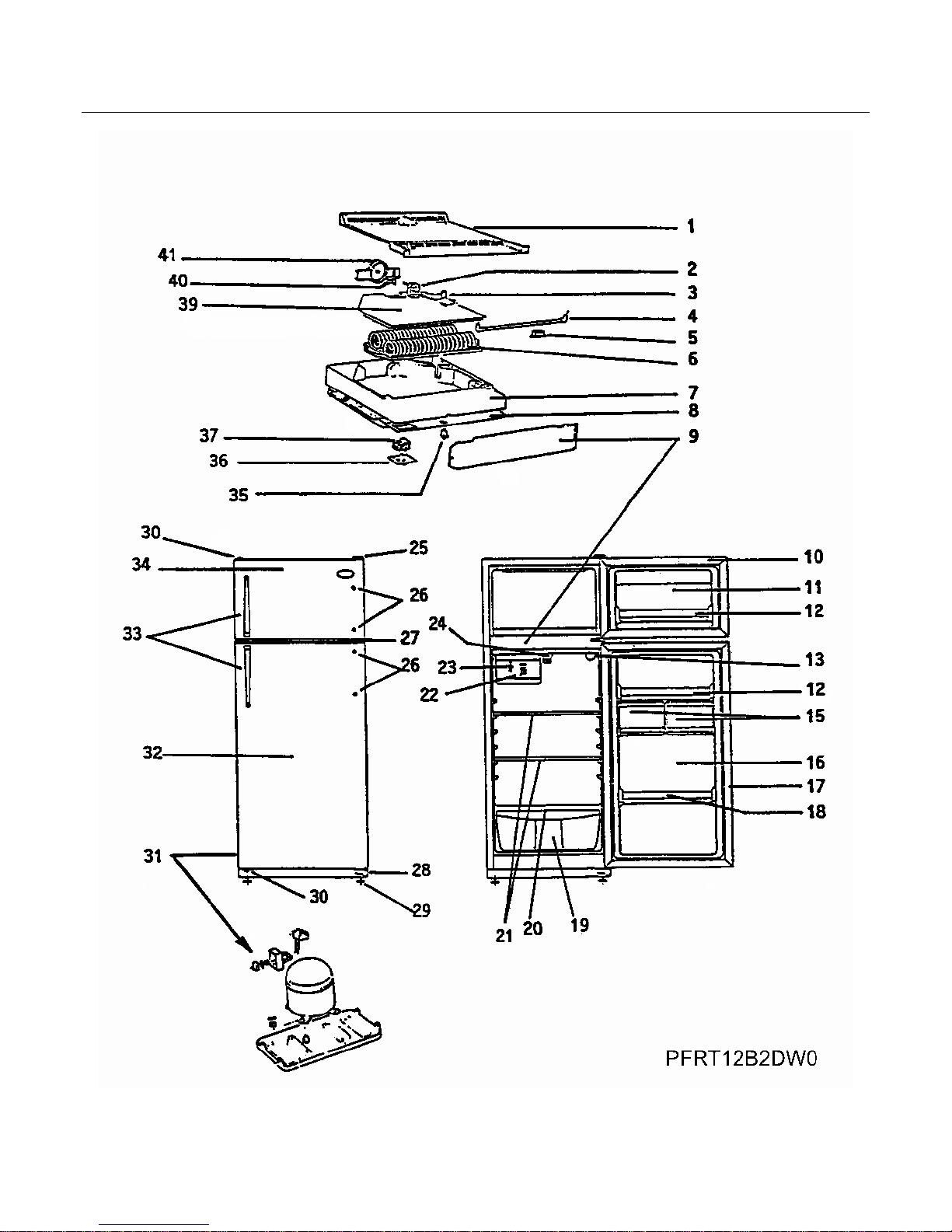

RECOMMENDED SPARE PARTS

FRT12B2D Publication No: 5995461414

# Functional Parts 3 02/06

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

Model Index: AFRT12B2D (FRT12B2DK0)

BFRT12B2D (FRT12B2DW0)

POS. NO PART NO. DESCRIPTION

1 5304454703 A B Liner, plastic, freezer bottom

2 5304454704 A B Motor, fan refr, 115 V

3 5304454705 A B Bracket-motor mtg

4 5304454706 A B Heater-defrost

5 # 5304454707 A B Thermostat, defrost

6 # 5304454708 A B Evaporator, assy

6A*# 5304454709 A B Heat Exchanger

7 5304454710 A B Housing, evaporator assy

7A* 5304454711 A B Plug, evap/housing

7B* 5304454712 A B Pan, drain holes, evaporator

8 5304454713 A B Liner, metal, refr top

9 5304454714 A B Cover, kit, mullion

10 # 5304454715 A B Gasket-frzr door, kit, magnetic

10A* 5304454716 A B Screw, gasket

11 5304454717 A B Liner, kit, freezer door

12 5304454718 A B Rack-door

13 5304454719 A B Bulb-light, 40W, 115V-125V

13A* 5304454720 A B Socket-light/lamp

13B* 5304454721 A B Harness-wiring, internal

15 5304454722 A B Door-dairy, (2)

16 5304454723 A B Liner, kit, refr door

17 # 5304454724 A B Gasket-refr door, kit, magnetic

18 5304454725 A B Rack-door

19 5304454726 A B Pan-crisper

20 5304454727 A B Cover-crisper pan

21 5304454728 A B Shelf, wire, 2

21A* 5304454729 A B Trim-shelf, plastic, front

22 5304454730 A B Housing-control, kit, refr

22A* 5304454731 A B Label-control box

22B* 5304454732 A B Insulation-housing, control

23 # 5304454733 A B Control-temperature

23A* 5304454734 A B Knob-control

24 5304454735 A B Cup-drain

24A* 5304454736 A B Elbow-drain

24B* 5304454737 A B Tube-drain, kit, external

25 5304454738 A B Hinge-upper, kit

25A* 5304454739 A B Screw-upr hinge mtg, #10, 32x19mm

25B* 5304454740 A B Cover-upper hinge, white

25C* 5304454741 A B Bushing-hinge

25D* 5304454742 A B Shim-upper hinge

26 5304454743 A B Plug-button, handle mtg

27 5304454744 A B Hinge-center

27A* 5304454745 A B Screw-door hinge, center

27B* 5304454746 A B Shim-center hinge

27C* 5304454747 A B Nut, strip kit

28 5304454748 A B Hinge-lower

28A* 5304454749 A B Screw-bottom hinge, #10, 32x19mm

28B* 5304454750 A B Washer, hinge, fiber

28C* 5304454751 A B Shim-lower hinge

Publication No: 5995461414 FRT12B2D

02/06 4

RECOMMENDED SPARE PARTS

FRT12B2D Publication No: 5995461414

# Functional Parts 5 02/06

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

Model Index: AFRT12B2D (FRT12B2DK0)

BFRT12B2D (FRT12B2DW0)

POS. NO PART NO. DESCRIPTION

29 5304454752 A B Leveling Leg, kit

30 5304454753 A B Plug-button, hinge holes

31 5304454754 A B Compressor Kit

31A* 5304454755 A B Relay

31B* 5304454756 A B Overload Protector

31C* 5304454757 A B Cover-terminal

31E* 5304454758 A B Drier-filter, service

31F* 5304454759 A B Capacitor Assy

31G* 5304454760 A B Base-compressor

31H* 5304454761 A B Bolt, compressor mtg

31I* 5304454762 A B Screw-compressor mtg

31J# 5304454763 A B Harness, wiring, external

32 5304454764 A B Door-refr, white, kit

33 5304454765 A B Handle

33E* 5304454766 A B Screw-handle mtg

34 5304454767 A B Door-frzr, white, kit

35 5304454782 A B Switch-light

36 5304454783 A B Plate, defrost timer

37 # 5304454784 A B Timer-defrost, 10 hour

39 5304454785 A B Cover-evaporator, housing

40 # 5304454786 A B Fan Blade, evaporator fan

41 5304454787 A B Shroud, fan motor

*# 5304454788 A B Condenser, kit, external

* 5304454789 A B Tray-ice

* 5304454790 A B Clip, ice rack

* 5304454791 A B Rack-ice tray

* 5304454792 A B Nameplate

* 5304454793 A B Owner's Manual

* 5304454794 A B Plug, kit

Publication No: 5995461414 FRT12B2D

02/06 6

WIRING DIAGRAM
