Frigidaire FRT18IB5J Manual de instrucciones

Product No. FRT18IB5JQ2 FRT18IB5JW2

Color bisque white

Volts 115 115

Wiring Diagram 241582401 241582401

Owner's Guide 241857201 241857201

Market North America North America

Energy Guide 241613773 241613773

Service Data Sheet 241588203 241588203

Installation Instructions 240568303 240568303

N05L00001.eps N05DAACKA1.eps N05BBAABA27.eps N05SADDEA4.eps

N05CBABAB5.eps 1151-1.eps W241582401.eps S241582801.eps

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995527222

08/10/24

(EN/SERVICE/KHB)

390

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT18IB5J

Publication No: 5995527222 FRT18IB5J

10/08 2

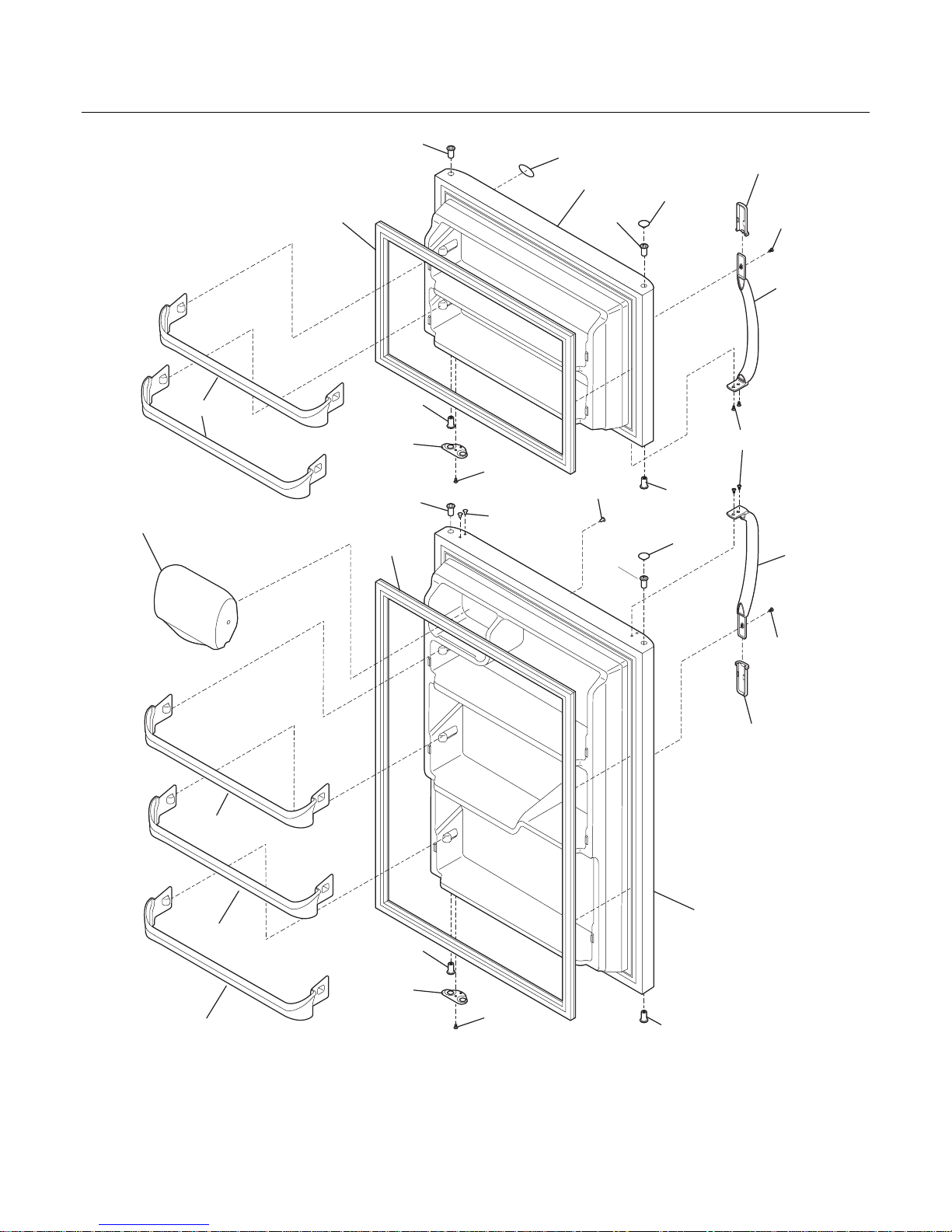

DOOR

13A

21C

N05DAACKA1

FRT18IB5J Publication No: 5995527222

# Functional Parts 3 10/08

* Non-Illustrated Parts

DOOR

Model Index: AFRT18IB5J (FRT18IB5JQ2)

BFRT18IB5J (FRT18IB5JW2)

POS. NO PART NO. DESCRIPTION

1 241872503 A B Gasket-frzr door, white, magnetic

2 241872506 A B Gasket-refr door, white, magnetic

4 240534901 A B Rack-door

4B 240534701 A B Rack-door, 4B

7 240337712 A B Door-dairy

8 240534801 A B Rack-door

10 240381302 A - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - B Plug-button, white, hinge brg hole, (2)

11 240410202 A - Door-frzr, bisque, complete assy

11 240410201 - B Door-frzr, white, complete assy

12 241808601 A B Label-nameplate

13 240312407 A - Door Stop, bisque, ref

13 240312403 - B Door Stop, white, ref

13A 240312408 A - Door Stop, bisque, frzr

13A 240312404 - B Door Stop, white, frzr

14 240494002 A - Plug-button, bisque

14 240494001 - B Plug-button, white

15 240410302 A - Door-refr, bisque, complete assy

15 240410301 - B Door-refr, white, complete assy

18 218668004 A - Handle-door, bisque

18 218668001 - B Handle-door, white

21 240383406 A B Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B Bearing-hinge, natural color

37 215870633 A - Trim-handle, 2.47", bisque, w/satin AL band

37 215870629 - B Trim-handle, 2.47", white, w/satin AL band

37* 218676004 A B Band-decorative, satin aluminum, handle trim

Publication No: 5995527222 FRT18IB5J

10/08 4

CABINET

35A 36

N05BBAABA27

43 21C

21C

FRT18IB5J Publication No: 5995527222

# Functional Parts 5 10/08

* Non-Illustrated Parts

CABINET

Model Index: AFRT18IB5J (FRT18IB5JQ2)

BFRT18IB5J (FRT18IB5JW2)

POS. NO PART NO. DESCRIPTION

1 241652301 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut, push-on

4 241523701 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 241652214 A B Cover-evap coil

10* 240568601 A B Seal-coil cover

11 5303208309 A B Plug-hole, factory test

13 # 241854301 A B Motor-fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

14* 240433204 A B Screw, hex washer head, 8-18 x 5/16

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774919 A - Plug-button, bisque, upr hinge holes

22 215774901 - B Plug-button, white, upr hinge holes

30 240314011 A B Bracket-lower hinge, zinc

34 240311303 A B Washer, hinge, nylon, (2)

35 240313806 A B Bracket-ctr hinge, zinc

35A 240336802 A B Spacer-hinge, center

36 240516402 A B Pin-center hinge

37 241611304 A - Trim-cabinet corner, bisque, (2)

37 241611301 - B Trim-cabinet corner, white, (2)

38 240313701 A B Bracket-upper hinge

40 240354403 A - Cover-upper hinge, bisque

40 240354401 - B Cover-upper hinge, white

41 5303001609 A B Grommet, shelf mtg, 0.69", RH

41* 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B Screw, hex head, 1/4-20 x 5/8

43 241889001 A B Roller Assy, front RH, (2)

43* 241889002 A B Roller Assy, front LH, (2)

56 240516502 A B Pin-lower hinge

58 5304456287 A B Screw, hex washer head, 8-15A x 0.500

59 240442706 A B Screw-#10-32 X 3/4, zinc

72 241839406 A - Grille/Kickplate, bisque

72 241839405 - B Grille/Kickplate, white

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 A B Plug, button, cab liner holes

* 5304414035 A - Paint, touch-up, bisque

* 5303321319 - B Paint, touch-up, white

Publication No: 5995527222 FRT18IB5J

10/08 6

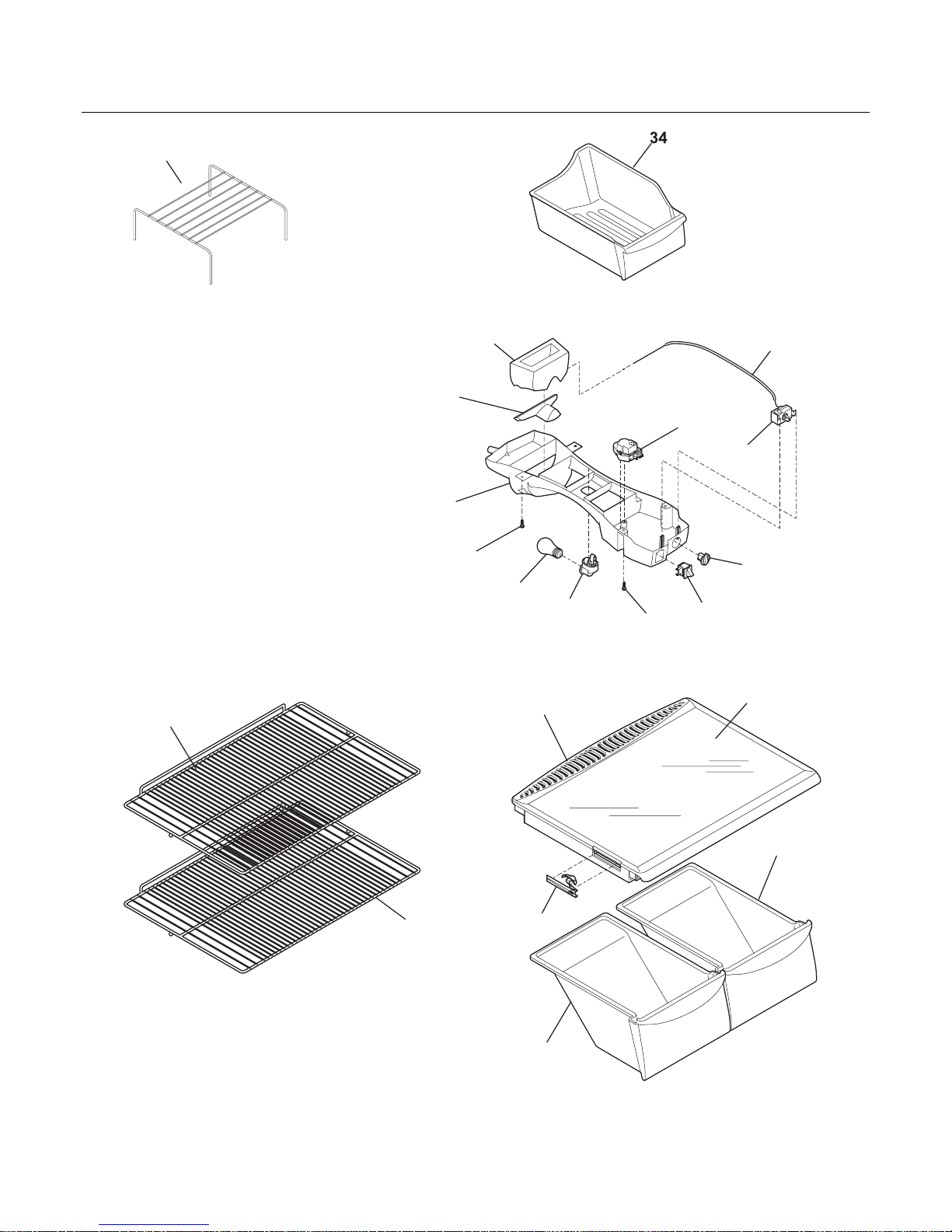

SHELVES

N05SADDEA4

22A

25C

FRT18IB5J Publication No: 5995527222

# Functional Parts 7 10/08

* Non-Illustrated Parts

SHELVES

Model Index: AFRT18IB5J (FRT18IB5JQ2)

BFRT18IB5J (FRT18IB5JW2)

POS. NO PART NO. DESCRIPTION

11 5303282284 A B Shelf-freezer, "table type"

12 241542001 A B Diffuser, air, top

13 240362601 A B Diffuser, air, bottom

14 # 241554901 A B Switch-light/lamp

15 241555401 A B Light Bulb

16 241559801 A B Socket-light

17 240352702 A B Control Box

17* 240568607 A B Seal

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 5304421256 A B Control, temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 A B Timer-defrost

23* 5304455649 A B Screw, pan hd, 6-20 x 0.438

24 240360905 A B Shelf, sliding, wire

25 240364713 A B Cover-crisper pan, with beam, humid cont

25C 241613502 A B Control-humidity, LH

26 240337103 A B Pan-crisper, clear, (2), no graphics

34 240385201 A B Container, ice bin

47 240350608 A B Insert-pan cover, 23.82" x 15.50", glass

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

* 241613773 A B Label, energy guide

Publication No: 5995527222 FRT18IB5J

10/08 8

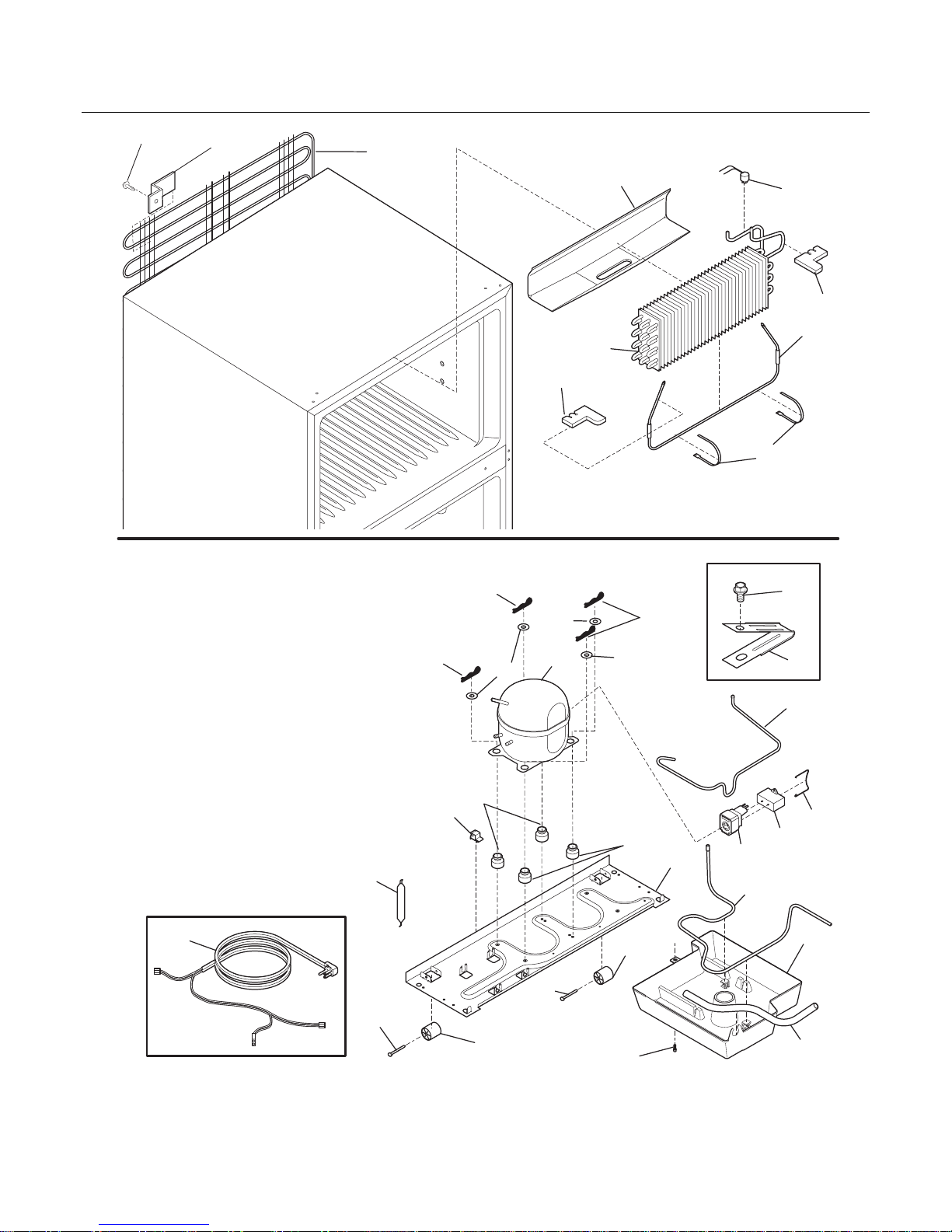

SYSTEM

N05CBABAB5

45A

FRT18IB5J Publication No: 5995527222

# Functional Parts 9 10/08

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT18IB5J (FRT18IB5JQ2)

BFRT18IB5J (FRT18IB5JW2)

POS. NO PART NO. DESCRIPTION

1 # 241861903 A B Condenser, static

1* 240405201 A B Grommet, rubber, black, cond tube/wire

1* 5303208866 A B Spacer, condenser tube, black

1* 5304406721 A B Spacer-cond tube, round, 5/8 OD x .81"lg

2 241658801 A B Bracket, condenser mtg

4 218944002 A B Drier-filter, R134a System

6 # 241949801 A B Harness-wiring, machine compt

6* # 240388701 A B Wiring Harness, control box

14 # 240356221 A B Heater-defrost

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241801301 A B Trough-drain

20 241551902 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241665606 A B Base-compressor

22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

24 241812301 A B Washer-compr mtg

25 216056401 A B Clip-compressor mtg

26 241949701 A B Pan-defrost

29 # 5303918373 A B Compressor Kit

30 # 241707715 A B Starter-PTC

32 241715901 A B Strap-cover

41 240433204 A B Screw, hex washer head, 8-18 x 5/16

44 5304456288 A B Clamp-wiring harness, strain relief, galv steel

45 241500304 A B Screw, hex washer head, 8-18AB x 0.625

45* 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

45A 240359403 A B Screw-fan shroud, (2)

55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad

57 240542601 A B Clip-wiring harness

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 241949901 A B Tube-drain, lower

85 241844601 A B Tube-connector, suction

87 241949601 A B Tube-Condensate, 87

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 5303918263 A B Heat Exchanger Kit, suction line

* 5303918234 A B Hot Tube Repair Kit, service

Publication No: 5995527222 FRT18IB5J

10/08 10

ICE MAKER

ON OFF

MOVE ARM UP UNTIL

LOCKED INTOPLACE

MOVE ARM UP UNTIL

LOCKED INTOPLACE

27 13

15 15

INSTALLATION PARTS

N05I1151-1
