Frigidaire FFHS2611L S Manual de instrucciones

FFHS2611LW.jpg N58FTDEBC1.eps N58RTDACB1.eps N58BAAAAA4.eps

N58SJCAFB2.eps CTFFHS2611PF4.wmf N58CAAAAA14.eps IDFFHS2611LW4.wmf

N58YBAAAA7.eps IMFFHS2322MS7.wmf W242300701.wmf S242300701.wmf

Product No. FFHS2611LBB

FFHS2611LWB

Series R134a R134a

Color black white

Volts 115 115

Wiring Diagram 242300701 242300701

Owner's Guide Eng/Spn

808353502 808353502

Owner's Guide French 808353602 808353602

Market North America North America

Energy Guide 242028541 242028541

Service Data Sheet 242293200 242293200

Installation Instructions

241811505 241811505

Frigidaire

P.O. BOX 8020

CHARLOTTE, NC 28262

Publication No.

5995634655

13/07/19

(EN/SERVICE/ECL)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FFHS2611L

Publication No: 5995634655 FFHS2611L

07/13 2

FREEZER DOOR

22C

13A

22A

21A

N58FTDEBC1

FFHS2611L Publication No: 5995634655

# Functional Parts 3 07/13

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFFHS2611L (FFHS2611LBB)

BFFHS2611L (FFHS2611LWB)

POS. NO PART NO. DESCRIPTION

1 # 241786006 A - Gasket-frzr door, black, magnetic

1 # 241786002 - B Gasket-frzr door, white, magnetic

4A 240334201 A B Bin-door, frzr-upper

4B 240351601 A B Bin-door

11 242026468 A - Door-frzr, black, complete assy

11 242026415 - B Door-frzr, white, complete assy

13A 240581906 A - Door Stop, black, frzr

13A 240581902 - B Door Stop, white, frzr

18 242059104 A - Handle-door, black

18 242059103 - B Handle-door, white

21 241695904 A B Screw

21A 240442706 A B Screw-#10-32 X 3/4, zinc

22A 242000502 A - Bearing-hinge, black, lower

22A 242000501 - B Bearing-hinge, natural, lower

22C 240328404 A - Bearing-hinge, black, upper

22C 240328402 - B Bearing-hinge, natural, upper

* # 240552101 A B Harness-wiring, door

* 242103001 A B Connector-water, straight, 5/16 to 5/16

* 240451503 A B Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

Publication No: 5995634655 FFHS2611L

07/13 4

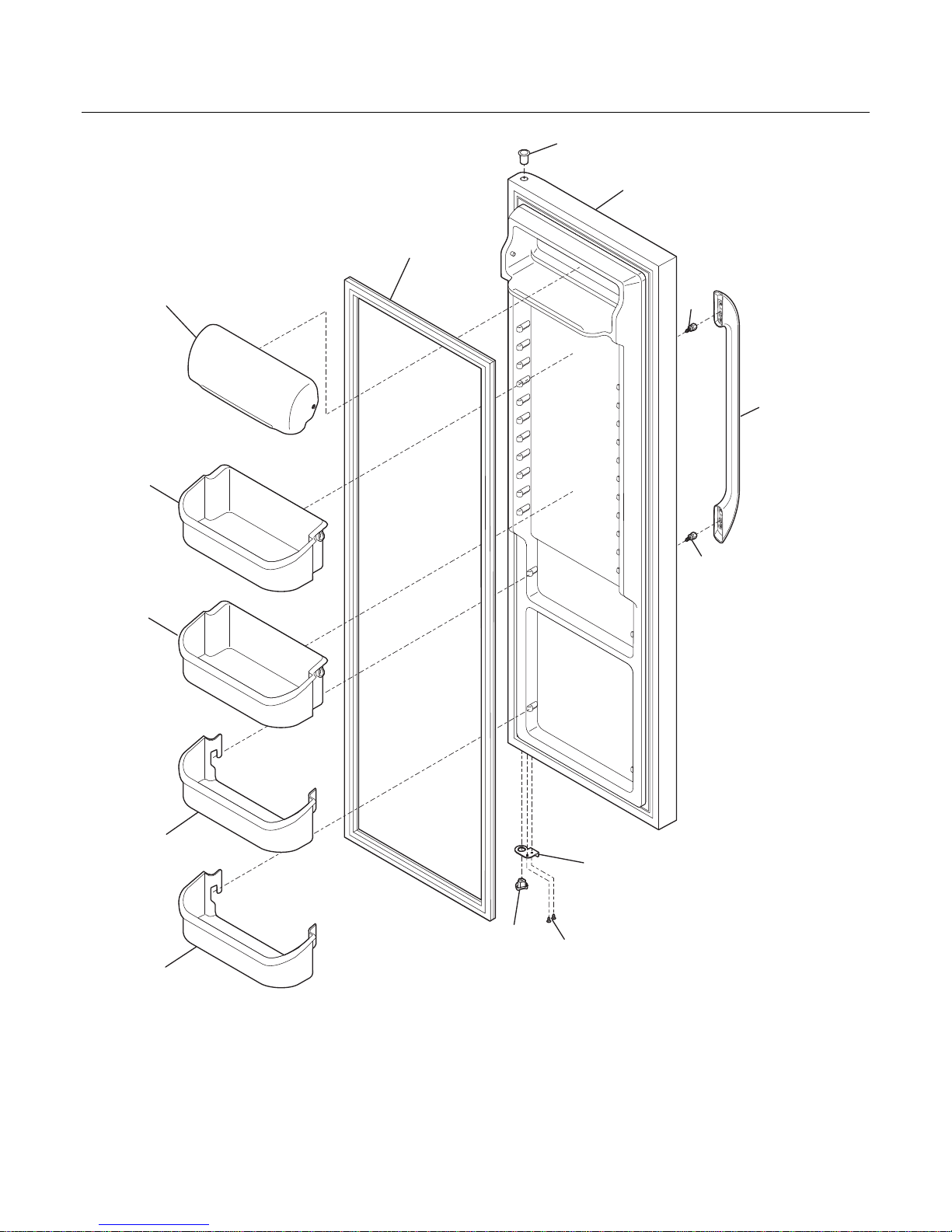

REFRIGERATOR DOOR

21A

22B

N58RTDACB1

FFHS2611L Publication No: 5995634655

# Functional Parts 5 07/13

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFFHS2611L (FFHS2611LBB)

BFFHS2611L (FFHS2611LWB)

POS. NO PART NO. DESCRIPTION

2 # 241786005 A - Gasket-refr door, black, magnetic

2 # 241786001 - B Gasket-refr door, white, magnetic

4 240323001 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

13 240581905 A - Door Stop, black, ref

13 240581901 - B Door Stop, white, refr

15 242038869 A - Door-refr, black, complete assy

15 242038810 - B Door-refr, white, complete assy

18 242059102 A - Handle-door, black

18 242059101 - B Handle-door, white

21 241695904 A B Screw

21A 240442706 A B Screw-#10-32 X 3/4, zinc

22 242015302 A - Bearing-hinge(ref), black, closer

22 242015301 - B Bearing-hinge(ref), natural, closer

22B 240328404 A - Bearing-hinge, black, upper

22B 240328402 - B Bearing-hinge, natural, upper

49 240356401 A B Bin-door, gallon

Publication No: 5995634655 FFHS2611L

07/13 6

CABINET

14A

100

21C

30A

10A

N58BAAAAA4

66B

FFHS2611L Publication No: 5995634655

# Functional Parts 7 07/13

* Non-Illustrated Parts

CABINET

Model Index: AFFHS2611L (FFHS2611LBB)

BFFHS2611L (FFHS2611LWB)

POS. NO PART NO. DESCRIPTION

10 240435912 A B Cover-air duct

10A 241719711 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 241856502 A - Plate-door closer, black

22 241856501 - B Plate-door closer, natural

28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 242034601 A B Bracket-lower hinge

30A 242034604 A B Bracket-lower hinge

37 242161202 A - Trim-cabinet corner, black, (2)

37 242161201 - B Trim-cabinet corner, white, (2)

38 240327207 A B Bracket-upper hinge

40 240327007 A - Cover-upper hinge, black

40 240327005 - B Cover-upper hinge, white

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578902 A B Screw, hex head, 1/4-20 x 5/8

43 240335006 A B Roller Assy, front, (2)

45 241500303 A B Screw, hex washer head, 8-18AB x 1/2

47 218659500 A B Channel-shelf mtg, side, (2)

58 218781101 A B Screw, pan head, 8-18 x 0.625

66B 240374301 A B Diffuser-air

66B* 240518802 A B Pin-push, push-in, plastic

72 240324411 A - Grille/Kickplate, black

72 240324409 - B Grille/Kickplate, white

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, Low Profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 A B Cover-access, w/label

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 241993101 A B Support-crisper cvr

100* 241993001 A B Support-crisper cvr

* 240494001 A B Plug-button, white, cab liner holes

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 5303321321 A - Paint, touch-up, black

* 5303321319 - B Paint, touch-up, white

Publication No: 5995634655 FFHS2611L

07/13 8

SHELVES

N58SJCAFB2

11B

11A

126

No glass in the

lower crisper cover

for this model.

25A

101

140

FFHS2611L Publication No: 5995634655

# Functional Parts 9 07/13

* Non-Illustrated Parts

SHELVES

Model Index: AFFHS2611L (FFHS2611LBB)

BFFHS2611L (FFHS2611LWB)

POS. NO PART NO. DESCRIPTION

11 241657602 A B Shelf, flip up, wire

11A 241657502 A B Shelf, fixed, freezer

11B 241657504 A B Shelf, fixed, upper, freezer

21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625

24 240355270 A B Shelf-"Spill-Safe", fixed

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover

25A 240350903 A B Cover-crisper pan, lower

26 240351007 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan

27 240351207 A B Pan-crisper, lower

47 240350649 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

51 240343002 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, Low Profile

97 240545310 A B Water Tank

97* 242200101 A B Clip, tubing, 90 deg elbow

101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4

126 241674401 A B Channel, auger mtg, LH

126 241674402 A B Channel, auger mtg, RH

140 240430501 A B Channel, wtr tube cover

* 242028541 A B Energy Guide

Publication No: 5995634655 FFHS2611L

07/13 10

CONTROLS
