Frigidaire FRT18G6J Manual de instrucciones

N05L00001.eps N05DAACKA1.eps N05BBAABA19.eps N05SADAEF1.eps

N05CBABAB5.eps W241582401.eps S241582801.eps

Product No. FRT18G6JB3 FRT18G6JQ3 FRT18G6JW3

Series R134a R134a R134a

Color black bisque white

Volts 115 115 115

Wiring Diagram 241582401 241582401 241582401

Owner's Guide 241857201 241857201 241857201

Market North America North America North America

Energy Guide 241613772 241613772 241613772

Service Data Sheet 241588203 241588203 241588203

Installation Instructions 240568303 240568303 240568303

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995533451

09/02/17

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18G6J

Publication No: 5995533451 FRT18G6J

02/09 2

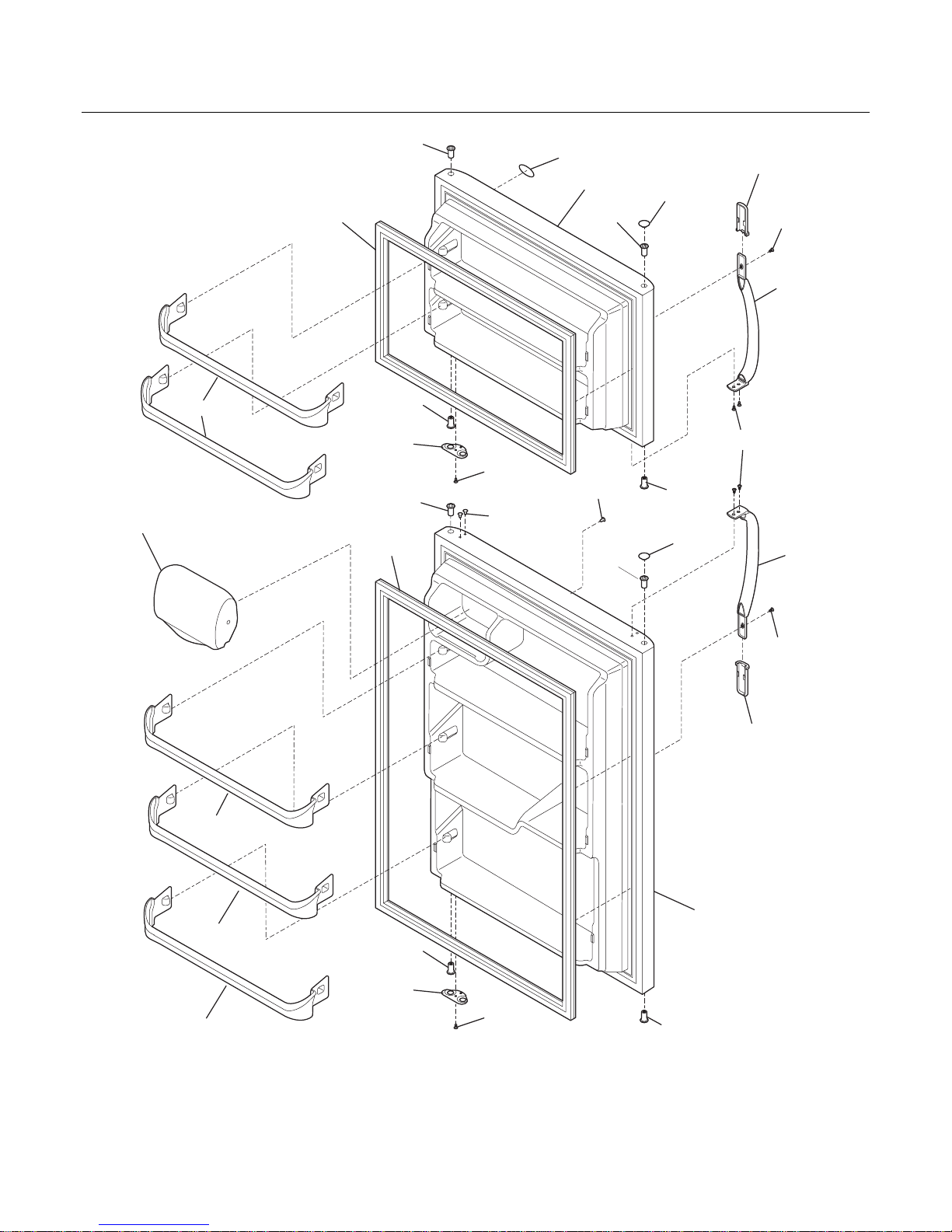

DOOR

13A

21C

N05DAACKA1

FRT18G6J Publication No: 5995533451

# Functional Parts 3 02/09

* Non-Illustrated Parts

DOOR

Model Index: AFRT18G6J (FRT18G6JB3)

BFRT18G6J (FRT18G6JQ3)

CFRT18G6J (FRT18G6JW3)

POS. NO PART NO. DESCRIPTION

1 # 241872509 A - - Gasket-frzr door, black, magnetic

1 # 241872503 - B C Gasket-frzr door, white, magnetic

2 # 241872512 A - - Gasket-refr door, black, magnetic

2 # 241872506 - B C Gasket-refr door, white, magnetic

4 240534901 A B C Rack-door

4B 240534701 A B C Rack-door, 4B

7 240337712 A B C Door-dairy

8 240534801 A B C Rack-door

10 240381303 A - - Plug-button, black, hinge brg hole

10 240381302 - B - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - - C Plug-button, white, hinge brg hole, (2)

11 240410203 A - - Door-frzr, black, complete assy

11 240410202 - B - Door-frzr, bisque, complete assy

11 240410201 - - C Door-frzr, white, complete assy

12 241808601 A B C Label-nameplate

13 240312405 A - - Door Stop, black, refr

13 240312407 - B - Door Stop, bisque, ref

13 240312403 - - C Door Stop, white, ref

13A 240312406 A - - Door Stop, black, frzr

13A 240312408 - B - Door Stop, bisque, frzr

13A 240312404 - - C Door Stop, white, frzr

14 240494003 A - - Plug-button, black

14 240494002 - B - Plug-button, bisque

14 240494001 - - C Plug-button, white

15 240410305 A - - Door-refr, black, complete assy

15 240410302 - B - Door-refr, bisque, complete assy

15 240410301 - - C Door-refr, white, complete assy

18 218668003 A - - Handle-door, black

18 218668004 - B - Handle-door, bisque

18 218668001 - - C Handle-door, white

21 240383406 A B C Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A - - Bearing-hinge, black

22 240527101 - B C Bearing-hinge, natural color

37 215870636 A - - Trim-handle, 2.47", black, w/satin AL band

37 215870633 - B - Trim-handle, 2.47", bisque, w/satin AL band

37 215870629 - - C Trim-handle, 2.47", white, w/satin AL band

37* 218676004 A B C Band-decorative, satin aluminum, handle trim

Publication No: 5995533451 FRT18G6J

02/09 4

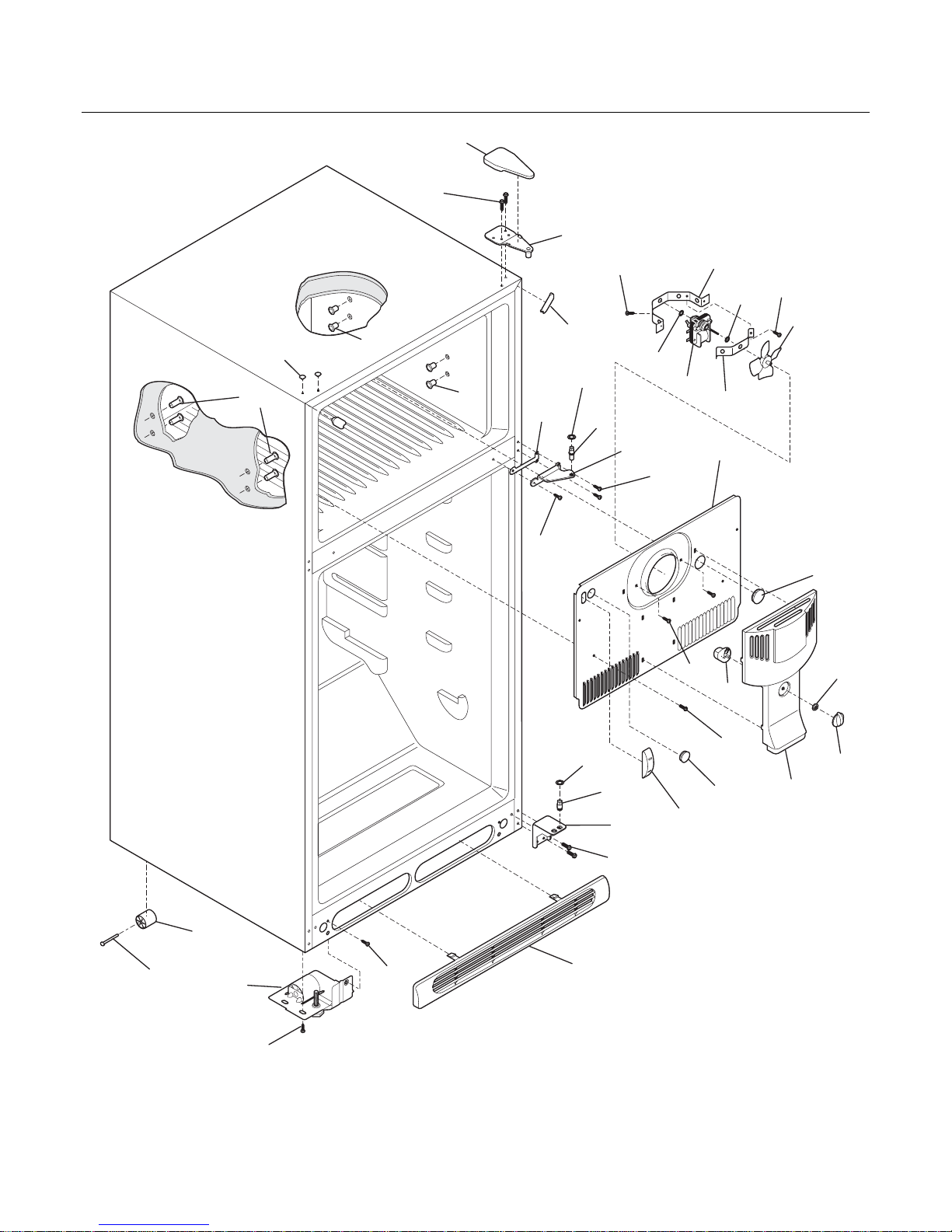

CABINET

12A

35A 36

N05BBAABA19

43 21C

21C

FRT18G6J Publication No: 5995533451

# Functional Parts 5 02/09

* Non-Illustrated Parts

CABINET

Model Index: AFRT18G6J (FRT18G6JB3)

BFRT18G6J (FRT18G6JQ3)

CFRT18G6J (FRT18G6JW3)

POS. NO PART NO. DESCRIPTION

1 241652301 A B C Cover-fan

2 240367001 A B C Knob-damper control

3 5303001028 A B C Nut, push-on

4 241523701 A B C Damper-fan cover

5 # 5308000010 A B C Fan Blade, red, evaporator fan

8 5300157666 A B C Bushing-motor mtg, (2)

9 5303292396 A B C Bracket-motor mtg, front

10 241652214 A B C Cover-evap coil

10* 240568601 A B C Seal-coil cover

11 5303208309 A B C Plug-hole, factory test

12 241557601 A B C Plug-ice maker harness, rectangular

12A 240374401 A B C Plug-wtr inlet tube, round, 1"

12A* 241586701 A B C Plug-foam-wtr-inlet, round

13 # 241854301 A B C Motor-fan

13* 215474201 A B C Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B C Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B C Bracket-motor mtg, rear

14* 240433204 A B C Screw, hex washer head, 8-18 x 5/16

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A - - Plug-button, black, upr hinge holes

22 215774919 - B - Plug-button, bisque, upr hinge holes

22 215774901 - - C Plug-button, white, upr hinge holes

30 240314003 A - - Bracket-lower hinge, black

30 240314011 - B C Bracket-lower hinge, zinc

34 240311303 A B C Washer, hinge, nylon, (2)

35 240313803 A - - Bracket-ctr hinge, black

35 240313806 - B C Bracket-ctr hinge, zinc

35A 240336803 A - - Spacer-hinge, center, black

35A 240336802 - B C Spacer-hinge, center

36 240516402 A B C Pin-center hinge

37 241611303 A - - Trim-cabinet corner, black, (2)

37 241611304 - B - Trim-cabinet corner, bisque, (2)

37 241611301 - - C Trim-cabinet corner, white, (2)

38 240313701 A B C Bracket-upper hinge

40 240354404 A - - Cover-upper hinge, black

40 240354403 - B - Cover-upper hinge, bisque

40 240354401 - - C Cover-upper hinge, white

41 5308009759 A B C Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B C Screw, hex head, 1/4-20 x 5/8

43 241889002 A B C Roller Assy, front LH, (2)

43* 241889001 A B C Roller Assy, front RH, (2)

56 240516502 A B C Pin-lower hinge

58 5304456287 A B C Screw, hex washer head, 8-15A x 0.500

59 240442707 A - - Screw-#10-32 X 3/4, black

59 240442706 - B C Screw-#10-32 X 3/4, zinc

72 241839407 A - - Grille/Kickplate, black

72 241839406 - B - Grille/Kickplate, bisque

Publication No: 5995533451 FRT18G6J

02/09 6

CABINET

12A

35A 36

N05BBAABA19

43 21C

21C

FRT18G6J Publication No: 5995533451

# Functional Parts 7 02/09

* Non-Illustrated Parts

CABINET

Model Index: AFRT18G6J (FRT18G6JB3)

BFRT18G6J (FRT18G6JQ3)

CFRT18G6J (FRT18G6JW3)

POS. NO PART NO. DESCRIPTION

72 241839405 - - C Grille/Kickplate, white

81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 241710601 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 218515401 A B C Clip

* 240479601 A B C Plug, button, cab liner holes

* 5303321321 A - - Paint, touch-up, black

* 5304414035 - B - Paint, touch-up, bisque

* 5303321319 - - C Paint, touch-up, white

Publication No: 5995533451 FRT18G6J

02/09 8

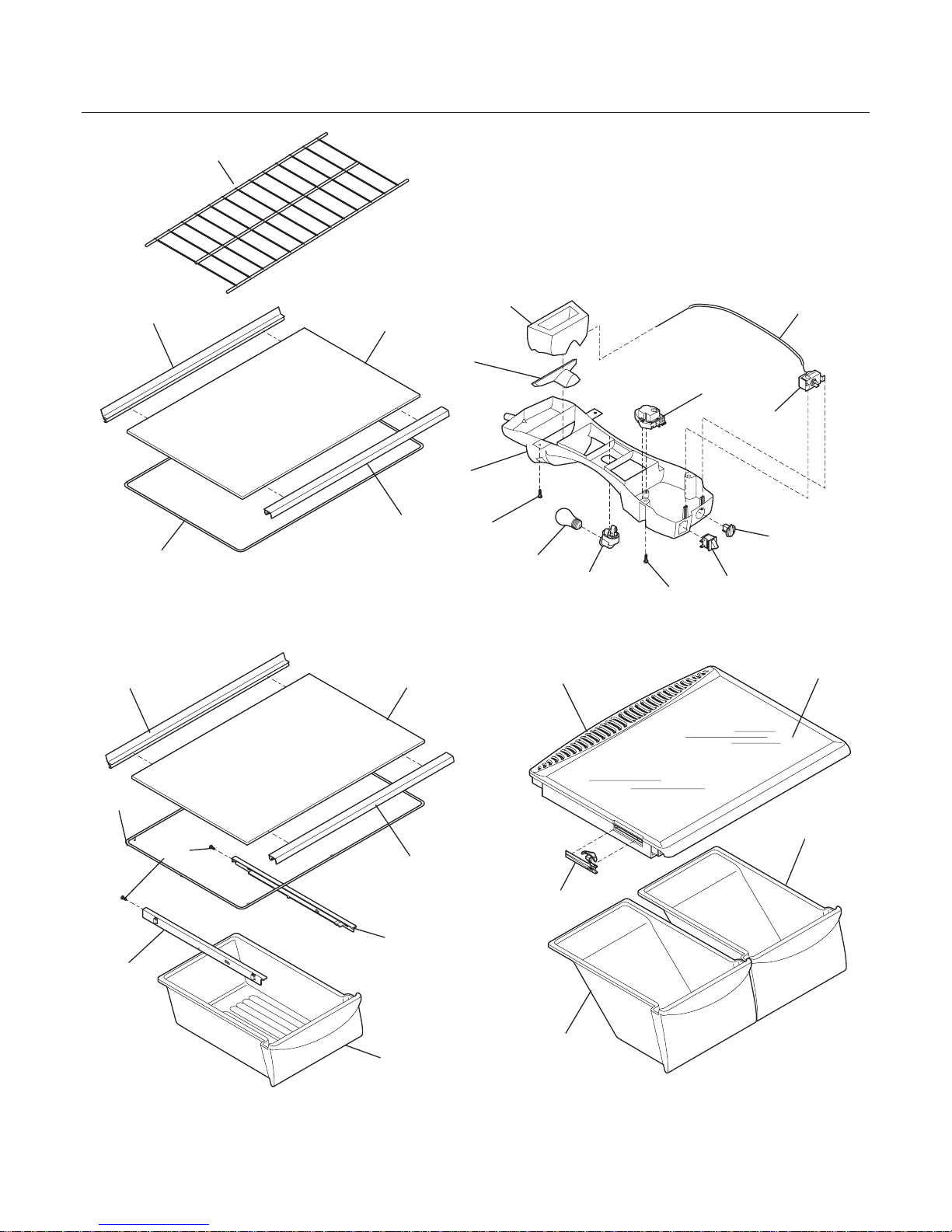

SHELVES

22A

24A

123

25C

N05SADAEF1

FRT18G6J Publication No: 5995533451

# Functional Parts 9 02/09

* Non-Illustrated Parts

SHELVES

Model Index: AFRT18G6J (FRT18G6JB3)

BFRT18G6J (FRT18G6JQ3)

CFRT18G6J (FRT18G6JW3)

POS. NO PART NO. DESCRIPTION

11 240358005 A B C Shelf, freezer, full-width, wire

12 241542001 A B C Diffuser, air, top

13 240362601 A B C Diffuser, air, bottom

14 241554901 A B C Switch-light/lamp

15 241555401 A B C Light Bulb

16 241559801 A B C Socket-light

17 240352702 A B C Control Box

17* 240568607 A B C Seal

17*# 240388701 A B C Wiring Harness, control box

18 240360801 A B C Knob, temp control

21 # 5304421256 A B C Control, temperature

22A 240468201 A B C Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 A B C Timer-defrost

23* 5304455649 A B C Screw, pan hd, 6-20 x 0.438

24 240372409 A B C Frame, sliding shelf, full width

24A 240372410 A B C Frame, sliding shelf, full width, w/hanger tabs

25 240364713 A B C Cover-crisper pan, with beam, humid cont

25C 241613502 A B C Control-humidity, LH

26 240337103 A B C Pan-crisper, clear, (2), no graphics

29 240357704 A B C Trim-shelf, front

31 240530811 A B C Pan-meat, w/o graphics, clear

40 240350620 A B C Glass-shelf, 23.78" x 16.34"

41 240561502 A B C Trim-shelf, rear

42 240530601 A B C Track, meat pan hanger, LH

42 240530701 A B C Track, meat pan hanger, RH

47 240350608 A B C Insert-pan cover, 23.82" x 15.50", glass

81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile

123 215005101 A B C Screw, hanger/rlr mtg, 8-10 x 7/16

* 241613772 A B C Energy Guide

Publication No: 5995533451 FRT18G6J

02/09 10

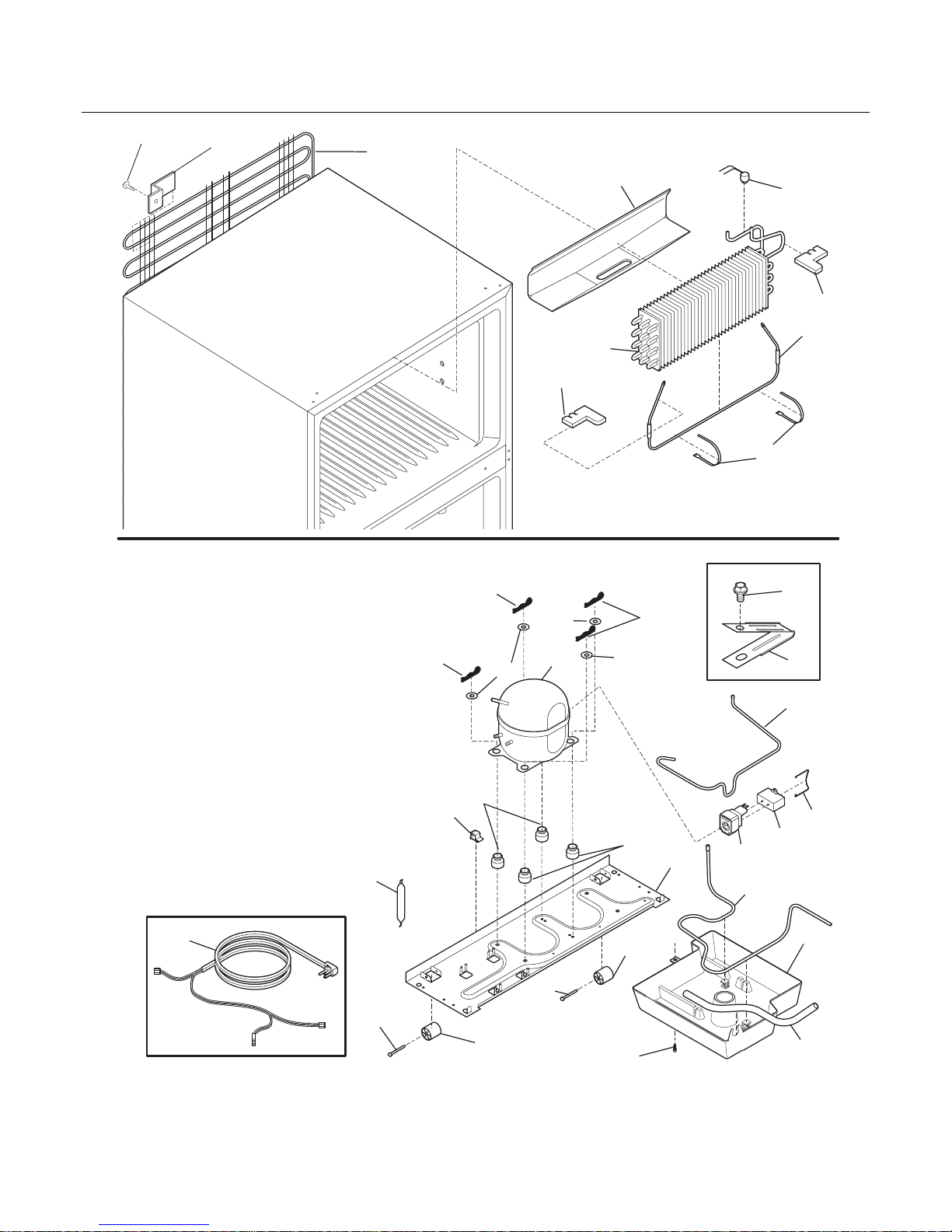

SYSTEM

N05CBABAB5

45A
