Frigidaire FPHI1887K Manual de instrucciones

N05L00017.eps N05DPDDBA0.eps N05BAAAAC15.eps N05SACAFL12.eps

N05CAABAD4.eps 1151-1.eps W241582401.eps S241582801.eps

Product No. FPHI1887KF0 FPHI1887KR0

Series Professional Professional

Color stainless (RH) stainless (LH)

Volts 115 115

Wiring Diagram 241582401 241582401

Owner's Guide 242008000 242008000

Market North America North America

Energy Guide 241935551 241935551

Service Data Sheet 241588203 241588203

Installation Instructions 240568304 240568304

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995538534

09/04/21

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FPHI1887K

Publication No: 5995538534 FPHI1887K

04/09 2

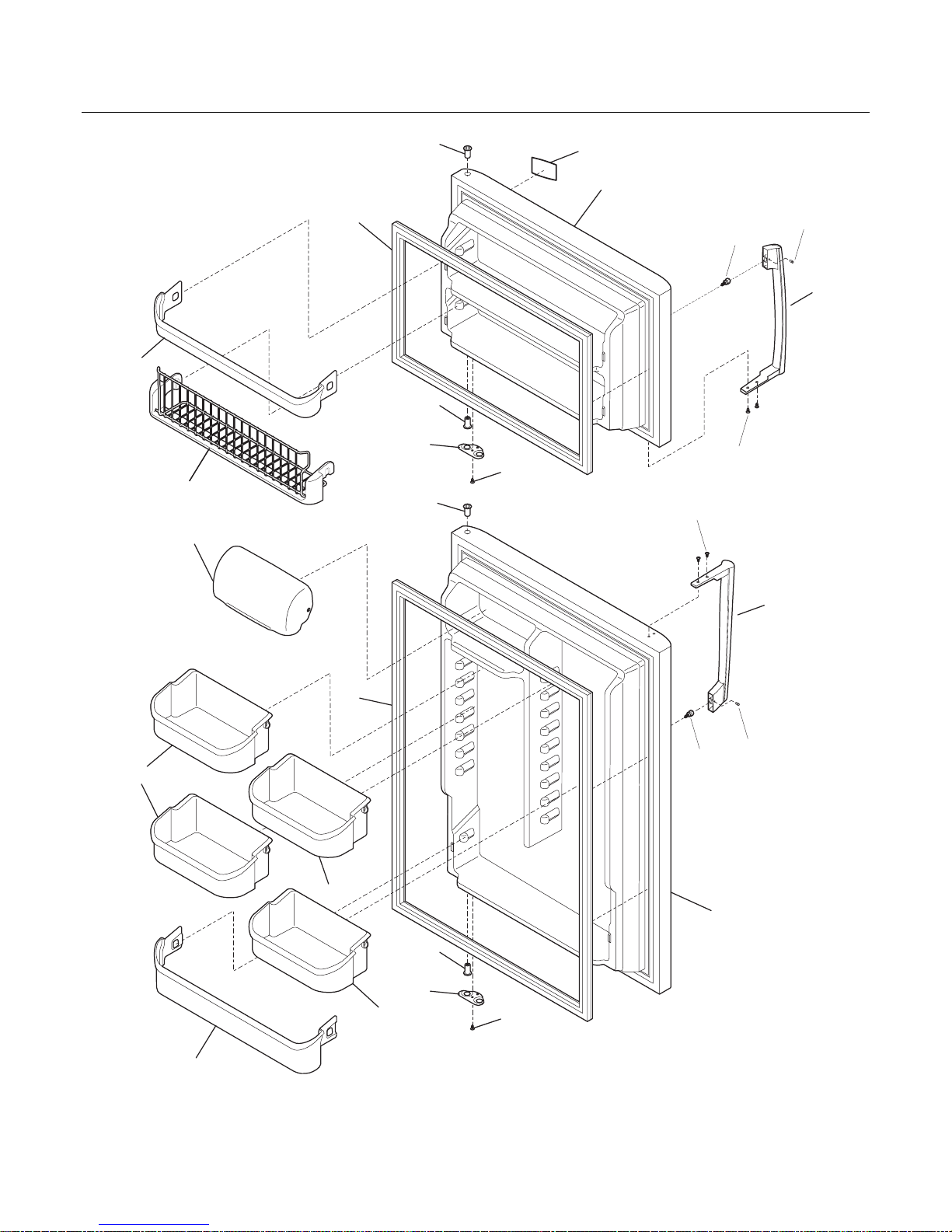

DOOR

13A

48A

21C

N05DPDDBA0

49A

18A

FPHI1887K Publication No: 5995538534

# Functional Parts 3 04/09

* Non-Illustrated Parts

DOOR

Model Index: AFPHI1887K (FPHI1887KF0)

BFPHI1887K (FPHI1887KR0)

POS. NO PART NO. DESCRIPTION

1 241872503 A B Gasket-frzr door, white, magnetic

2 241872506 A B Gasket-refr door, white, magnetic

7 240338313 A B Door, dairy, clear

11 241623327 A - Door-frzr, stainless, complete assy

11 241623328 - B Door-frzr, stainless, complete assy

12 242015101 A B Label-nameplate

13 240312405 A B Door Stop, black, refr

13A 240312406 A B Door Stop, black, frzr

15 241623439 A - Door-refr, stainless, complete assy

15 241623440 - B Door-refr, stainless, complete assy

18 241977601 A B Handle-door, refr-LH/frzr-RH

18* 241601001 A B Wrench, allen

18* 241701901 A B Screw Driver

18A 241977602 A B Handle-door, refr-RH/frzr-LH

21 240383406 A B Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A B Bearing-hinge, black

48 240338101 A B Bin-door, pseudo, bottom

48A 241808227 A B Bin-door, gallon

48A* 241779603 A B Liner, bin

49 240495805 A B Bin-door, pseudo, frzr

49A 241801402 A B Bin-tilt out, tilt-out

79 218755401 A B Screw-set, 10-32 x 0.375

80 218755504 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995538534 FPHI1887K

04/09 4

CABINET

N05BAAAAC15

FPHI1887K Publication No: 5995538534

# Functional Parts 5 04/09

* Non-Illustrated Parts

CABINET

Model Index: AFPHI1887K (FPHI1887KF0)

BFPHI1887K (FPHI1887KR0)

POS. NO PART NO. DESCRIPTION

1 241652301 A B Cover-fan

2 240367001 A B Knob-damper control

4 241523701 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 241652213 A B Cover-evap coil

10* 240568601 A B Seal-coil cover

11 5303208309 A B Plug-hole, factory test

13 # 241854501 A B Motor-evap fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

14* 240433204 A B Screw, hex washer head, 8-18 x 5/16

15 241560701 A B Light Bulb

16 # 241513901 A B Socket-light

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774920 A B Plug button, silver mist

28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 A B Bracket-lower hinge, black

34 240311303 A B Washer, hinge, nylon, (2)

35 240313802 A B Bracket-ctr hinge, white

35A 240336802 A B Spacer-hinge, center

36 240516402 A B Pin-center hinge

37 241611305 A B Trim-cabinet corner, silver mist, (2)

38 240313701 A B Bracket-upper hinge

40 240354405 A B Cover-upper hinge, silver mist

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B Screw, hex head, 1/4-20 x 5/8

43 240335005 A B Roller Assy, adjustable, front, (2)

47 218233301 A B Channel-shelf mtg, side, (2)

48 241566901 A B Channel-shelf mtg, center (mll)

49 218362501 A B Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

56 240516502 A B Pin-lower hinge

58 5304456287 A B Screw, hex washer head, 8-15A x 0.500

59 240442708 A B Screw-#10-32 X 3/4, white

72 241839411 A B Grille/Kickplate, silver metallic

74 240354302 A B Shield-light, frzr

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 A B Cover-access, with label

89* 241500304 A B Screw, hex washer head, 8-18AB x 0.625

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

114 241554901 A B Switch-light/lamp

* 5303321319 A B Paint, touch-up, white

Publication No: 5995538534 FPHI1887K

04/09 6

SHELVES

25 25B

25C

N05SACAFL12

24A

123

136

22A

141

142

15A

16A

15A

FPHI1887K Publication No: 5995538534

# Functional Parts 7 04/09

* Non-Illustrated Parts

SHELVES

Model Index: AFPHI1887K (FPHI1887KF0)

BFPHI1887K (FPHI1887KR0)

POS. NO PART NO. DESCRIPTION

11 240358005 A B Shelf, freezer, full-width, wire

12 241542001 A B Diffuser, air, top

13 240362601 A B Diffuser, air, bottom

14 # 241554901 A B Switch-light/lamp

15 241555401 A B Light Bulb

15A 241552802 A B Light Bulb

16 240364202 A B Socket-light/lamp, dual

16A 241507803 A B Socket-light

16A* 241593901 A B Harness-wiring

17 240352701 A B Control Box

17* 241566801 A B Harness-wiring, c/box M/Level

18 240360801 A B Knob, temp control

21 # 5304421256 A B Control, temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 A B Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5304455649 A B Screw, pan hd, 6-20 x 0.438

24 241730504 A B Shelf-"Spill-Safe", cantilever, sliding

24A 241616607 A B Shelf-"Spill-Safe", cantilever, half width, fixed

25 240364787 A B Cover-crisper pan

25B 241613501 A B Control-humidity, RH

25C 241613502 A B Control-humidity, LH

26 240337103 A B Pan-crisper, clear, (2), no graphics

31 240530811 A B Pan-meat, w/o graphics, clear

34 240385201 A B Container, ice bin

42 240356501 A B Track, meat pan hanger, RH

42 240365401 A B Track, meat pan hanger, LH

47 240350608 A B Insert-pan cover, 23.82" x 15.50", glass

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

123 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16

136 241657701 A B Dispenser-can, white

141 241562101 A B Shield-heat, Mid Level

142 241562202 A B Shield-light Mid Level

* 241935551 A B Energy Guide

Publication No: 5995538534 FPHI1887K

04/09 8

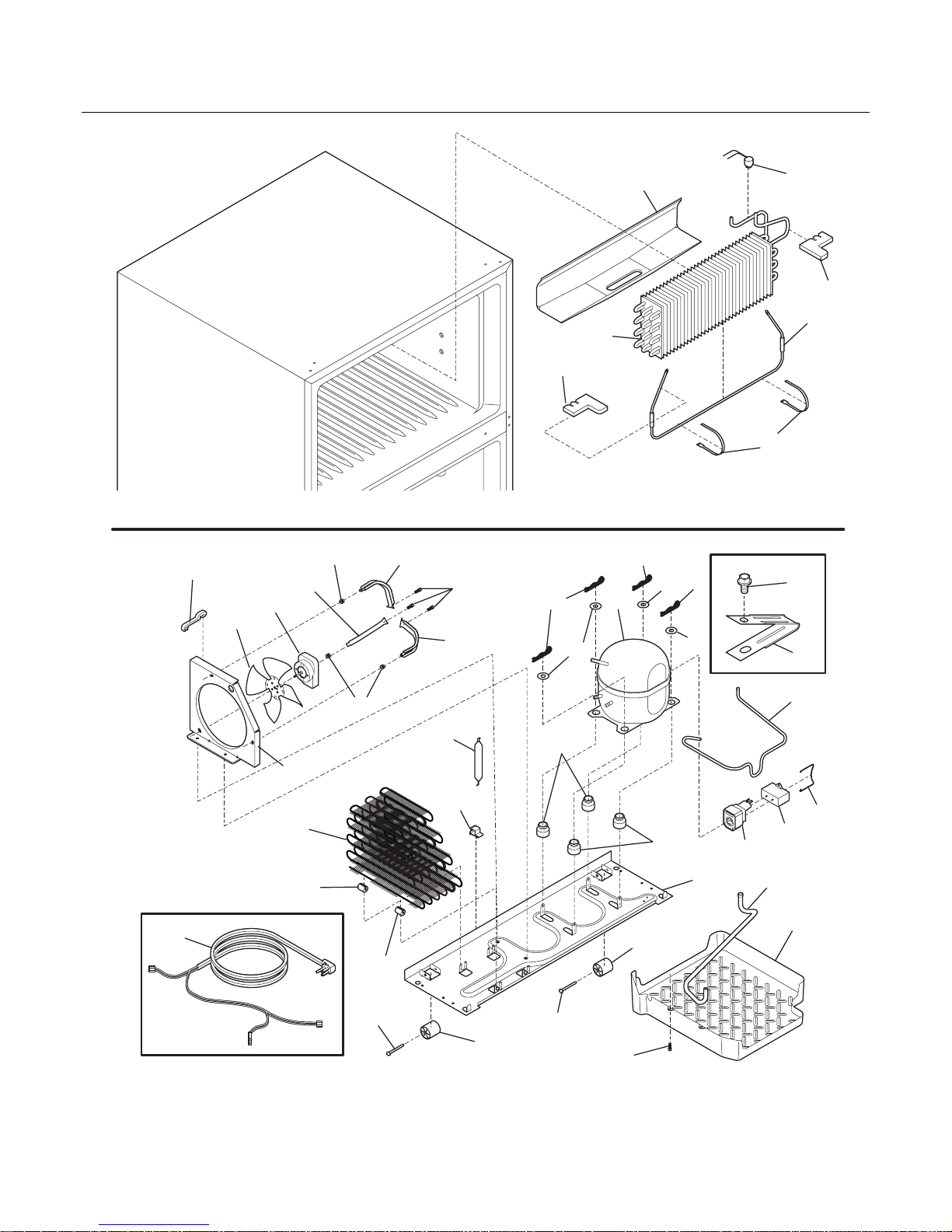

SYSTEM

17 21

N05CAABAD4

24 25

59B

59A

59A 58

FPHI1887K Publication No: 5995538534

# Functional Parts 9 04/09

* Non-Illustrated Parts

SYSTEM

Model Index: AFPHI1887K (FPHI1887KF0)

BFPHI1887K (FPHI1887KR0)

POS. NO PART NO. DESCRIPTION

1 # 241873404 A B Condenser

4 218944002 A B Drier-filter, R134a System

6 # 241607001 A B Harness-wiring, machine compt

6* 241566801 A B Harness-wiring, c/box M/Level

14 # 240356221 A B Heater-defrost

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241801301 A B Trough-drain

20 241551902 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241665606 A B Base-compressor

22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

24 241812301 A B Washer-compr mtg

25 216056401 A B Clip-compressor mtg

26 241683601 A B Pan-defrost

29 # 5303918380 A B Compressor Kit

30 # 241941001 A B Starter

32 297030500 A B Clip, controller

34 240405201 A B Grommet, rubber, black, cond tube/wire

41 240433204 A B Screw, hex washer head, 8-18 x 5/16

44 5304456288 A B Clamp-wiring harness, strain relief, galv steel

45 241500304 A B Screw, hex washer head, 8-18AB x 0.625

55 216985003 A B Capacitor-run

57 240542601 A B Clip-wiring harness

58 240569201 A B Screw, 8-18 x 0.500

59 240315505 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal, shroud

59* 240359403 A B Screw-fan shroud, (2)

59A 240346501 A B Bracket-support, cond mtr, (3)

59B 240346601 A B Grommet-bracket, (3)

60 241584301 A B Motor-condenser fan

61 241639501 A B Blade-condenser fan

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 A B Tube-drain, rubber, lower

85 241871501 A B Tube-connector, suction

86 240409302 A B Spacer-cond tube, black

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 5303918222 A B Hot Tube Repair Kit, service

* 5303918263 A B Heat Exchanger Kit, suction line

Publication No: 5995538534 FPHI1887K

04/09 10

ICE MAKER

ON OFF

MOVE ARM UP UNTIL

LOCKED INTO PLACE

MOVE ARM UP UNTIL

LOCKED INTO PLACE

27 13

15 15

INSTALLATION PARTS

N05I1151-1
