Frigidaire FRT21GC5J Manual de instrucciones

N05L00004.eps N05DBDCPA1.eps N05BBAABA17.eps N05SADAEA13.eps

N05CAAAAC9.eps W241582401.eps S241582801.eps

Product No. FRT21GC5JW0 FRT21GC5JZ0

Series R134a R134a

Color white (right) white (left)

Volts 115 115

Wiring Diagram 241582401 241582401

Owner's Guide 241857201 241857201

Market North America North America

Energy Guide 241935545 241935545

Service Data Sheet 241588203 241588203

Installation Instructions 240568303 240568303

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995525598

08/10/03

(EN/SERVICE/DCS)

137

TOP-MOUNT

REFRIGERATOR

Model No.

FRT21GC5J

Publication No: 5995525598 FRT21GC5J

10/08 2

DOOR

21A

18A

13A

21C

22 18A

21A

N05DBDCPA1

FRT21GC5J Publication No: 5995525598

# Functional Parts 3 10/08

* Non-Illustrated Parts

DOOR

Model Index: AFRT21GC5J (FRT21GC5JW0)

BFRT21GC5J (FRT21GC5JZ0)

POS. NO PART NO. DESCRIPTION

1 241872505 A B Gasket-frzr door, white, magnetic

2 # 241872513 A B Gasket, refr door seal, white, magnetic

4 240534901 A B Rack-door

4B 240534701 A B Rack-door, 4B

7 240337703 A B Door-dairy, w/o graphics, clear

8 240534801 A B Rack-door

10 240381301 A B Plug-button, white, hinge brg hole, (2)

11 241798401 A B Door-frzr, white, complete assy

12 241808601 A B Label-nameplate

13 240312403 A B Door Stop, white, ref

13A 240312404 A B Door Stop, white, frzr

14 240494001 A B Plug-button, white

15 241798501 A B Door-refr, white, complete assy

18A 218428101 A B Handle-door, white, w/block & screw

21 240383406 A B Screw, truss hd quad, #10-16 x .500, zinc

21A 240521303 A B Screw, #10-16 x 1/2

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B Bearing-hinge, natural color

73 218396700 A B Block-handle mtg, dovetail

74 215503203 A B Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995525598 FRT21GC5J

10/08 4

CABINET

FRT21GC5J Publication No: 5995525598

# Functional Parts 5 10/08

* Non-Illustrated Parts

CABINET

Model Index: AFRT21GC5J (FRT21GC5JW0)

BFRT21GC5J (FRT21GC5JZ0)

POS. NO PART NO. DESCRIPTION

1 240355402 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303212803 A B Nut

4 241523701 A B Damper-fan cover

5 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 240313612 A B Cover-evap coil, w/o light

10* 240568606 A B Seal-coil cover

11 5303208309 A B Plug-hole, factory test

12 241557601 A B Plug-ice maker harness, rectangular

12A 240374401 A B Plug-wtr inlet tube, round, 1"

12A* 241586701 A B Plug-foam-wtr-inlet, round

13 # 241854401 A B Motor-fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

14 5303292397 A B Bracket-motor mtg, rear

14* 240433204 A B Screw, hex washer head, 8-18 x 5/16

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 A B Plug-button, white, upr hinge holes

28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314011 A B Bracket-lower hinge, zinc

34 240311303 A B Washer, hinge, nylon, (2)

35 240313806 A B Bracket-ctr hinge, zinc

35A 240336802 A B Spacer-hinge, center

36 240516402 A B Pin-center hinge

37 240337608 A B Trim-cabinet corner, white, (2)

38 240313701 A B Bracket-upper hinge

40 240354401 A B Cover-upper hinge, white

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B Screw, hex head, 1/4-20 x 5/8

43 240335006 A B Roller Assy, front, (2)

56 240516502 A B Pin-lower hinge

58 5304456287 A B Screw, hex washer head, 8-15A x 0.500

59 240442706 A B Screw-#10-32 X 3/4, zinc

72 241839405 A B Grille/Kickplate, white

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 A B Cover-access, with label

89* 241500303 A B Screw, hex washer head, 8-18AB x 0.500

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 A B Plug, button, cab liner holes

* 5303321319 A B Paint, touch-up, white

Publication No: 5995525598 FRT21GC5J

10/08 6

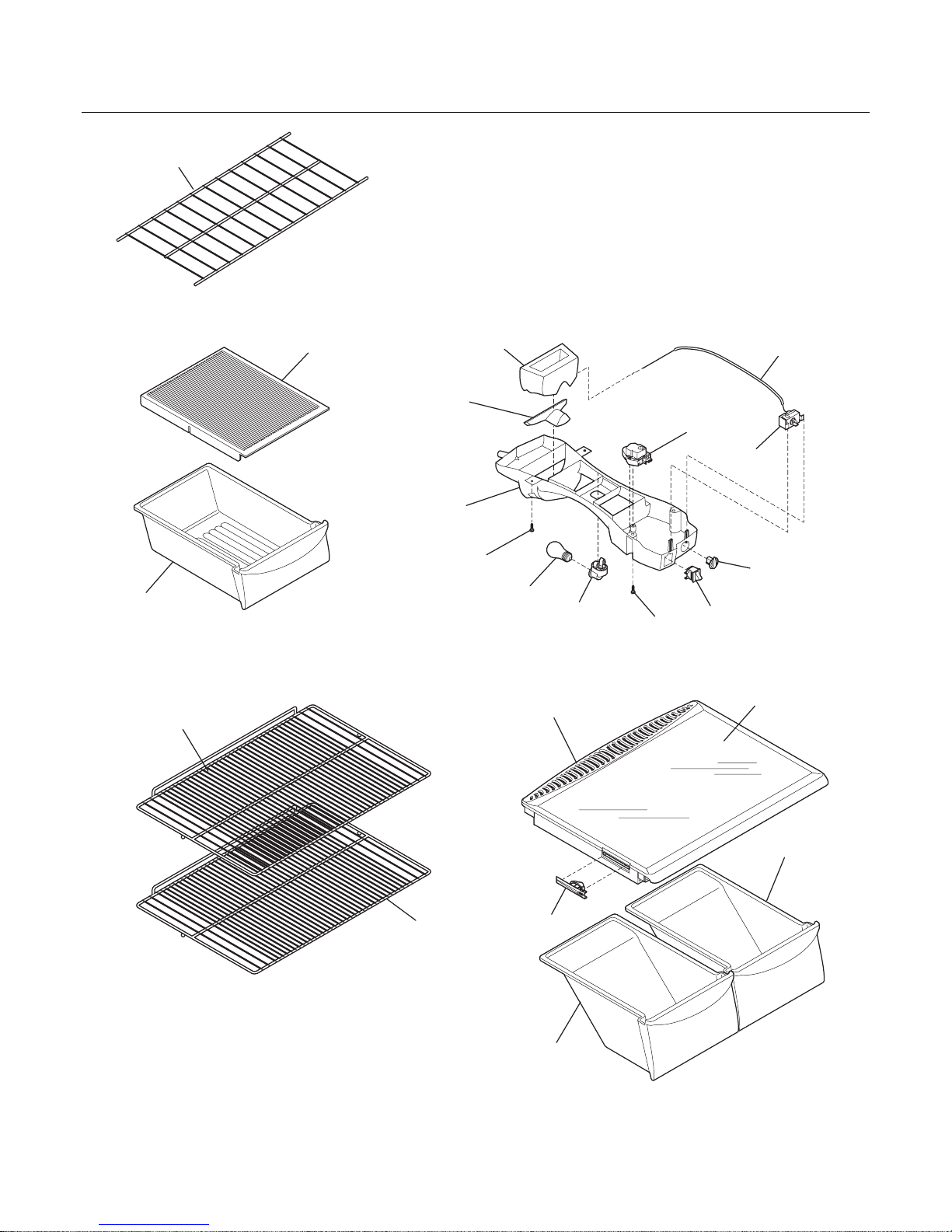

SHELVES

N05SADAEA13

22A

25C

FRT21GC5J Publication No: 5995525598

# Functional Parts 7 10/08

* Non-Illustrated Parts

SHELVES

Model Index: AFRT21GC5J (FRT21GC5JW0)

BFRT21GC5J (FRT21GC5JZ0)

POS. NO PART NO. DESCRIPTION

11 240358006 A B Shelf, freezer, full-width, wire

12 240545901 A B Diffuser-air, top

13 240362601 A B Diffuser, air, bottom

14# 241554901 A B Switch-light/lamp

15 241555401 A B Light Bulb

16 241559801 A B Socket-light

17 240368102 A B Control Box

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304445058 A B Control-temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 A B Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5304455649 A B Screw, pan hd, 6-20 x 0.438

24 240360904 A B Shelf, sliding, wire

25 240364717 A B Cover-crisper pan

25C 241613502 A B Control-humidity, LH

26 240343803 A B Pan, crisper, (2)

30 240361801 A B Cover, meat pan hanger, drop through

31 240530803 A B Pan-meat, w/o graphics, clear

47 240350609 A B Insert-pan cover, glass

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

* 241935545 A B Energy Guide

Publication No: 5995525598 FRT21GC5J

10/08 8

SYSTEM

59B

59A

59A 58

N05CAAAAC9

FRT21GC5J Publication No: 5995525598

# Functional Parts 9 10/08

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT21GC5J (FRT21GC5JW0)

BFRT21GC5J (FRT21GC5JZ0)

POS. NO PART NO. DESCRIPTION

1 241965001 A B Condenser, dynamic

4 # 218944001 A B Drier-filter, R134a System

6 # 241607001 A B Harness-wiring, machine compt

6* # 240388701 A B Wiring Harness, control box

14 # 241940103 A B Heater-defrost

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241801301 A B Trough-drain

20 241551902 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241602010 A B Base-compressor

22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22* 218709101 A B Screw, hex head, 10-32 x 0.500

23 241659701 A B Grommet, compressor

25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 241637401 A B Pan-defrost

29 # 5303918359 A B Compressor, w/o electricals

30 # 241707701 A B Starter, PTC

32 241650901 A B Clamp, elec cont mtg, compressor

34 240405201 A B Grommet, rubber, black, cond tube/wire

41 240555002 A B Screw-#8-32 X 3/8

44 215174700 A B Clamp-service cord, strain relief, galv steel

45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad

57 240542601 A B Clip-wiring harness

58 240433203 A B Screw, hex washer head, 8-18 x 3/8

59 240315502 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal, shroud

59* 240359403 A B Screw-fan shroud, (2)

59A 240346501 A B Bracket-support, cond mtr, (3)

59B 240346601 A B Grommet-bracket, (3)

60 241584301 A B Motor-condenser fan

61 241639501 A B Blade-condenser fan

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 241844801 A B Tube-connector, suction

86 240409302 A B Spacer-cond tube, black

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* # 5303918330 A B Heat Exchanger Kit, suction line, service

* # 5304421289 A B Hot Tube Repair Kit, service

Publication No: 5995525598 FRT21GC5J

10/08 10

WIRING SCHEMATIC
