Frigidaire PLGF390D Manual de usuario

PLGF390DC.eps T24G0015.eps T24B0007.eps T24V0030.eps T24T0031.eps

T24D0013.eps 316417806d.eps 316417806s.eps

Product No. PLGF390DCA

Series 30" f/s gas

Color stainless

Market North America

Wiring Diagram 316417806

Owner's Guide 316417103

Installation Instructions 316259336

Service Data Sheet 316417610

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995420816

04/11/03

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

PLGF390D

Publication No: 5995420816 PLGF390DCA

11/04 2

BACKGUARD

PLGF390DCA Publication No: 5995420816

# Functional Parts 3 11/04

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

2 316051600 Shield, backguard, inner

2A 316235100 Shield, top, inner

13A 316095500 Switch, infinite, warmer

14 316022500 Light/Lamp, indicator, 125 V

15 316411405 Support, backguard, black, RH

15A 316411404 Support, backguard, black, LH

19 316424129 Panel, control, stainless

20 # 316418701 Clock/Timer, electronic, ES510

20A 316419700 Overlay, clock, black, w/mini oven, ES510

31 316223002 Knob, control, black

36 316220002 Knob, top valve, black, (4)

40 316249005 Panel, manifold, stainless steel

42 316416200 Trim, extrusion, black

46 316040201 Lens, indicator light, red

56 316230701 Shield, backguard, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995420816 PLGF390DCA

11/04 4

BURNER

PLGF390DCA Publication No: 5995420816

# Functional Parts 5 11/04

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 316219501 Pipe, manifold

2 # 5303935233 Valve, 17K burner, w/mtg screw

2A # 5303935235 Valve, 5K burner, w/mtg screw

2B # 5303935232 Valve, 9.5k/12k burner, w/mtg screw

2C # 5303935234 Valve, 9.5K burner, w/mtg screw

* 316215600 Screw, valve mtg., 1/4 - 20

3 # 316219006 Wiring Harness, w/igntr switch

8 318079001 Module, spark

10 # 316223300 Burner, sealed, 17K

10A# 316206400 Burner, sealed, 5K

10B# 316212300 Burner, sealed, 12K

10C# 316212400 Burner, sealed, 9.5K

11 # 316430500 Ignitor/orifice assy., top burner, right front, 16K, w/holder, tube

11A# 316430800 Ignitor/orifice assy., top burner, right rear, 5K, w/holder, tube

11B# 316430401 Ignitor/orifice assy., top burner, left rear, 12K, w/holder, tube

11C# 316430600 Ignitor/orifice assy., top burner, left front, 9.5K, w/holder, tube

11D# 316430700 Ignitor/orifice assy., top burner, center, 9.5K, w/holder, tube

13 # 316405300 Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 Regulator, pressure

14* 316021104 Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 Bracket, regulator

16 # 316405500 Tube, valve to regul., 3/8

17 # 316404900 Valve, safety

17* 08068018 Shield, wire, safety valve

18 # 316404400 Burner, oven

19 # 316428500 Ignitor, oven burner

20 316401401 Baffle, oven burner

21 5303013272 Nut, hex head sems

22 # 316405400 Tube, valve to mixer

23 # 316404300 Burner, broiler

24 # 316409700 Elbow, mixer

25 316401301 Baffle, broil burner

26 # 316428600 Ignitor, burner

26* 316401500 Cover, broil Ignitor

37 316240600 Screw, assy mtg, ignitor/orifice

44 316237912 Orifice, top burner, 16K

44A 316237903 Orifice, top burner, 5K

44B 316237901 Orifice, top burner, 12K

44C 316237902 Orifice, top burner, 9.5K

47 GRLP2 LP Conversion Kit, w/instructions

47* 316248105 Instructions, LP kit

* # 316253702 Wiring Harness, ignitor module

* 316064103 Wire, ground assembly

* 316001003 Screw, ground wire

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

Publication No: 5995420816 PLGF390DCA

11/04 6

BODY

PLGF390DCA Publication No: 5995420816

# Functional Parts 7 11/04

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401600 Back, main

2 316402201 Shield, oven top

2* 316437100 Brace, oven top

3 316400104 Panel, bodyside, black, RH

3 316400105 Panel, bodyside, black, LH

4 316201403 Burner Box

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407200 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404501 Rack, oven

6A 318219500 Rack, broiler pan

8 316400603 Panel, oven bottom

9 316081900 Pan, broiler

10 316082000 Insert, broiler pan

12 # 316407100 Switch, oven light/door

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, oven light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

30 316217700 Bracket, hinge, RH, main top

30A 316217701 Bracket, hinge, LH, main top

33 316402500 Shield, rear wall

35 316116600 Gasket, flue

36 316208901 Flue

37 # 316217001 Probe, oven temp

39 # 3131425 Cord, electric power

40 316409600 Shield, warmer drawer, upper

41 316409200 Shiled, warmer, RH

41A 316409201 Shield, warmer, LH

42 316400703 Shield, wool, lower

43 3131732 Screw, 8-18 x 1.438, oven bottom

44 316246501 Spacer, oven door

49 316234200 Clip, maintop mtg, (2)

54 316404200 Shield, heat

55 316404800 Shield, flue

58A 316403700 Insulation, oven wrapper

58B 316403600 Insulation, oven back

58G 08067973 Insulation, main front

77 316415100 Glide, warmer drawer, outer/RH & LH, (2)

82 316400801 Shield, bake burner

82* 316432800 Clip, wire

86 316407000 Receptacle, hinge

86* 316418901 Screw, trilobe, 10-32 x 5/16"

87 316401200 Bracket, harness

88 316232700 Rod, auto latch

89 # 316415401 Motor, latch/lock

90 316401100 Shield, main front

91 316401000 Shield, front, burner

106 316404100 Bracket, motor mtg.

107 316026701 Cover, fan

Publication No: 5995420816 PLGF390DCA

11/04 8

BODY

PLGF390DCA Publication No: 5995420816

# Functional Parts 9 11/04

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

108# 316415700 Motor, convection

109 316136400 Blade, fan

110 316136500 Washer, fan motor

111 316136600 Nut, fan retainer

151 316404600 Shield, bodyside

161# 316211603 Element, convection fan, 350 W

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

264 316404700 Bracket, air dam

* 316416605 Harness, wiring, main

* 5303305345 Paint, touch-up, black

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316021132 Screw, 8-18 X 11/16, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995420816 PLGF390DCA

11/04 10

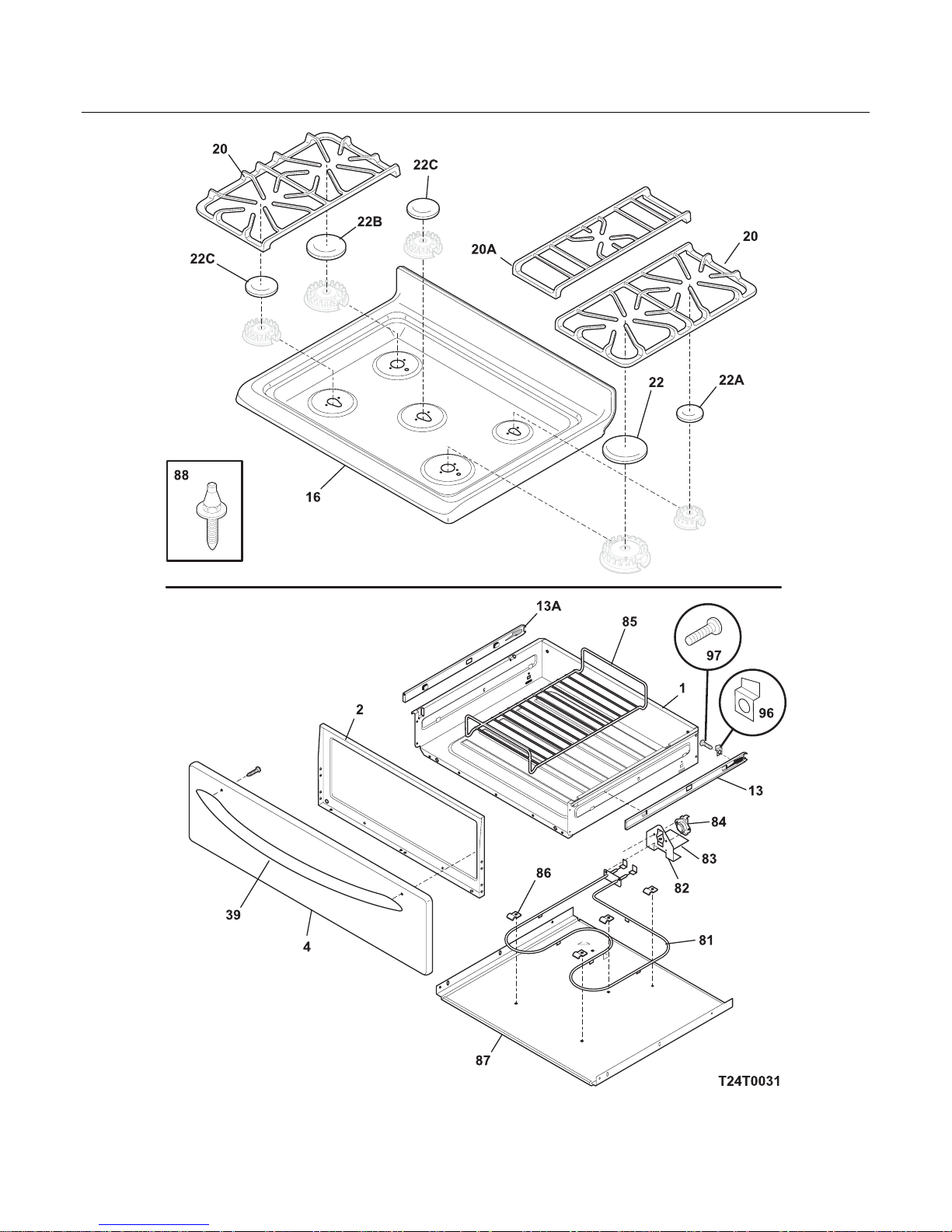

TOP/DRAWER
